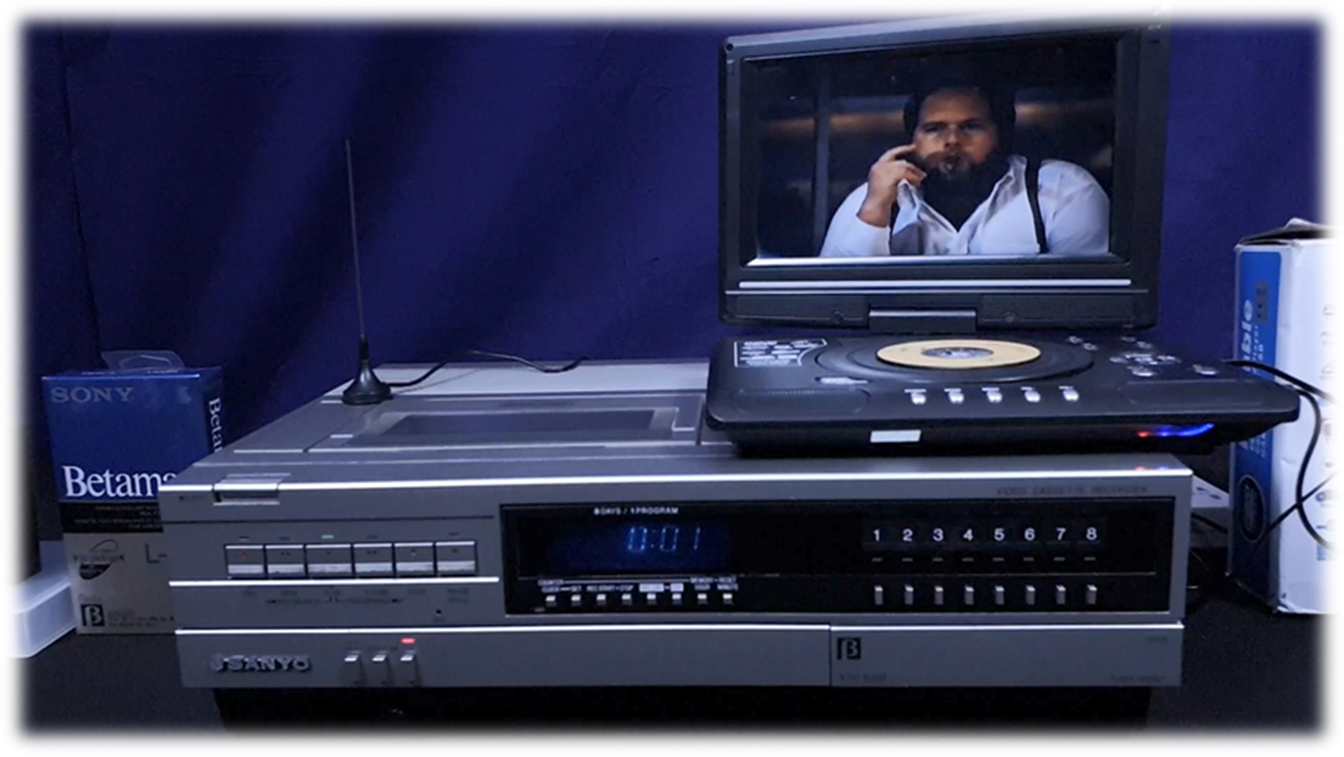

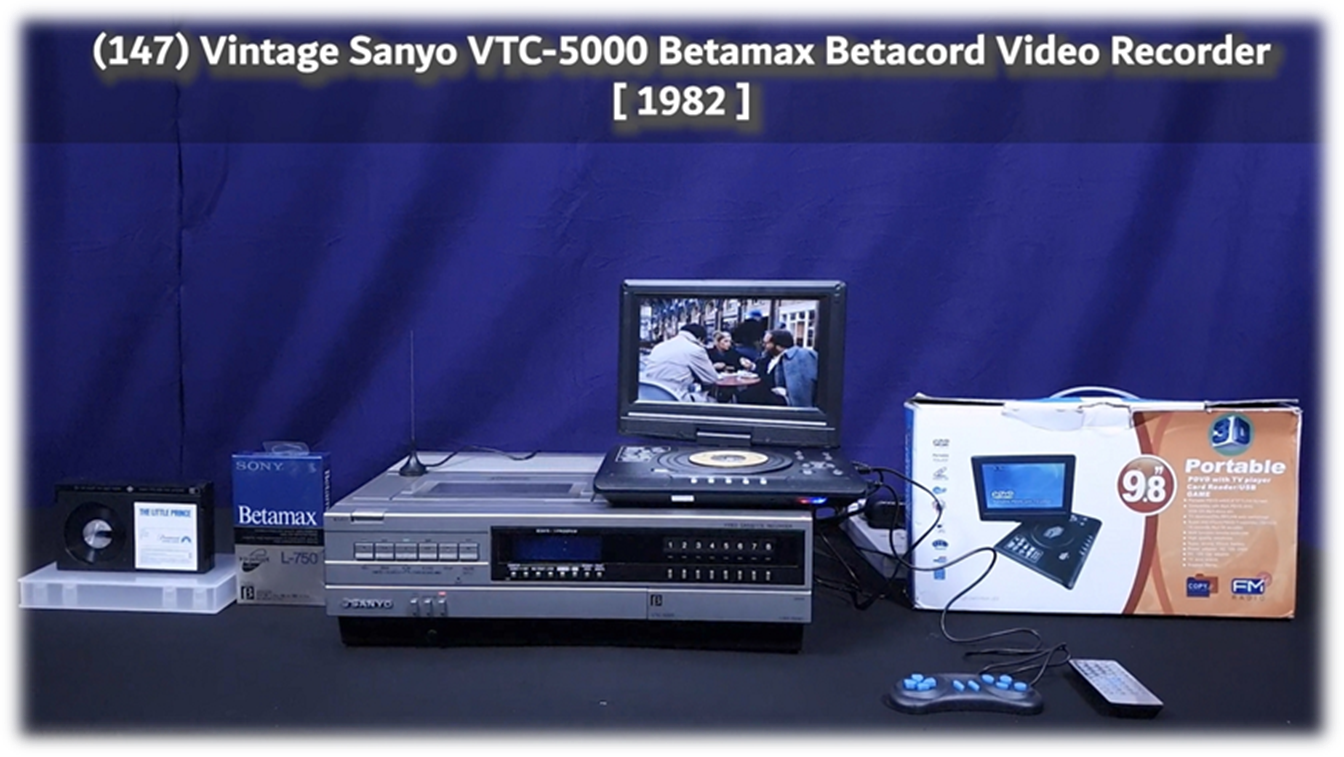

(147) Vintage Sanyo VTC-5000 Betamax Betacord Video Recorder
[ 1982 ]



Specification:

DESCRIPTION

·       Video recording system: Rotary two-head helical scanning

·       Video Signal: CCIR standards, PAL color

·       Aerial input: 75-ohm, asymmetrical aerial socket

·       RF output signal: UHF channels E30-E39, 75 ohms

·       Video Horizontal resolution: 270 lines, B/W:300 lines

·       Tape speed: 18.73 mm/sec.

·       Tape Maximum recording time: 2 hours 10 min. (with L-500 cassette), 3 hours 15 min. (with L-750)

·       Tape Fast forward/rewind time: Within 6 mins. (with L-750)

·       Tape Loading time: Within 4 sec.

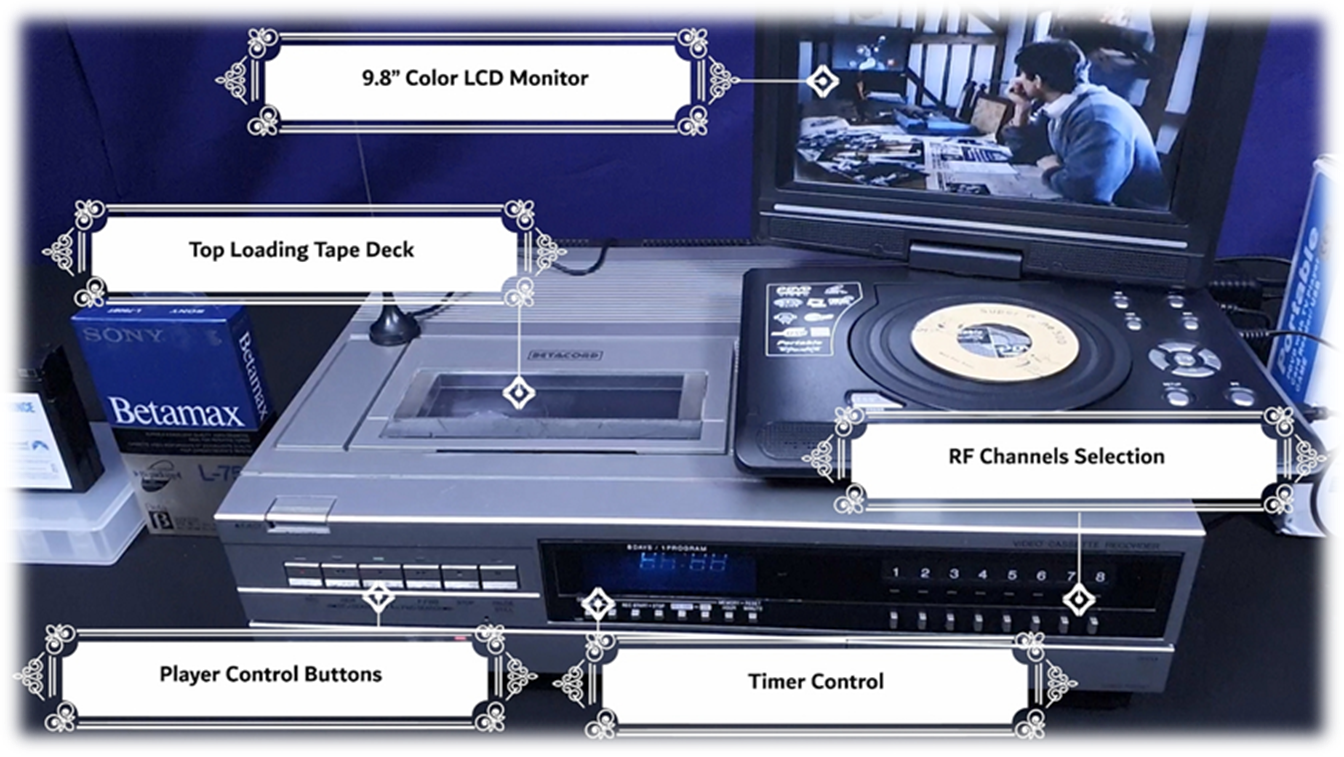

DISPLAY/TV

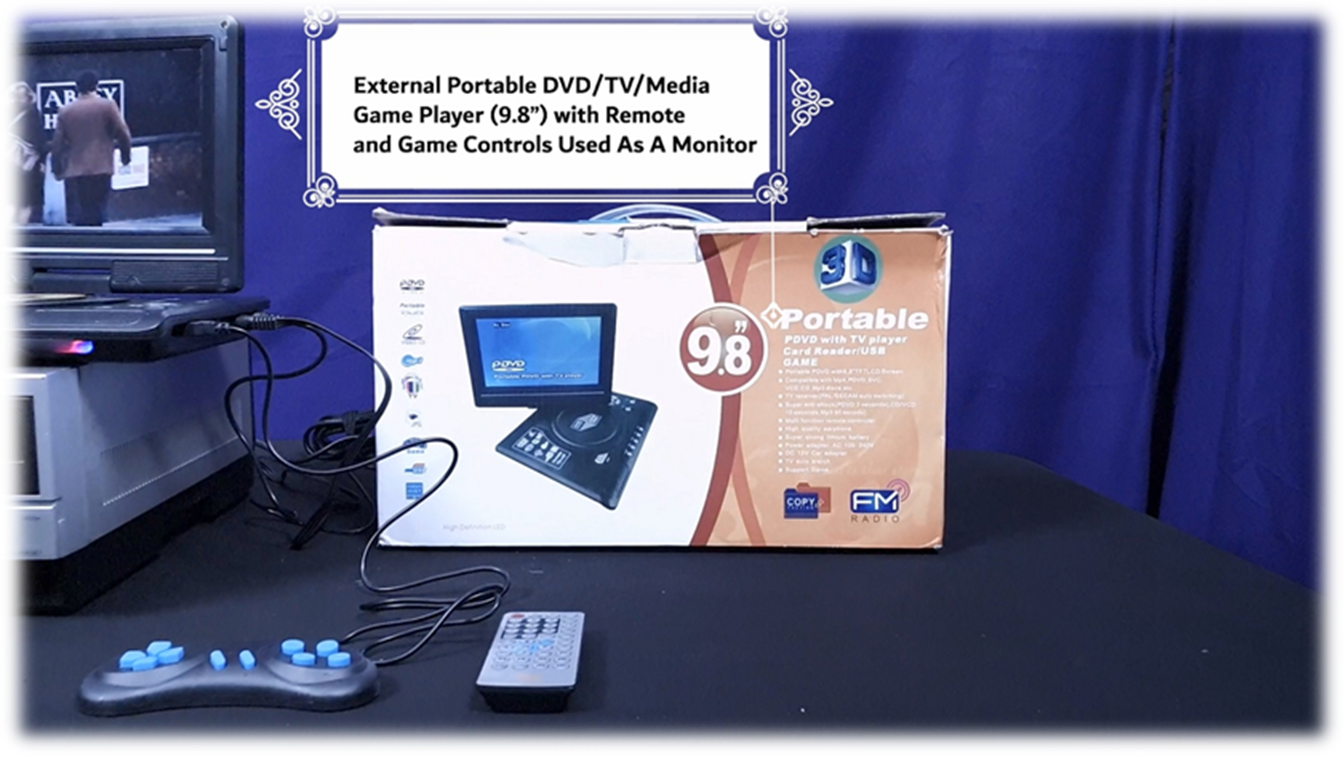

External Portable DVD/TV/Media/Game Player (9.8”)

I/O PORTS

·       BNC Video IN/OUT Connector

·       Phono Jack Audio IN/OUT

·       Front Mounted Audio and Video Input Jacks for Games, Camcorder Input

·       Antenna IN/OUT Sockets

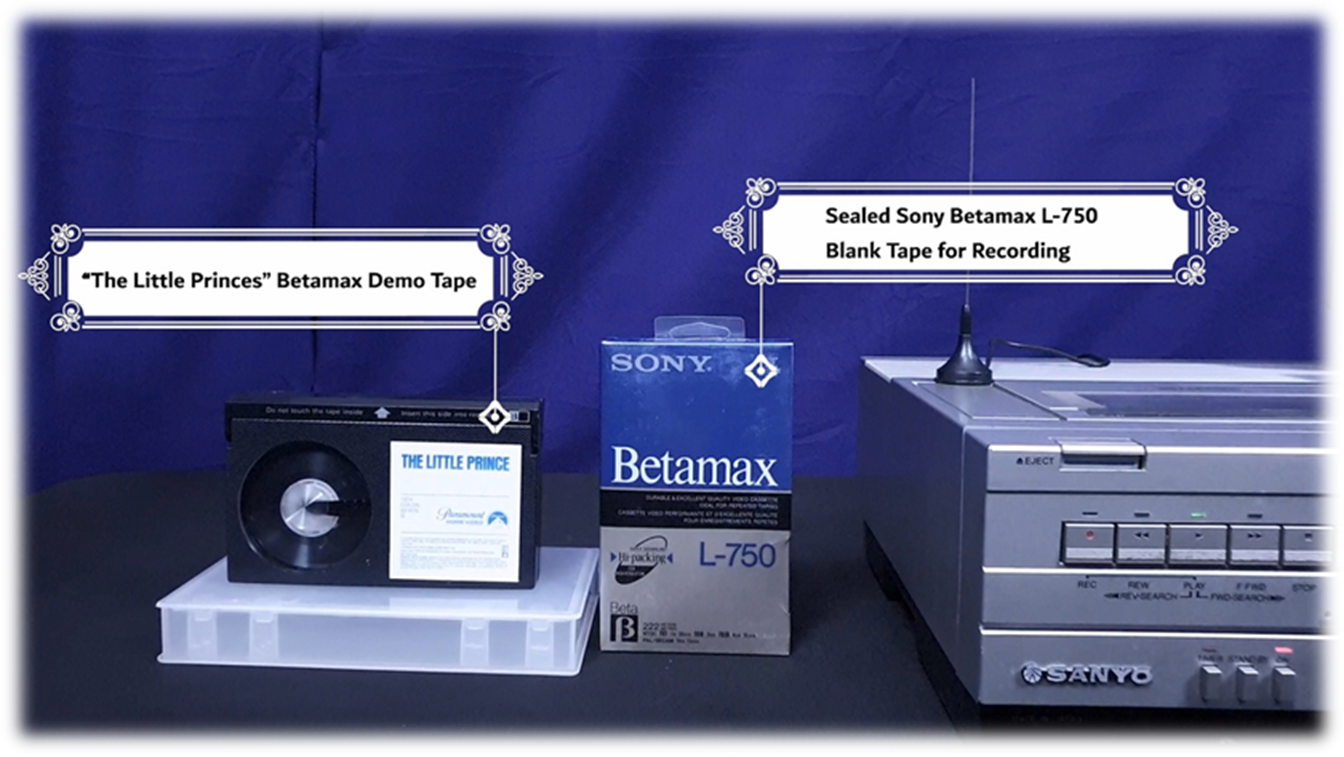

ACCESSORIES & DOCUMENTS

·       Betamax testing tape (The Little Prince)

·       SONY Betamax empty Tapes L-750BT (New Sealed)

POWER SUPPLY

·       System: 240V Only (Internal PSU)
Plug Types: TYPE G, UK, 3 Thick Flat Pins

·       LCD/DVD Player: 100-240V Auto-Switch (External Power Adapter)
Plug Types: TYPE G, UK, 3 Thick Flat Pins

SPECIAL INSTRUCTIONS
