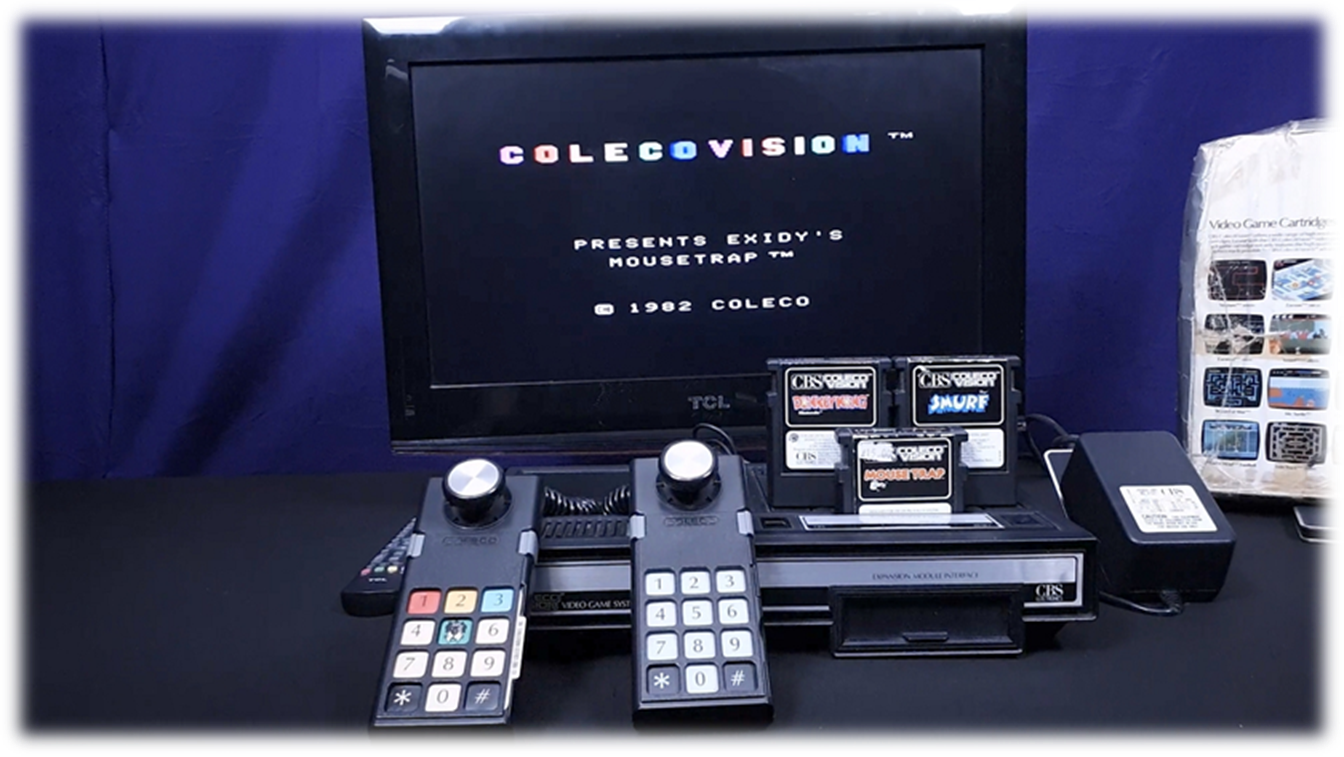

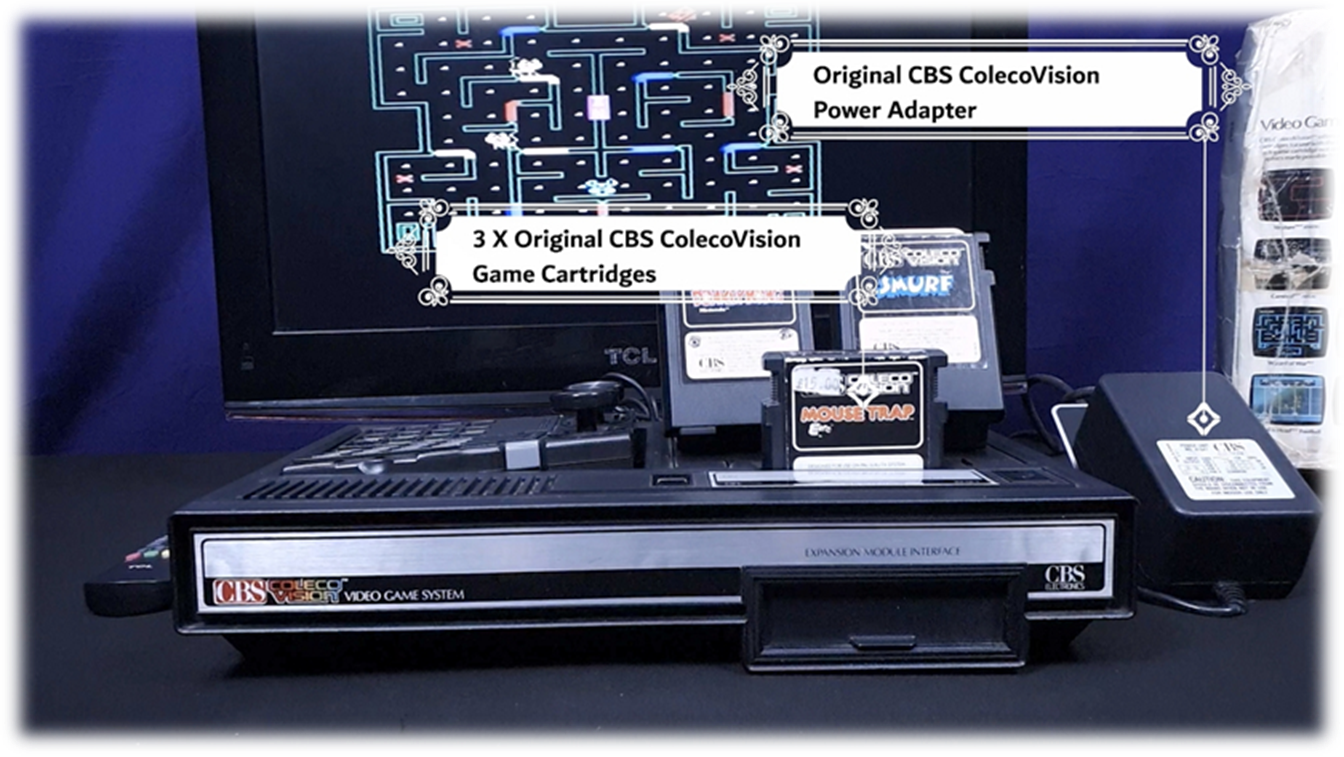

(110) Vintage ColecoVision CBS Game Console
[ 1982 ]



Specification:

CPU

Zilog Z80 @ 3.58 MHz

RAM

1 KB scratchpad RAM, 16 KB video RAM, 8 KB ROM

DISPLAY/TV

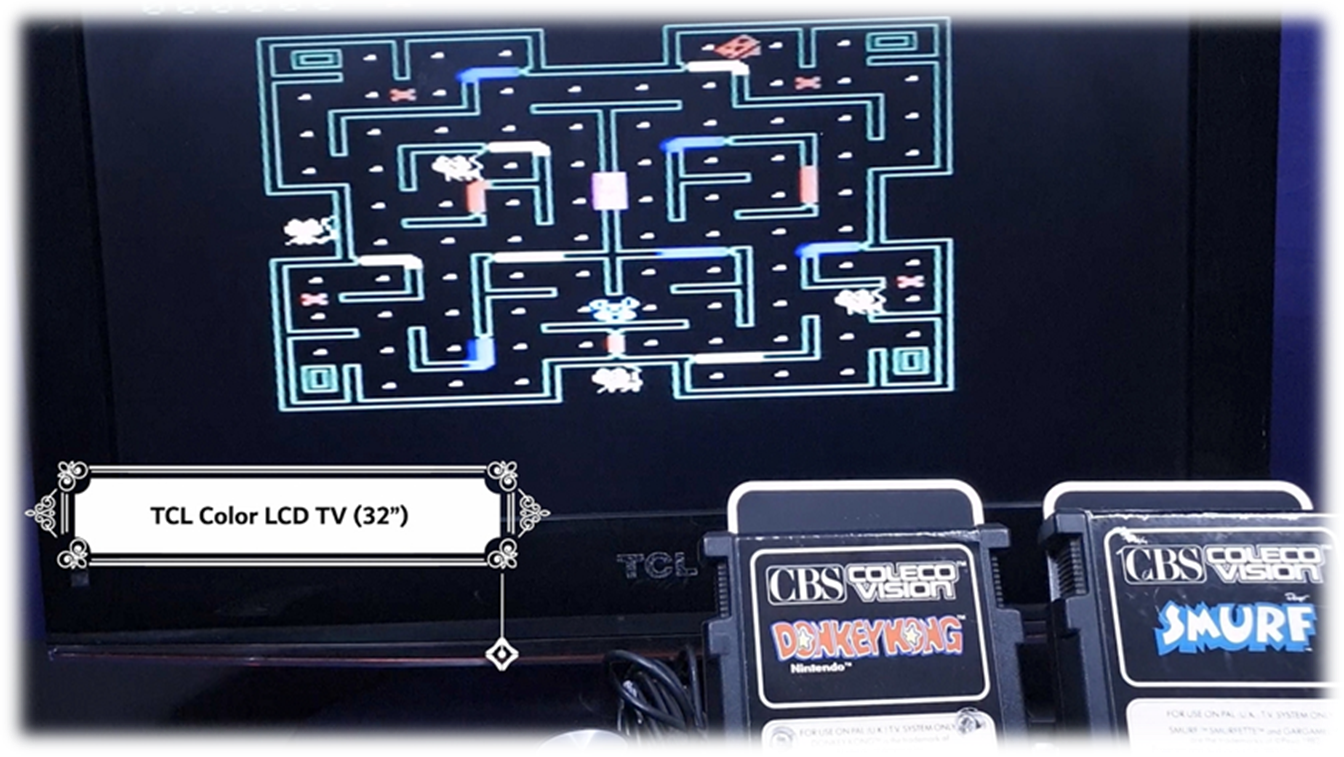

External TCL Color LCD TV (32")

·       TI TMS9928A (NTSC) Video Display Controller (VDC)

·       Graphics: 256 × 192 (NTSC) @ 16 color palette

·       Text: 36 Chars X 24 Lines

MEDIA

ROM Cartridges (8 KB, 16 KB, or 32 KB)

I/O PORTS

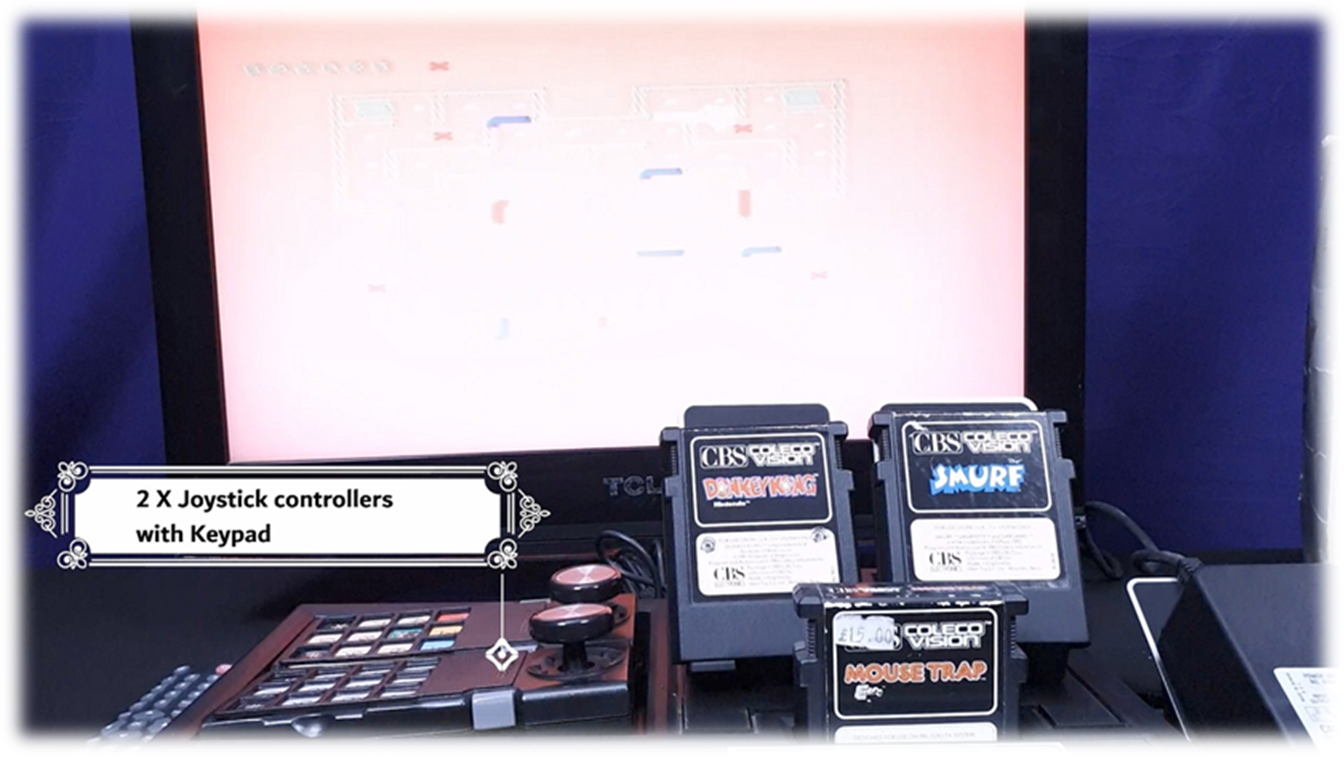

·       Built-in 2 X Joystick controllers with Keypad

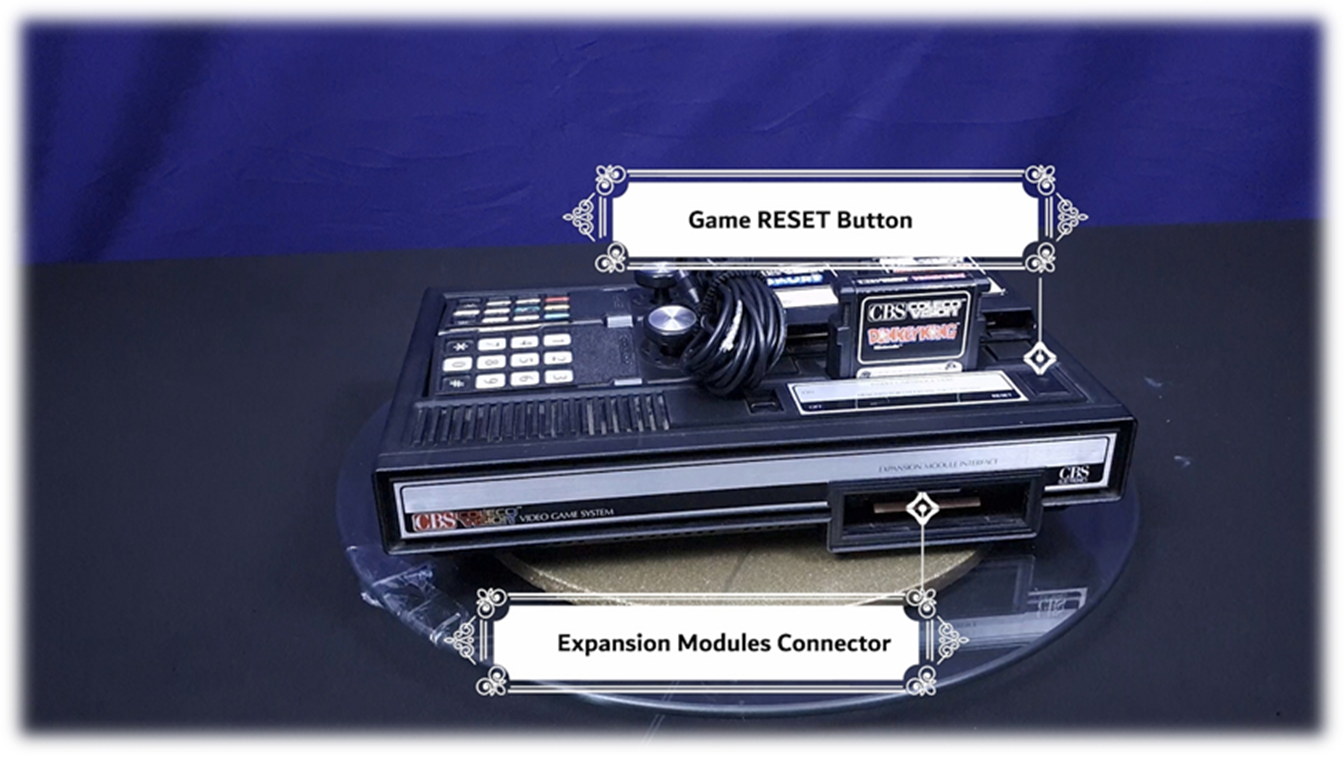

·       Expansion Interface for Optional:

·       Atari 2600 expansion

·       Driving controller

·       Adam computer expansion

·       Roller Controller

·       Super Action Controller

·       RF Audio/Video connector

ACCESSORIES & DOCUMENTS

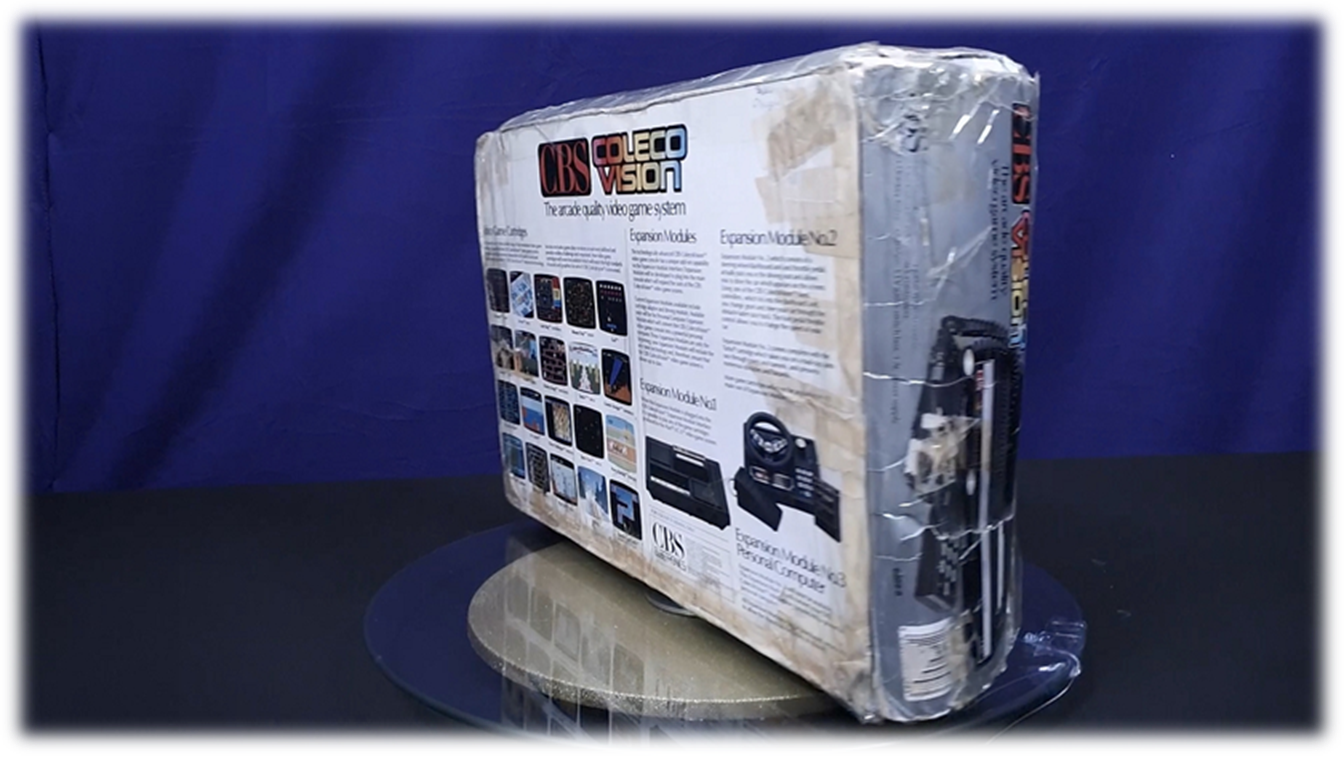

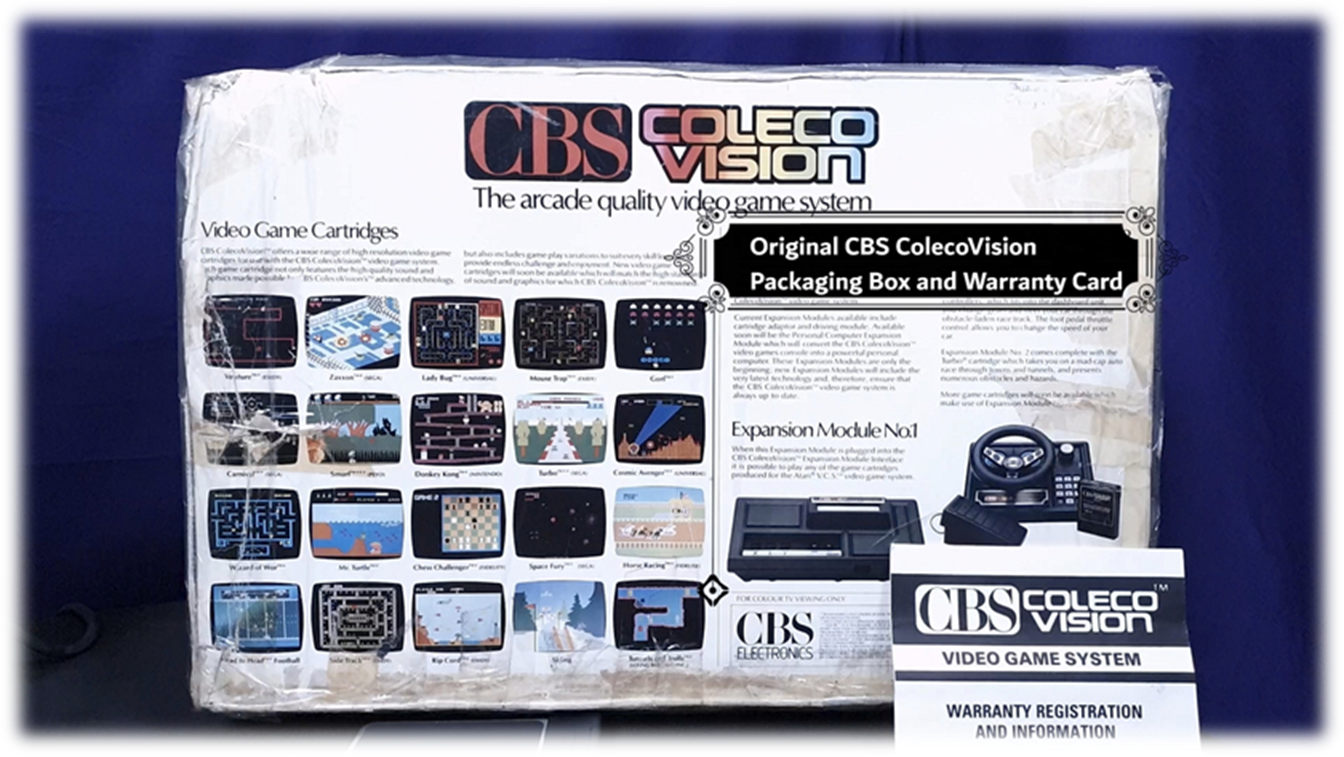

·       Original Packaging Box

·       Original Power Adapter

·       Game Cartridges Bundle:

·       Original Standard Donkey Kong Game

·       Original SMURF Game

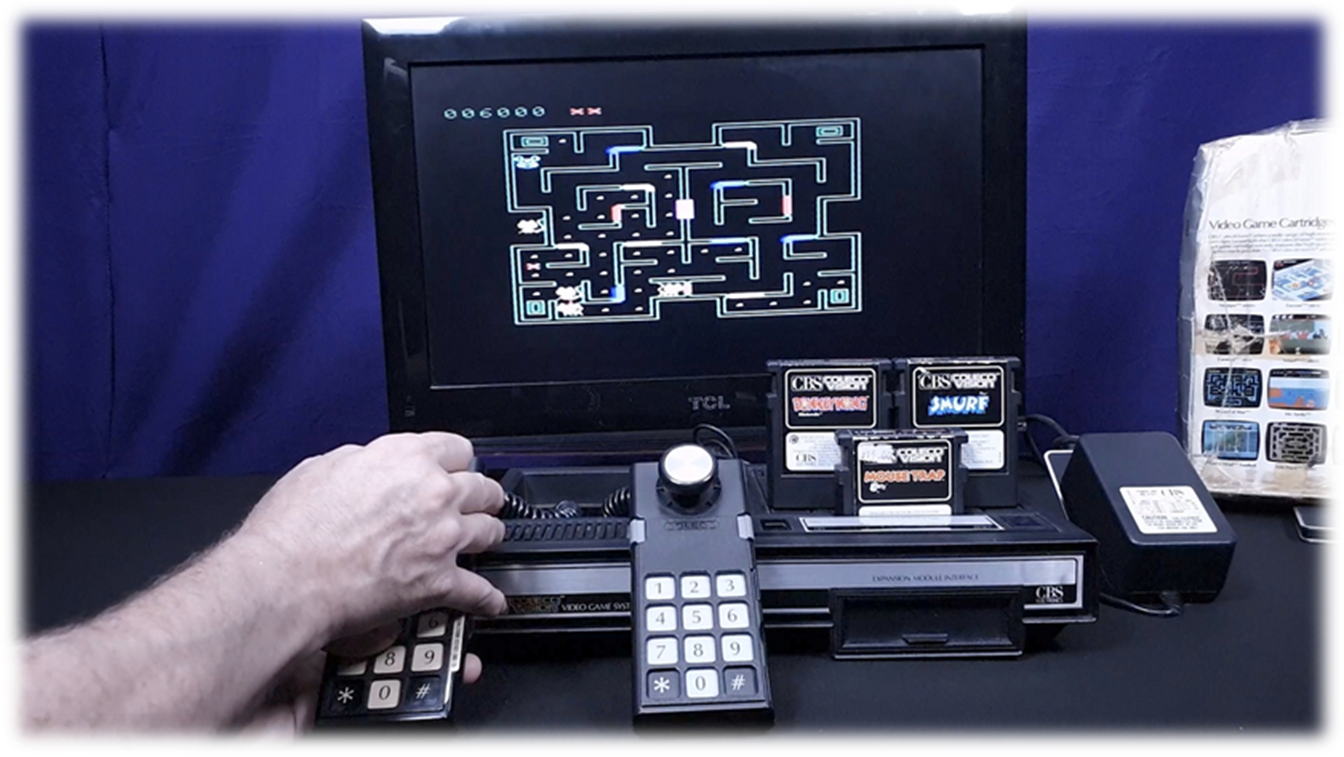

·       Original MOUSE TRAP Game

POWER SUPPLY

·       Console: 240V Only (External Power Adapter)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       TV: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins
