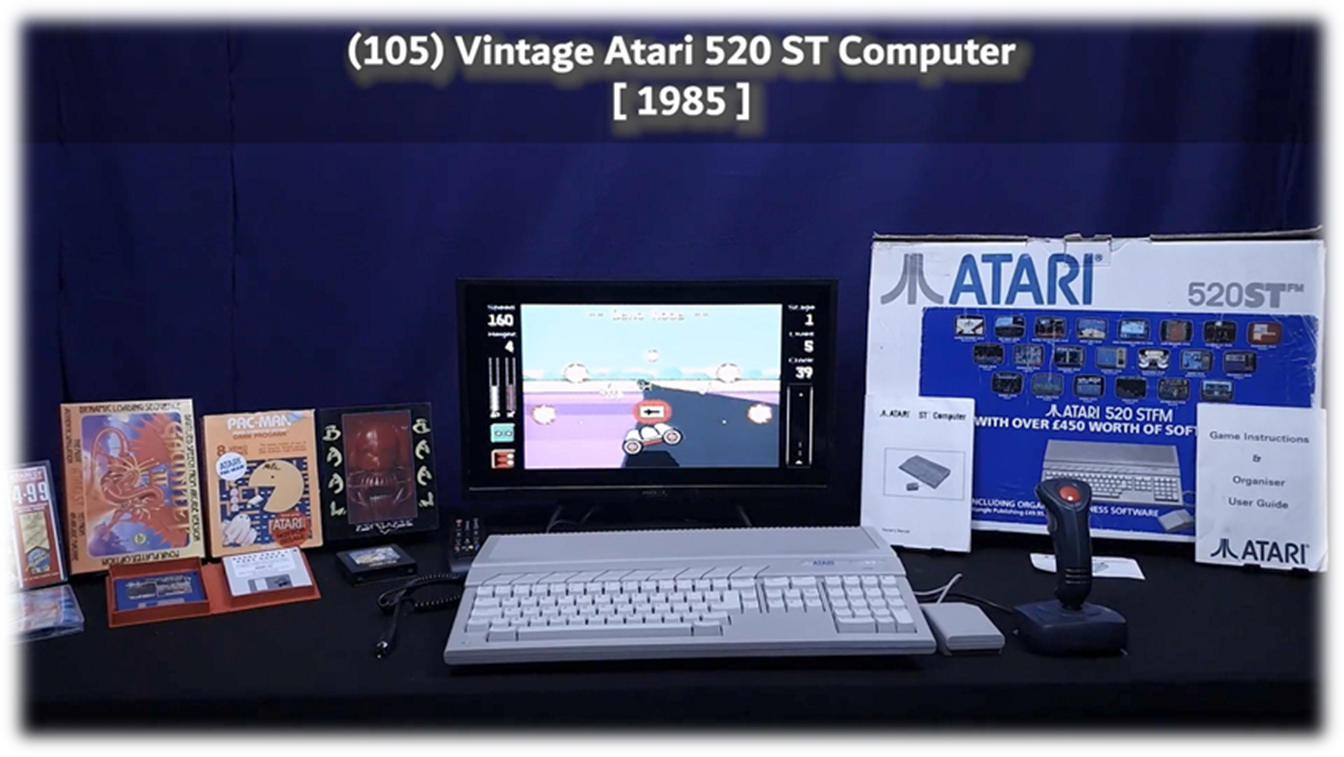

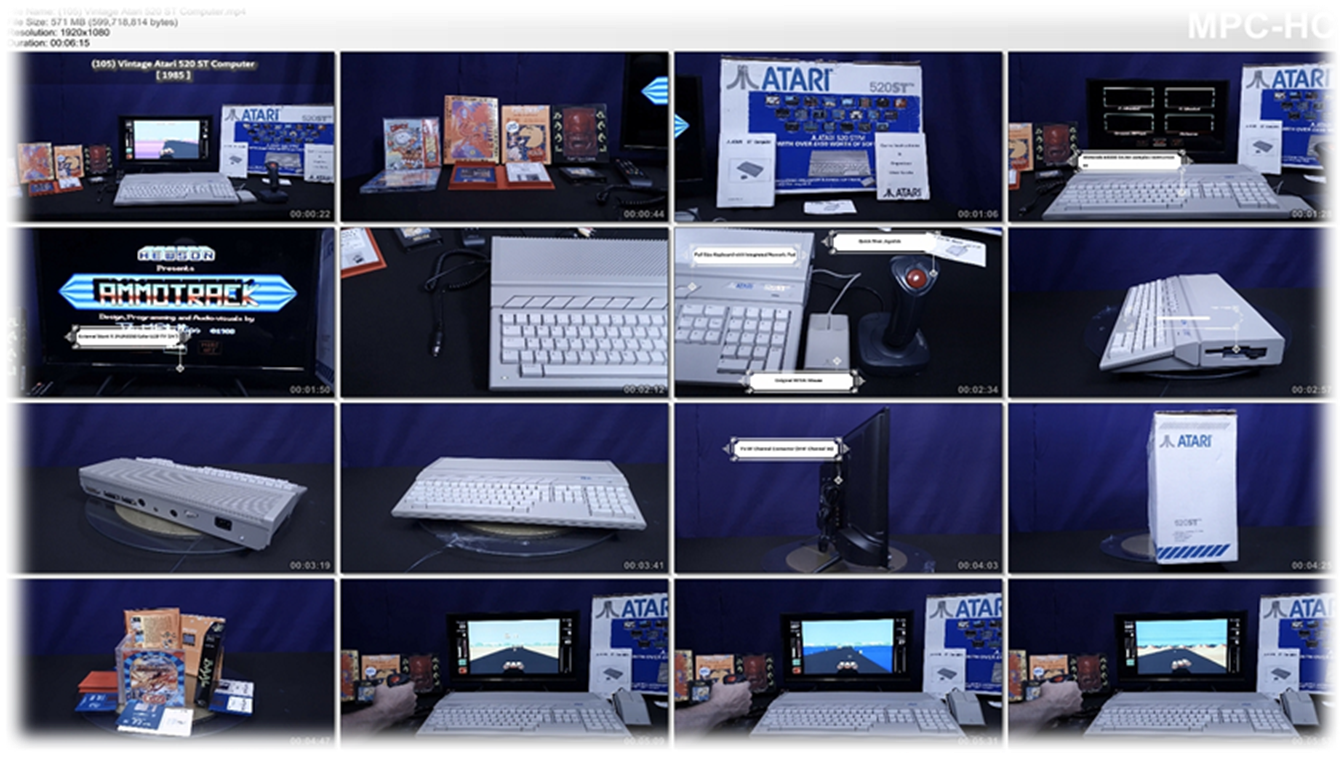

(105) Vintage Atari 520 ST Computer
[ 1985 ]



Specification:

CPU

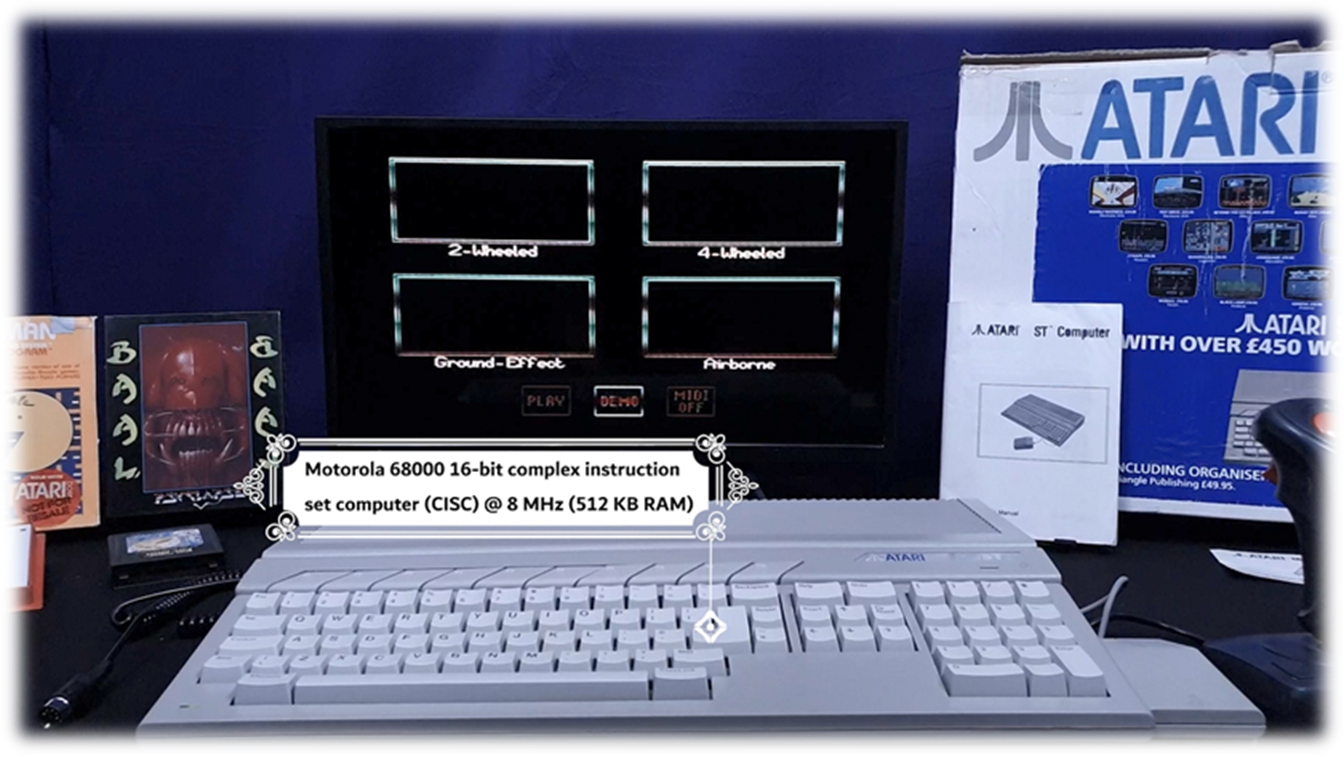

Motorola 68000 16-bit complex instruction set computer (CISC) @ 8 MHz

RAM

512 KB

DISPLAY/TV

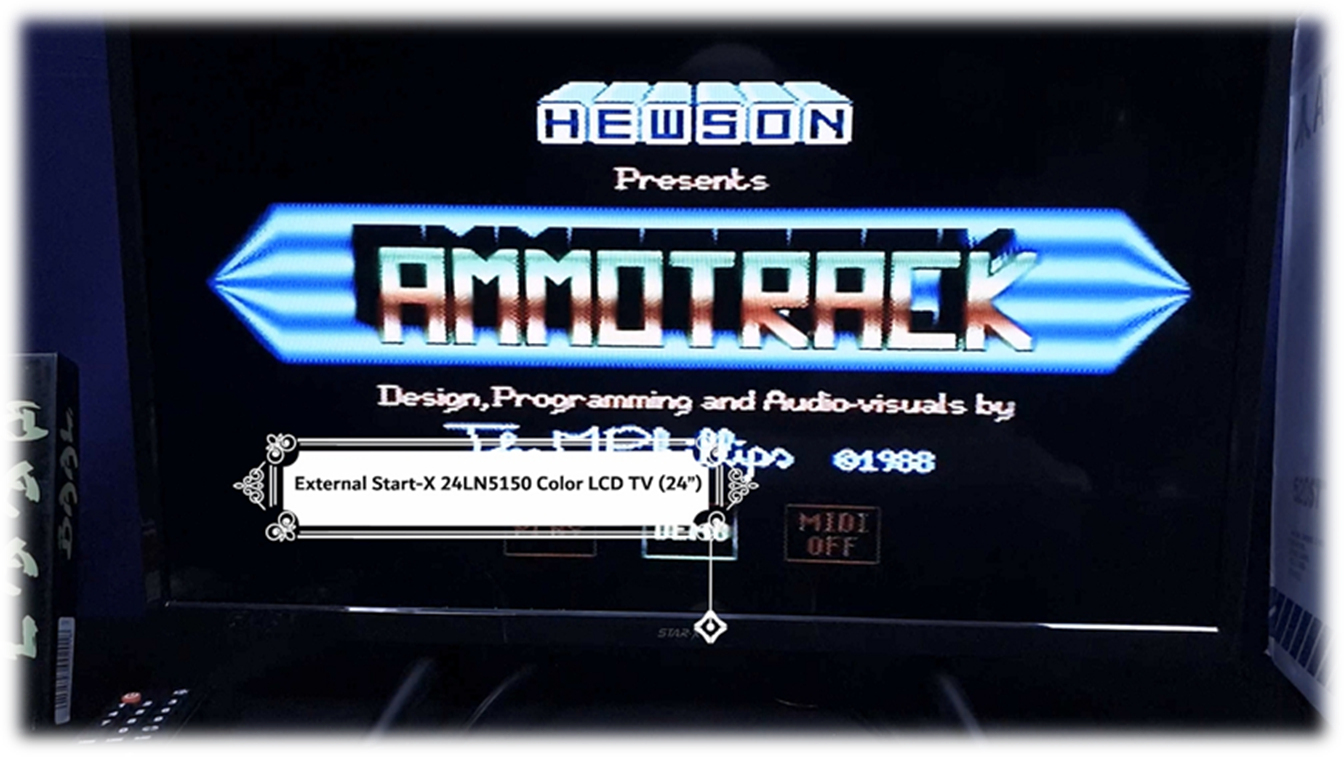

External Start-X 24LN5150 Color LCD TV (24")

·       Graphics: 320 × 200 @ 16 colors / 640 × 200 @ 4 colors / 640 × 400 @ monochrome

OS

Digital Research's GEM on Atari TOS

MEDIA

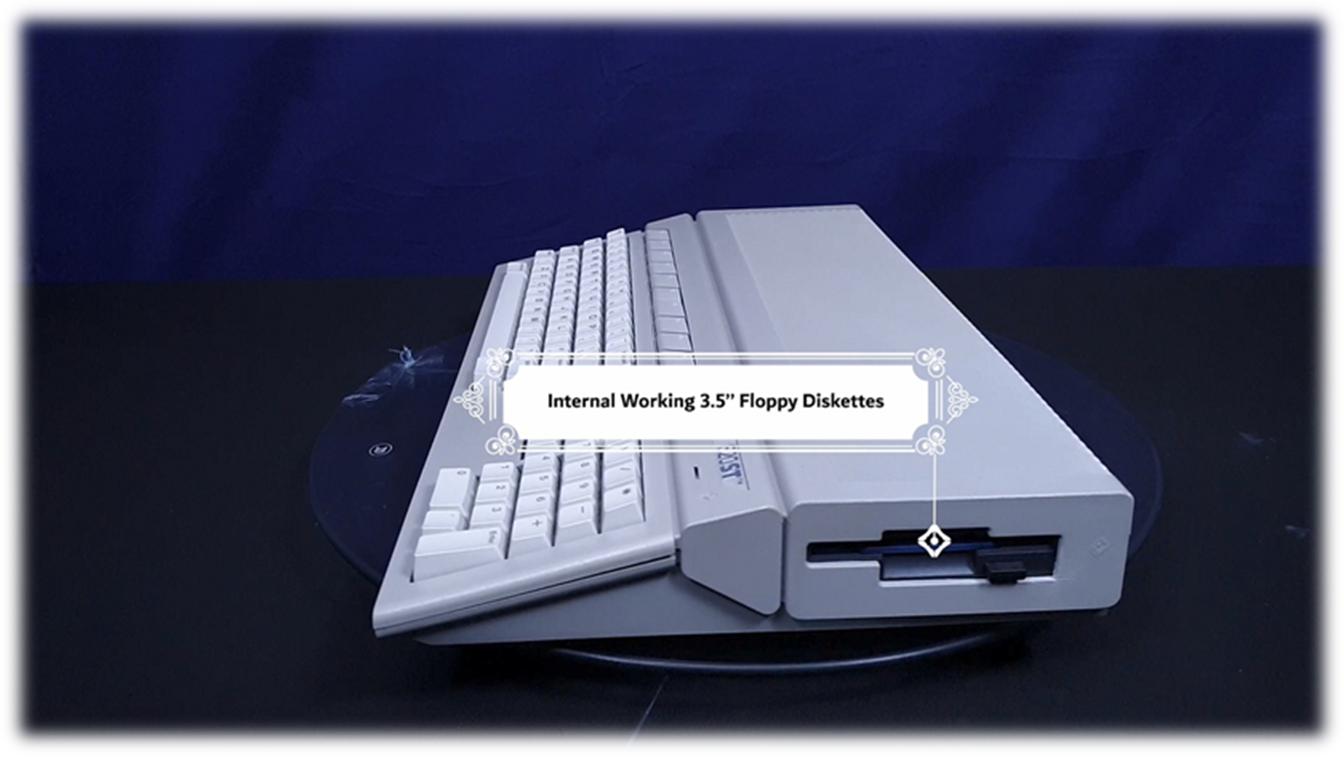

·       3.5'' Floppy Diskettes

·       ROM Cartridges

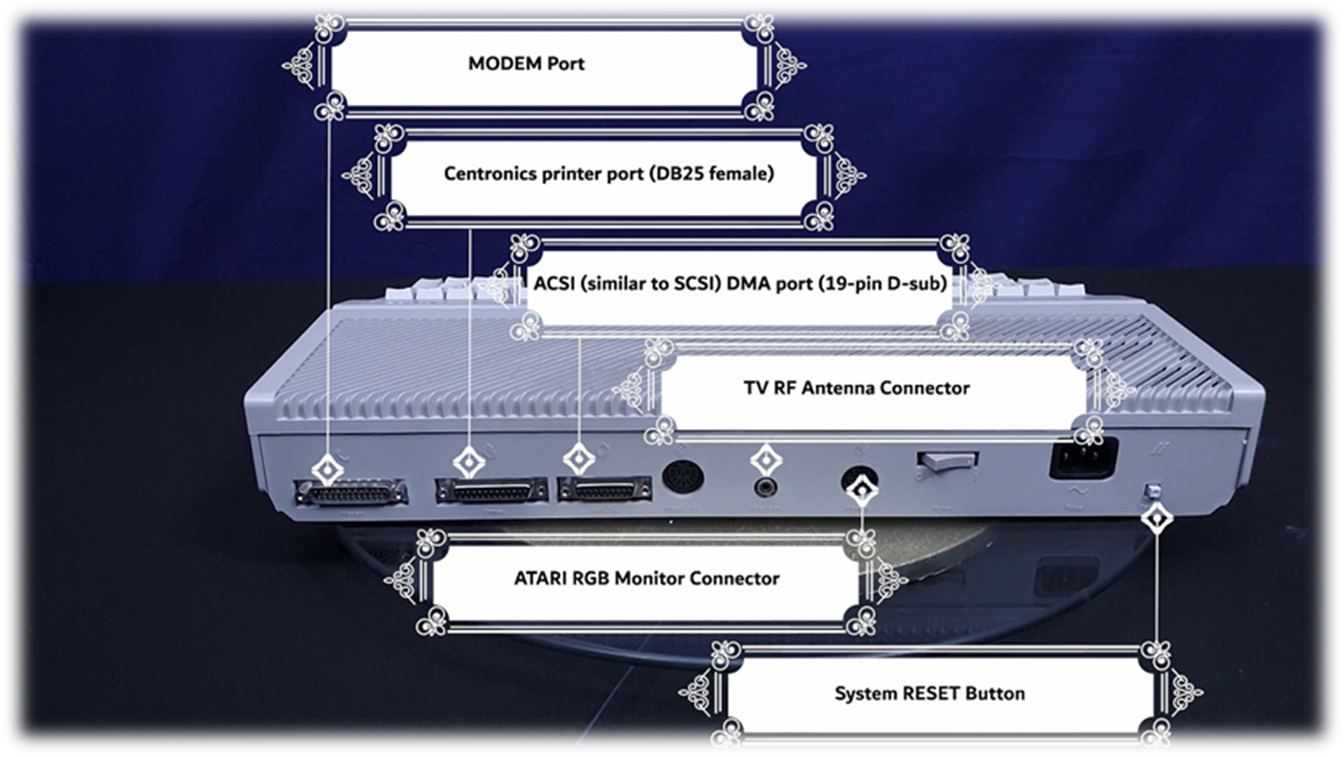

I/O PORTS

·       RS-232c serial port (DB25 male)

·       Centronics printer port (DB25 female)

·       Atari joystick/mouse ports (DE-9 male)

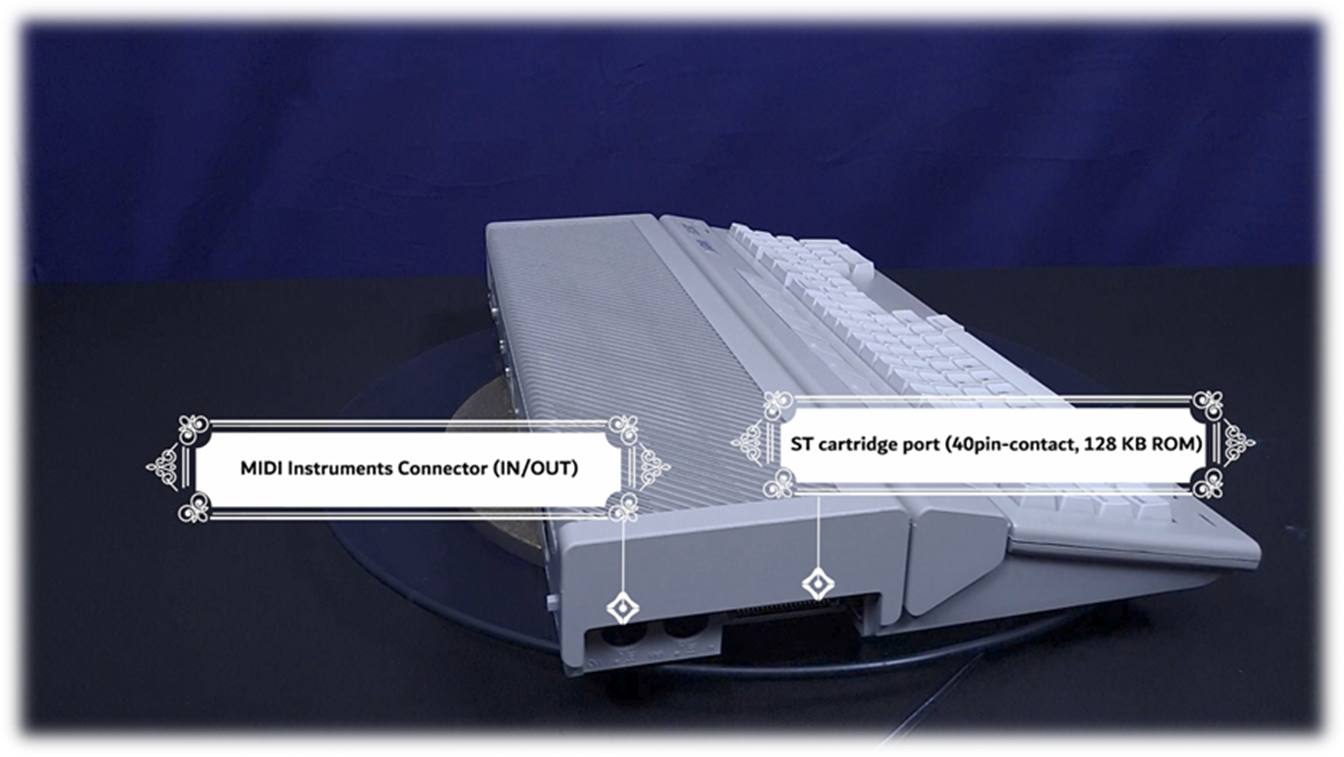

·       2 MIDI ports (5-pin DIN, "IN" and "OUT")

·       Monitor port (custom 13-pin DIN)

·       ACSI (similar to SCSI) DMA port (19-pin D-sub)

·       Floppy port (14-pin DIN)

·       ST cartridge port (40-contact, 128 KB ROM)

ACCESSORIES & DOCUMENTS

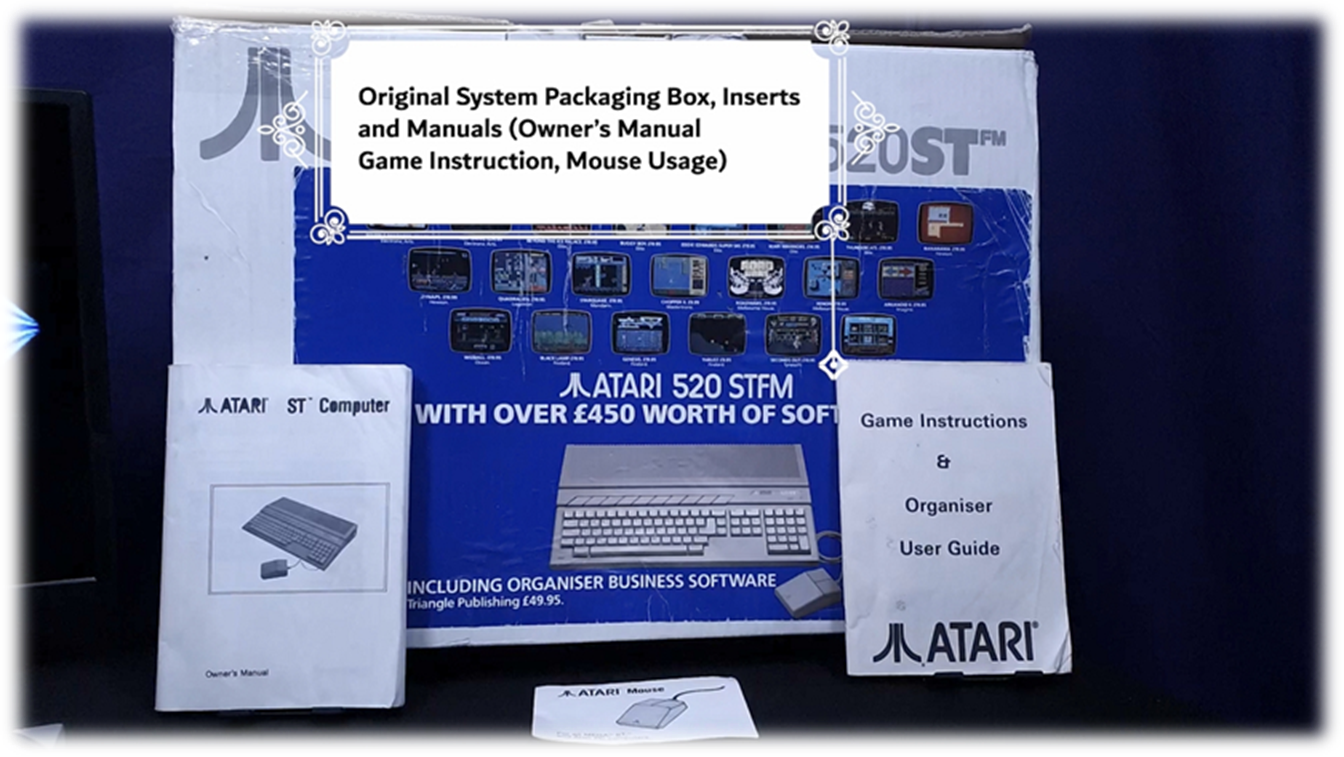

·       Original Packaging Box, Inserts, and Manuals

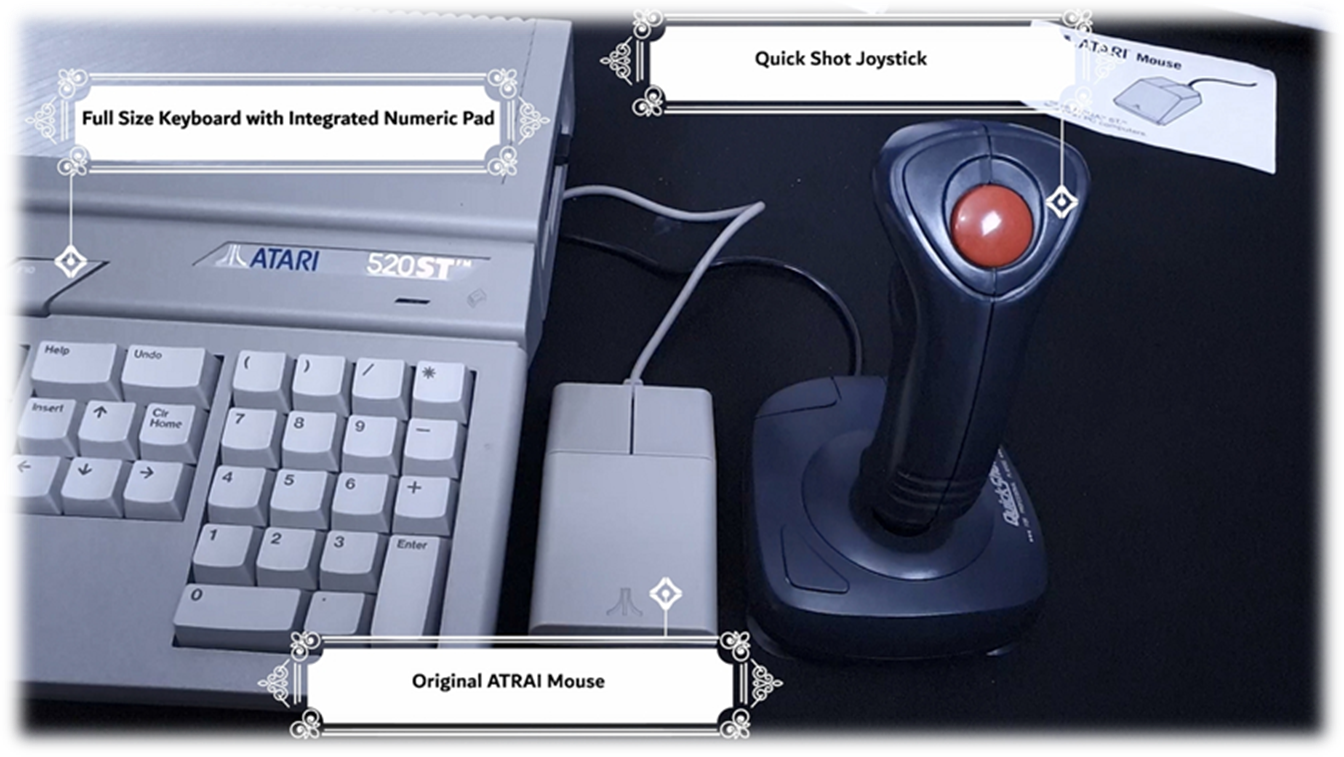

·       Original Mouse

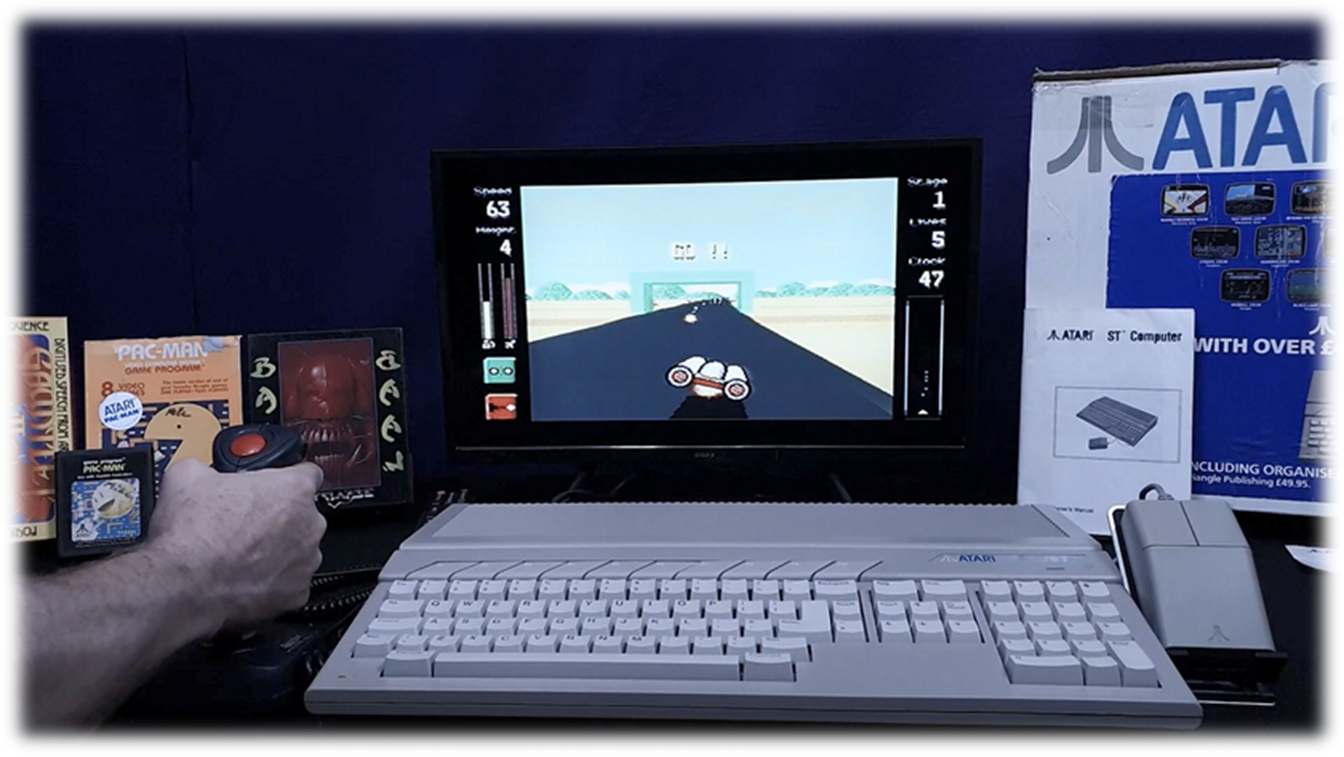

·       Quick Shot Joystick

·       Original Game Diskettes Bundle with box and manuals:

·       PAC-MAN Cartridge, Treasure Island Dizzy, Dungeons & Dragons Heroes of the Lance, Gauntlet 2, Baal and The Seven Gates of Jambala

POWER SUPPLY

·       Computer: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       TV: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins
