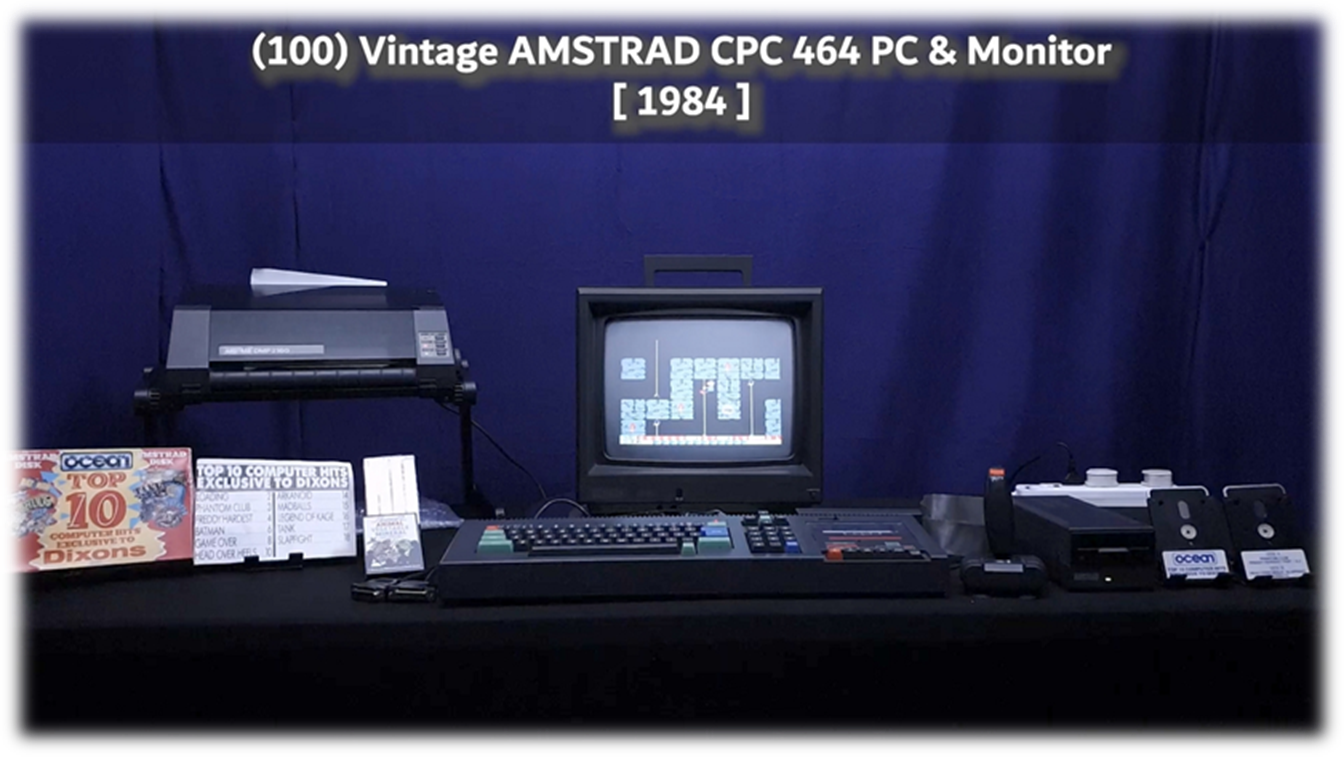

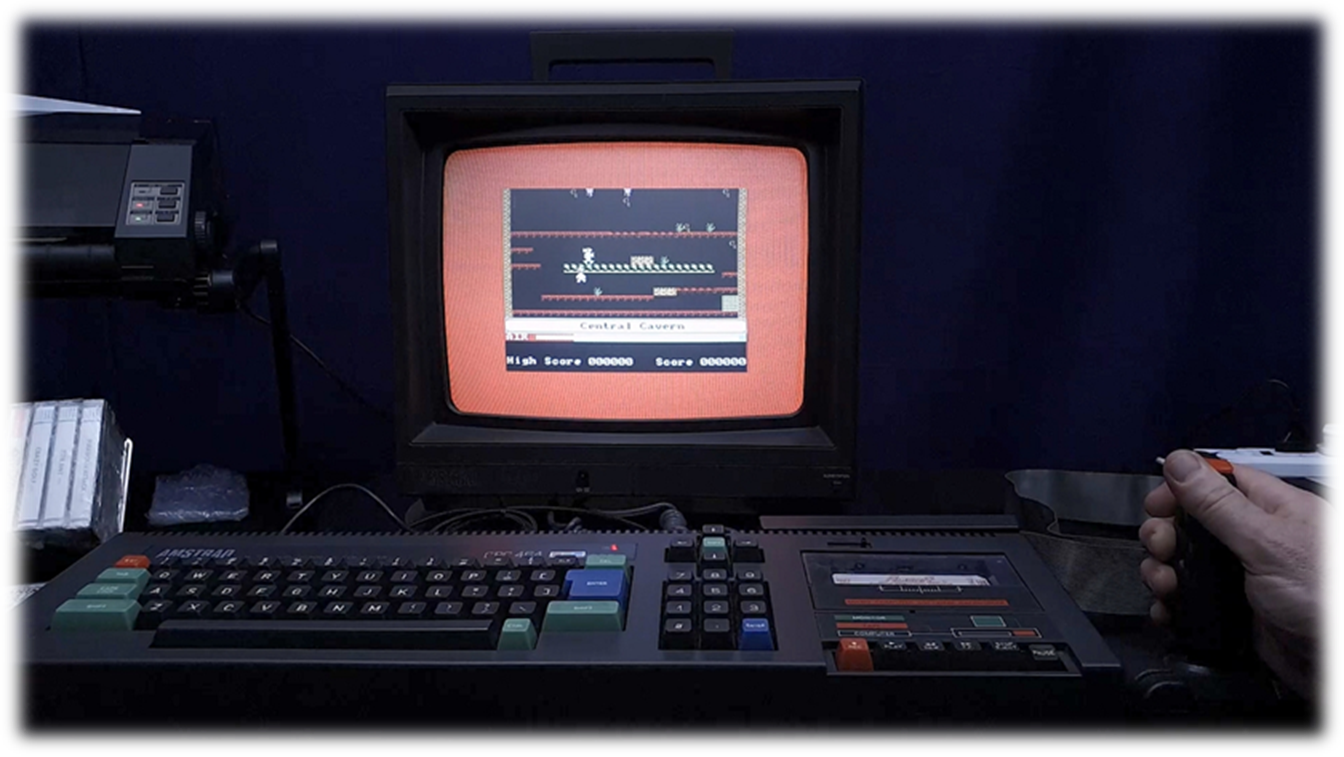

(100) Vintage AMSTRAD CPC 464 PC & Monitor
[ 1984 ]



Specification:

CPU

Zilog Z80 @ 4 MHz

RAM

64 KB RAM, 32 KB ROM, 16 KB VRAM

DISPLAY/TV

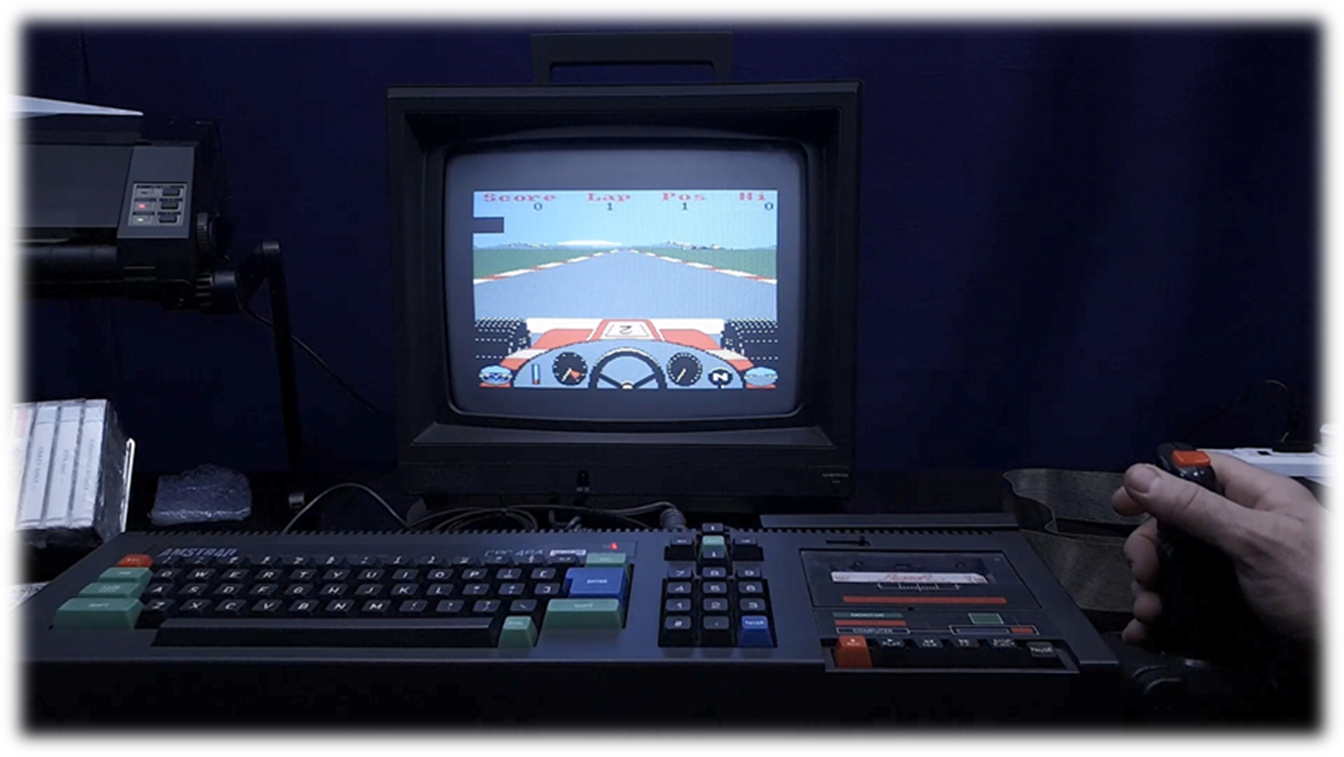

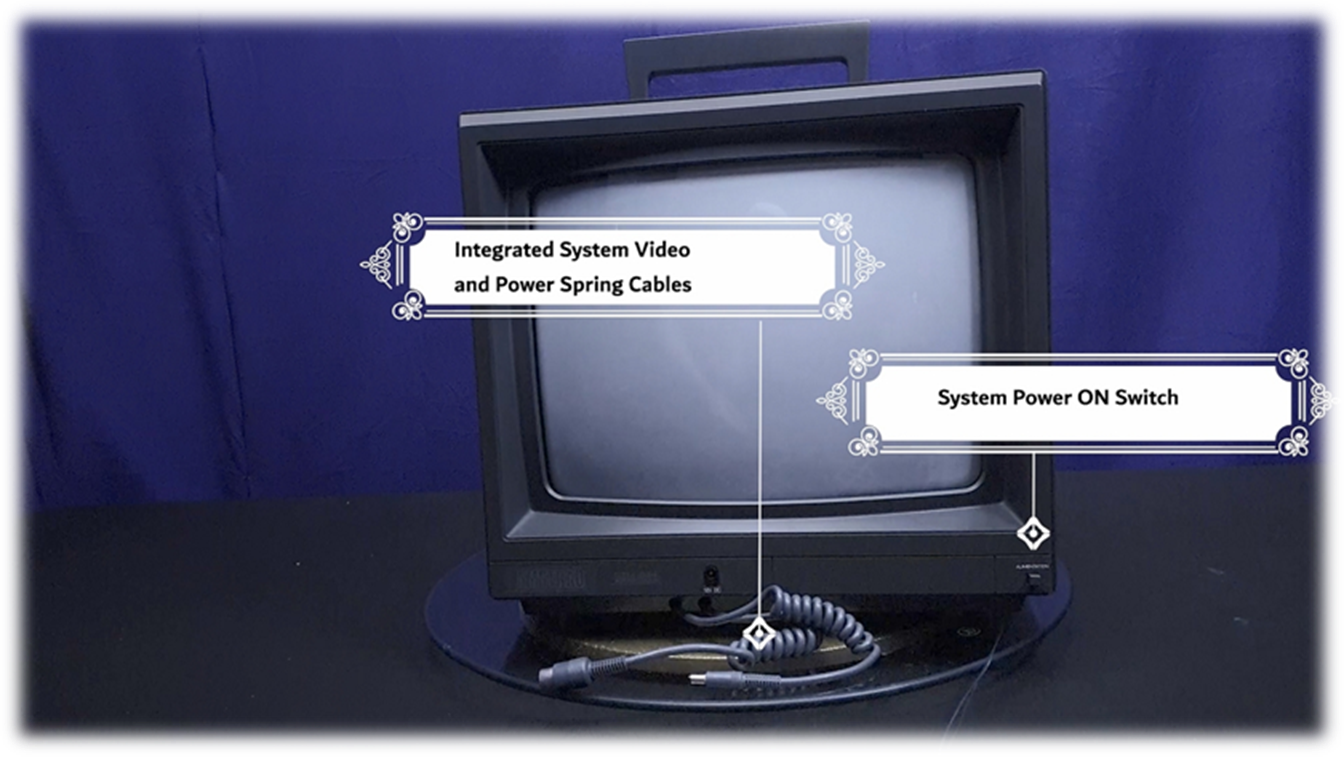

Original Amstrad CTM644Color TV Monitor (12")

·       Graphics: Motorola 6845
(160×200 @ 16 colors / 320×200 @ 4 colors / 640x200 @ 2 colors)

·       Text: (20x25 @ 16 colors / 40x25 @ 4 colors / 80x25 @ 2 colors)

OS

AMSDOS (Locomotive Basic)

MEDIA

·       Built-in Tape Recorder (1000 or 2000 bauds)

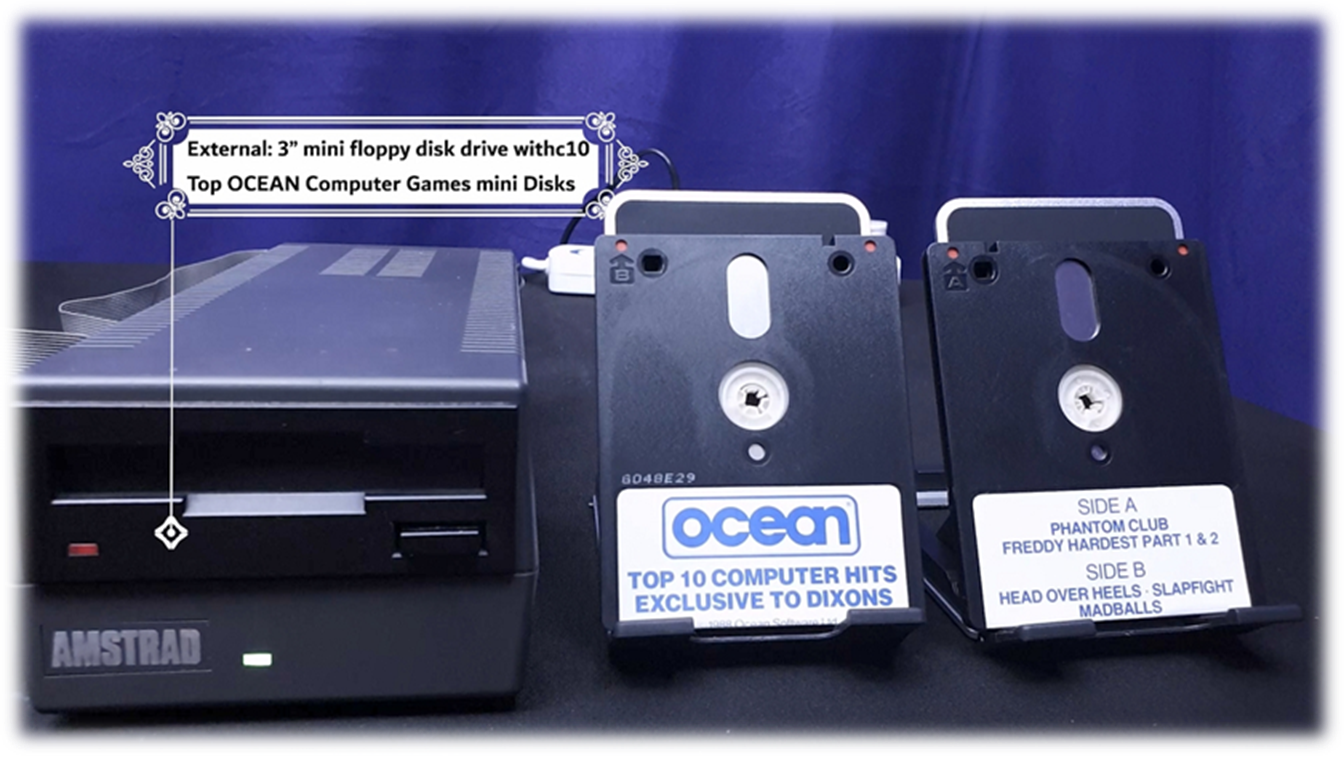

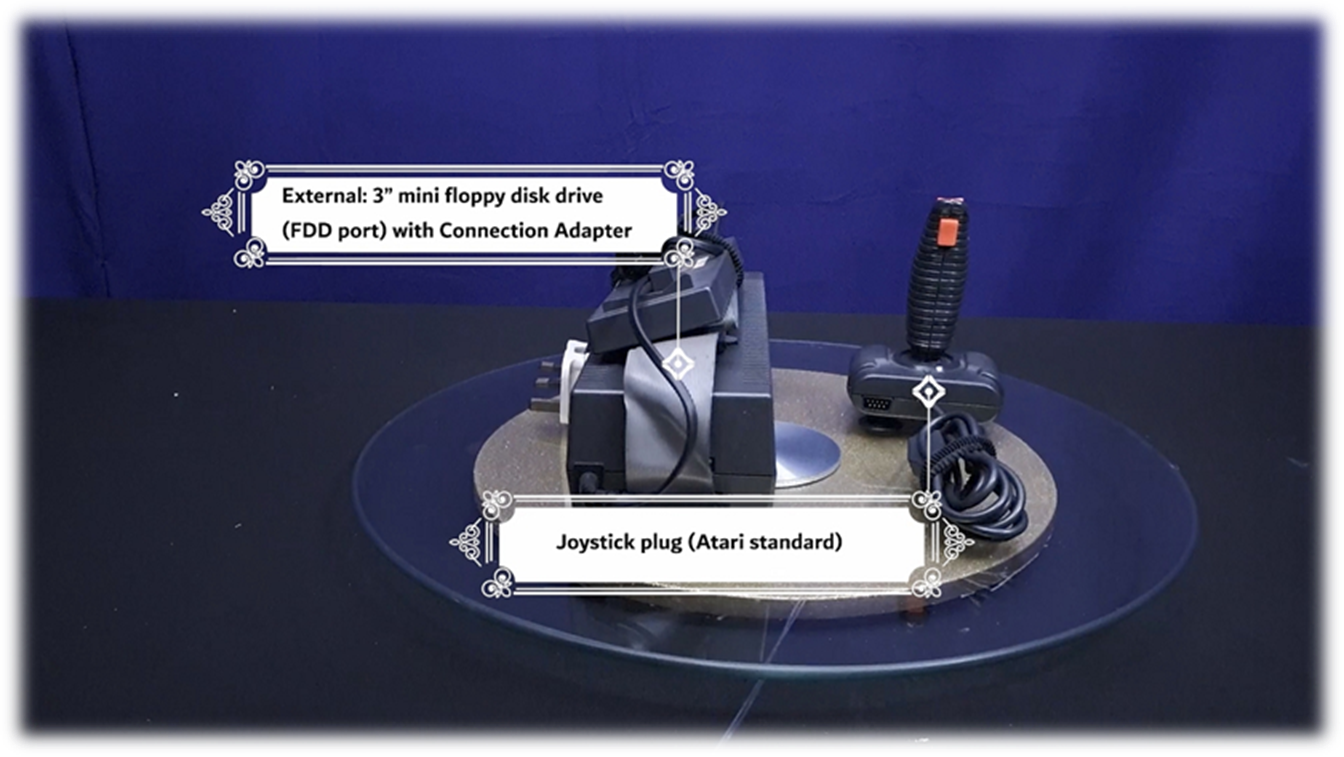

·       External: 3" mini floppy disk drive (FDD port)

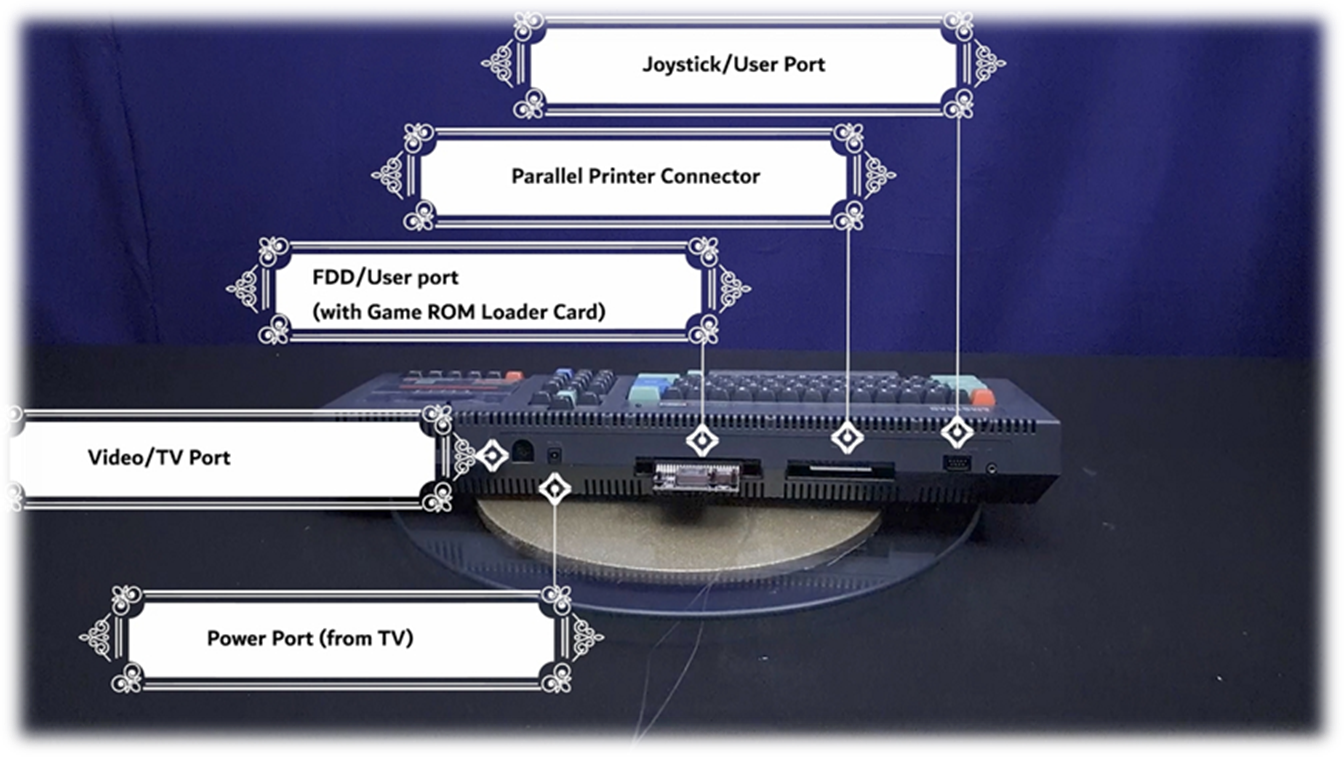

I/O PORTS

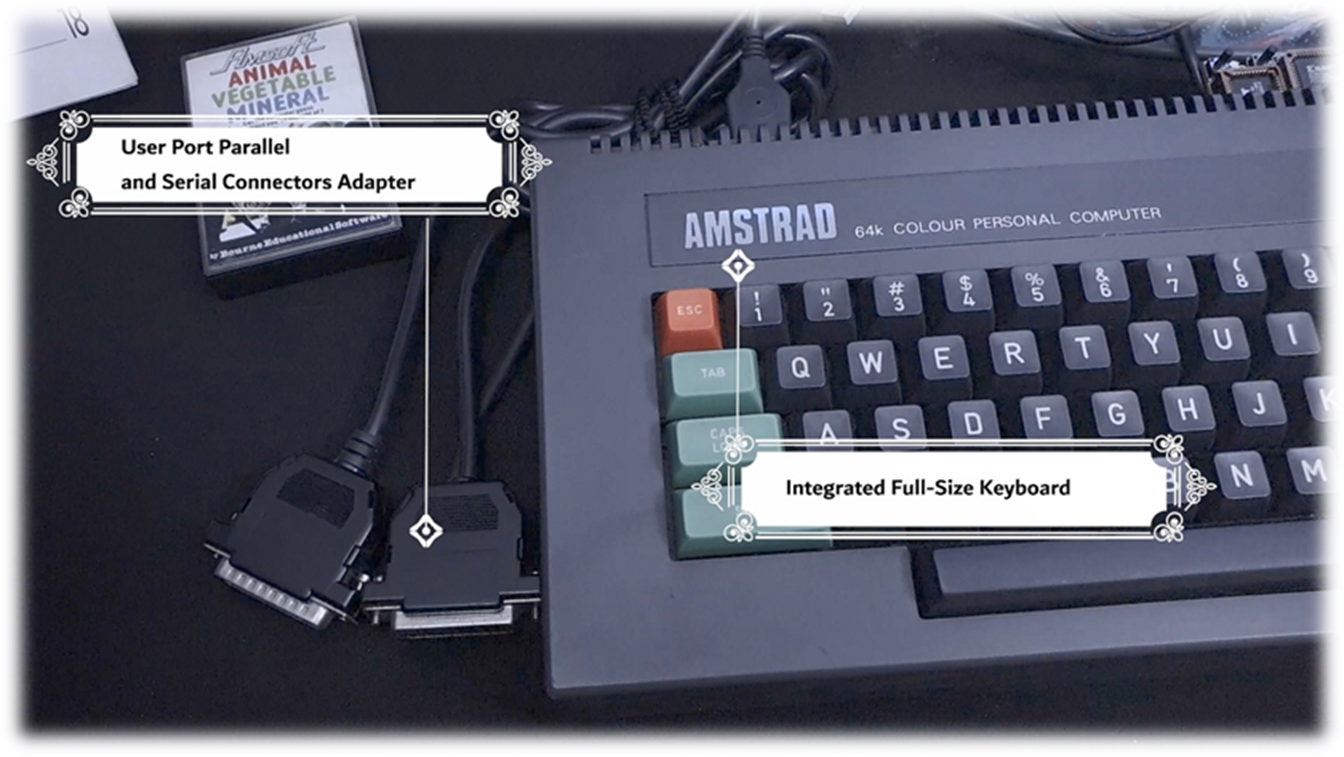

·       Printer port

·       Bus port

·       1 Joystick plug (Atari standard)

·       DIN plug for Amstrad monitor

·       Headphone / Sound stereo jack output

ACCESSORIES & DOCUMENTS

·       Original Amstrad CPC 464 & DDI-1 FDD User Manuals

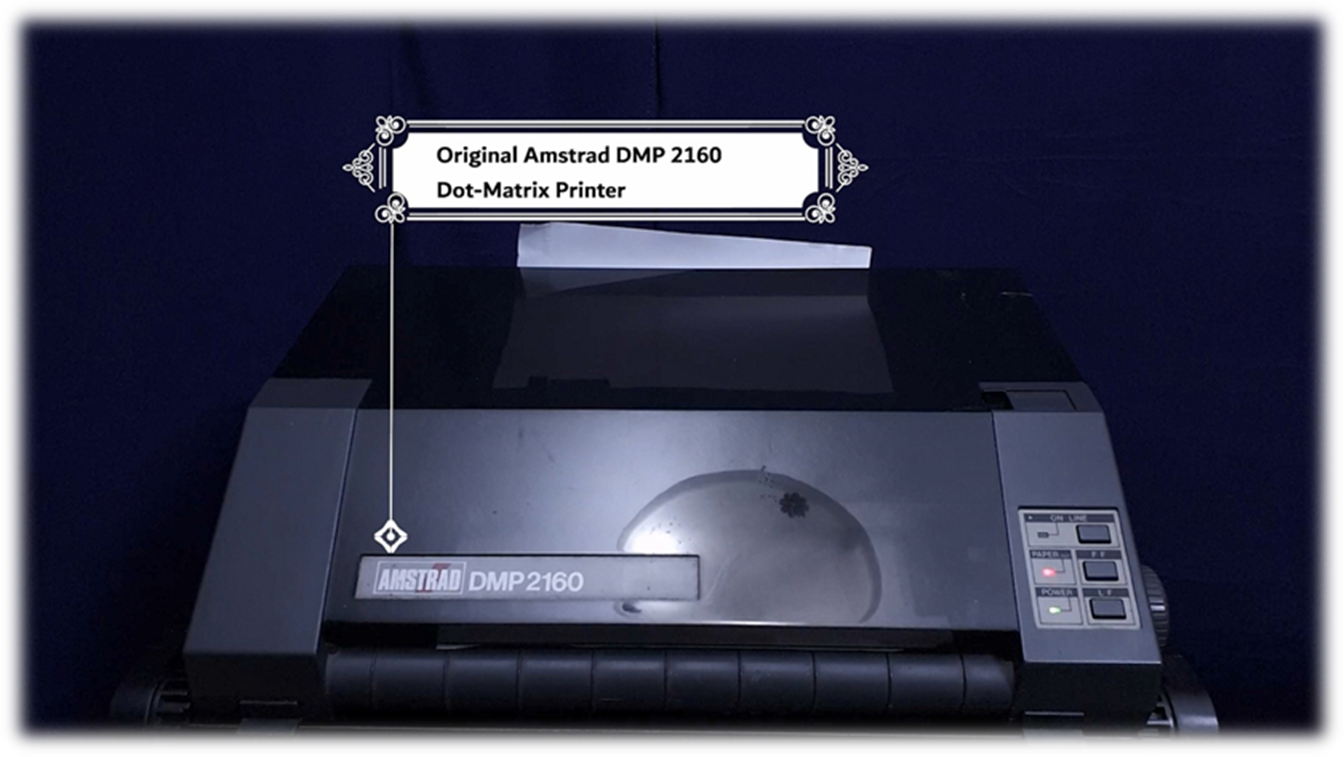

·       Original Amstrad DMP 2160 Dot-Matrix Printer

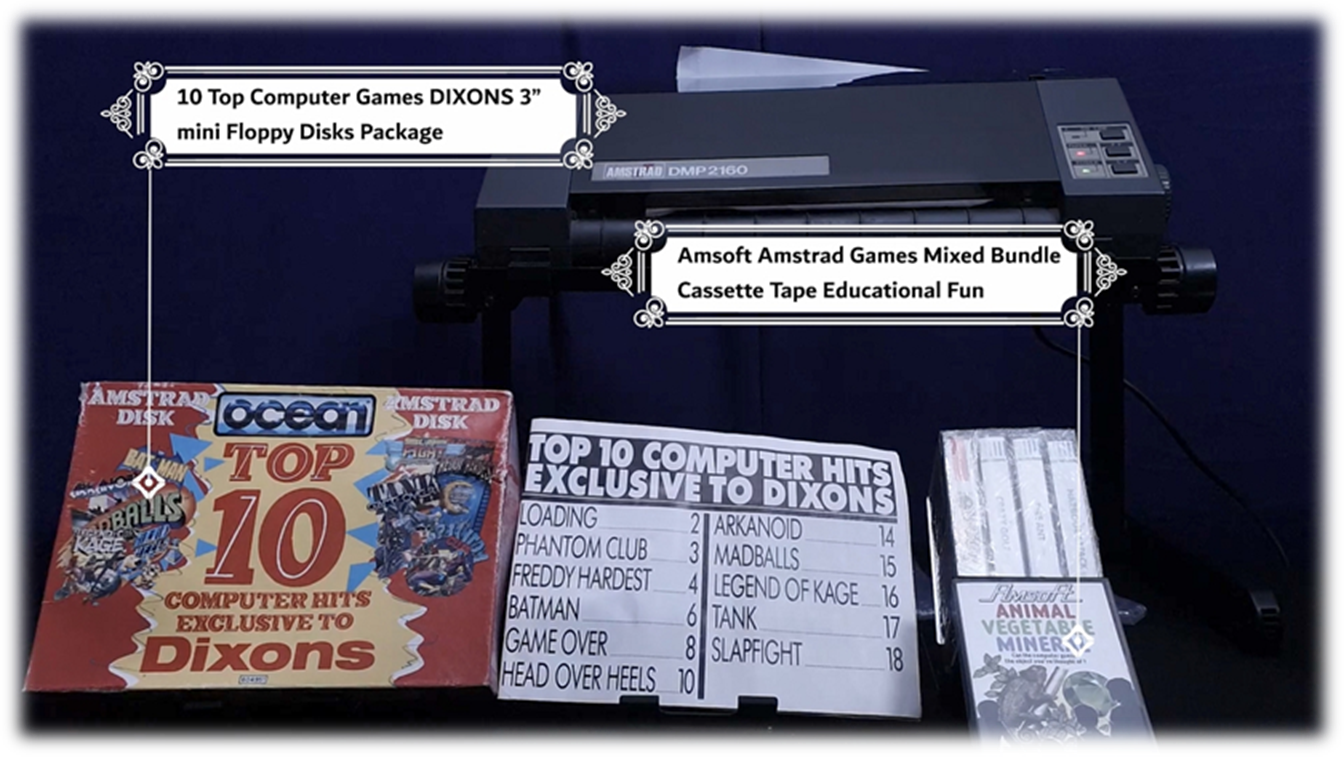

·       Original Amstrad DDI-1 FDD drive + 10 Top Computer Games DIXONS 3" mini Floppy Disks

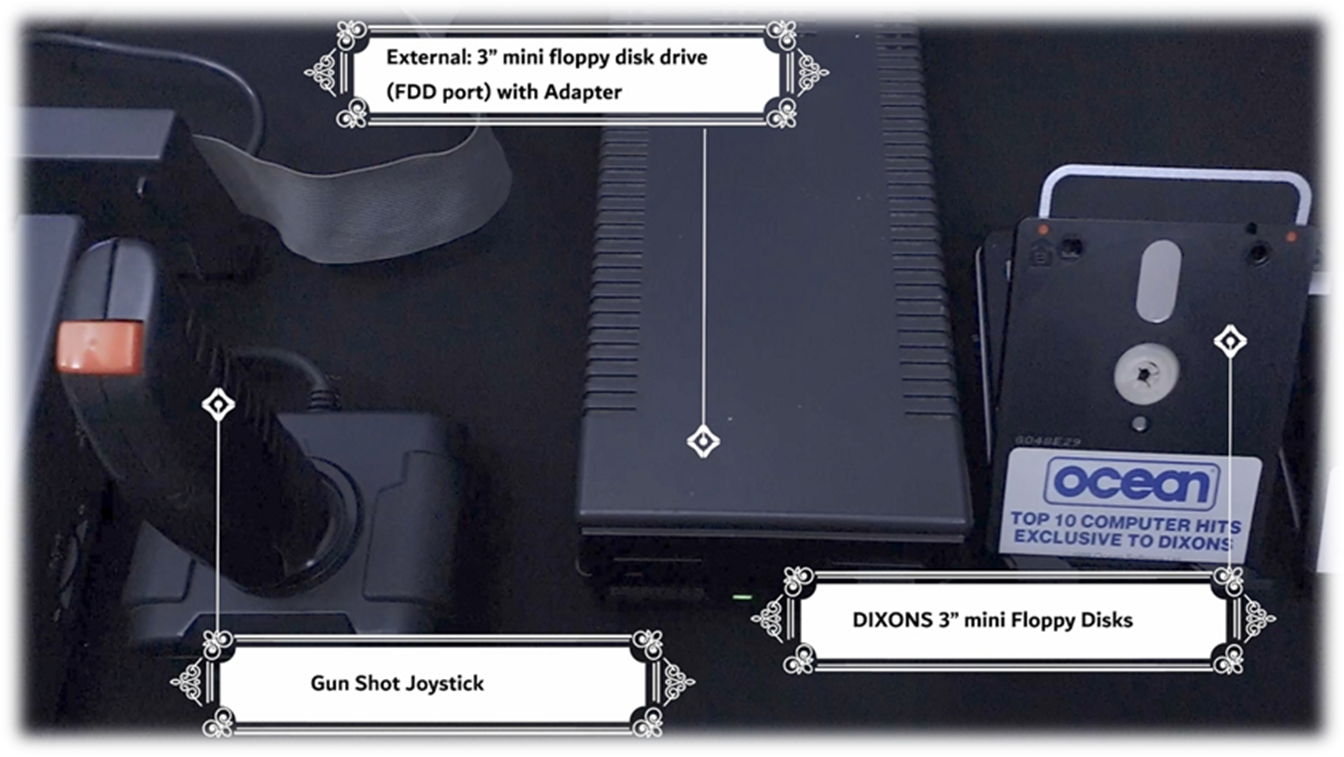

·       Gun Shot Joystick

·       Amsoft Amstrad Games Mixed Bundle Cassette Tape Educational Fun

·       Unique Dandanator! Cartridge game ROM loader (with Amsoft top 20 games pre-loaded) USB updates

POWER SUPPLY

·       Monitor: 240V Only (Internal PSU)
Plug Type: TYPE C, Europe, 2 Thin Round Pins

·       Computer: Powered from Monitor 5V Cable

·       Printer: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       External Floppy Drive: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

SPECIAL INSTRUCTIONS

Using CPC Dandanator! ROM:

·       Right button: Performs a CPC reset.

·       Central button: During startup or reset, the cartridge is deactivated and the CPC Basic is started.

·       Left button: With the button pressed during boot or reset, an alternative software is started, by default a test rom.

·       CDT and DSK loading: In addition to Snapshots, CDT and DSK (preliminary) files
