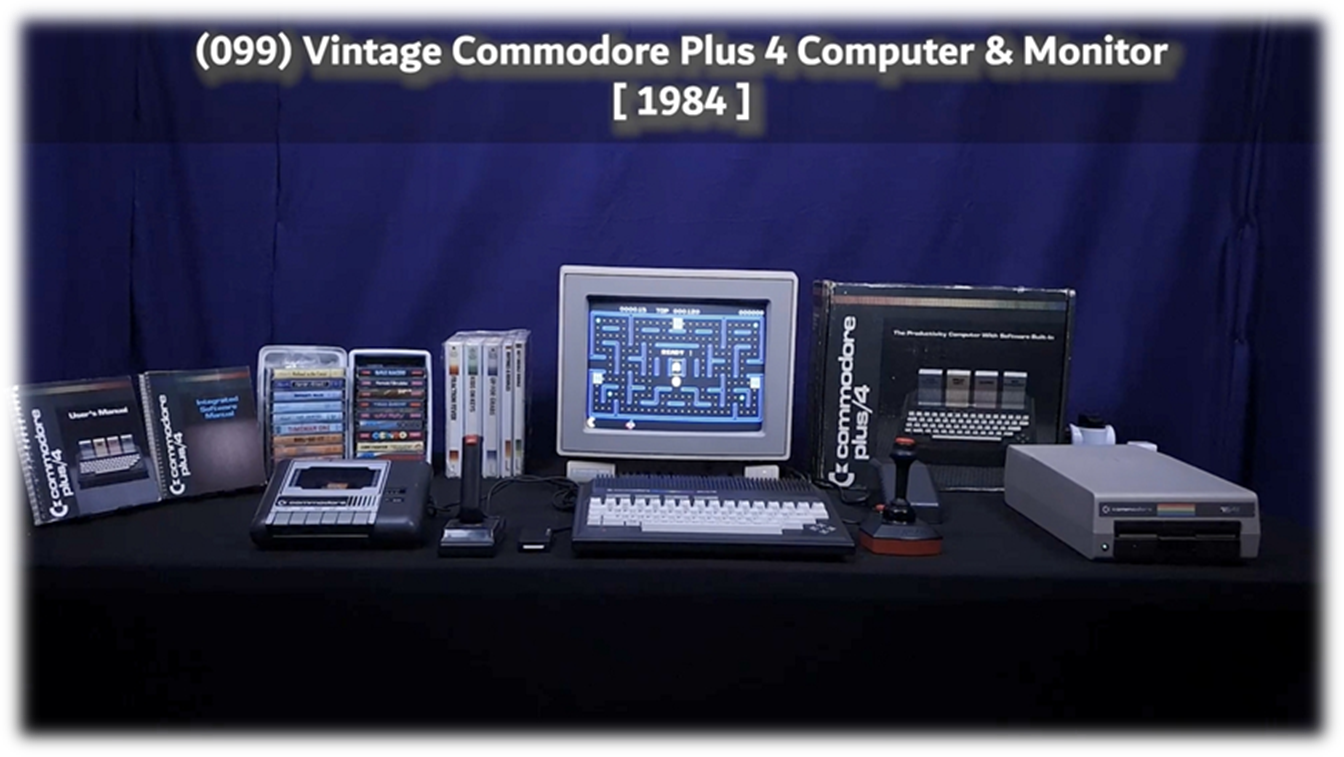

(099) Vintage Commodore Plus 4 Computer & Monitor
[ 1984 ]



Specification:

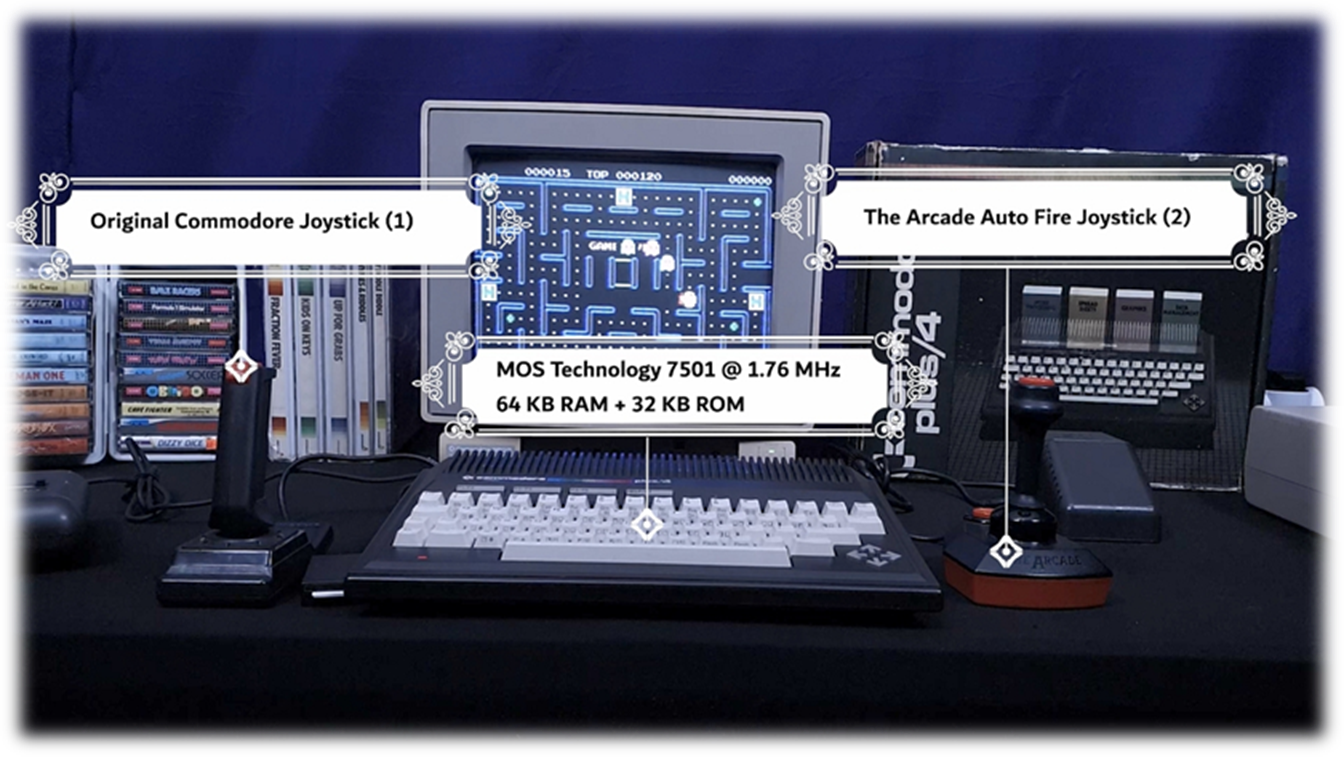

CPU

MOS Technology 7501 @ 1.76 MHz

RAM

64 KB RAM + 32 KB ROM

DISPLAY/TV

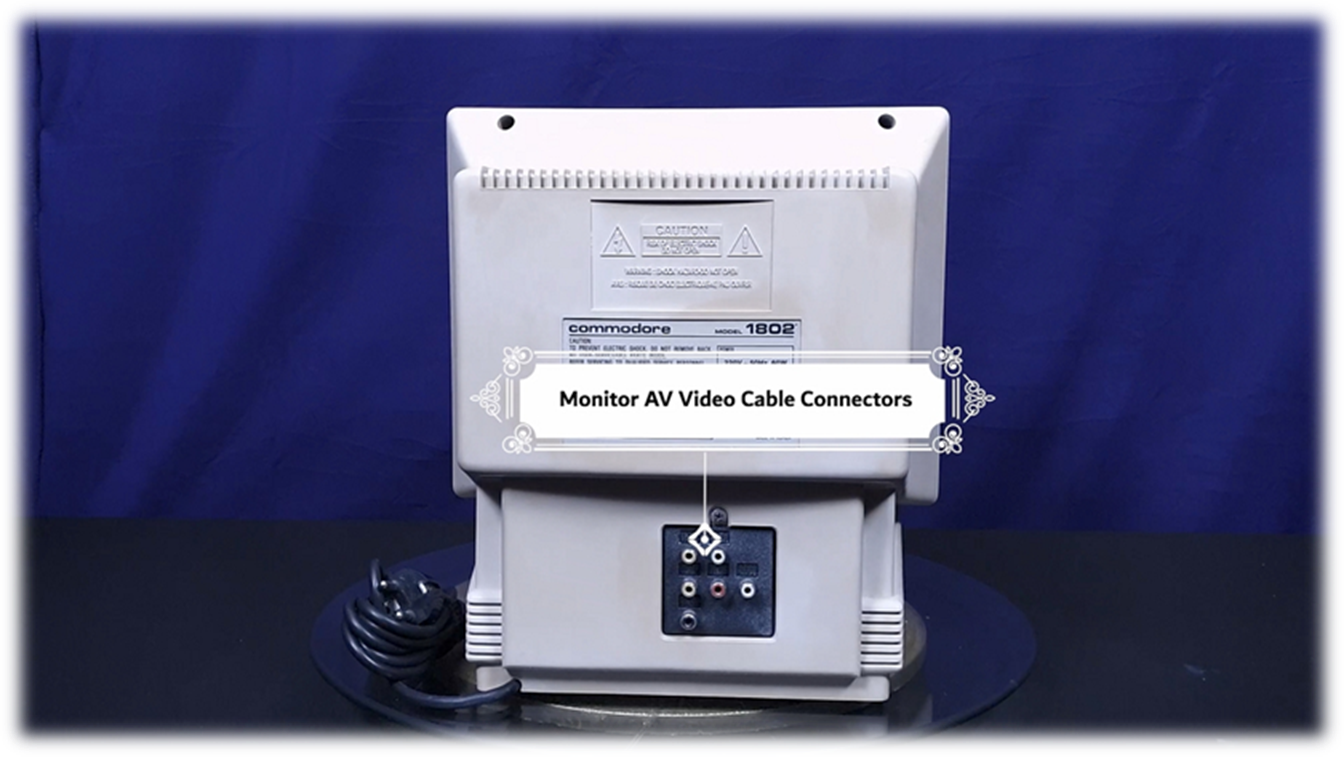

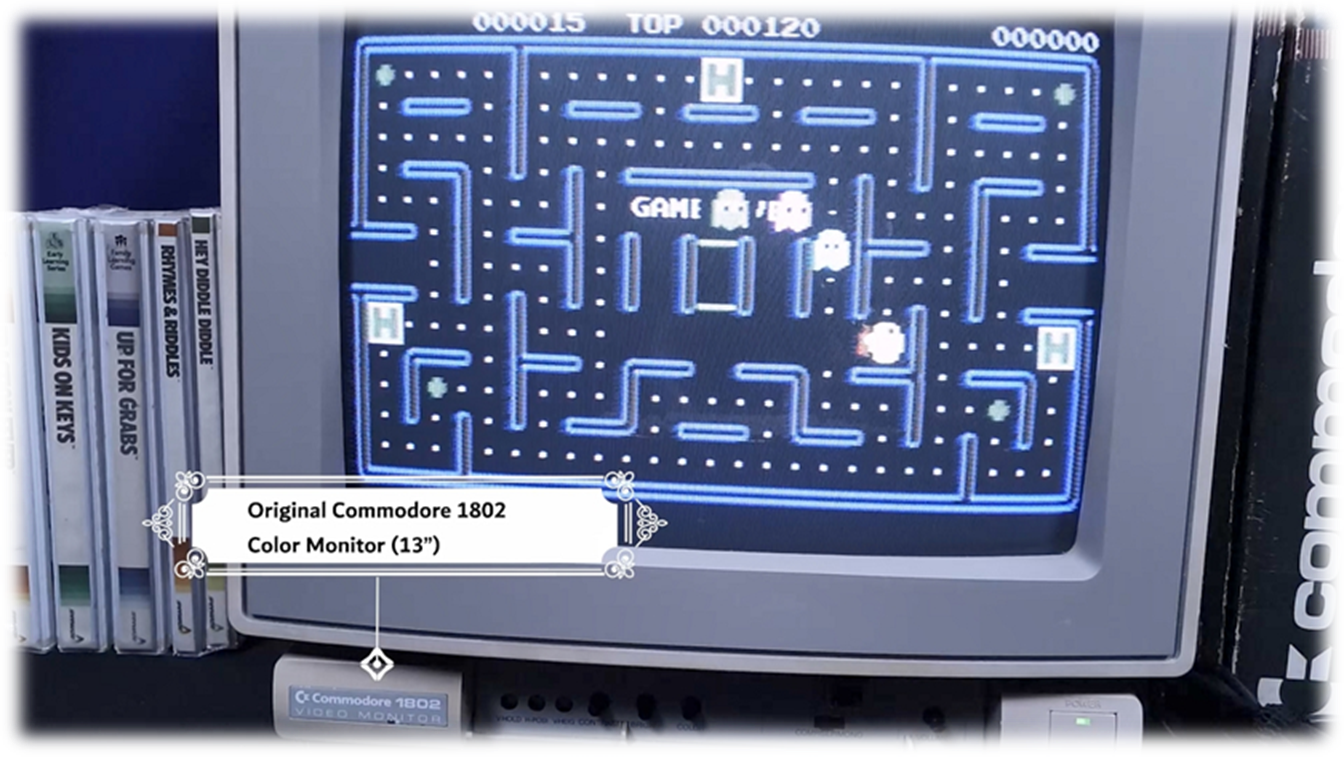

Original Commodore 1802 Color Monitor (13")

·       Graphics: MOS TED 7360 (320 X 200) @ 121 colors

·       Text: 40 Chars. X 25 Lines

OS

Commodore BASIC 3.5

MEDIA

·       ROM Cartridges

·       External high-speed floppy disk (Parallel port)

·       External Cassette Tape Player

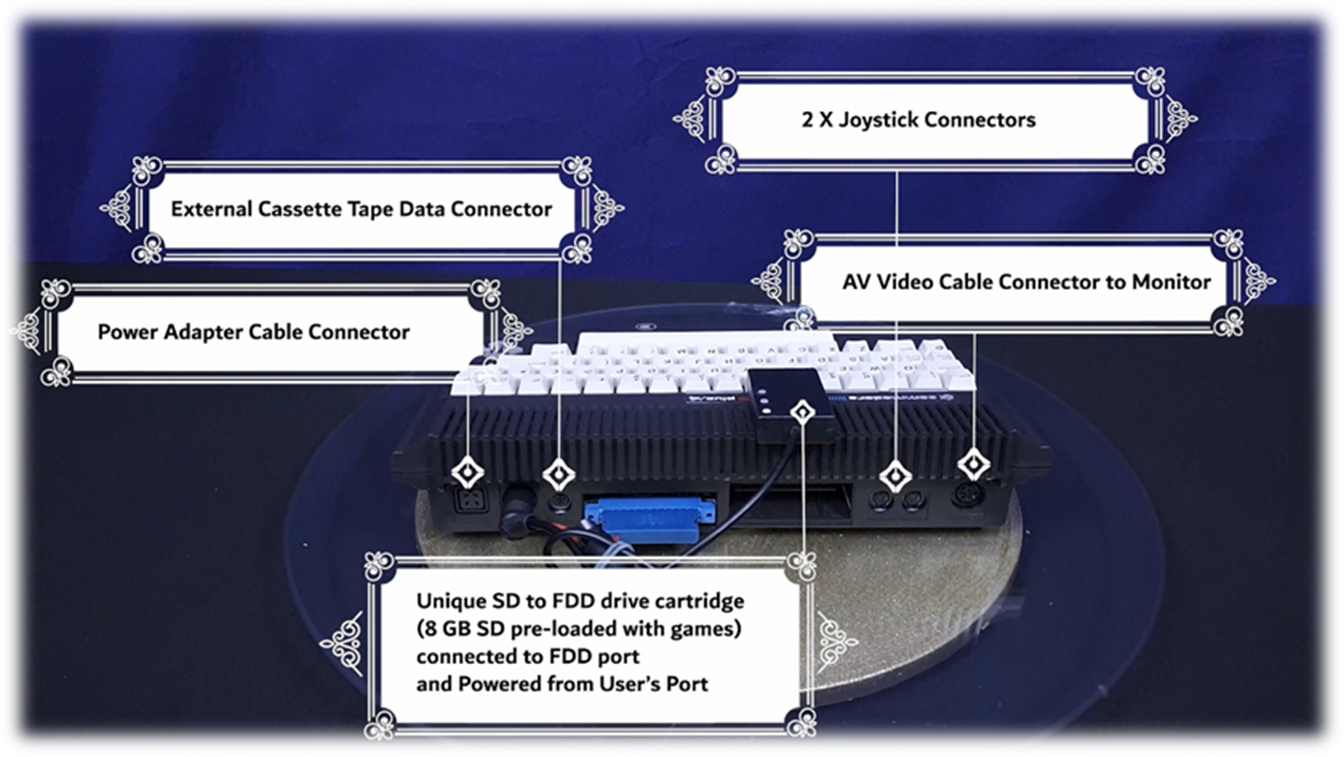

I/O PORTS

·       Tape connector 7-pin mini-DIN (Commodore 1531 Dataset)

·       2 X 8-pin mini-DIN game controller ports

·       Commodore serial bus

·       User port (for modems and nonstandard devices)

·       Composite video + RF modulator to TV antenna connectors

ACCESSORIES & DOCUMENTS

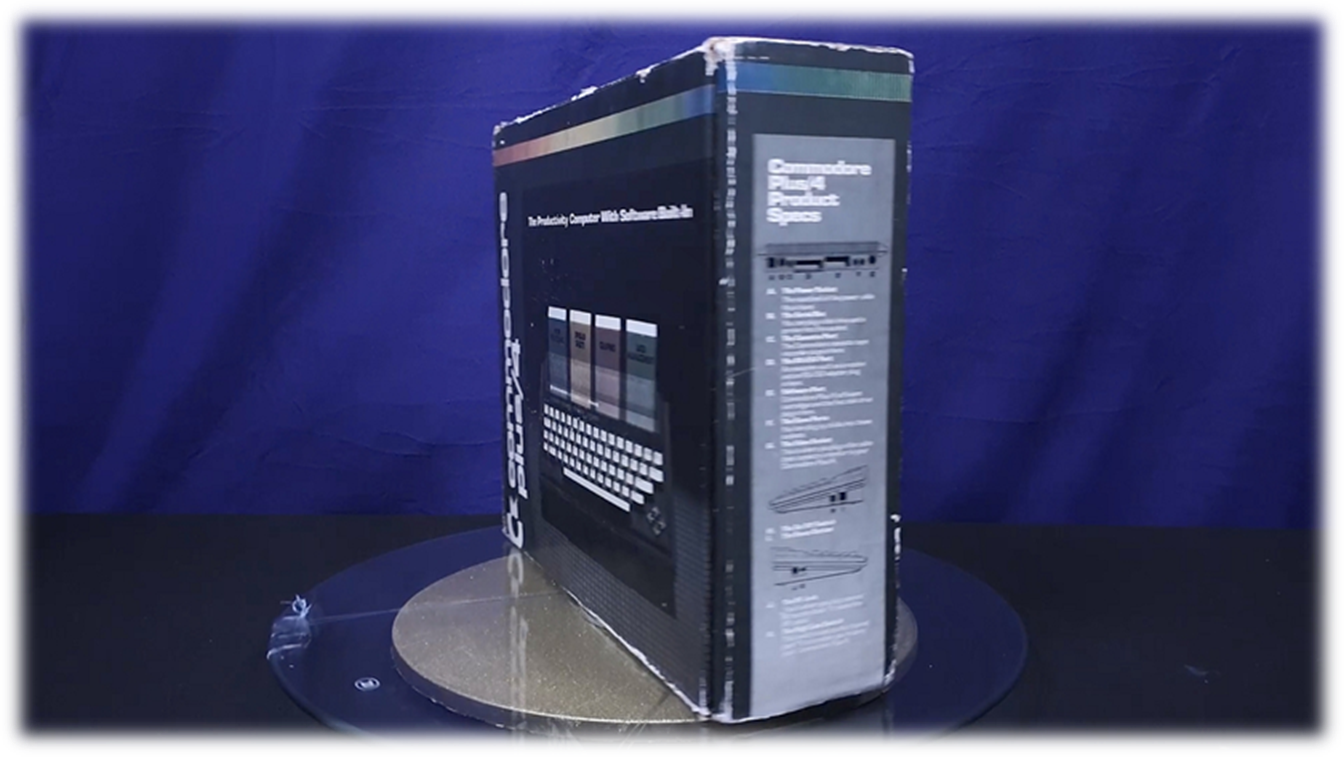

·       Original Packaging Box, Inserts, AC Adapter and Manuals

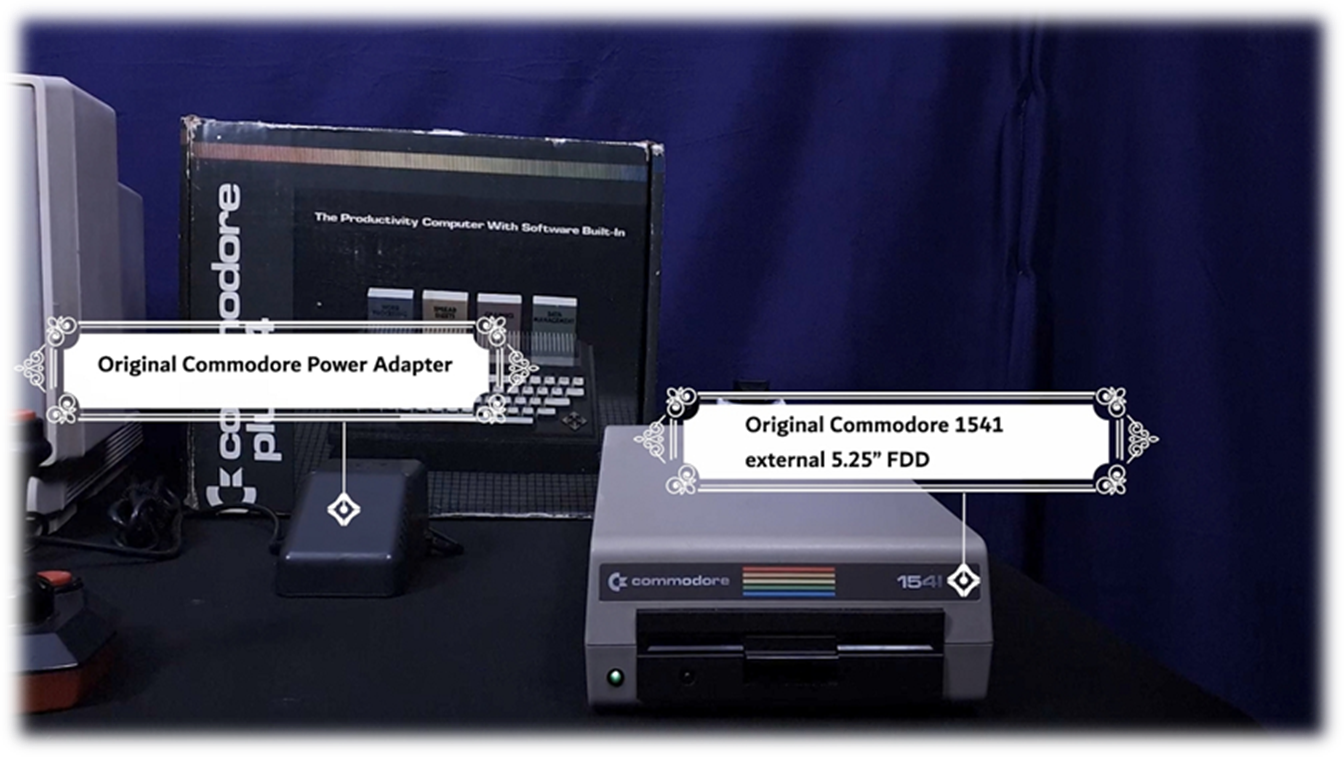

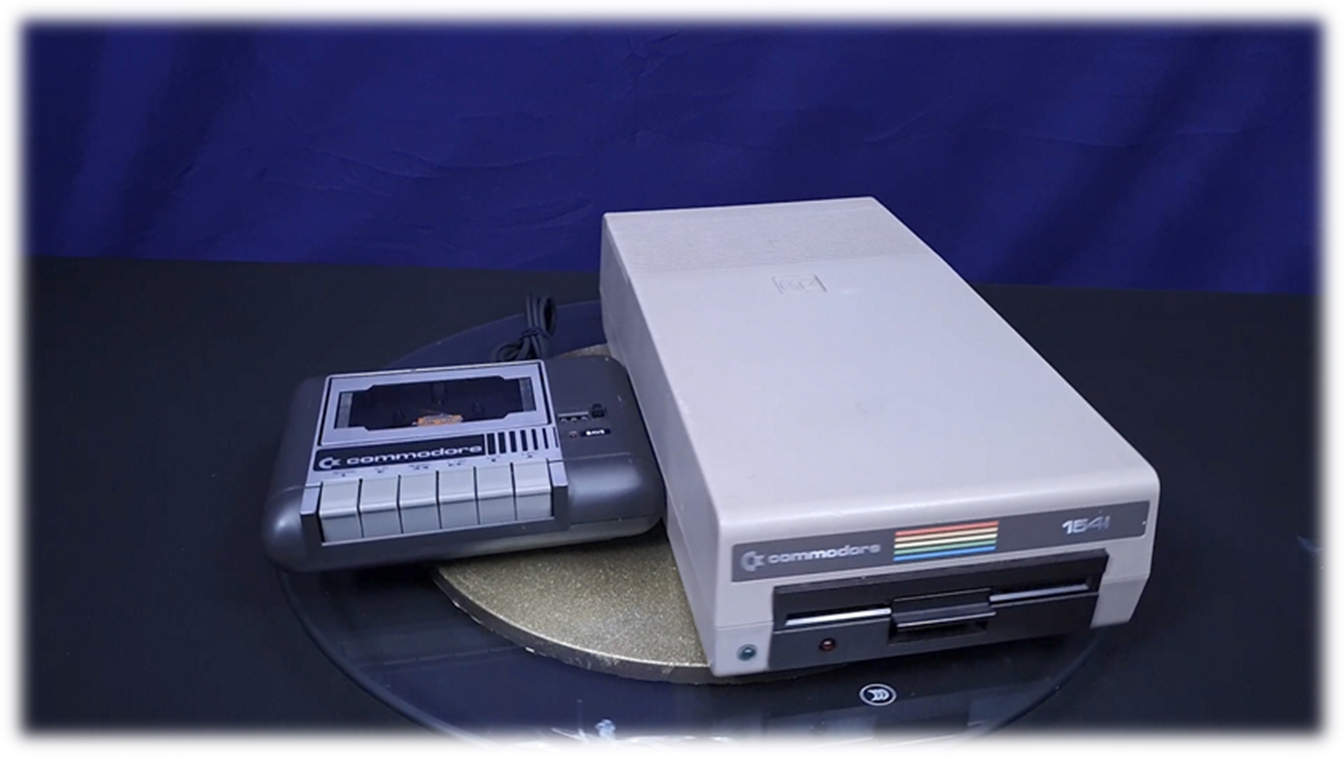

·       Original Commodore 1541 external 5.25" FDD

·       Original Commodore external Cassette Player

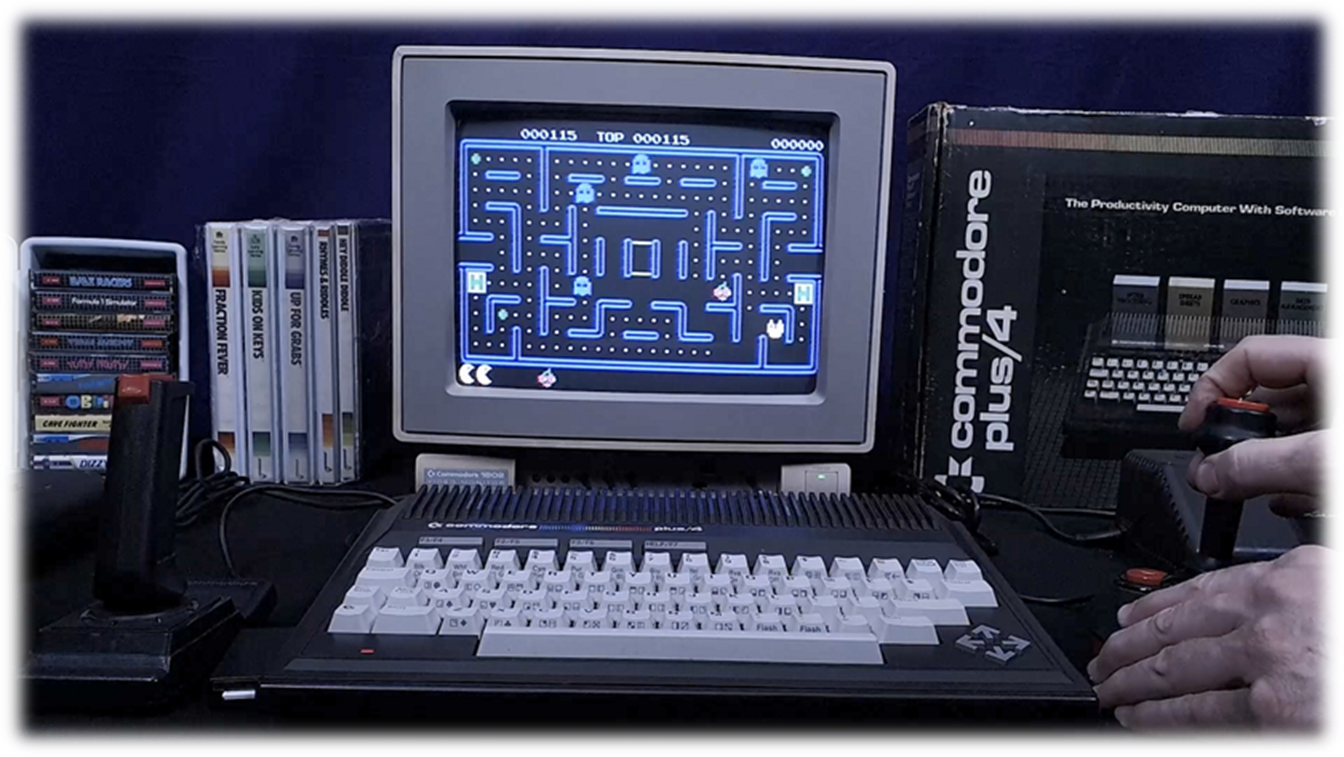

·       2 X Original Commodore Joysticks

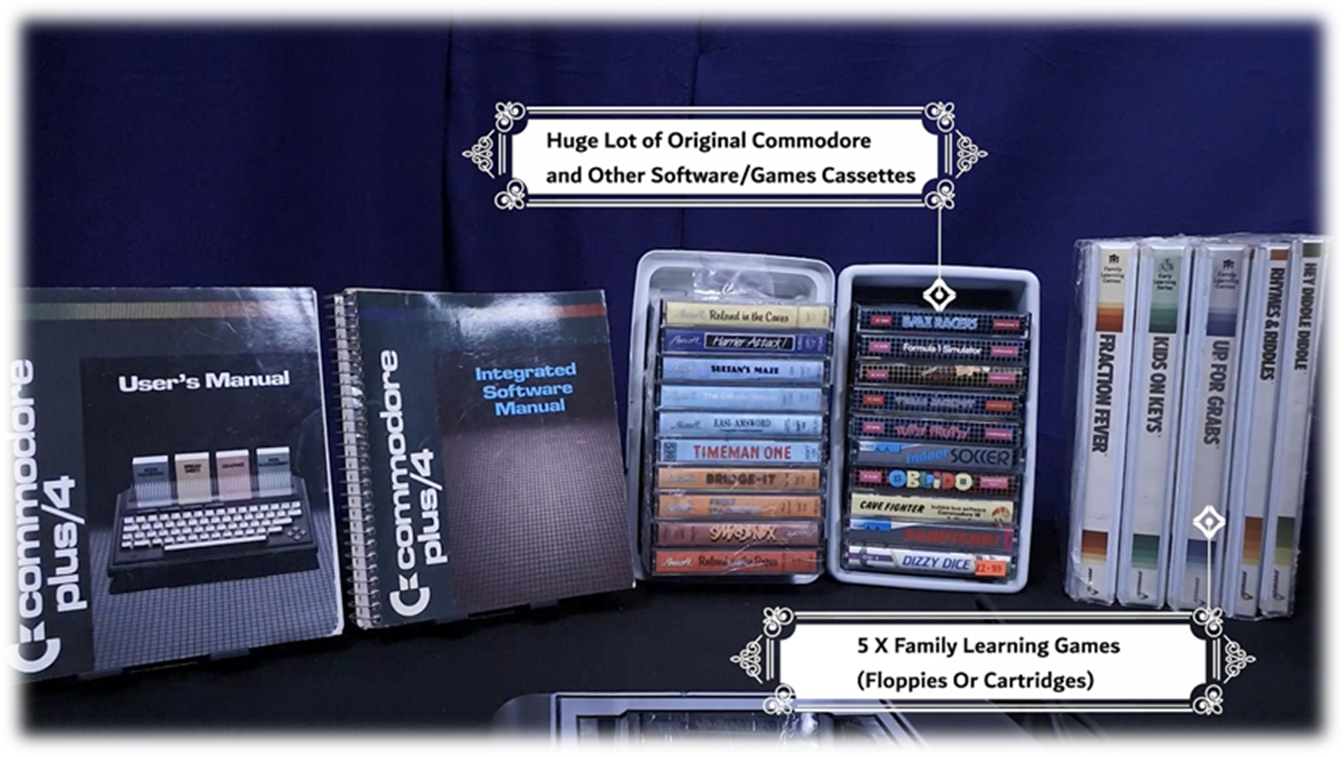

·       5 X Family Learning Games (Floppies Or Cartridges)

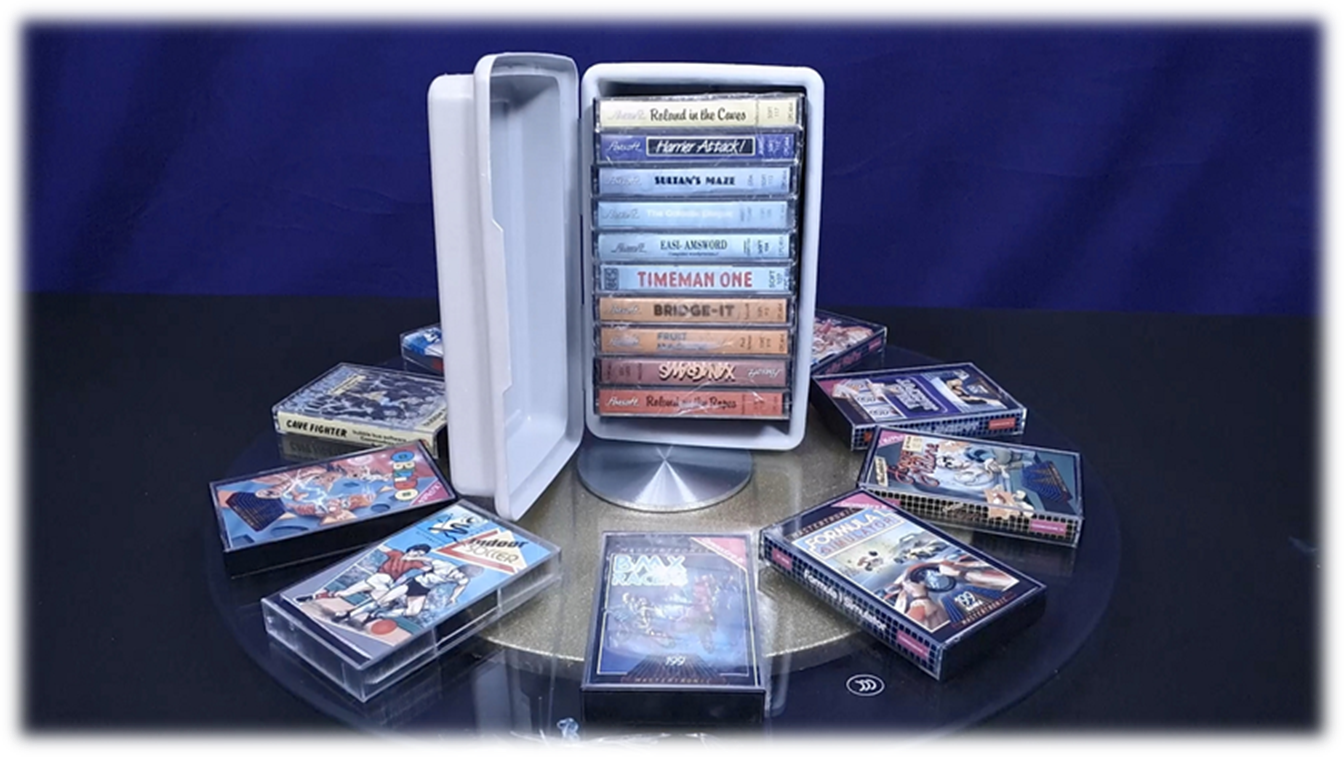

·       A set of original and other games cassette tapes

·       Unique SD to FDD drive simulator cartridge:

·       8 GB SD pre-loaded with games and apps

POWER SUPPLY

·       Computer: 240V Only (External Power Adapter)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       Monitor: 240V Only (Internal PSU)
Plug Type: TYPE C, Europe, 2 Thin Round Pins

·       External Floppy Drive: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

SPECIAL INSTRUCTIONS

·       Press (Commodore Logo Button) + Shift Lock --> Switch Graphics or Lower-Case Mode

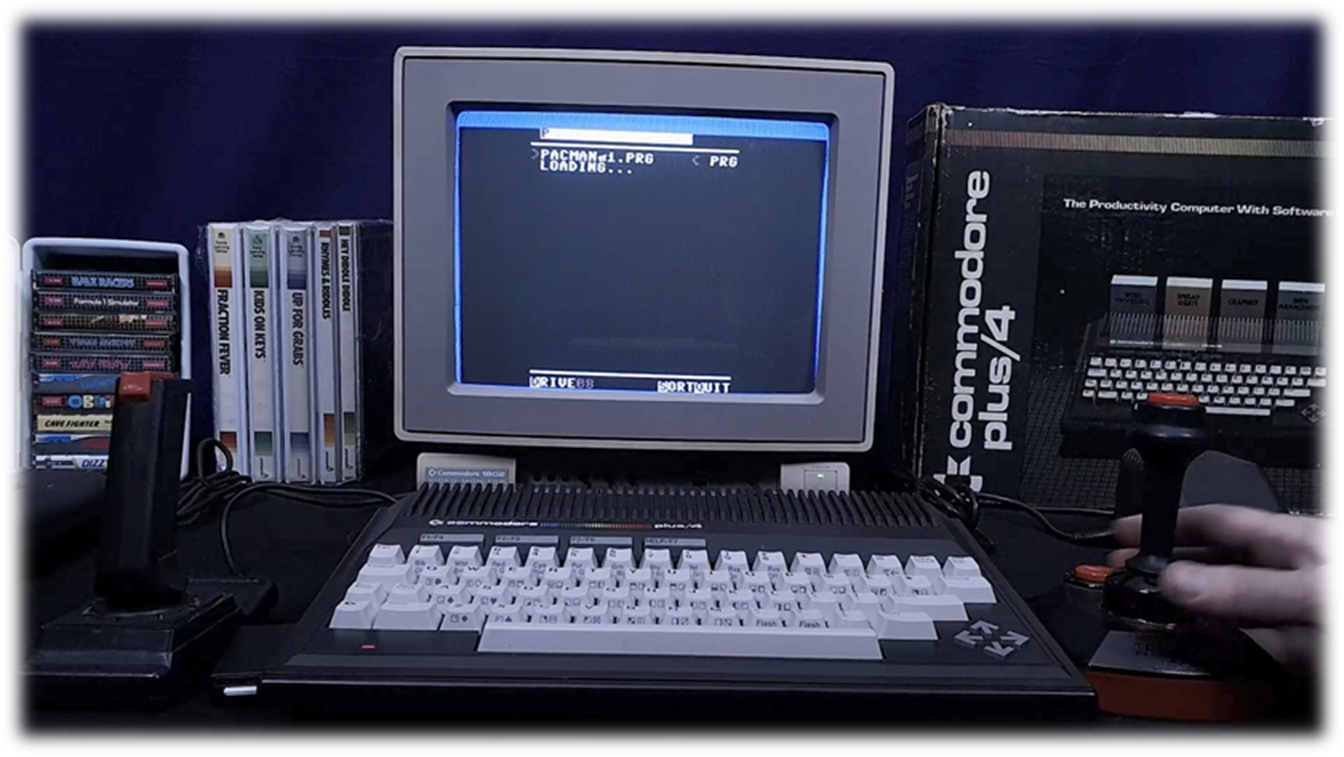

·       SD Card:

ü  Connect SERIAL + USER PORT (recommended) or Cassette port cable

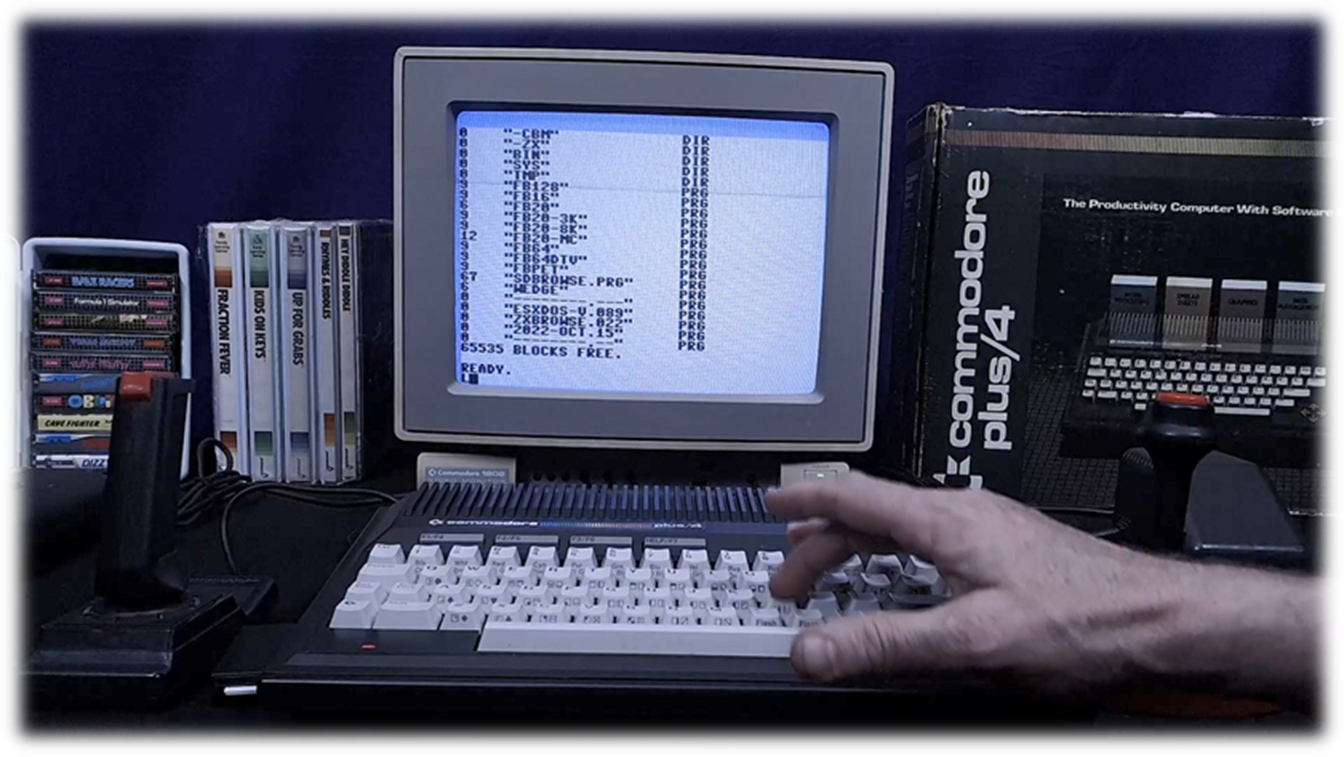

ü  <COMMAND> Load "*",8               <COMMAND> DIRECTORY

ü  <COMMAND> Load "FB",8              <COMMAND> RUN

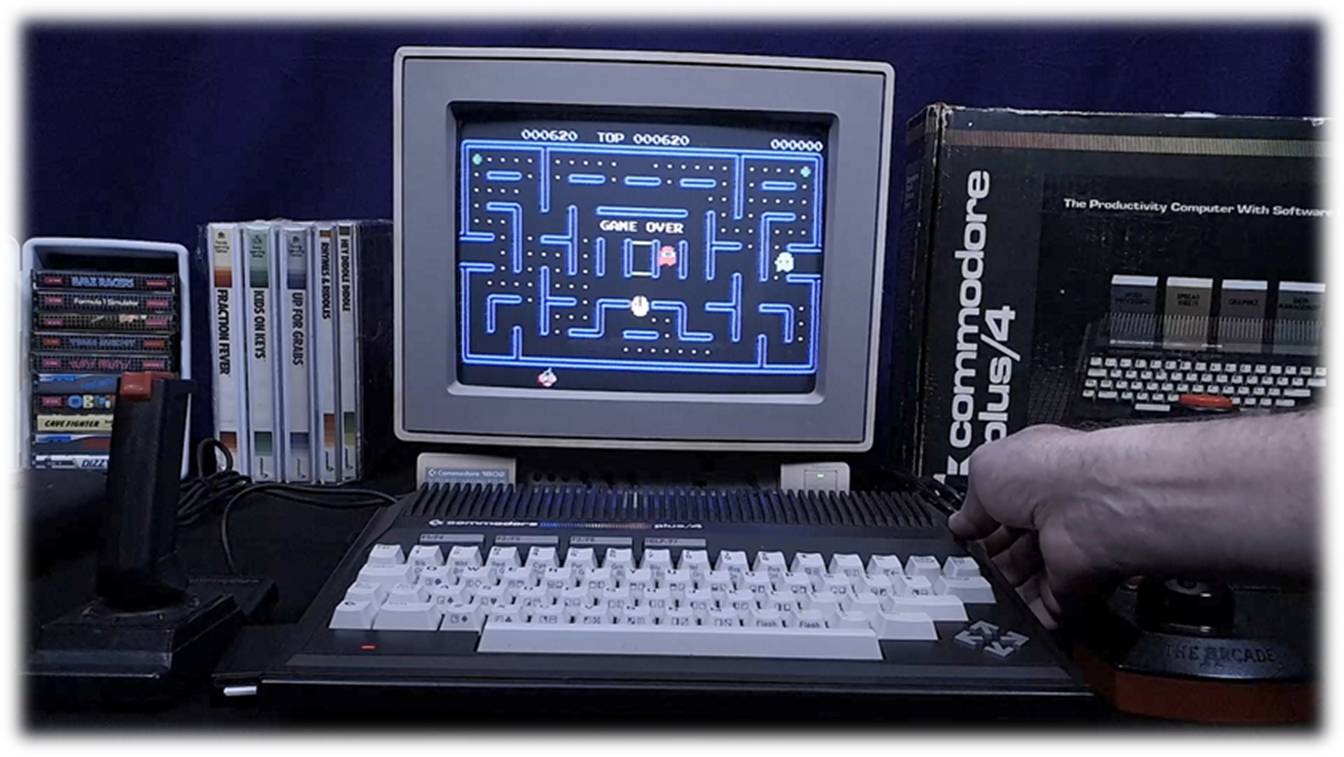

ü  Browse to directory -CBM --> C16/PLUS4 --> P --> PACMAN (ENTER/run)
