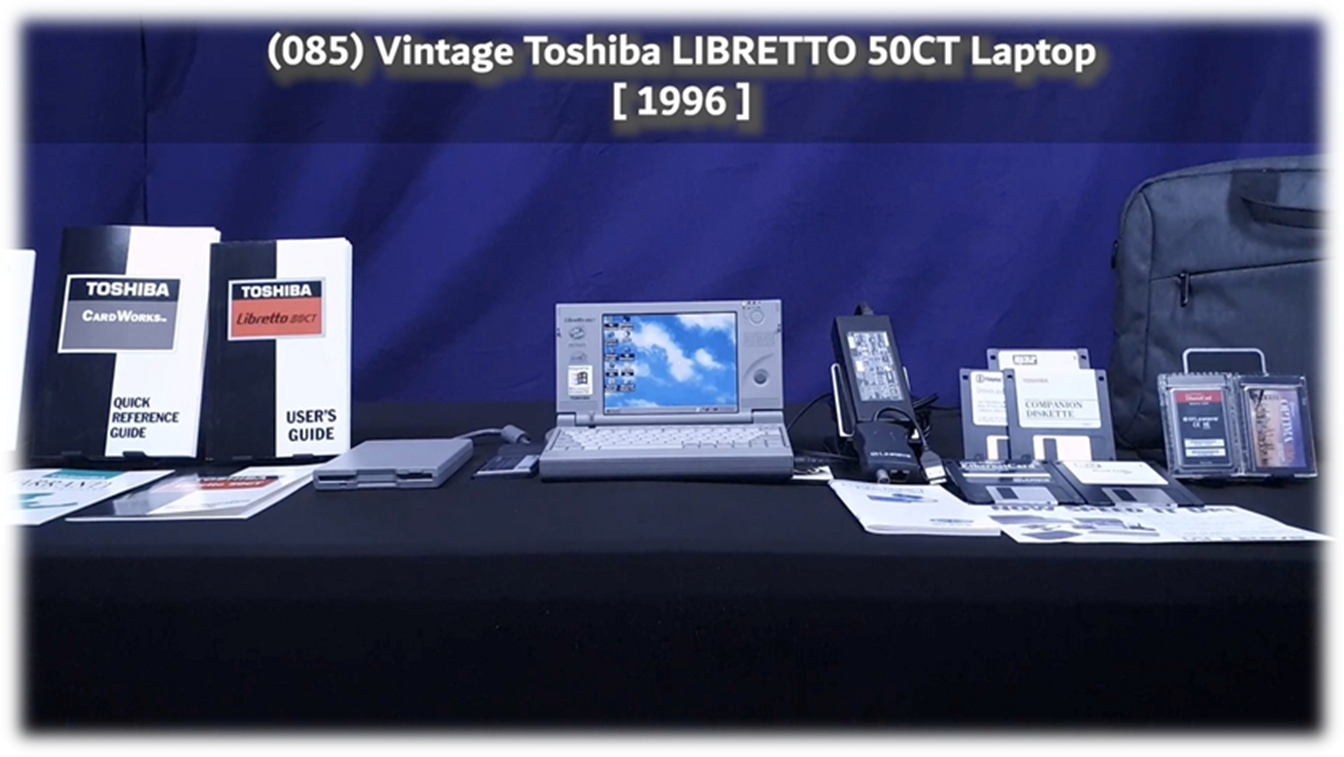

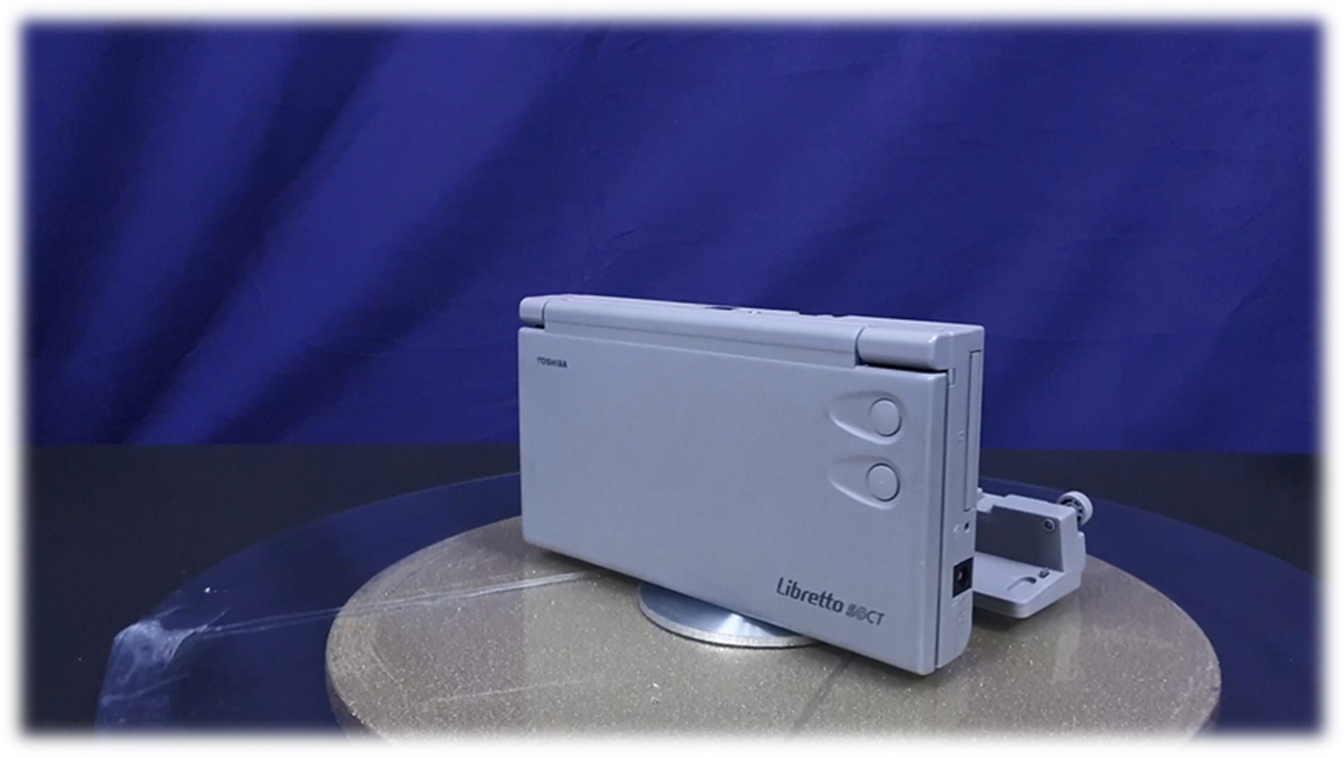

(085) Vintage Toshiba LIBRETTO 50CT Laptop
[ 1996 ]



Specification:

CPU

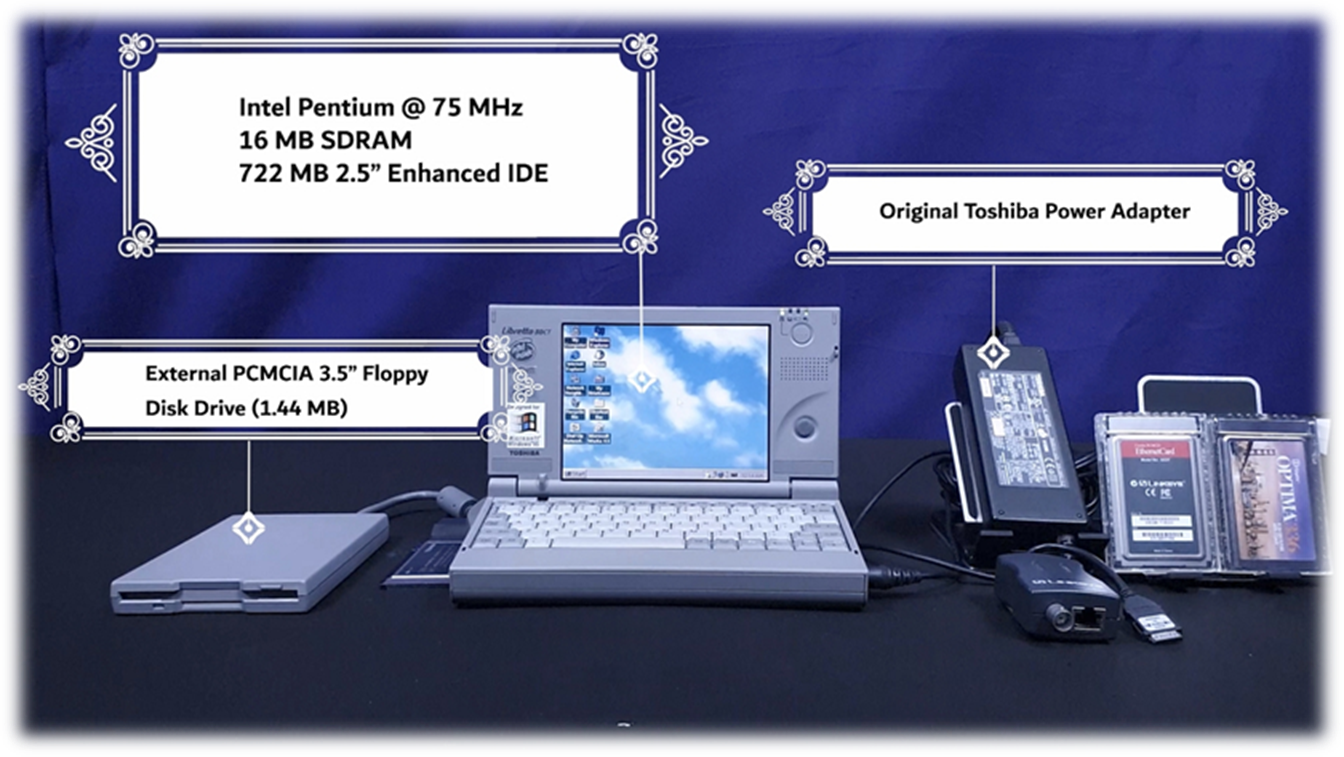

·       Intel Pentium @ 75 MHz

·       16KB (8KB code; 8KB data) Cache

RAM

16 MB SDRAM; 256 KB ROM

STORAGE

722 MB 2.5” Enhanced IDE

DRIVES

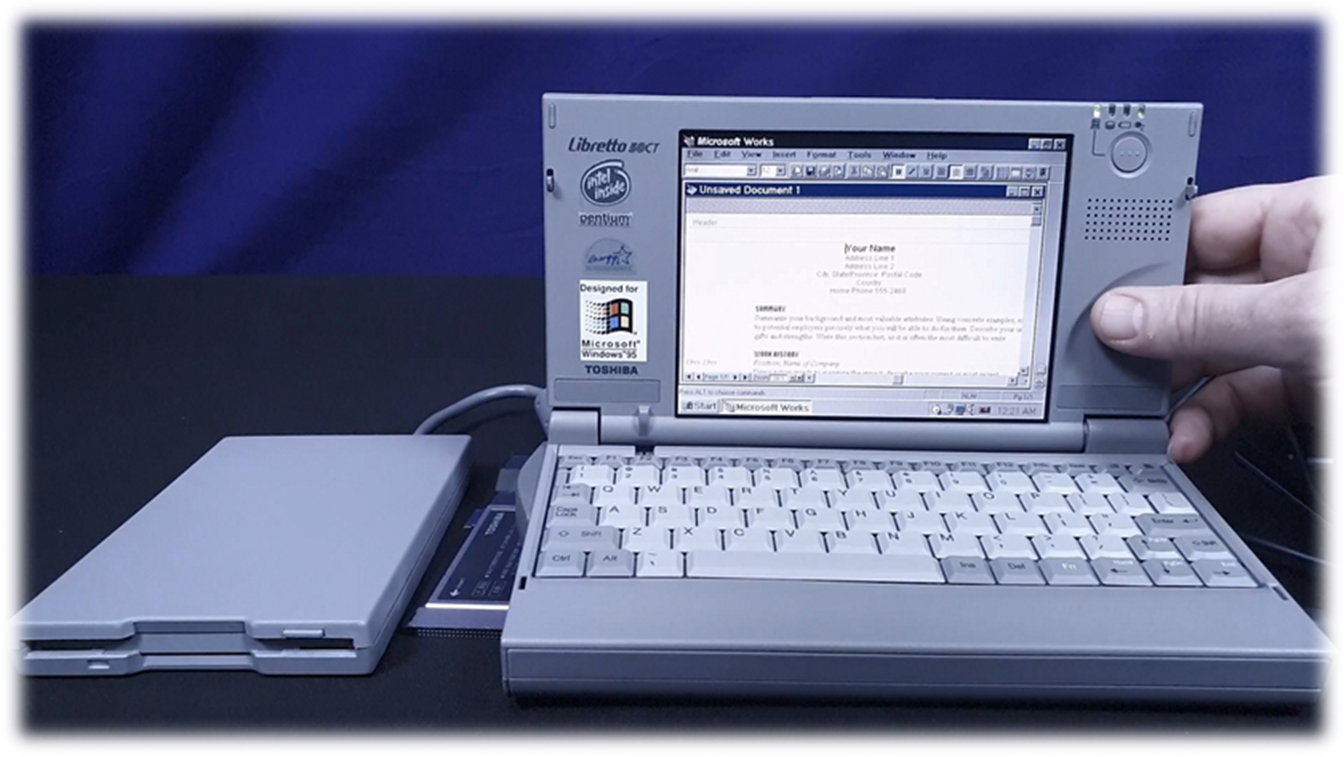

External PCMCIA 3.5" Floppy Disk Drive (1.44 MB)

DISPLAY

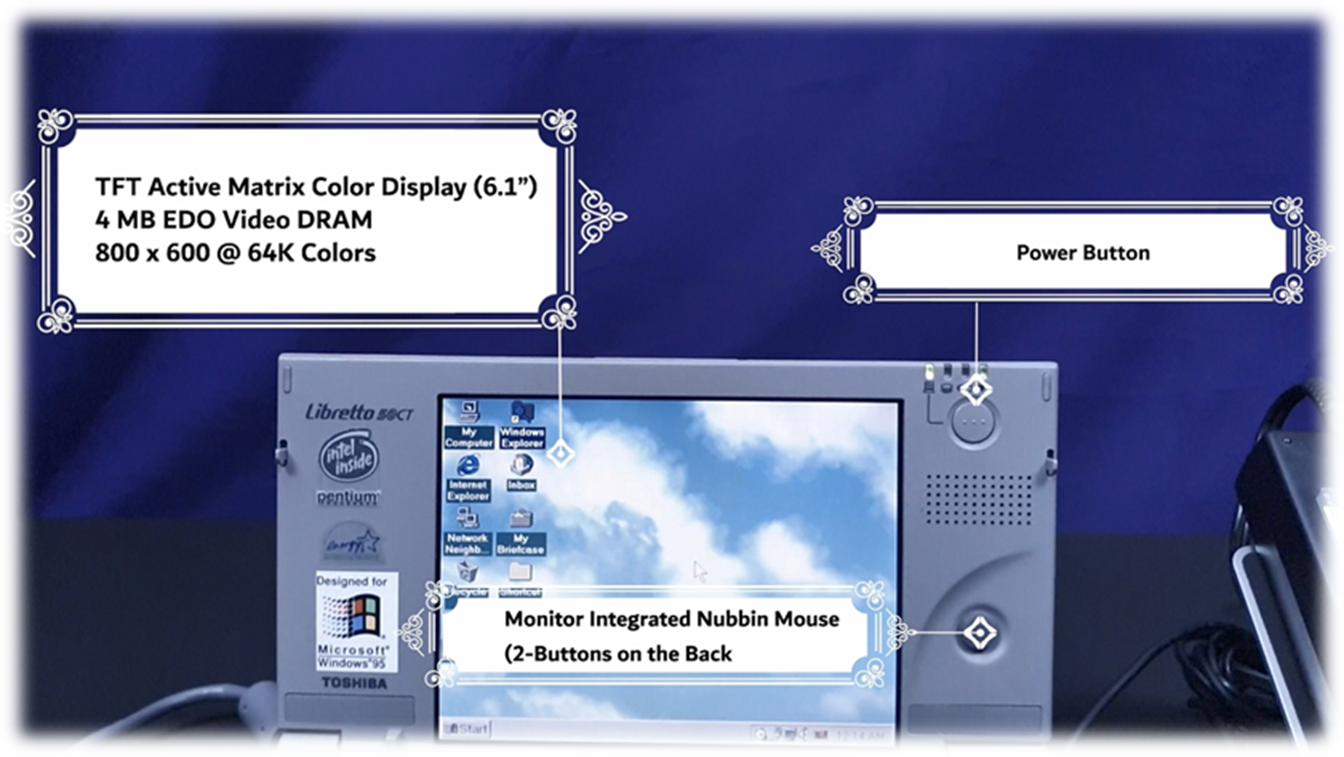

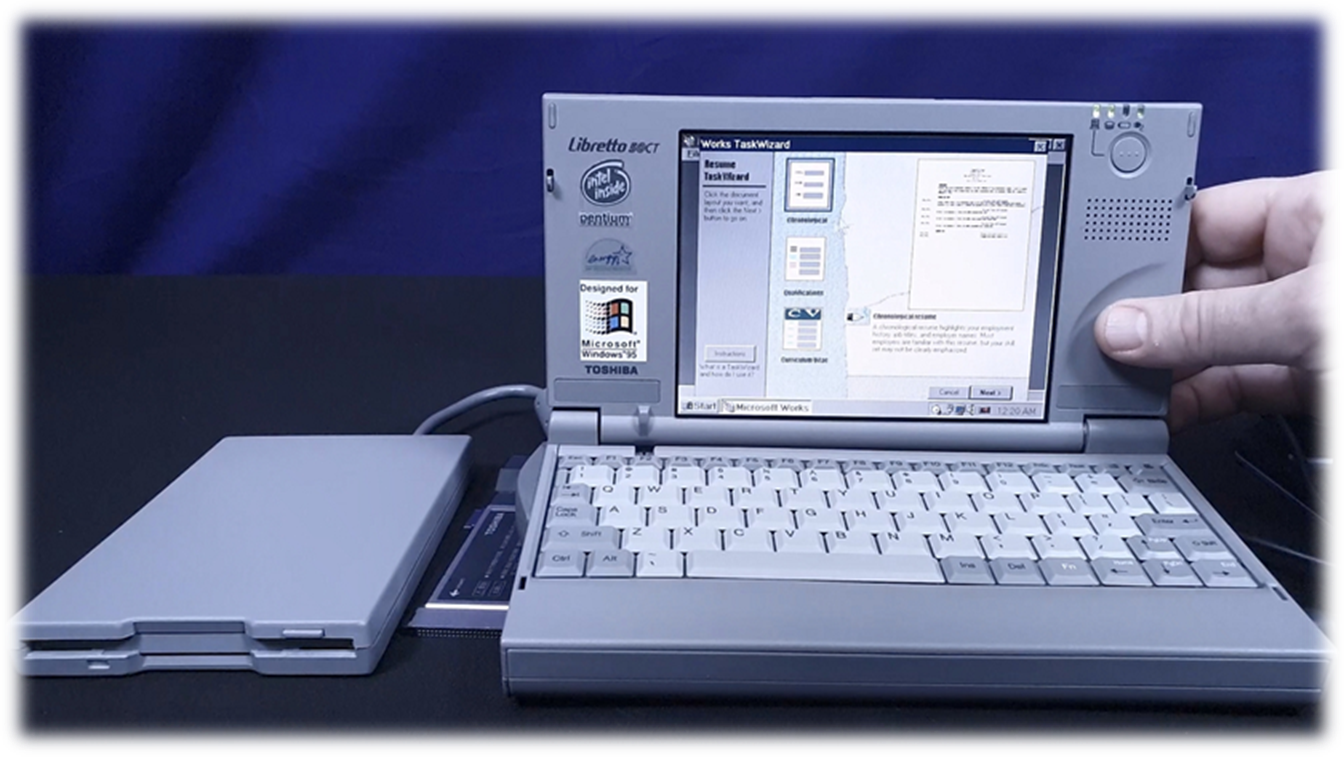

·       Built-in TFT Active Matrix Color display (6.1")

·       4 MB EDO Video DRAM

·       Graphics: (800 x 600) @ 64K colors

OS

Microsoft Windows 95

KEYBOARD

·       80 keys, 12 dedicated function keys, Inverted T Cursor control

·       The mouse is tiny nubbin to the screen front with the buttons relegated to the back

Network

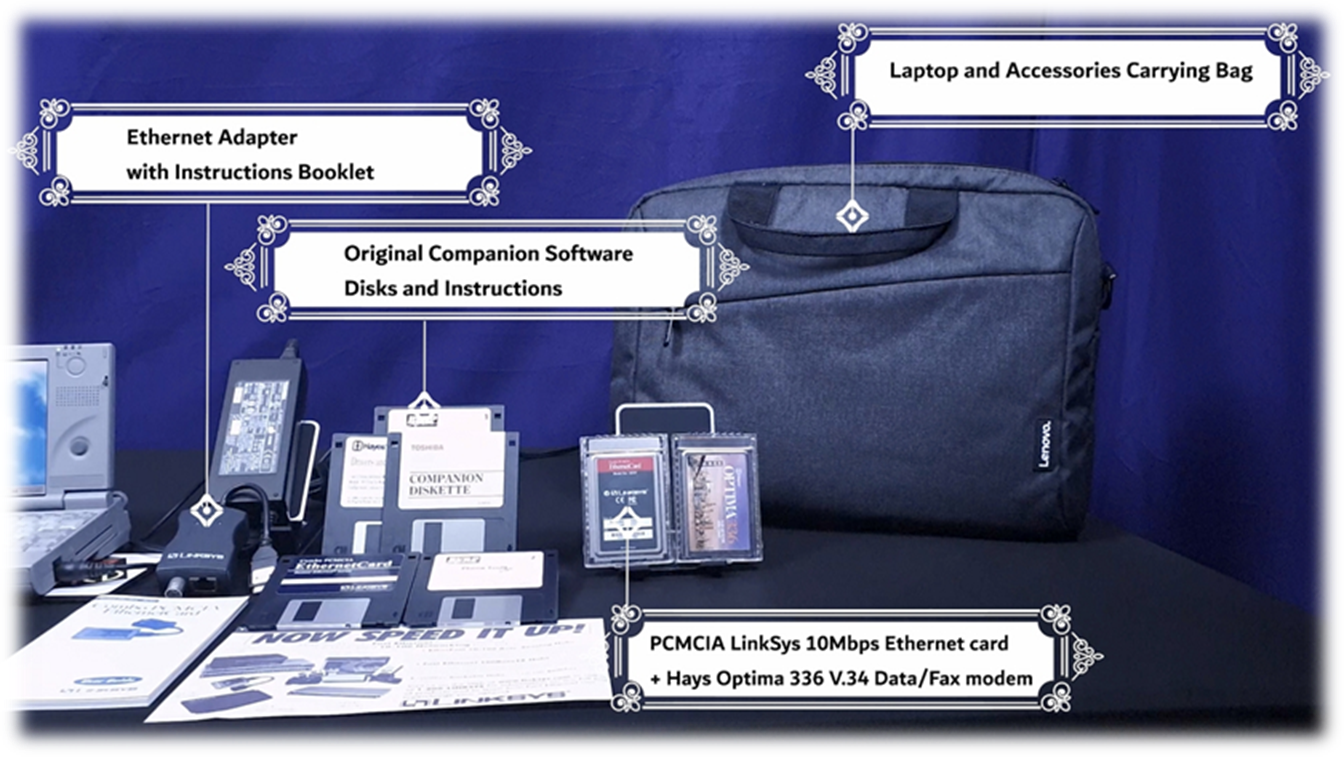

External PCMCIA LinkSys 10Mbps Ethernet card

I/O PORTS

·       9-Pin Serial (16550 UART)

·       25-Pin Parallel (8 bit ECP)

·       15-Pin RGB (SVGA video)

·       Headphone (2.5mm mini jack, stereo)

·       Infrared port (IrDA1.0: 115.2Kbps)

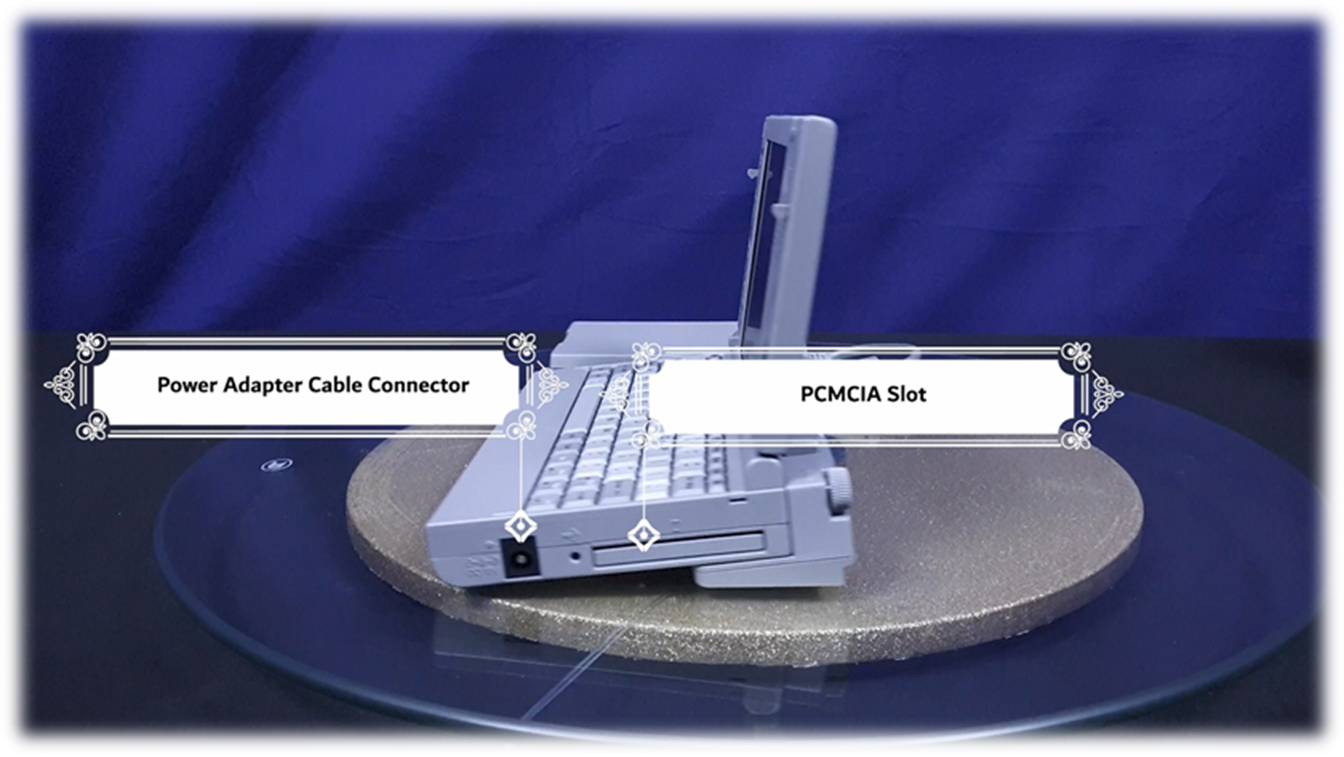

·       PCMCIA Slot

EXPANSION PERIPHERALS

·       Hays Optima 336 V.34 Data/Fax modem (PCMCIA with cable)

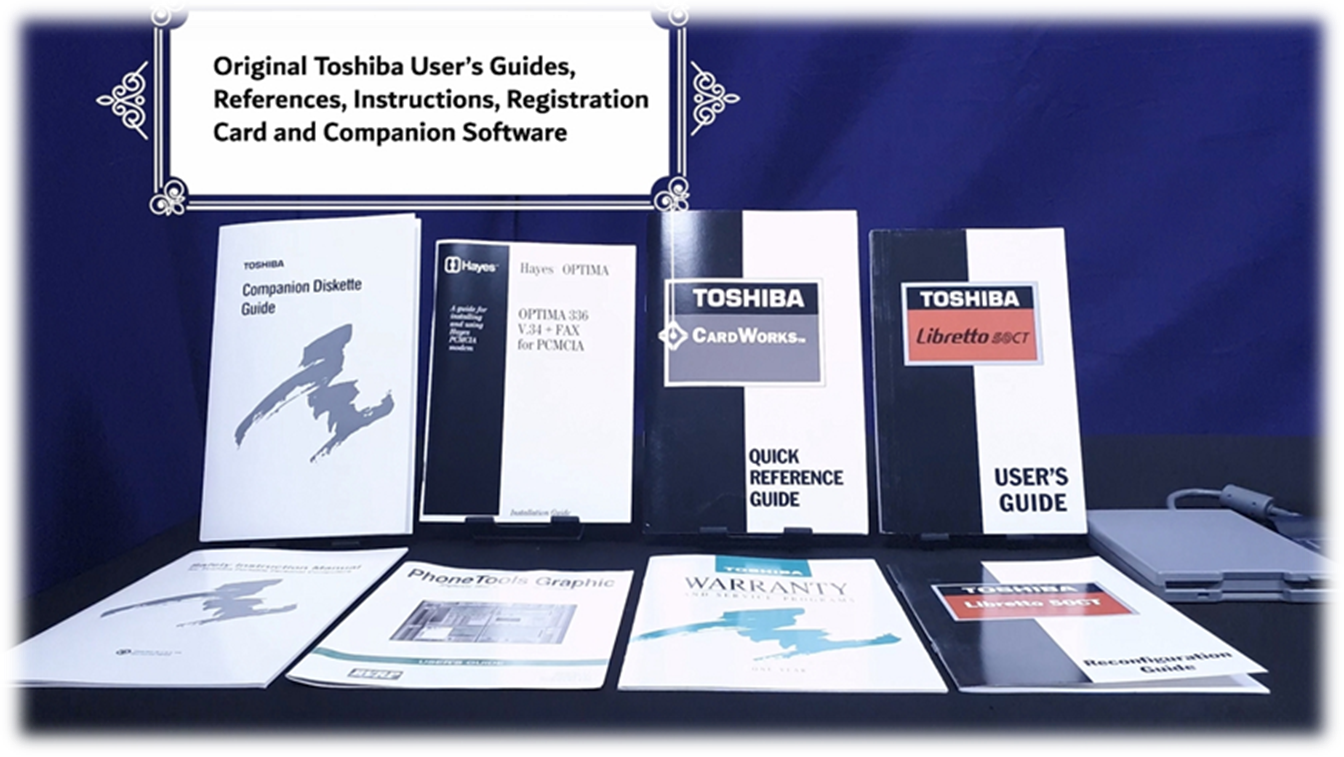

ACCESSORIES & DOCUMENTS

·       Original AC Adapter

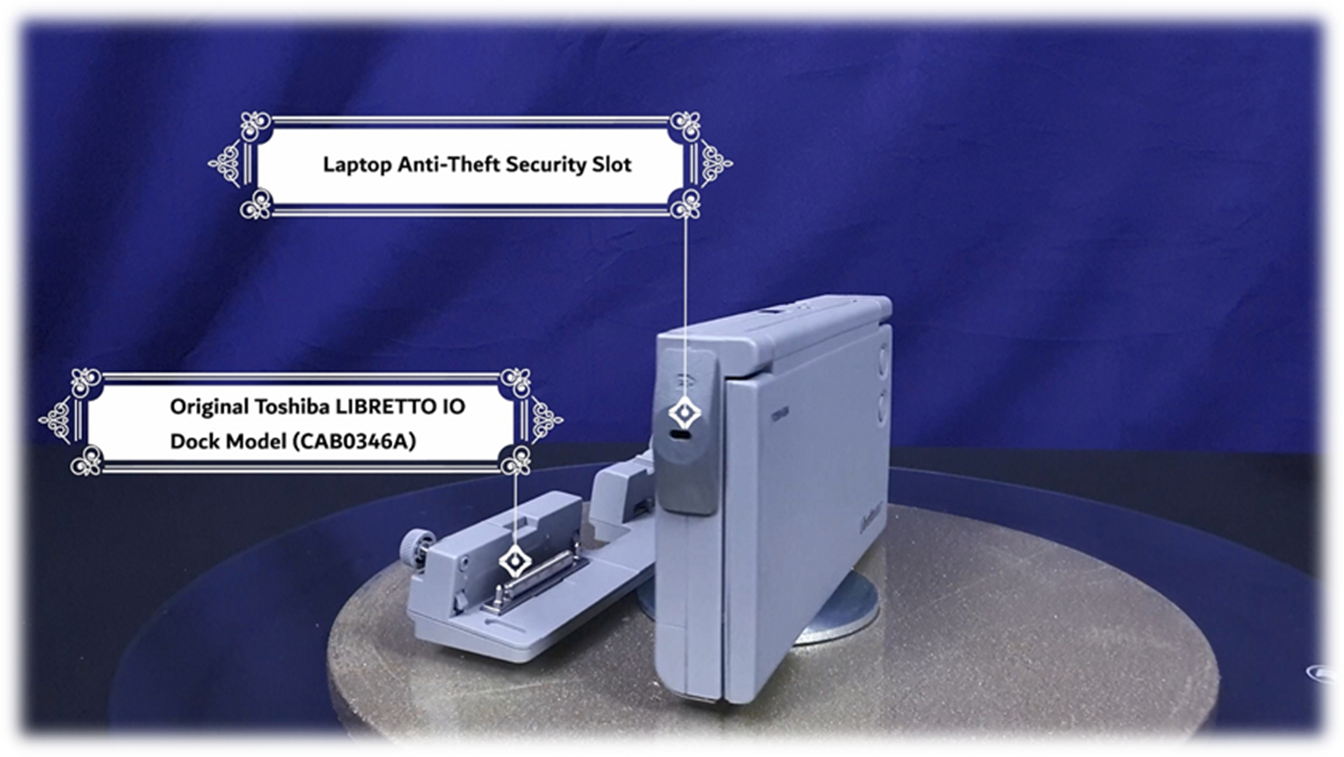

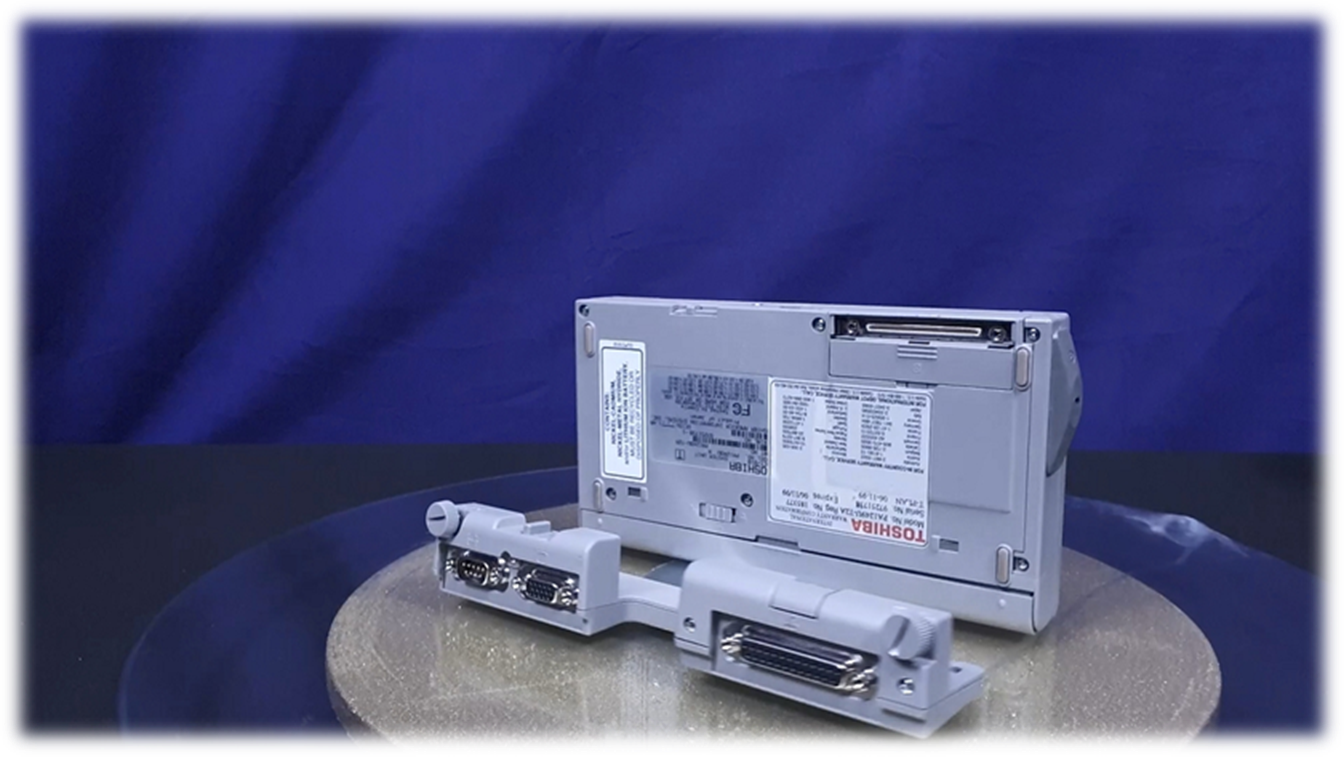

·       Original IO Dock model (CAB0346A)

·       Original Hays Optima modem guides

·       Original Toshiba Companion Diskettes and Guide

·       Original Manuals:

·       User’s Guide

·       Configuration Guide

·       Quick Reference Guide

POWER SUPPLY

·       System: 100-240V Auto-Switch (External Power Adapter)
Plug Type: TYPE A, USA, 2 Thin Flat Pins

SPECIAL INSTRUCTIONS
