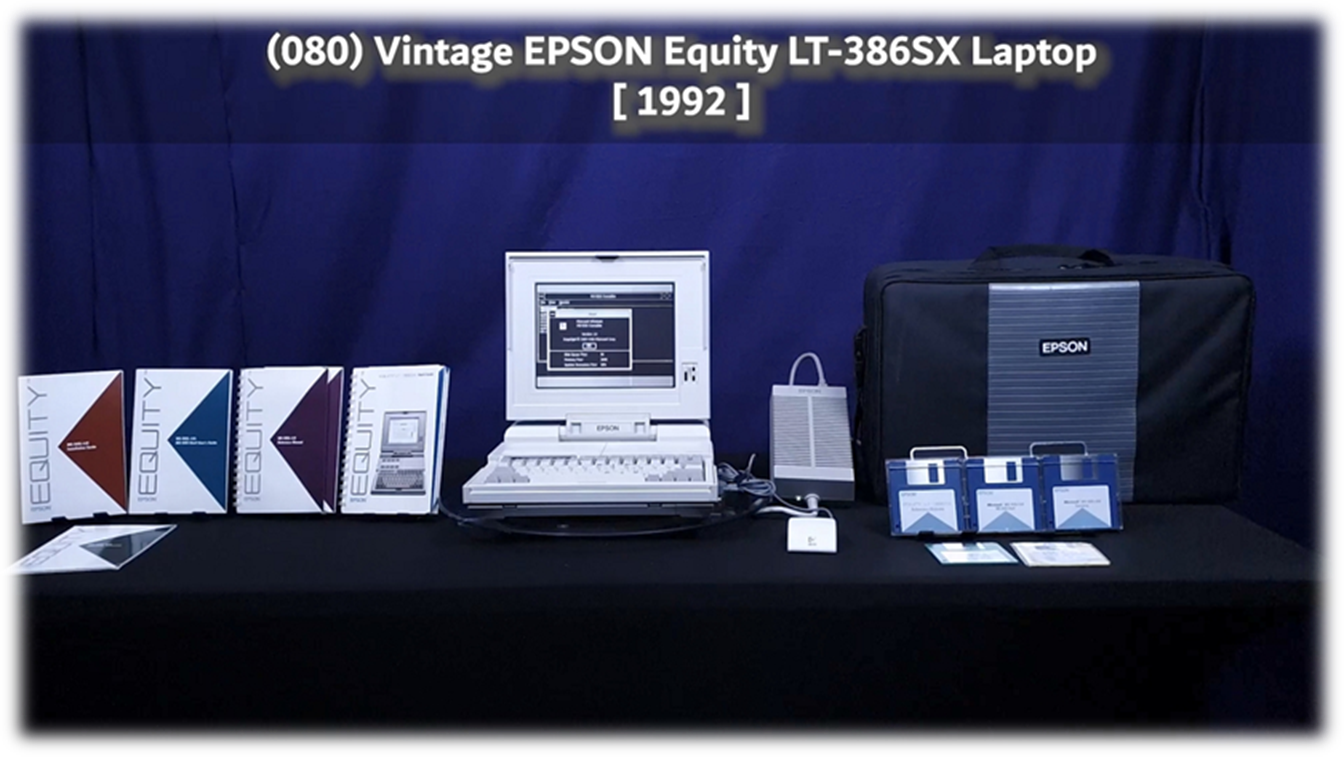

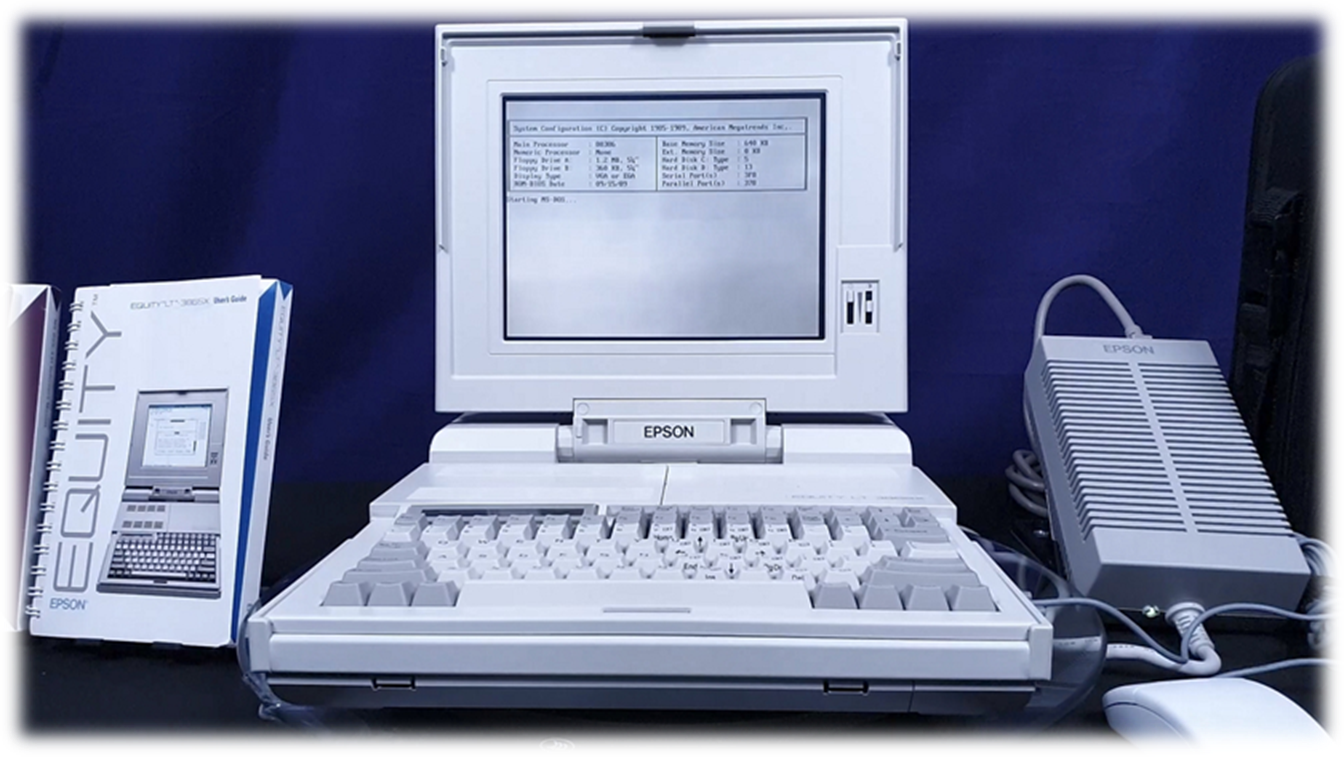

(080) Vintage EPSON Equity LT-386SX Laptop
[ 1992 ]



Specification:

CPU

Intel 80386SX microprocessor @ 16 MHz

RAM

2 MB (640KB standard and 1280KB extended)

STORAGE

Interchangeable, pop-out, 20MB, 16-bit bus AT-compatible

Controller HDD

DRIVES

Internal 3.5" floppy drive (1.44 MB)

DISPLAY

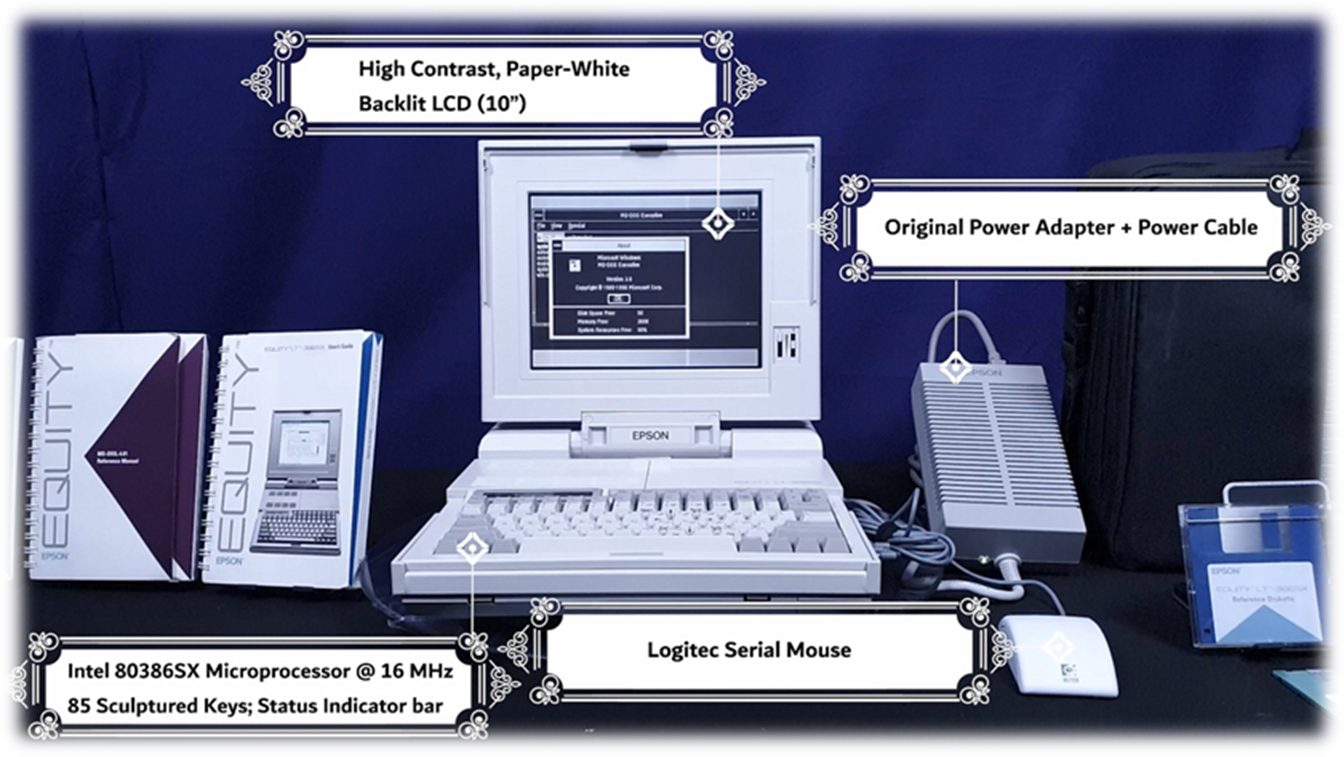

·       Built-in high contrast, paper-white, backlit LCD (10")

·       Graphics: (640 x 480) 16-level gray scale

OS

·       Microsoft MS-DOS 6.22 (floppy)

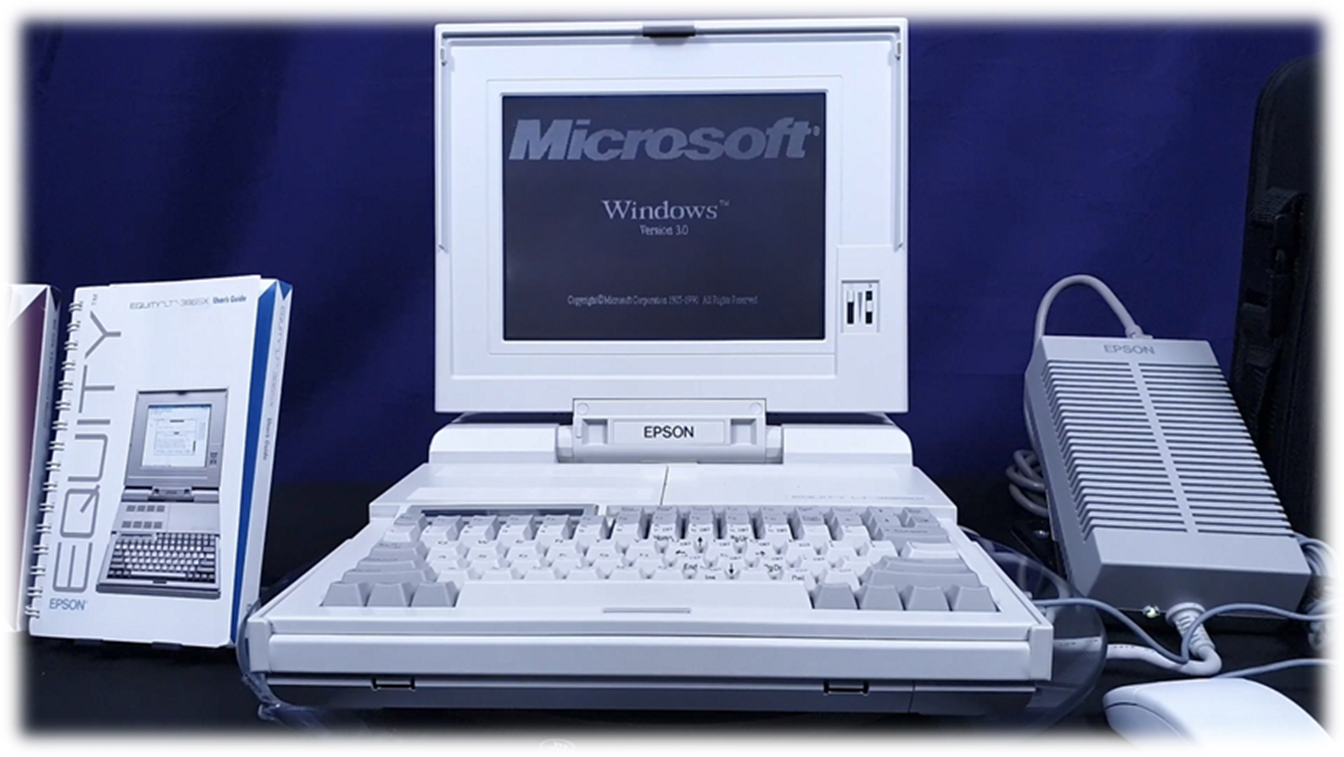

·       Microsoft Windows 3.0 (floppy)

·       Microsoft Windows 1.01 (floppy)

KEYBOARD

85 sculptured keys; status indicator bar, icons for Num Lock, Caps Lock, and Scroll Lock

Network

Internal modem slot; 34-pin male connector

I/O PORTS

·       Parallel: Standard 8-bit parallel, Z-pin, D-type female connector

·       Serial: RS-232C, programmable, asynchronous, 9-pin, D-type male connector

·       Video: 15-pin, female connector; supports VGA monitor

·       External Drive: 15-pin, D-type female connector

·       Keyboard connector for optional, external keyboard

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

·       Original Power Adapter

·       Original EPSON logo carrying bag

·       Logitec Serial Mouse

·       Original EPSON EQUITY Manuals:

·       MS-DOS 4.01 reference manual

·       MS-DOS 4.01 installation + Shell mini guides

·       MS-DOS 4.01 Operating + Shell + Reference floppy diskettes

·       EPSON User’s Guide

POWER SUPPLY

·       System: 100-240V Auto-Switch (External Power Adapter)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS
