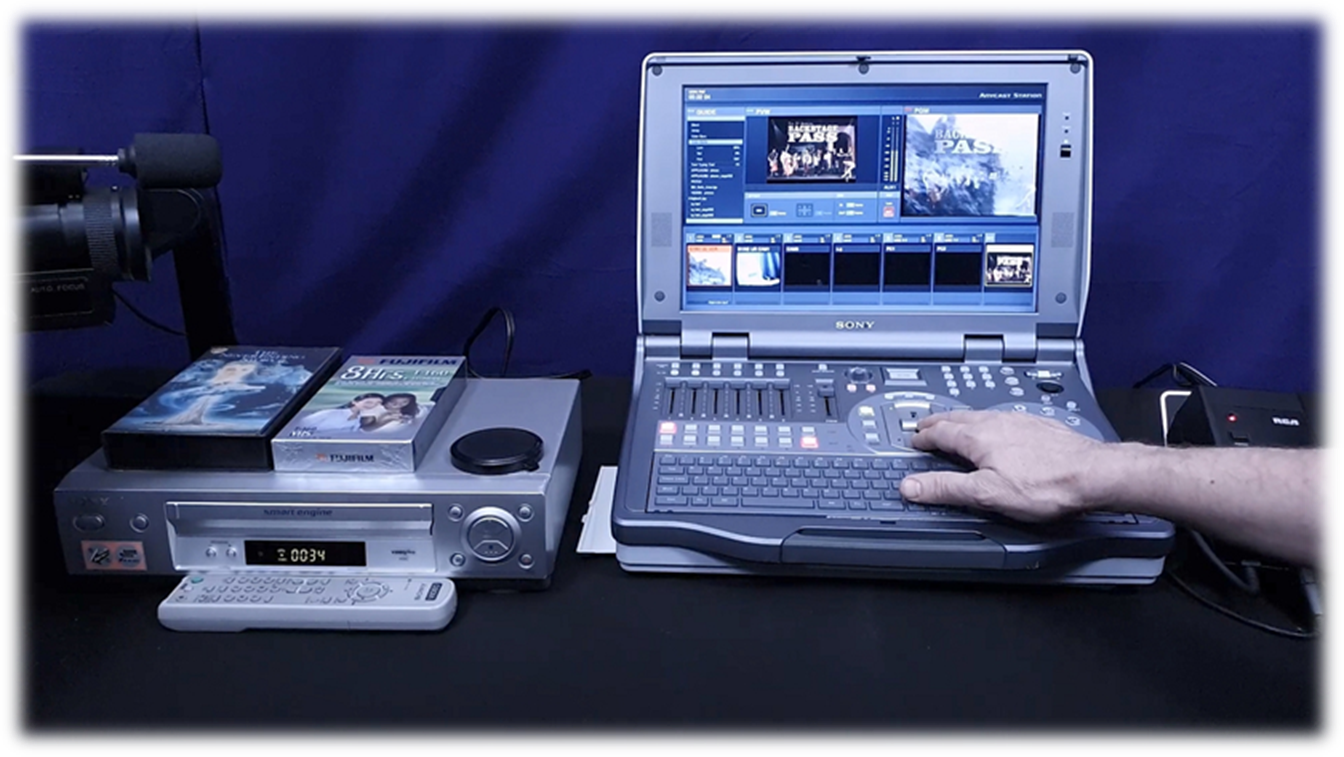

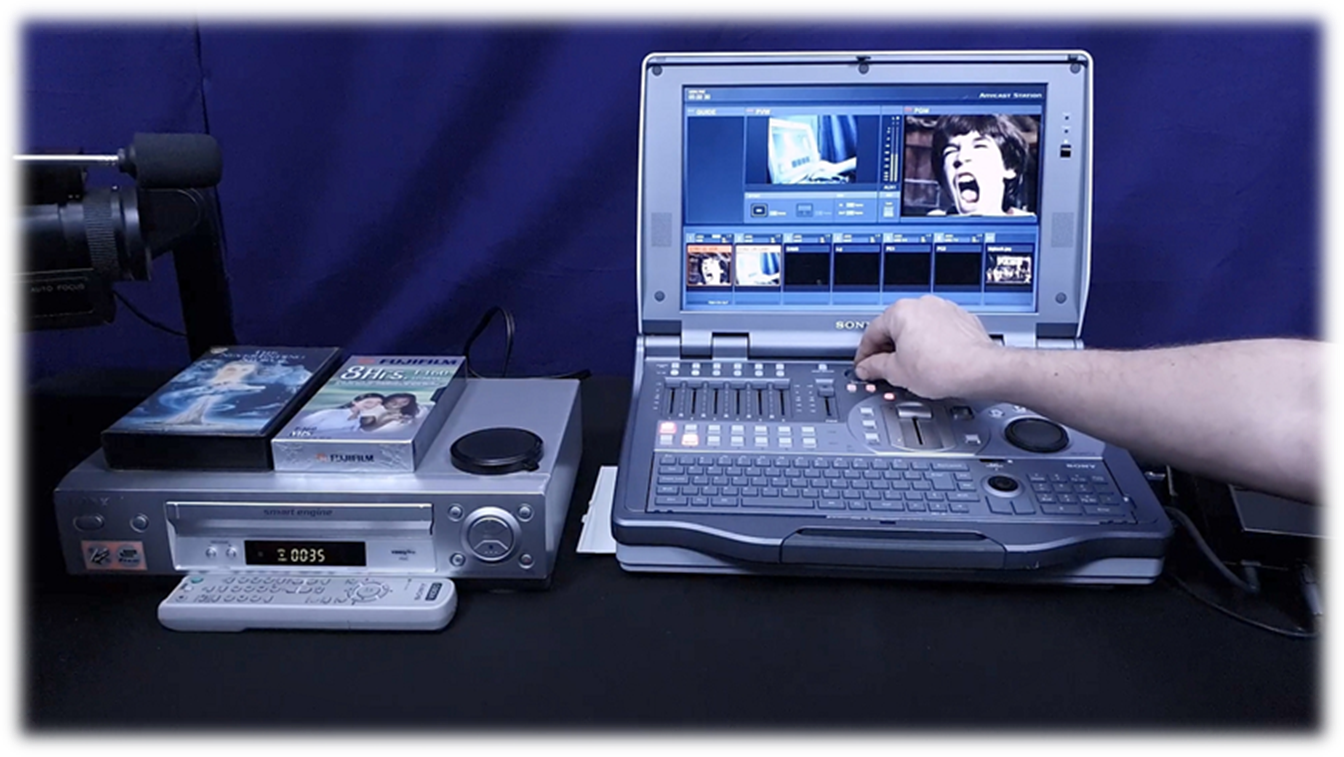

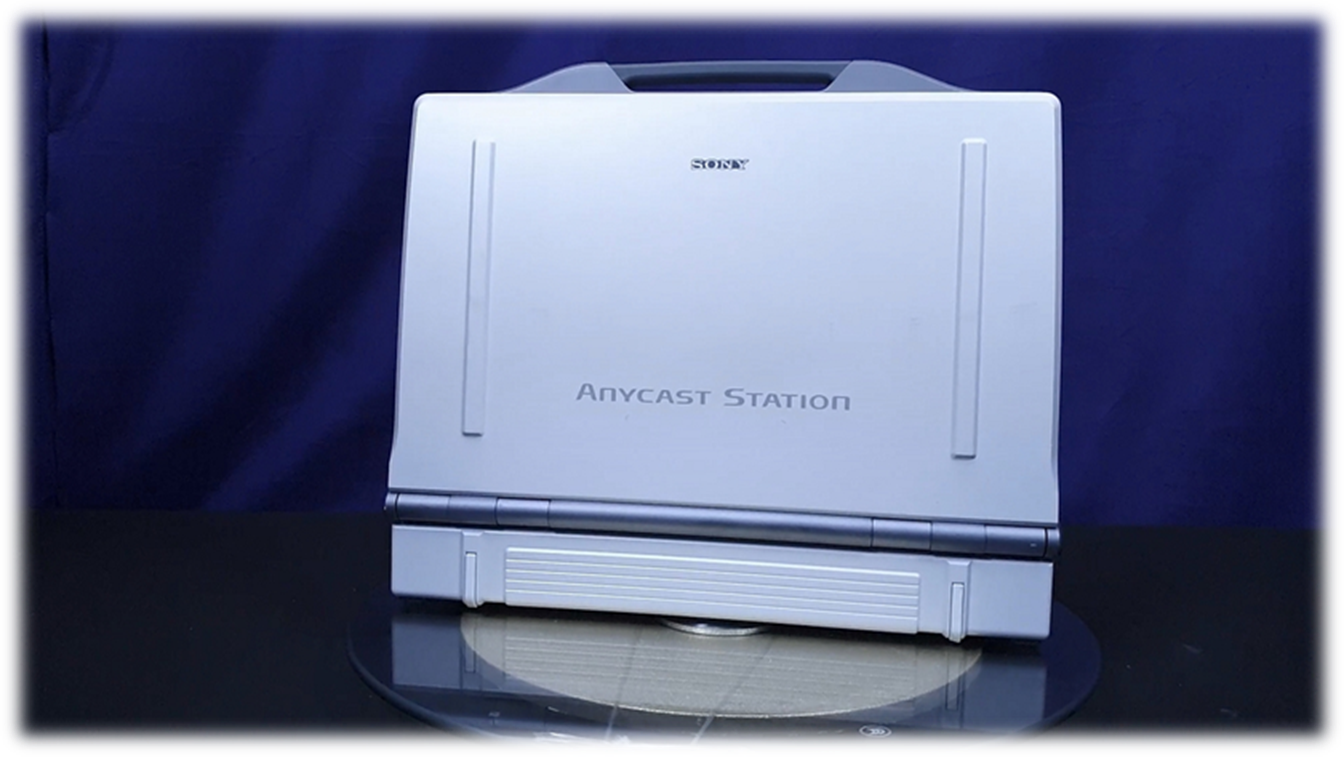

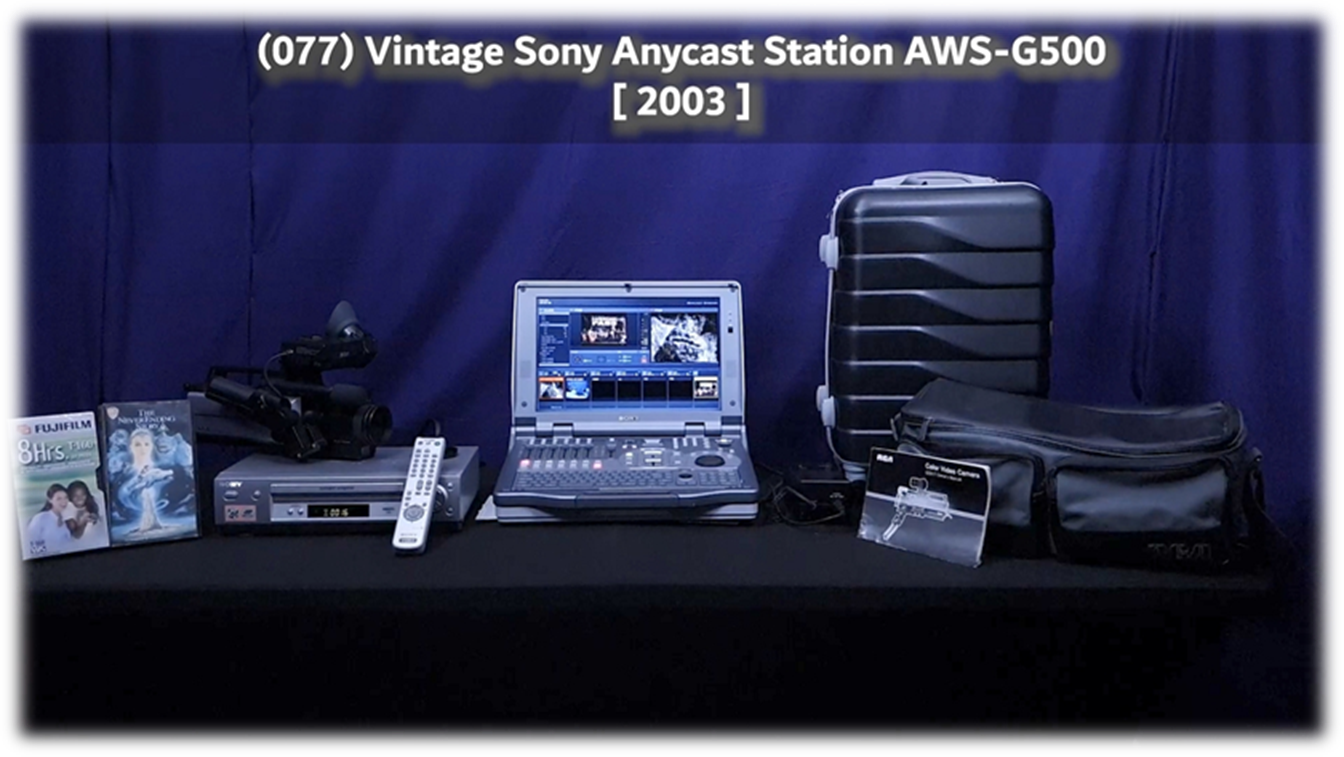

(077) Vintage Sony Anycast Station AWS-G500
[ 2003 ]



Specification:

DESCRIPTION

A unique portable solution incorporating video switching and audio mixing with high quality LCD display for producing live broadcast events.

DISPLAY

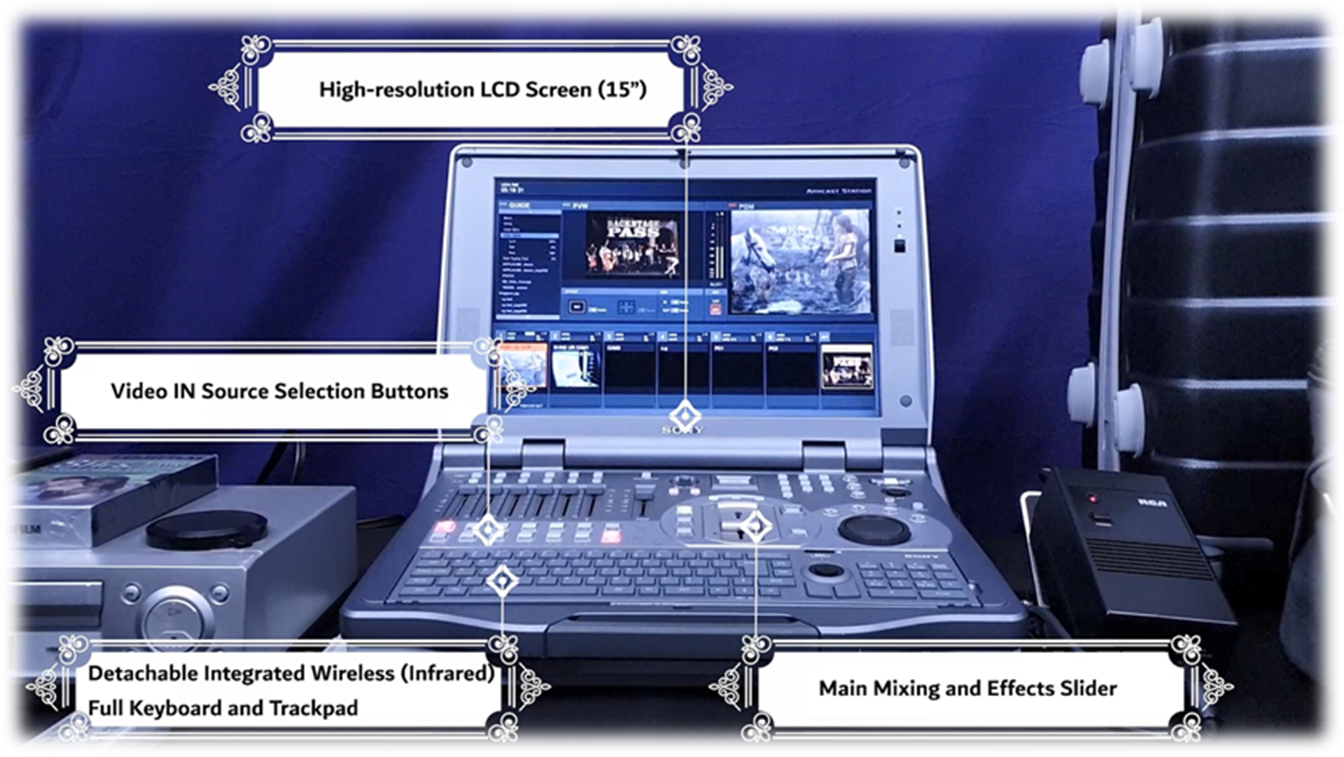

·       Built-in High-resolution LCD Screen (15")

·       Graphics: 1280 x 800

KEYBOARD

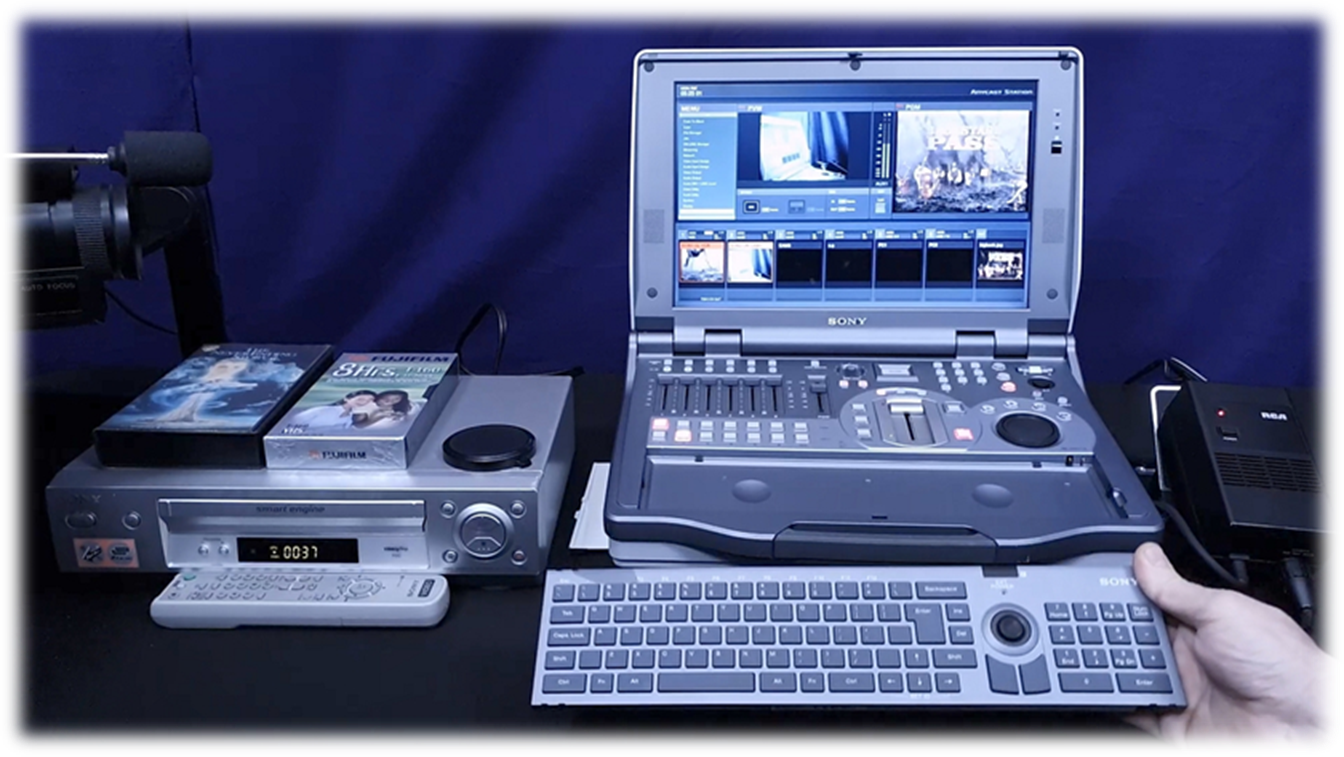

Integrated wireless (Infrared) full keyboard and Trackpad

Network

10/100 base-T ethernet (RJ-45)

I/O PORTS

·       i-LINK (IEEE 1394): Connect external devices

·       VISCA control port (8 pins): Camera Control Color, Zoom, Iris, Pan, Tilt, Focus

·       Video Switcher: Up to 6 primary input feeds

·       Audio Mixer: 48KHz/24bit Processing, 6 Channel Input Mixing, Real Channel Faders and a Master Fader, Stereo Speakers

·       Intercom I/O: Contact director or camera operators

·       2 X USB A v1.1

·       RGB GUI port (HD-15)

·       RS-232 9-Pin serial port (remote control)

·       Sony Memory Stick Slot

ACCESSORIES & DOCUMENTS

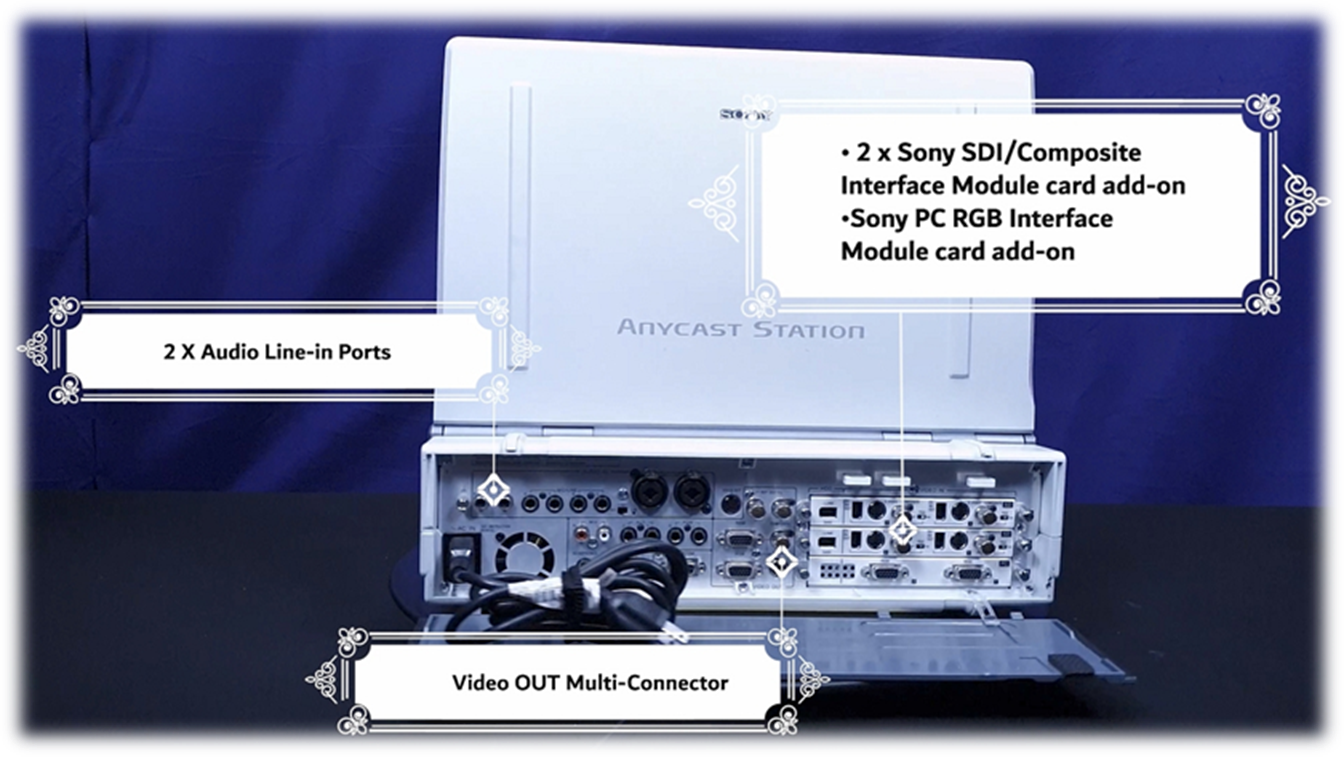

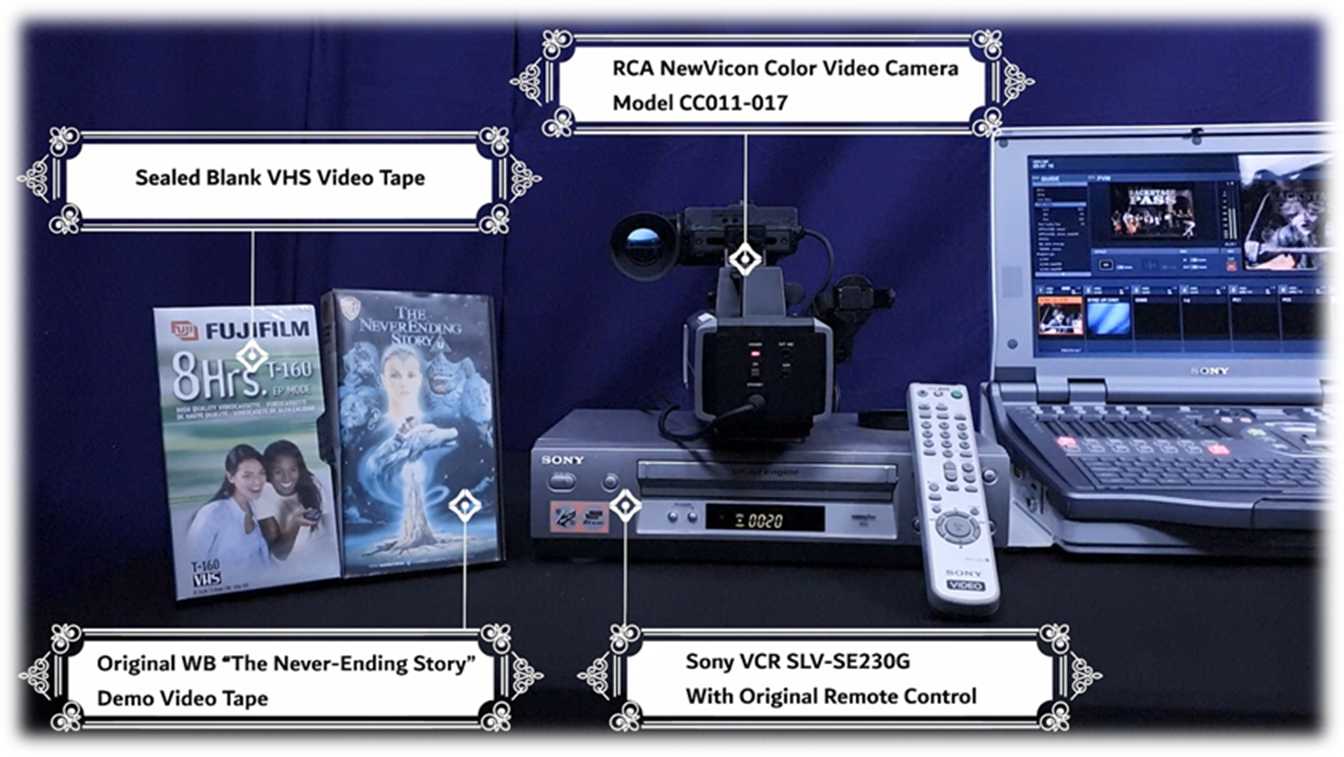

·       2 x Sony SDI/Composite Interface Module card add-on

·       Sony PC RGB Interface Module card add-on

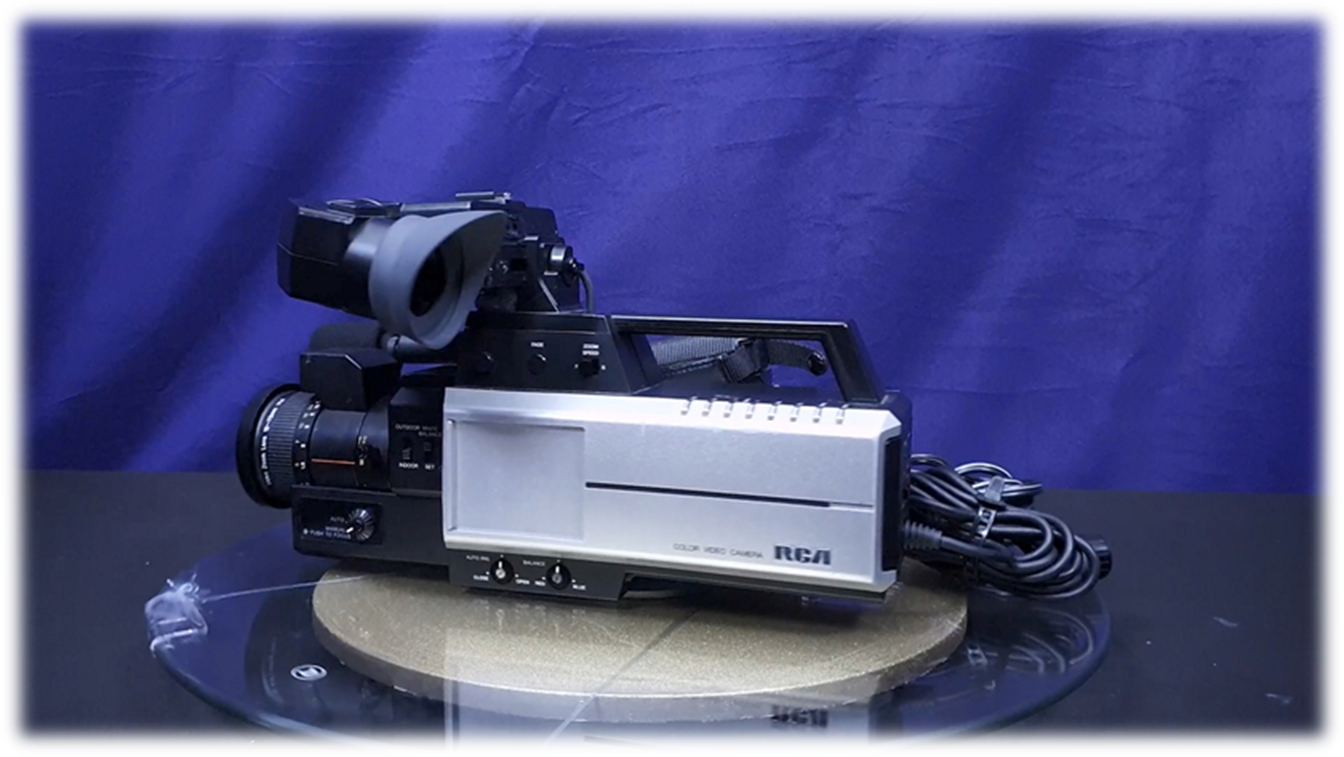

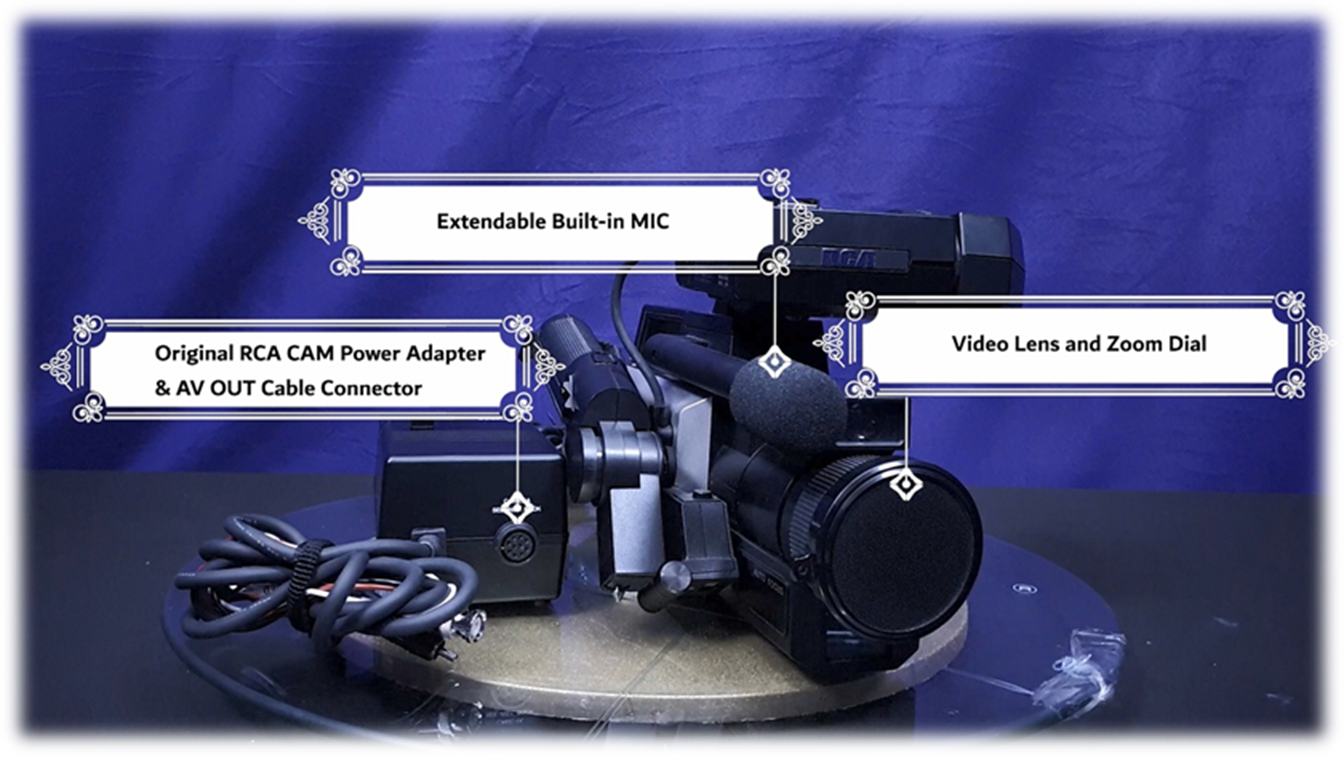

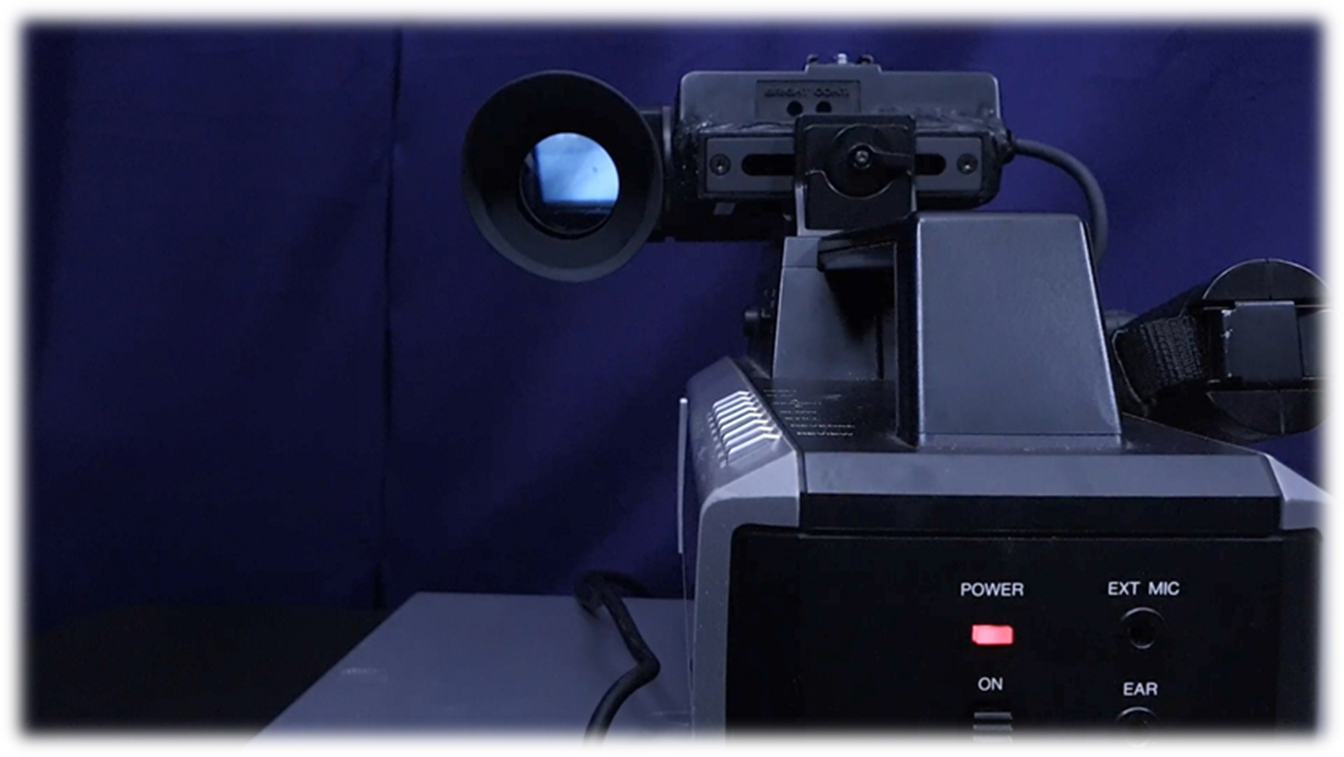

·       RCA NewVicon Color Video Camera Model CC011-017 (with original RCA carrying bag)

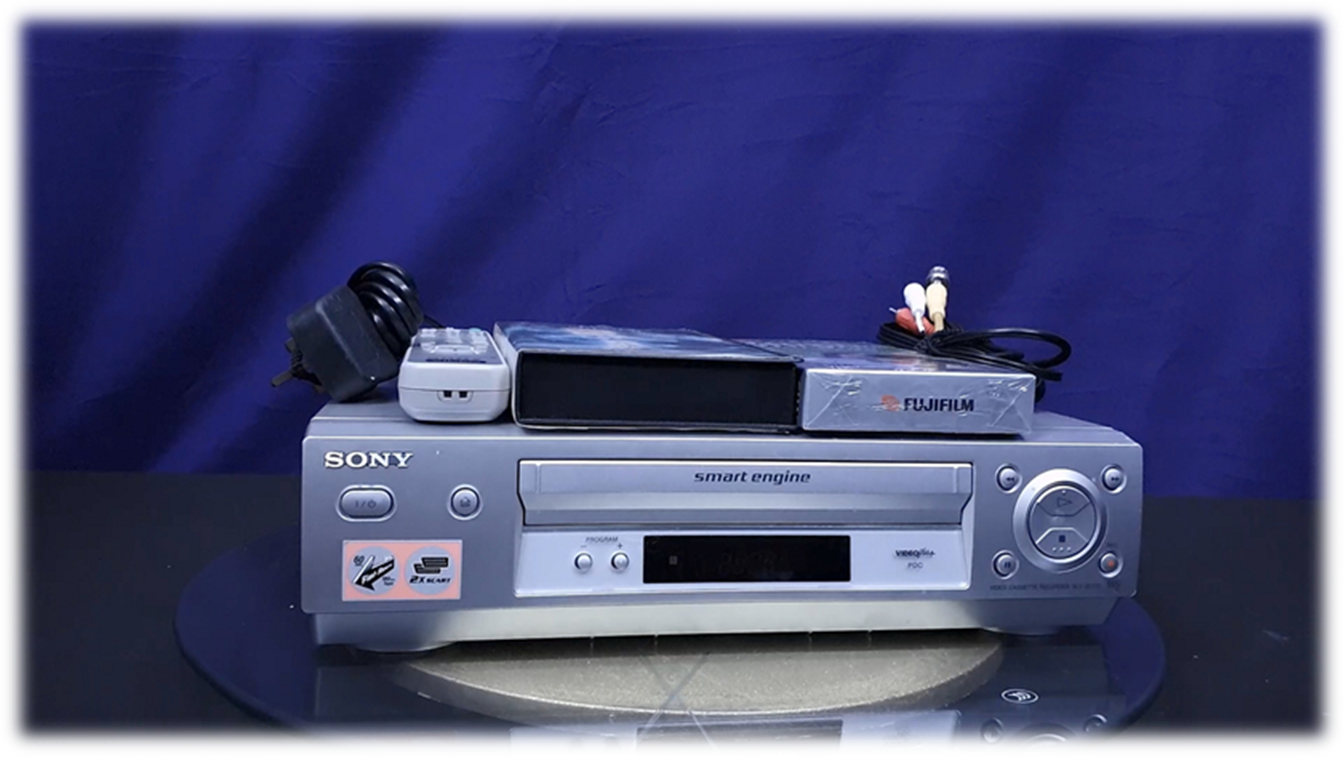

·       Sony VCR SLV-SE230G (Video Cassette Recorder)

POWER SUPPLY

·       Computer: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       VCR: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       VIDEO CAM: 120V Only (External Power Adapter)
Plug Type: TYPE A, USA, 2 Thin Flat Pins

SPECIAL INSTRUCTIONS

·       Plug VCR to S-Video (1) Port at Video-IN Upper Interface Card

·       Plug CAM to S-Video (2) Port at Video-IN Upper Interface Card
