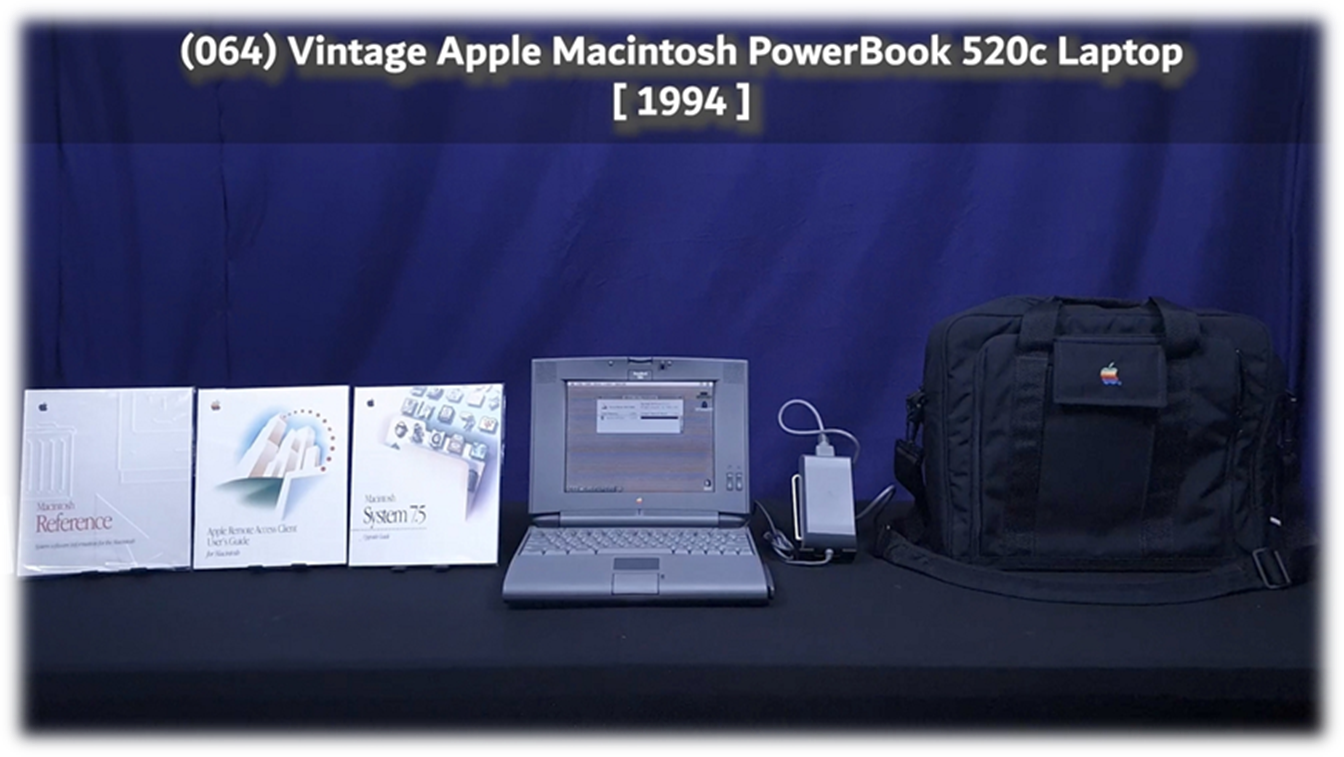

(064) Vintage Apple Macintosh PowerBook 520c Laptop
[ 1994 ]



Specification:

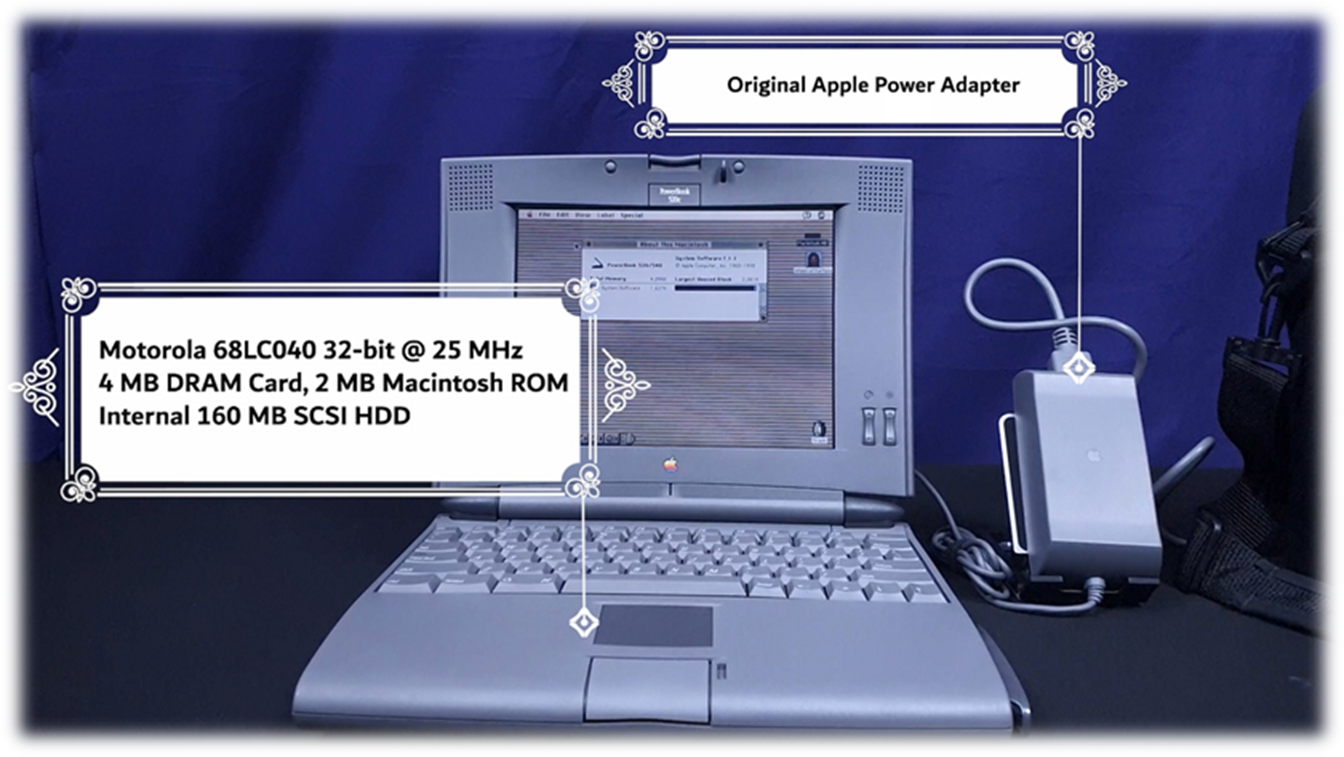

CPU

Motorola 68LC040 32-bit @ 25 MHz

RAM

4 MB DRAM Card, 2 MB Macintosh ROM

STORAGE

Internal 160 MB SCSI HDD

DRIVES

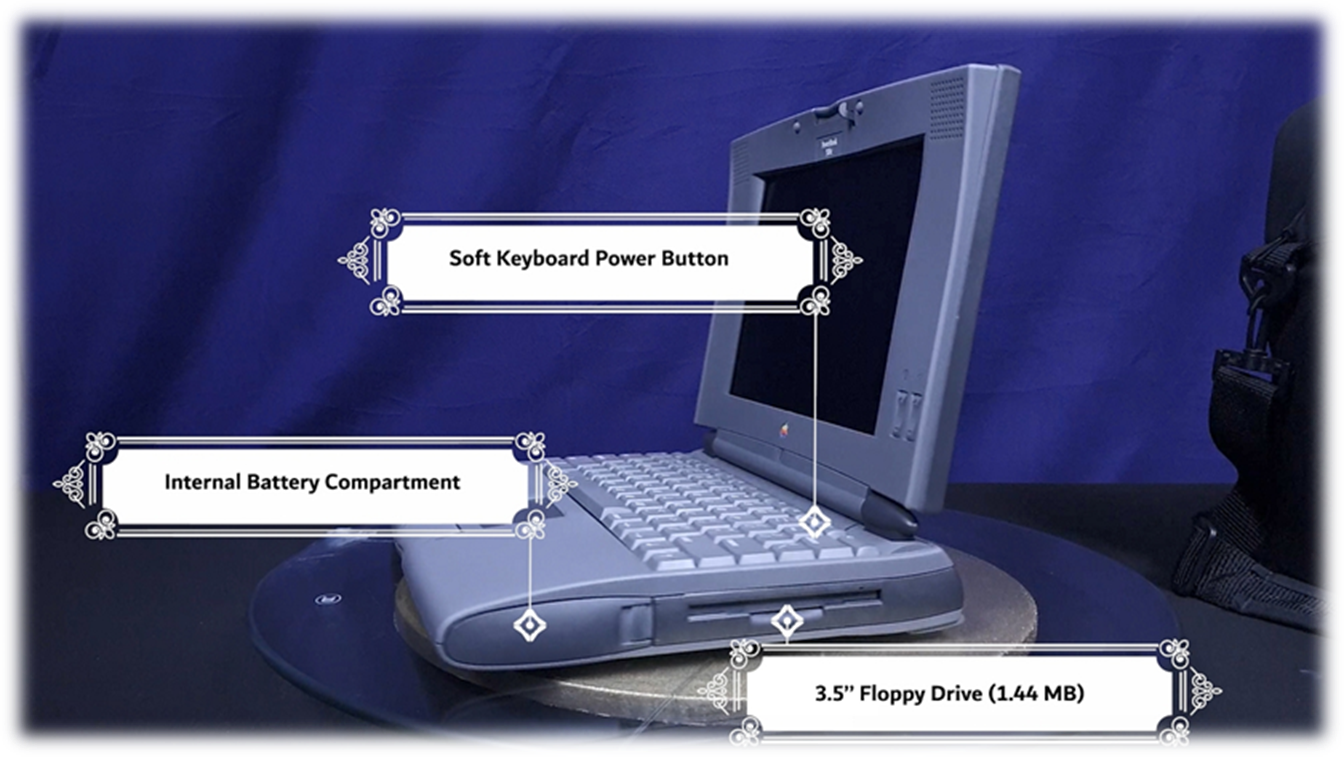

·       Internal 3.5'' Floppy Drive (1.44 MB)

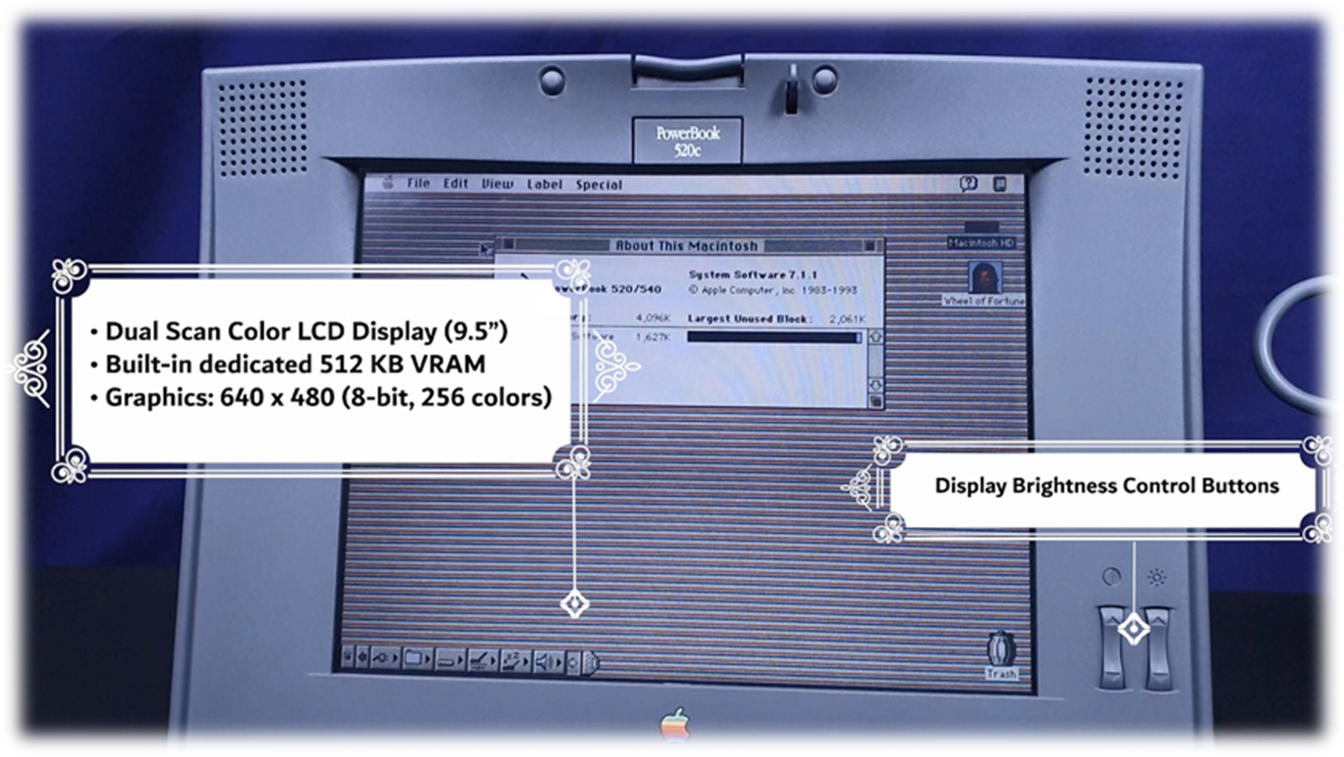

DISPLAY

·       Built-in Color Dual Scan LCD (9.5")

·       Built-in dedicated 512 KB VRAM

·       Graphics: 640 x 480 (8-bit, 256 colors)

OS

MacOS 7.1.1

KEYBOARD

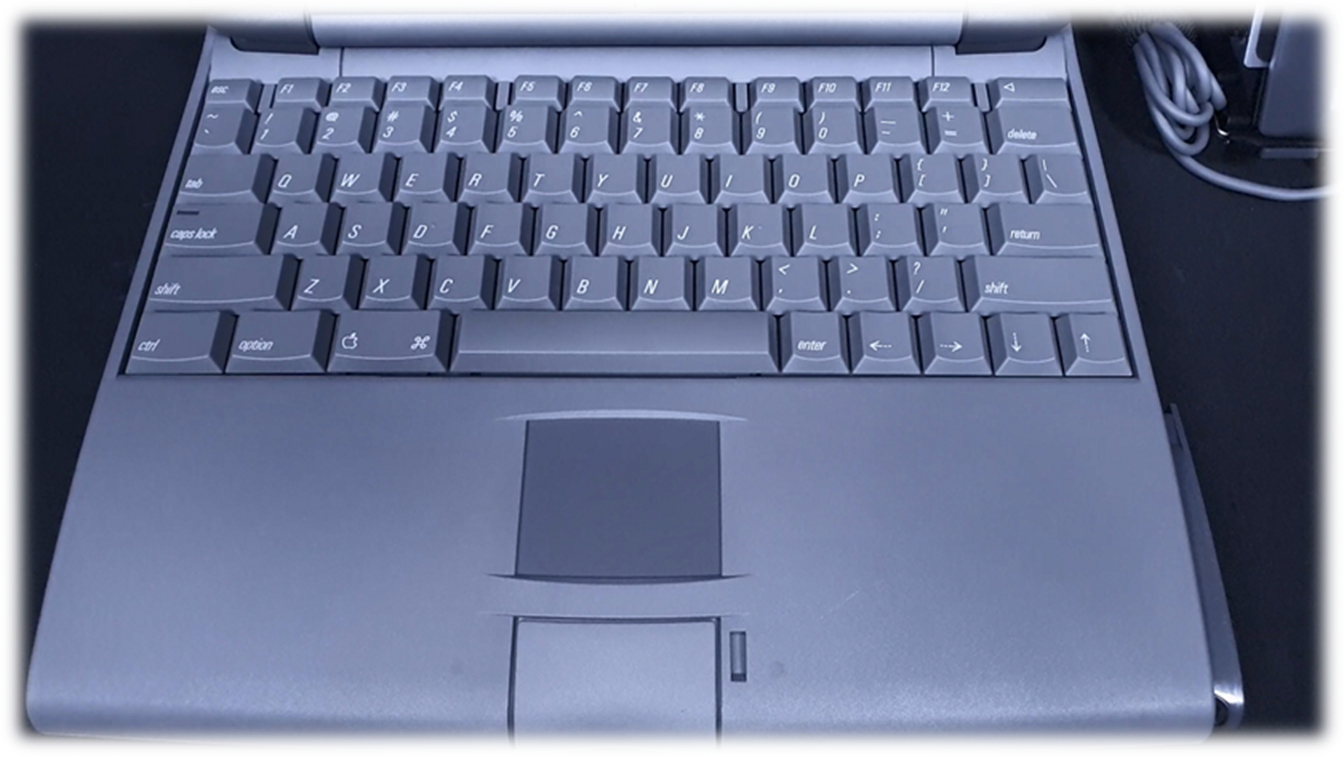

·       Internal Apple Standard Keyboard and Trackpad.

Network

Ethernet (AAUI-15)

I/O PORTS

·       Mini-15 video port

·       HDI-30 SCSI port

·       Apple Attachment Unit Interface (AAUI-15)

·       ADB port (Keyboard/Mouse)

·       Serial port

·       Audio inputs

EXPANSION PERIPHERALS

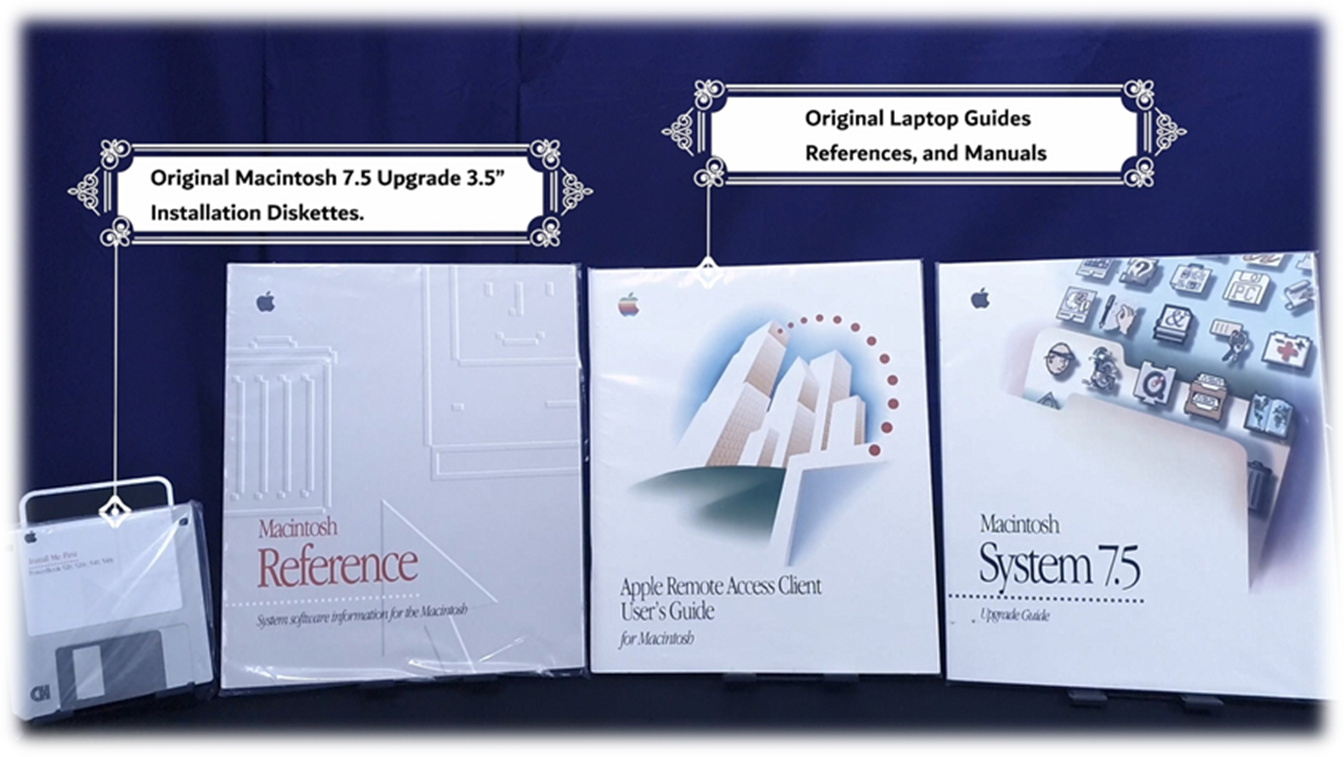

ACCESSORIES & DOCUMENTS

·       Original Apple laptop Power Adapter

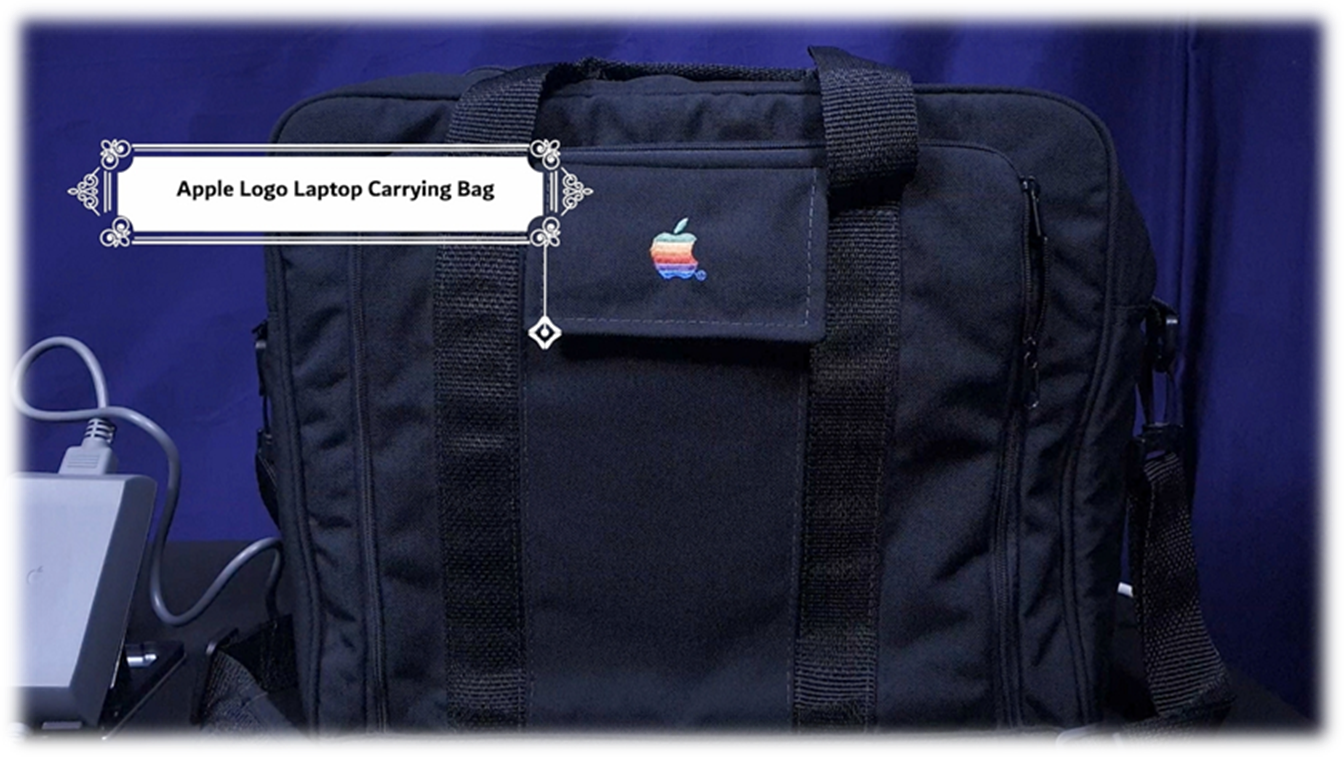

·       Laptop carrying bag (Apple Logo)

·       Macintosh 7.5 Upgrade Guide

·       Original Laptop User’s Guide and Installation Disks

·       Apple Resource Guide

·       Apple Remote Access Client User’s Guide

POWER SUPPLY

·       System: 100-240V Auto-Switch (External Power Adapter)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS

·       HDD Boot

·       If Battery is fully empty then need to remove battery (Right Front Slot) first to power on the system on AC power only
