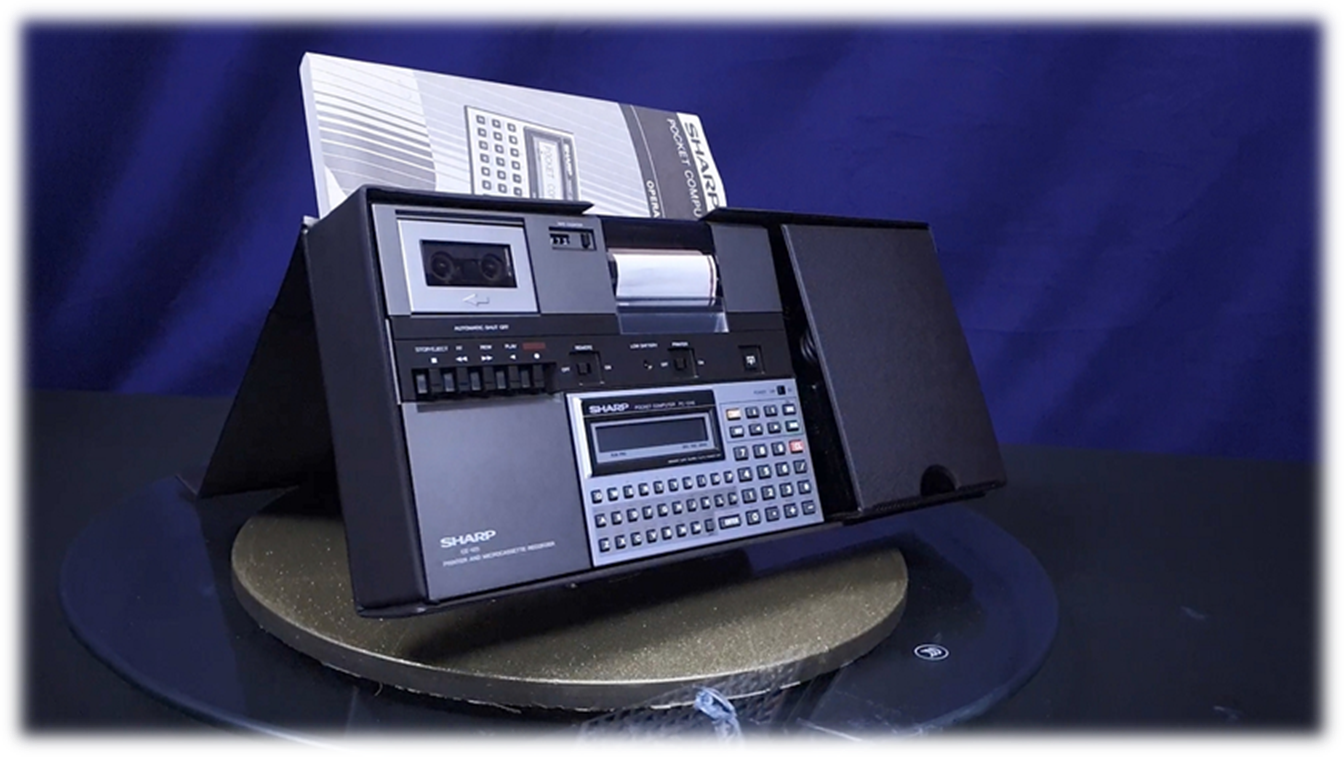

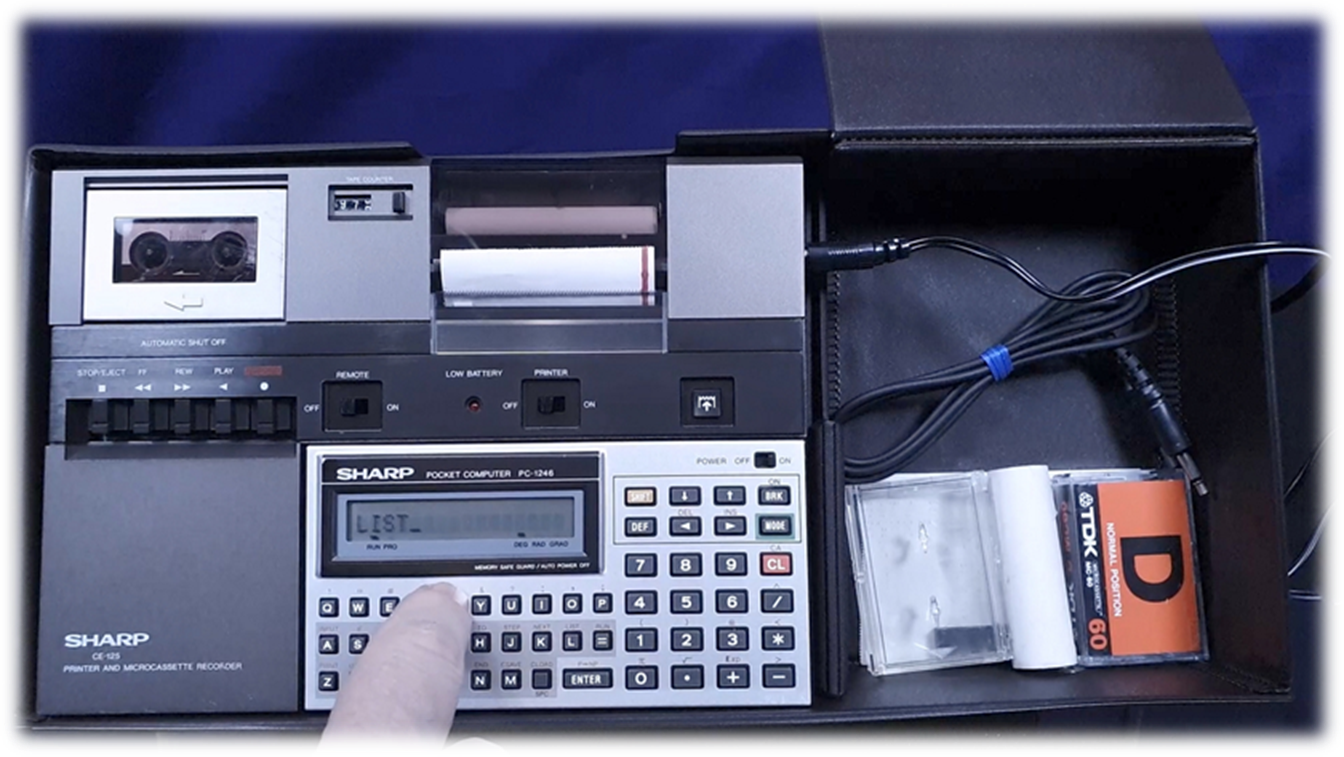

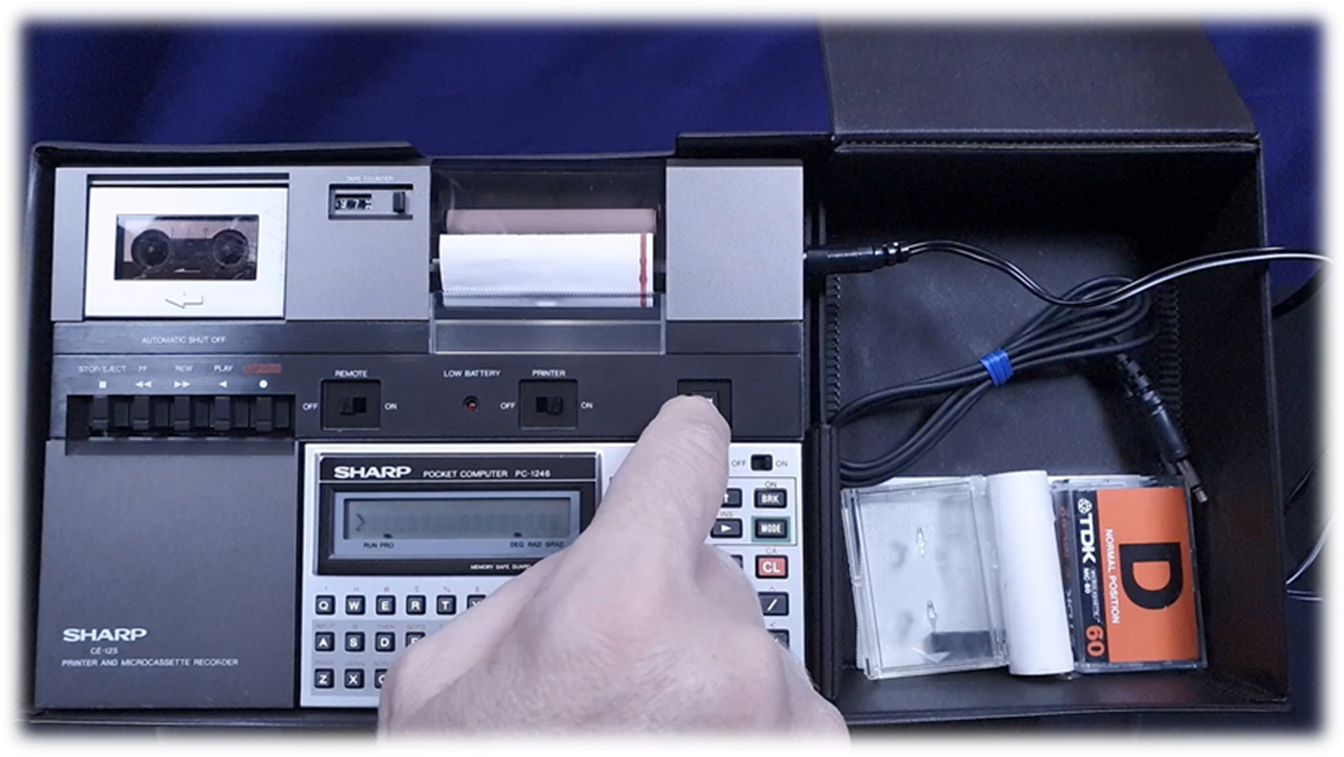

(057) Vintage Sharp PC-1246 Pocket Computer
[ 1983 ]



Specification:

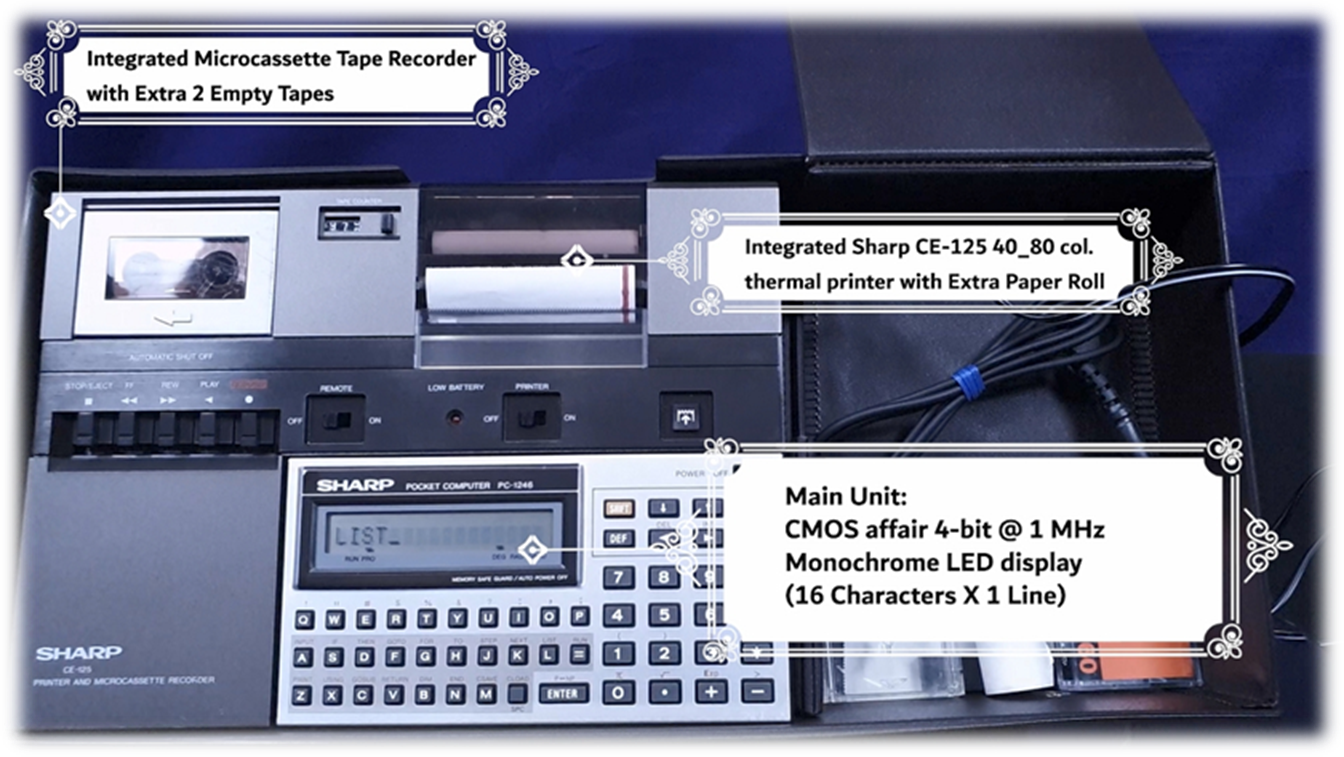

CPU

CMOS affair (SC61720D03) 4-bit @ 1 MHz

RAM

2 KB, 18 KB ROM

STORAGE

 (mini cassette tapes)

DISPLAY

·       Built-in Monochrome LED display

·       Text: 1 line x 16 characters

OS

Built-in BASIC interpreter

KEYBOARD

Internal Calculator type (rubber), QWERTY, numeric keypad

I/O PORTS

·       I/O expansion slot for peripherals

EXPANSION PERIPHERALS

·       Module: Sharp CE-125 40_80 col. thermal printer

·       Module: Microcassette Recorder

ACCESSORIES & DOCUMENTS

·       Original AC Adapter

·       Microcassette connection cable

·       2 x empty TDK micro cassettes

·       Printer paper roll

·       Original Sharp pocket bag

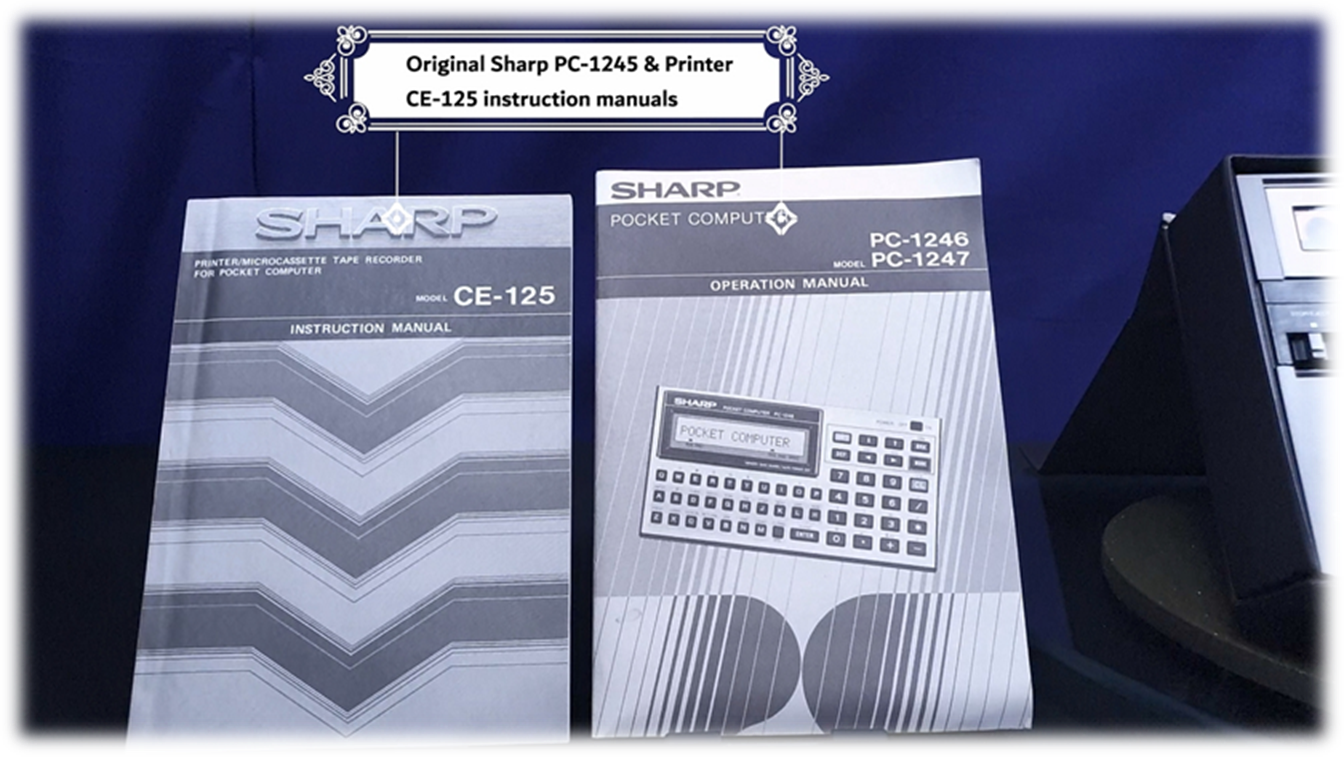

·       Original Sharp PC-1245 & Printer CE-125 instruction manuals

POWER SUPPLY

·       System: 240V Only (External Power Adapter)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

SPECIAL INSTRUCTIONS

·       <MODE> button: to select BASIC program editing mode

·       example:

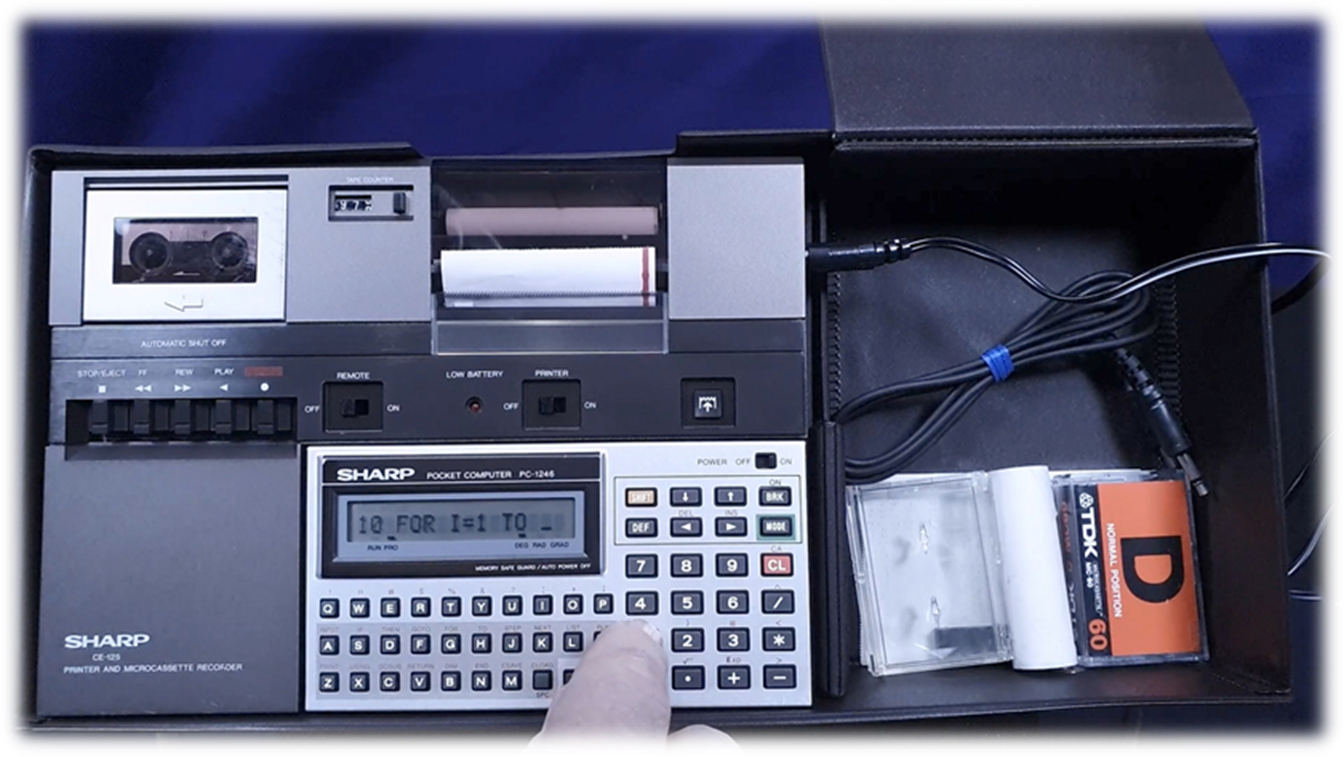

  10 FOR I=1 to 10

  20    Print I;

  30 NEXT I

<SHIFT + => button or type RUN to execute the program
