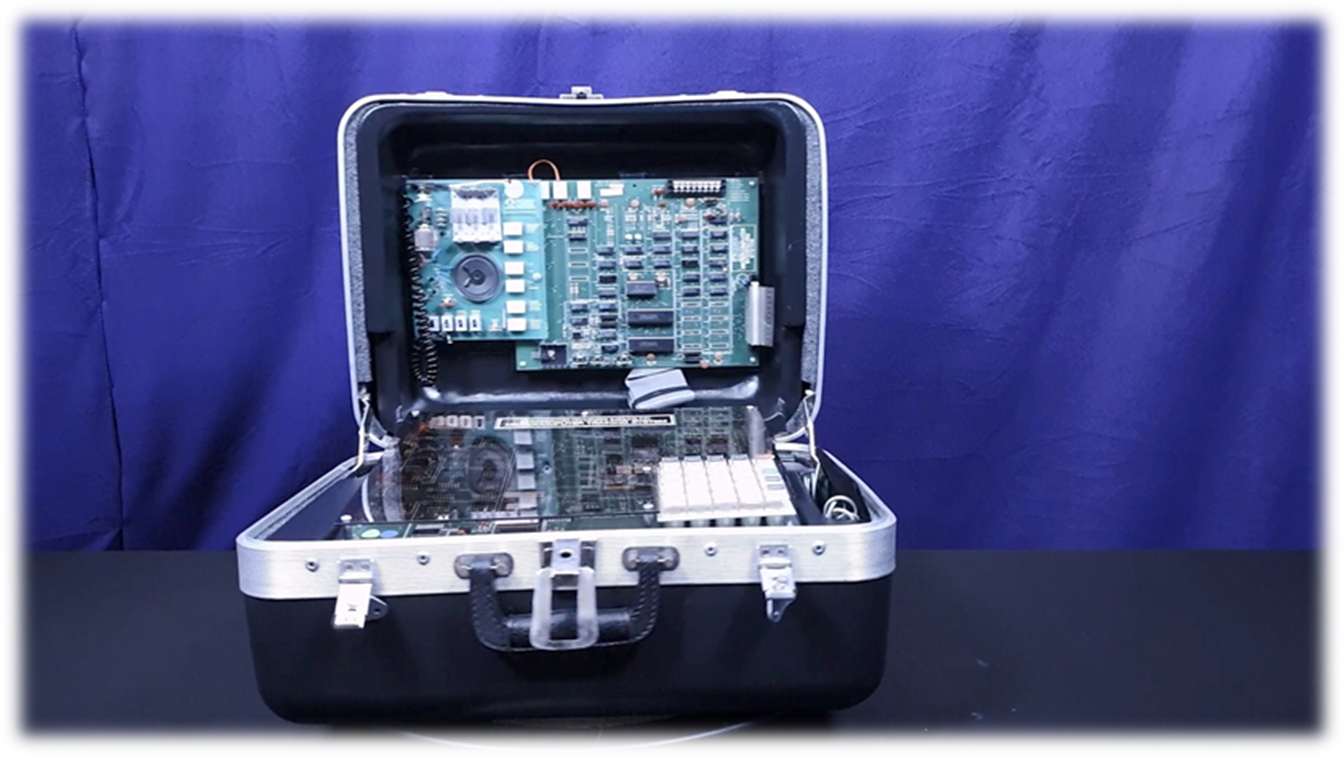

(055) Vintage Integrated Computer 8080 Microprocessor Trainer
[ 1980 ]



Specification:

COMPONENTS

·       The system is a full portable system for low level programming training for the Intel 8080 processor:

·       Launched: on April 1974

·       CPU clock rate: 2 MHz @ 8 bits data bus

·       Address width: 16 bits @ 40-pin DIP socket

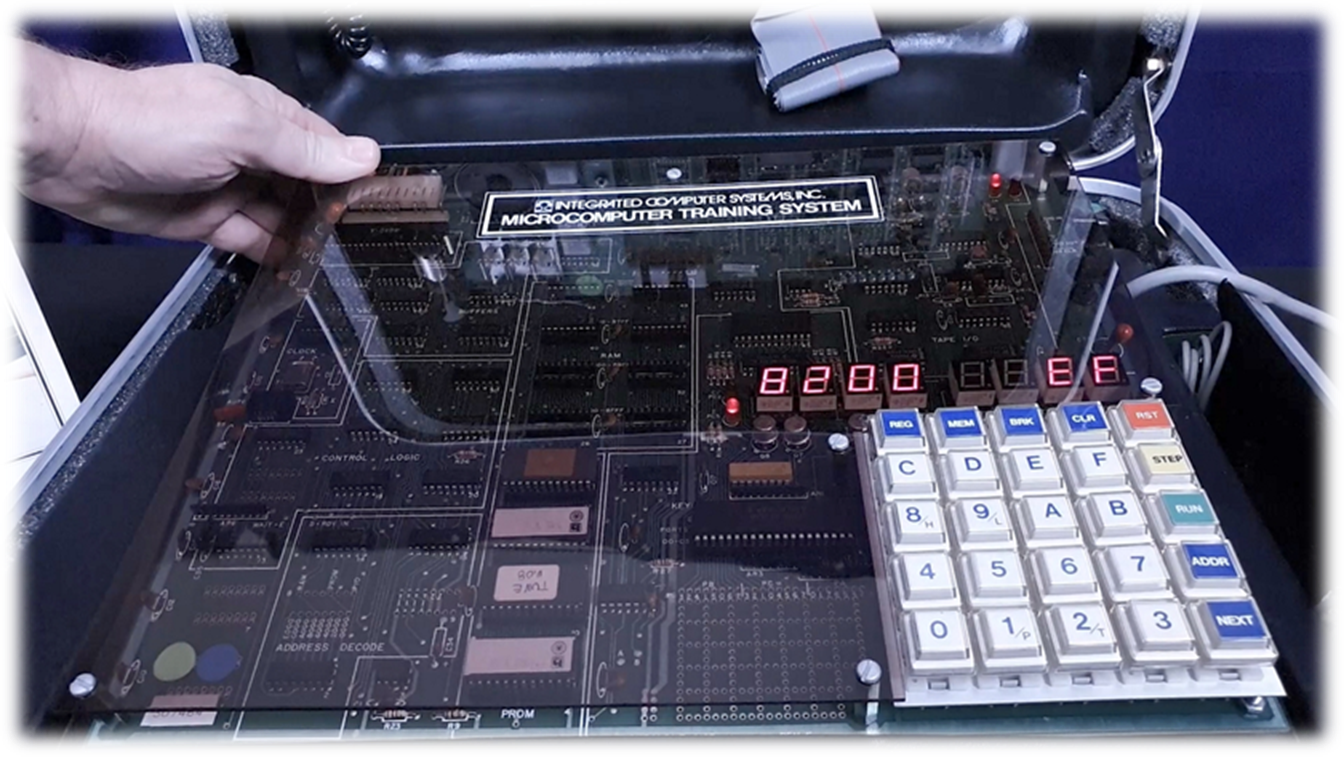

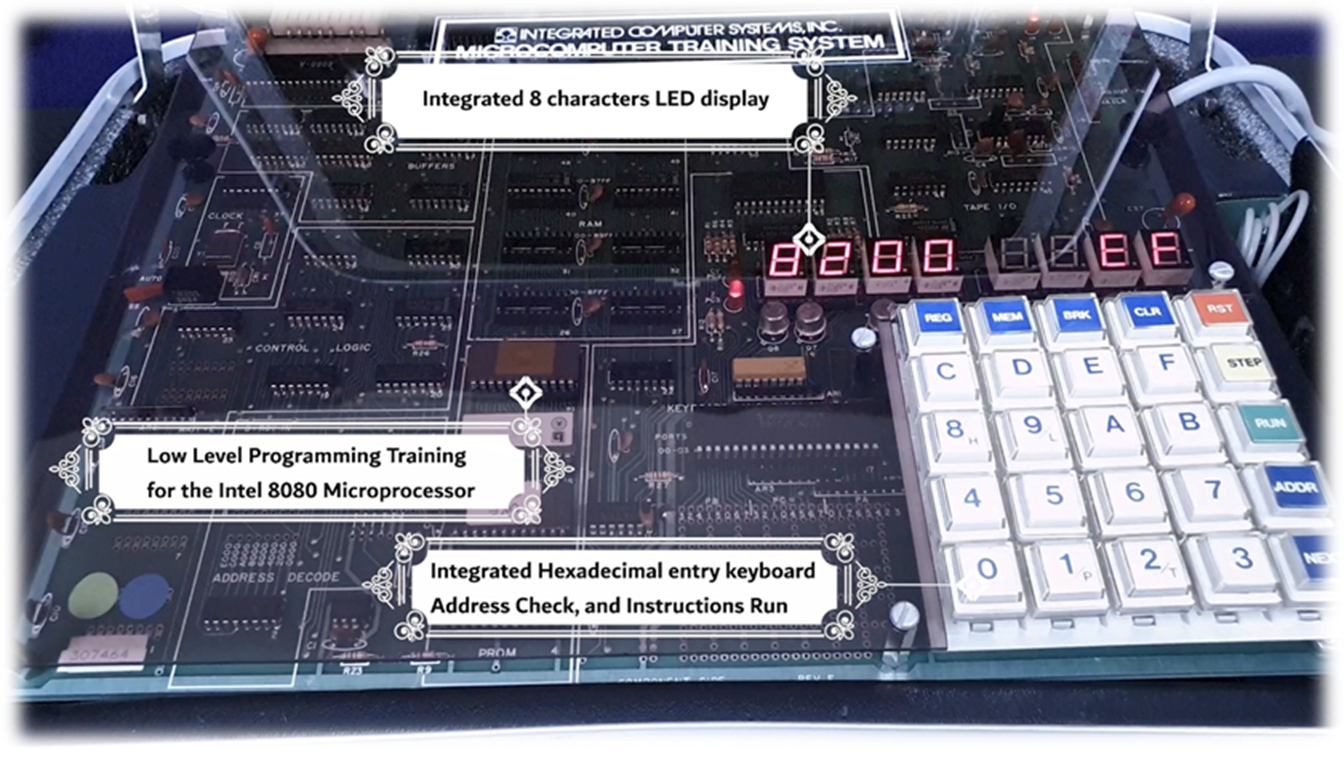

·       Integrated Hexadecimal entry keyboard

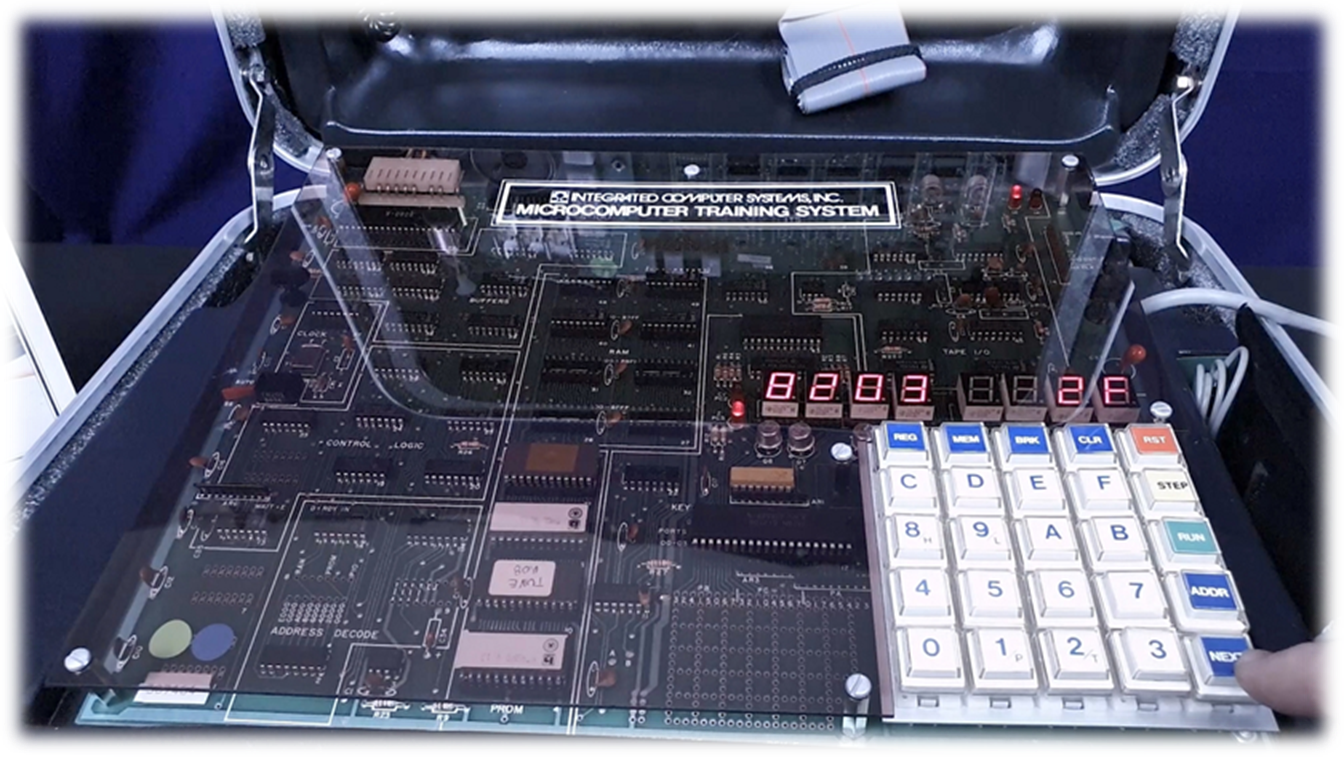

·       Integrated 8 characters LED display

·       Integrated audio board

FUNCTIONS

·       Memory word, modules and access

·       Functional Unit

·       Instruction Cycles

·       The Program Counters

·       The Instruction Registers

·       The Accumulator

·       The Clock

·       Program modules, subroutines and stack

·       Logic and BIT manipulation

·       Program Execution

ACCESSORIES & DOCUMENTS

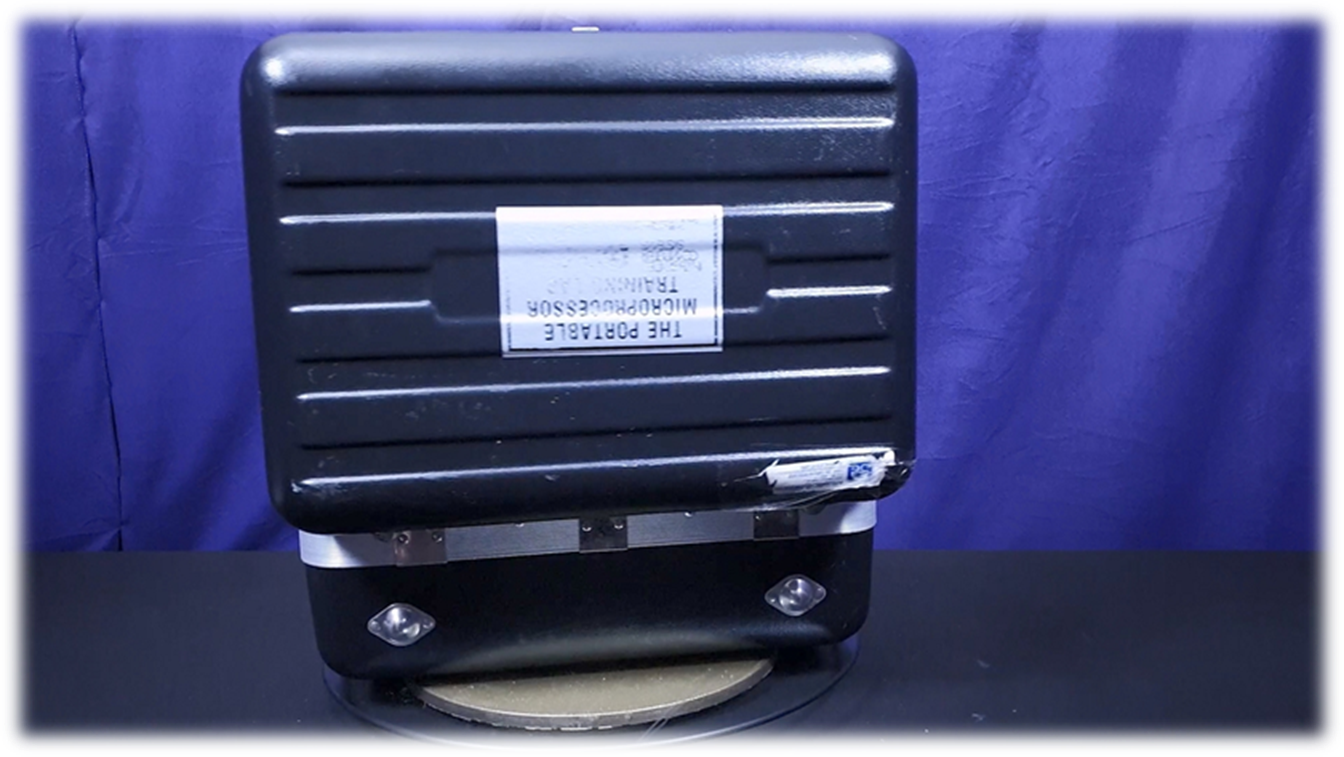

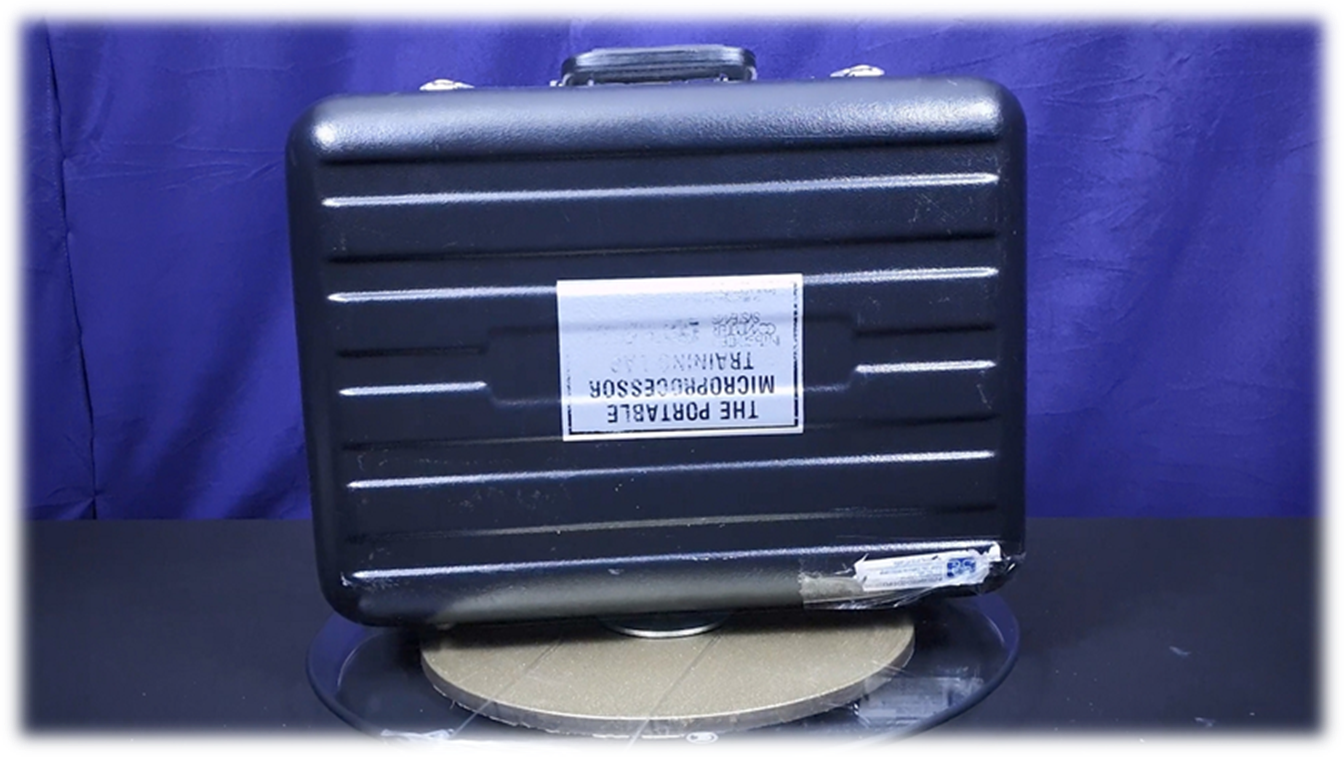

·       Original Hard Cover Briefcase

·       Original Self-Study Workbooks Course (536A):

·       Microprocessor Real-time Interfacing Vol Workbook (1)
1980 – 480 pages

·       Microprocessor Real-time Interfacing Workbook Vol (2)
1980 – 410 pages

POWER SUPPLY

·       System: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins
