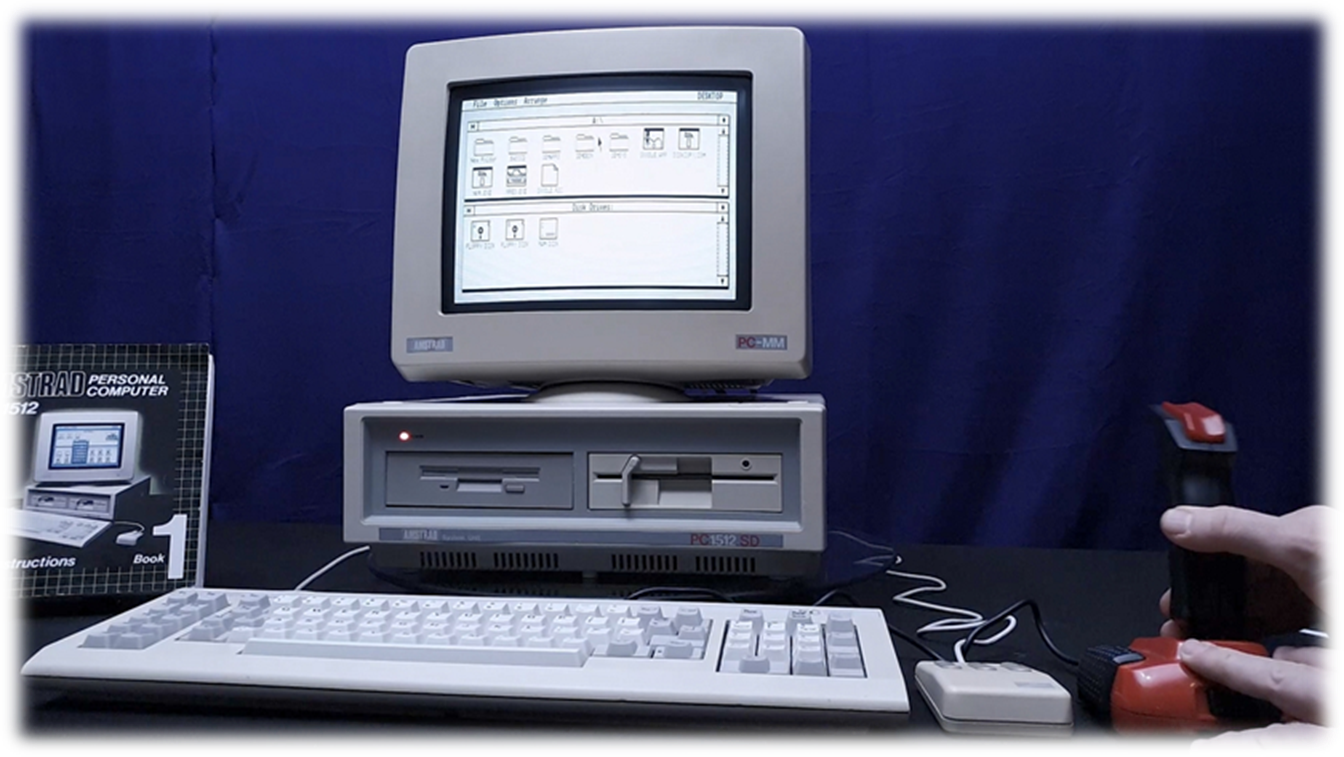

(048) Vintage Amstrad PC 1512
[ 1986 ]



Specification:

CPU

Intel 8086 @ 8 MHz

RAM

512 KB, 16 KB ROM

STORAGE

DRIVES

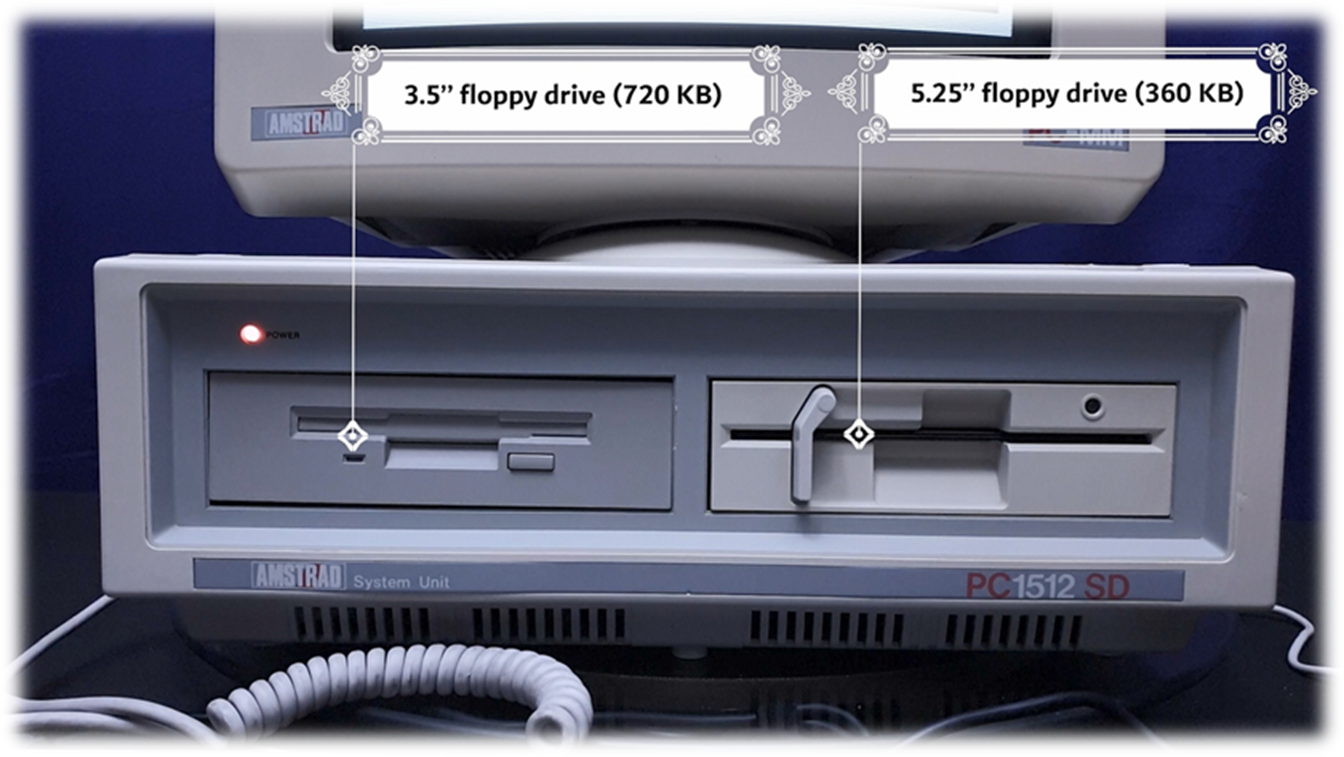

·       Internal 5,25'' floppy drive (360 KB)

·       Internal 3.5'' floppy drive (720 KB)

DISPLAY

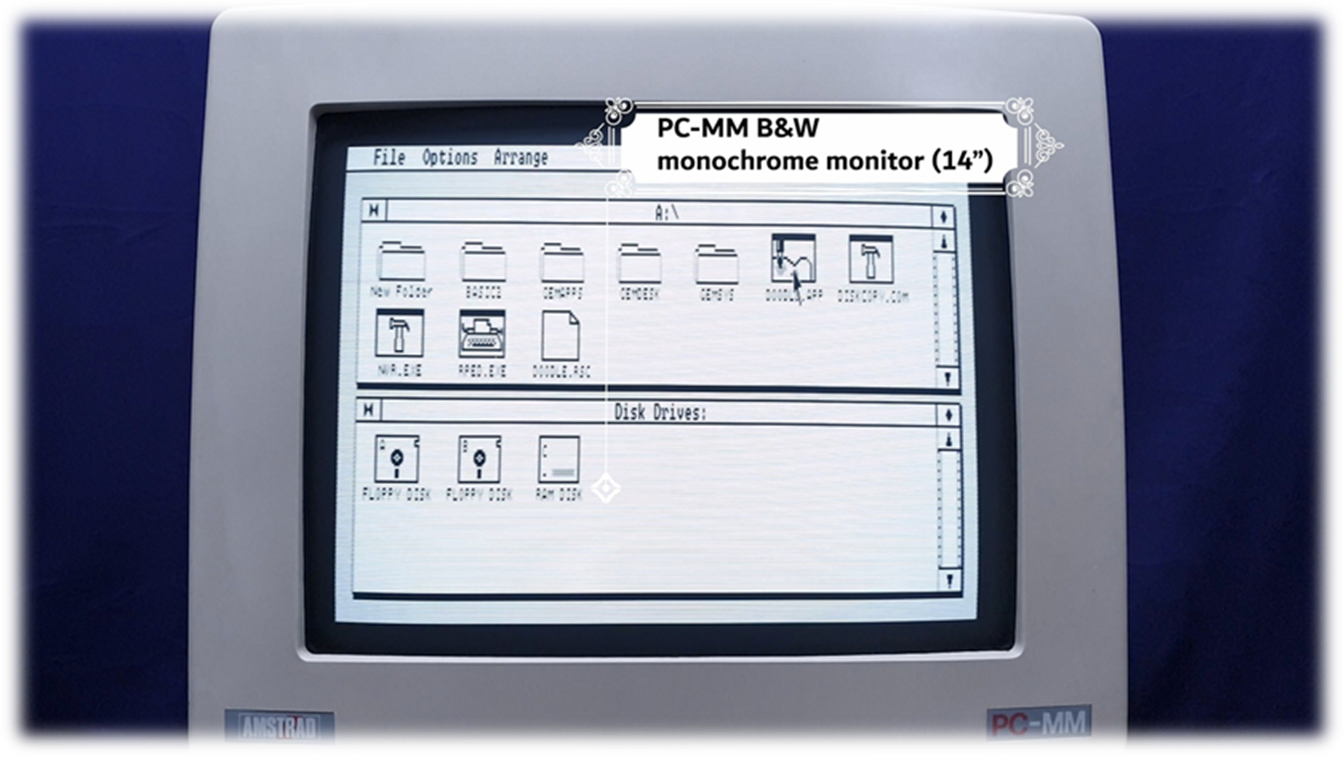

·       PC-MM B&W monochrome monitor (14")

·       Text: 80 x 25

·       Graphics: 640 x 200

OS

·       MS-DOS 3.2 or DR-DOS Plus

·       Amstrad GEM graphical desktop

KEYBOARD

Full-stroke keyboard, with function keys, numeric keypad and editing keys

Network

10/100Base-T Ethernet expansion card

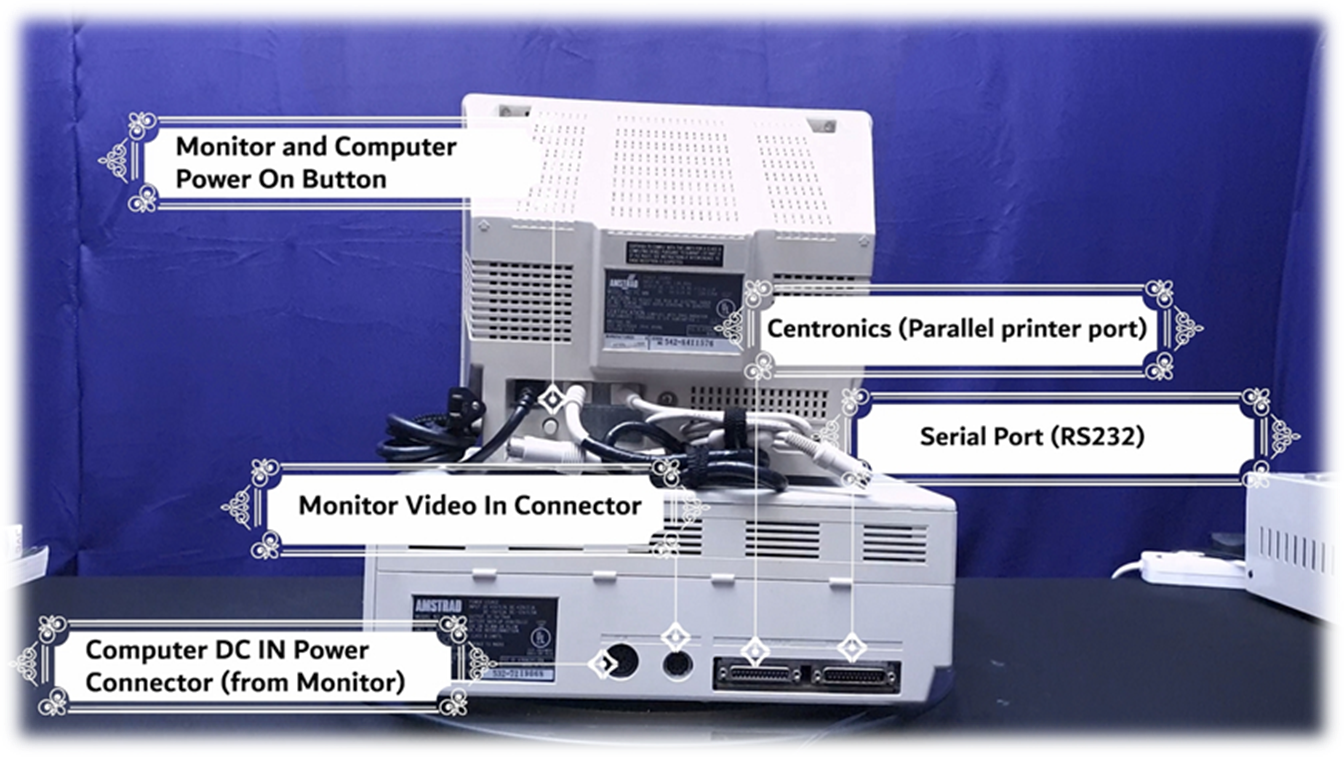

I/O PORTS

·       Serial Port (RS232)

·       Centronics (Parallel printer port)

·       RGB color CRT port

·       Joystick port (full 5-pin DIN)

·       Mouse port (proprietary)

·       3 x 8 bit ISA slots

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

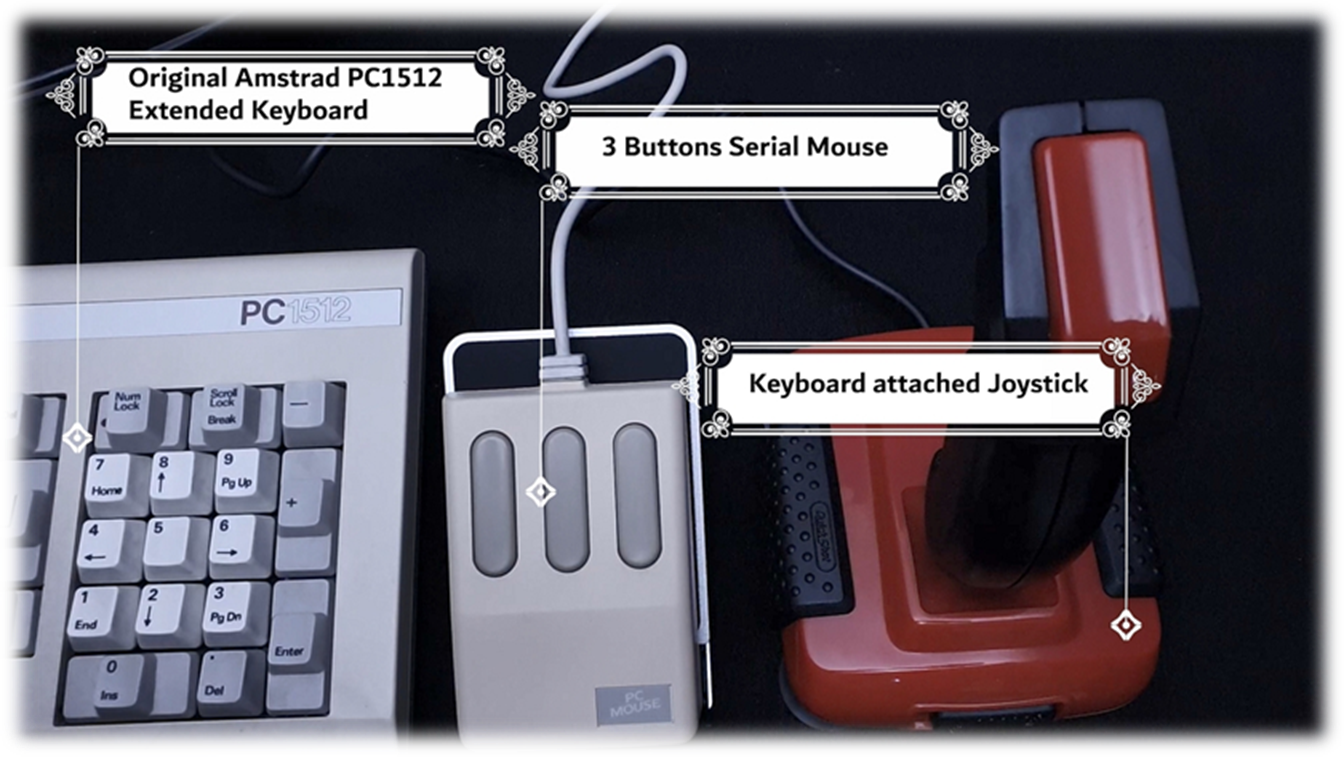

·       Original Amstrad AT keyboard

·       Serial port mouse

·       Keyboard attached Joystick

·       Original Amstrad PC1512 User Instructions Book (1)

·       Amstrad PC1512 Boot Disks:

·       Amstrad DOS 3.2

·       Amstrad GEM Desktop & BASIC

·       Amstrad DOS PLUS

POWER SUPPLY

·       Computer + Monitor: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

Note: Power Cable for Monitor then Computer Powered from Monitor DC IN Cable

SPECIAL INSTRUCTIONS

·       Boot from floppy disk (1): MS-DOS

·       Insert floppy disk (2): GEM desktop (Run GEM1 app)

·       The system will as for GEM desktop disk (3) to run interface
