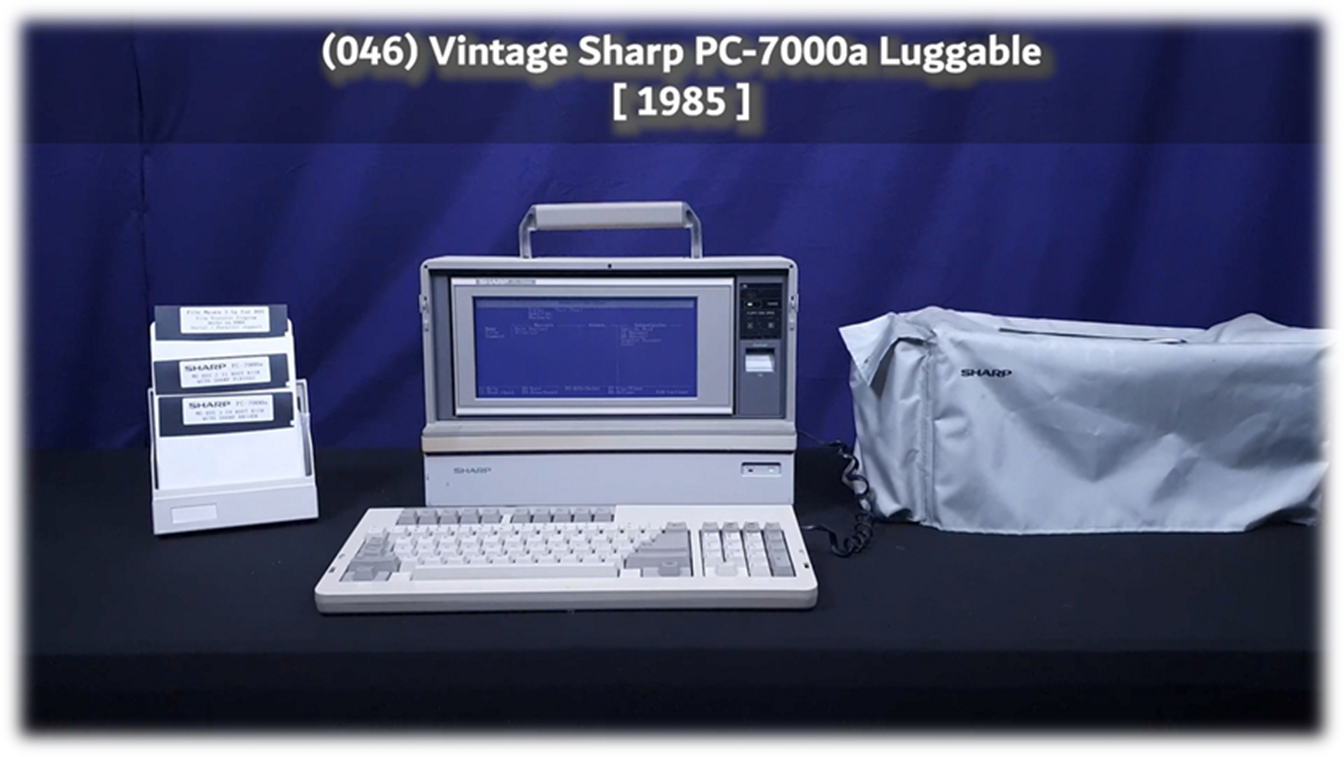

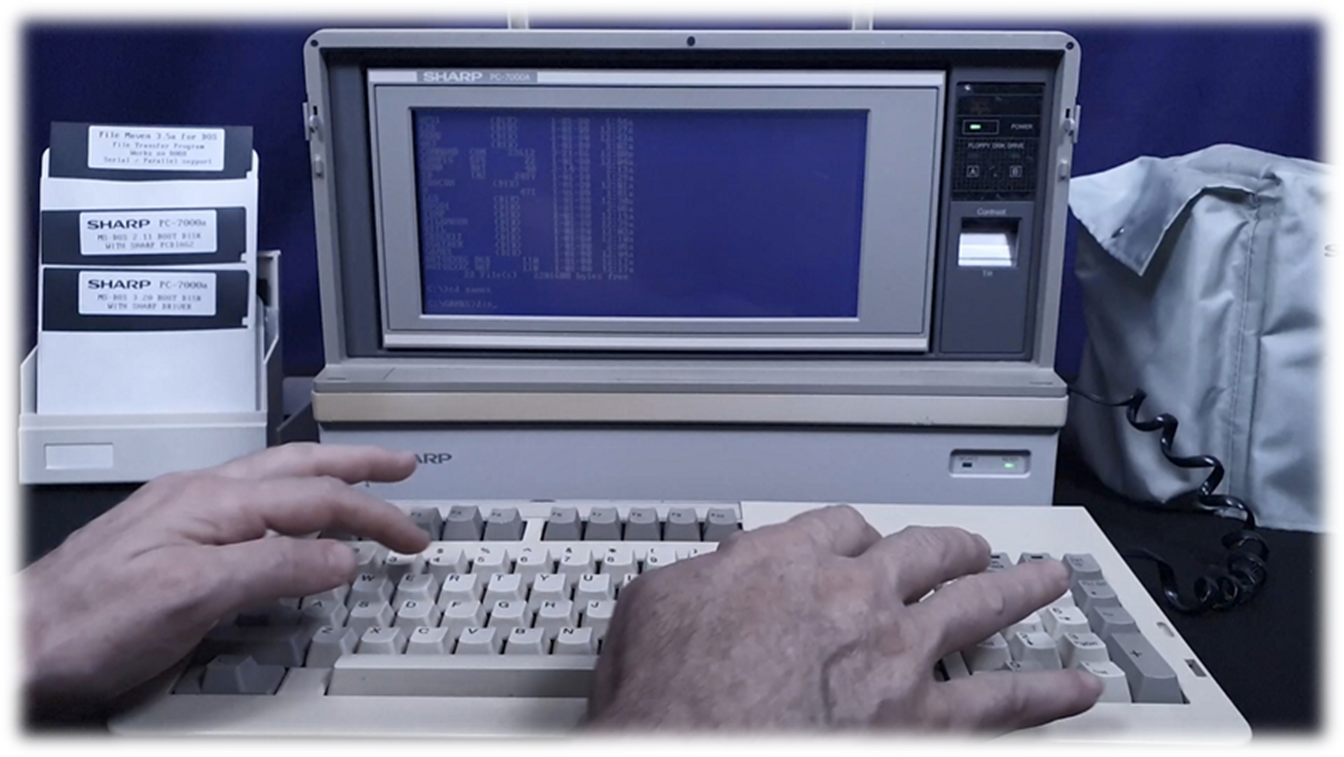

(046) Vintage Sharp PC-7000a Luggable
[ 1985 ]



Specification:

CPU

Intel 8086 Processor @ 7.37 MHz

RAM

704 KB, 16 KB ROM

STORAGE

External Attached 20 MB HDD

DRIVES

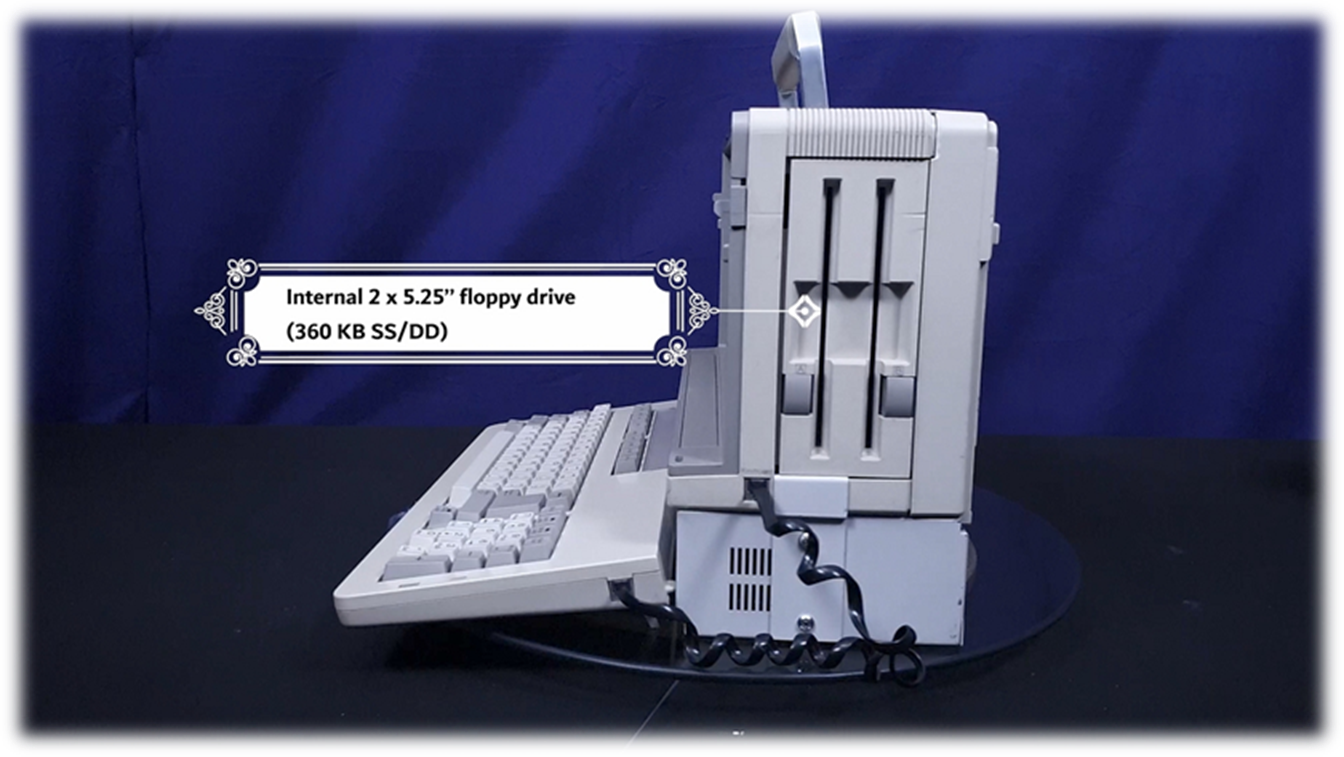

·       Internal 2 x 5.25'' floppy drive (360 KB SS/DD)

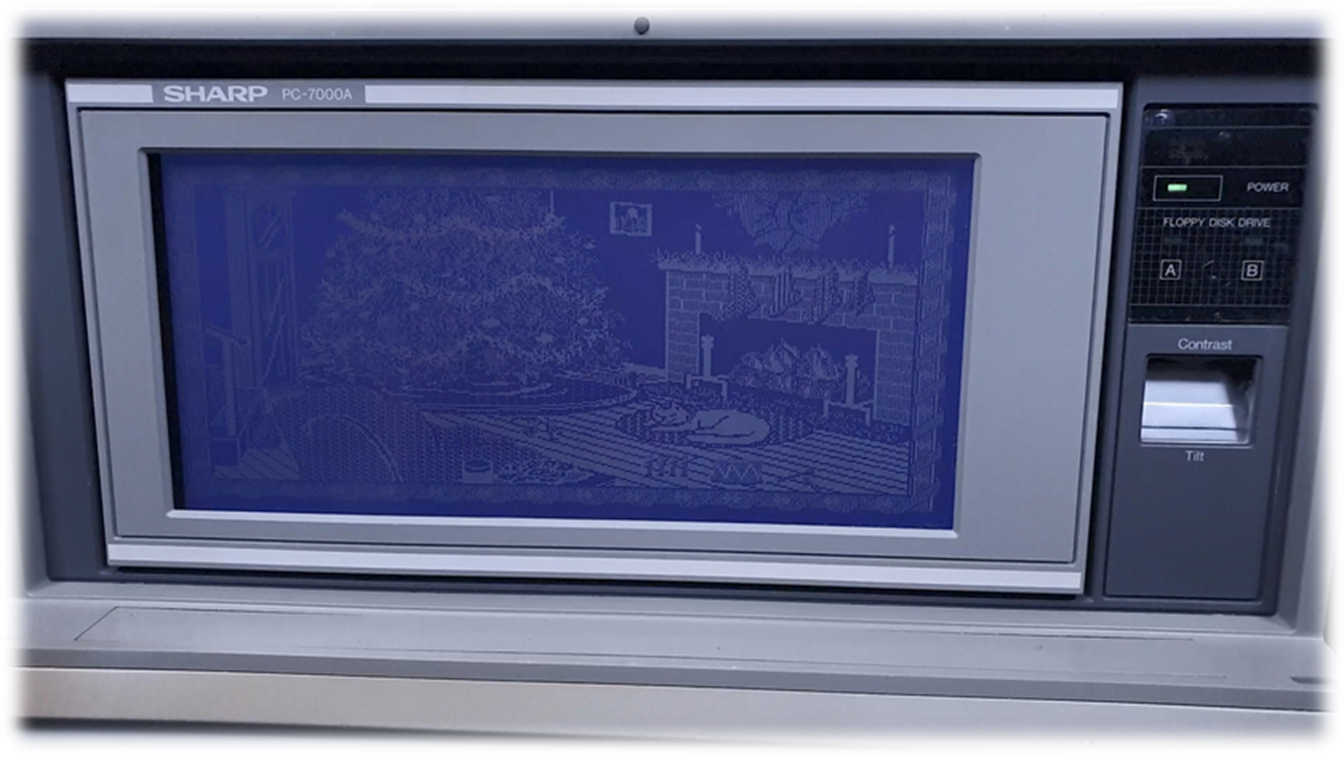

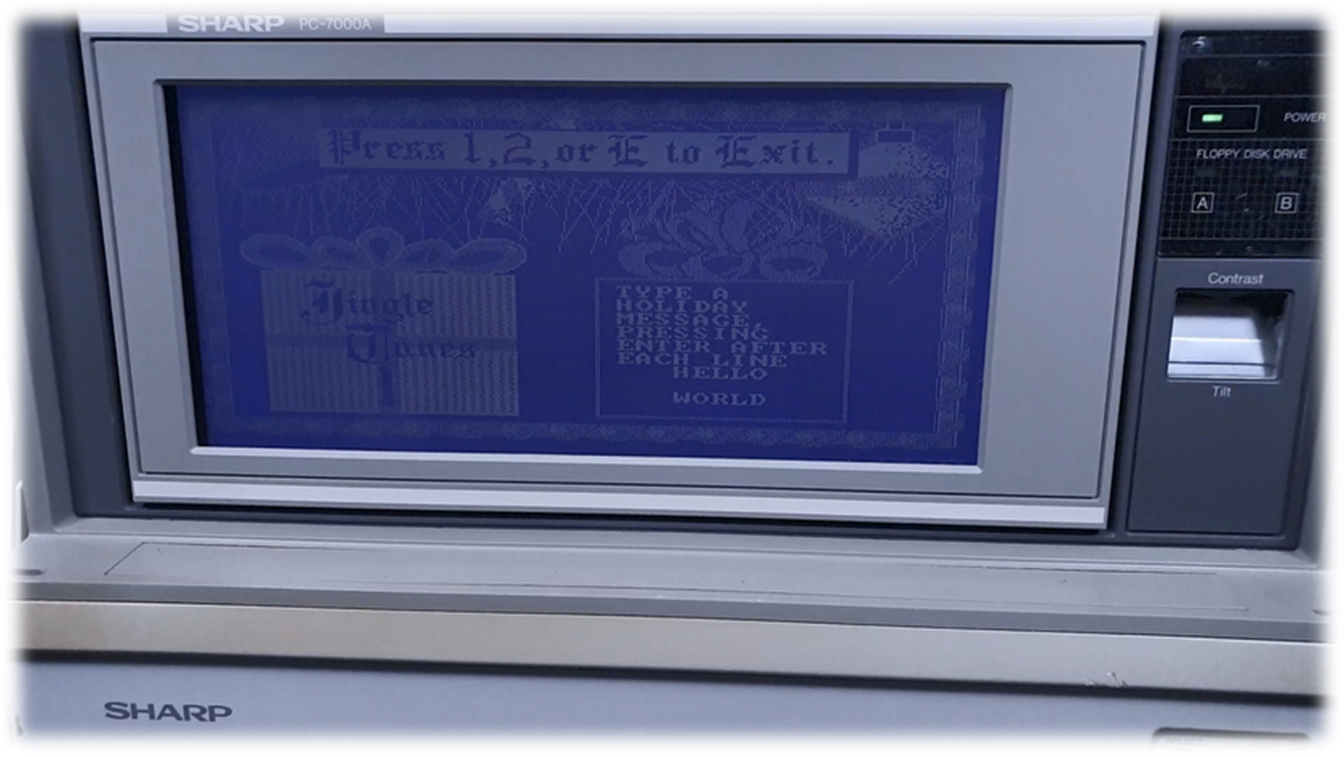

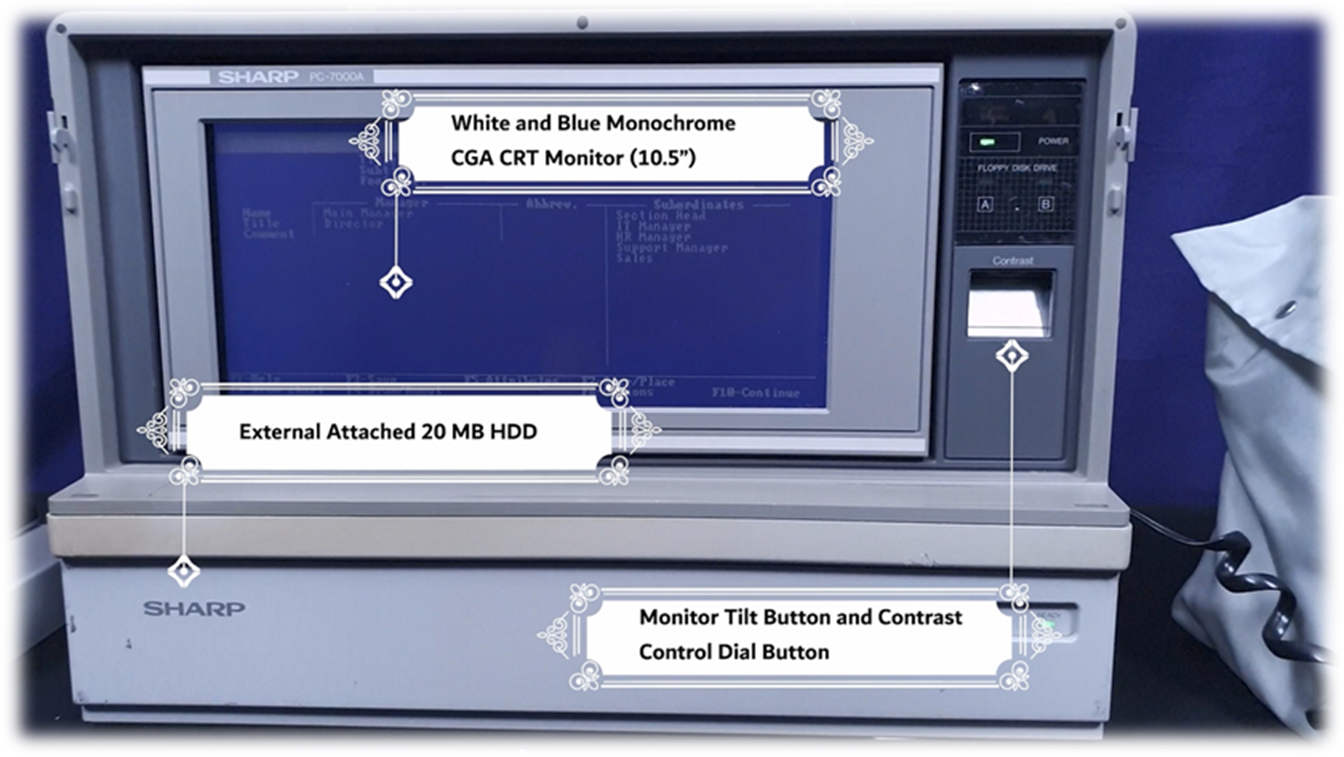

DISPLAY

·       Built-in White and Blue monochrome CRT (10.5")

·       Text: 80 x 24

·       Graphics: 640 x 200 (CGA mode 2)

OS

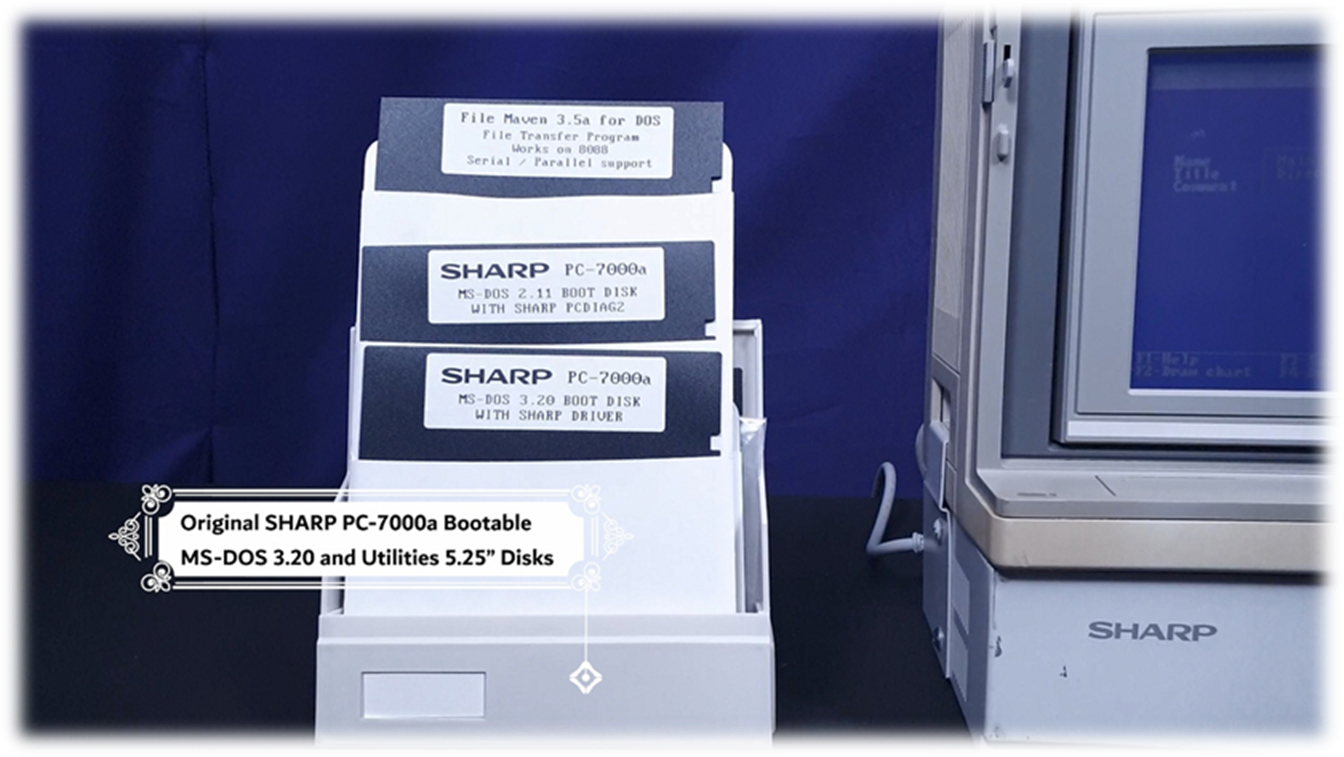

Sharp MS-DOS 3.20 and 2.11

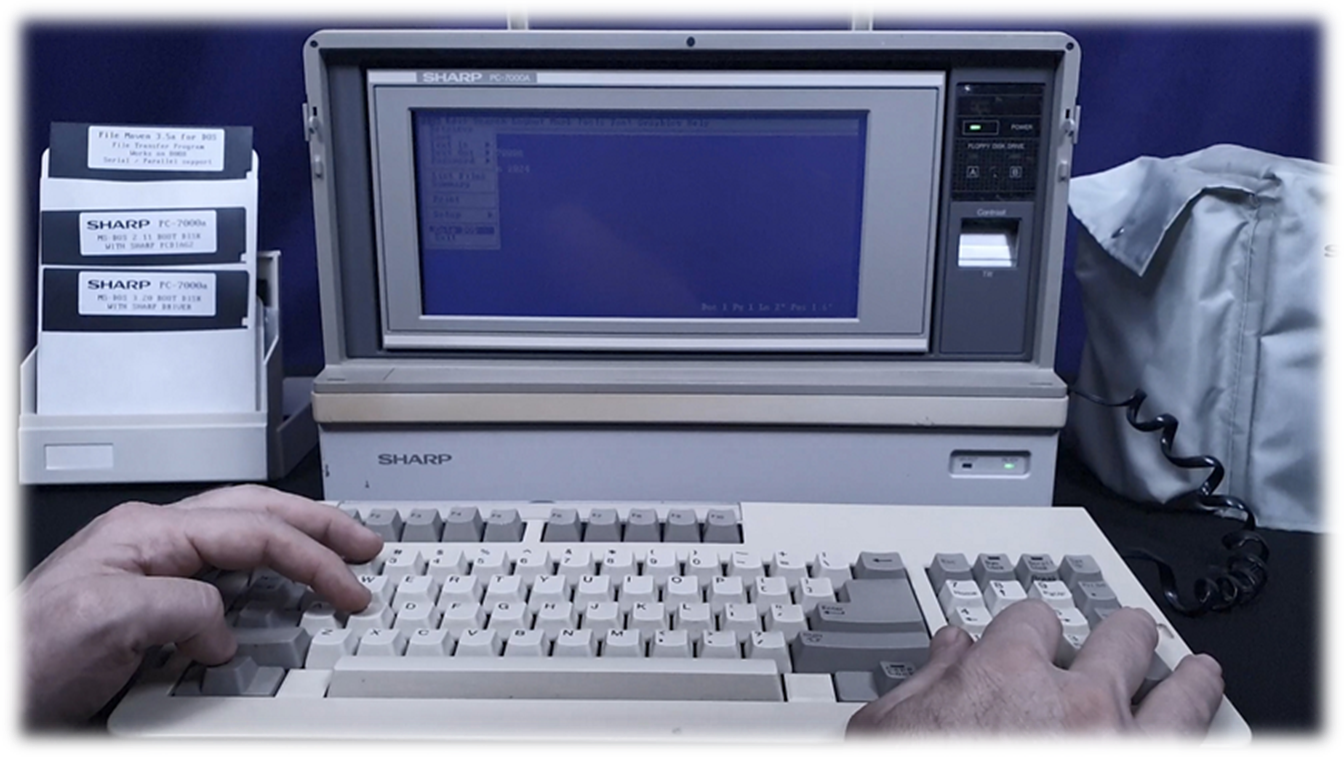

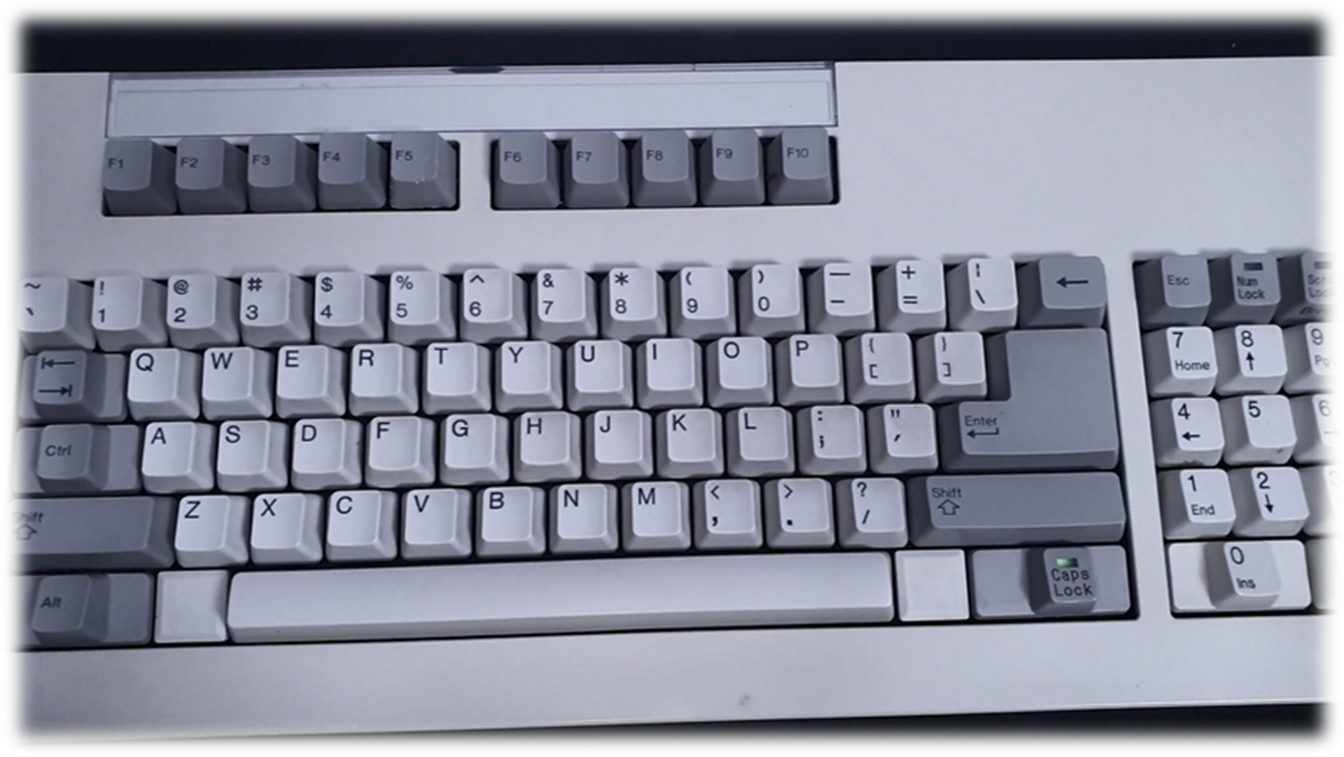

KEYBOARD

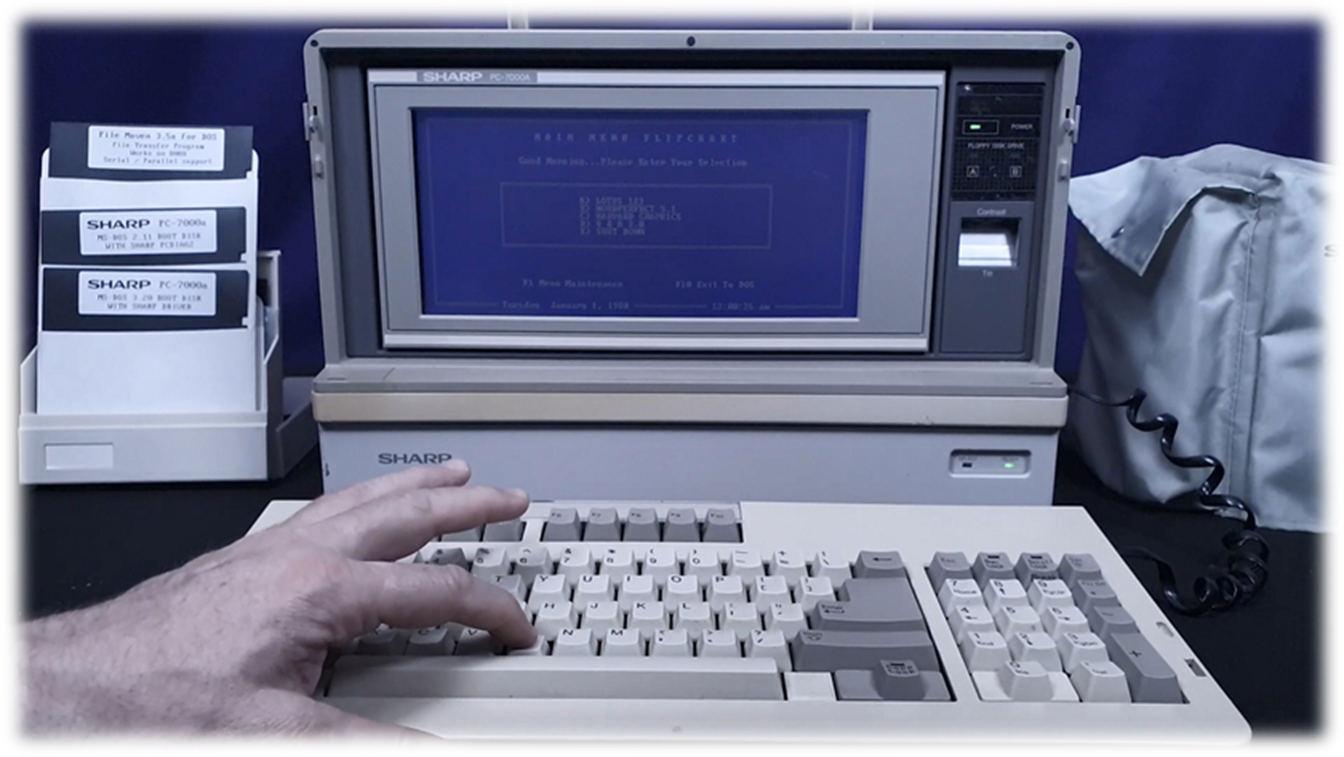

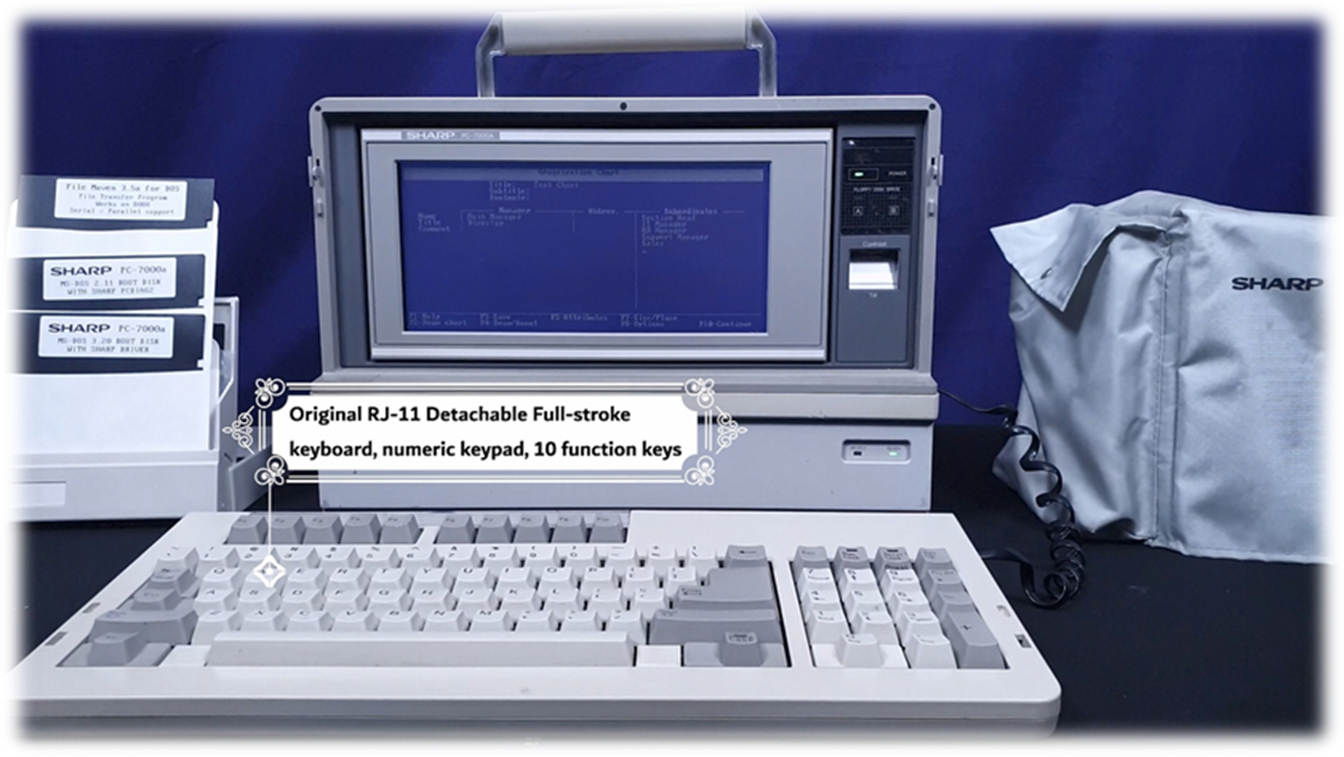

Full-stroke keyboard, numeric keypad, 10 function keys

Network

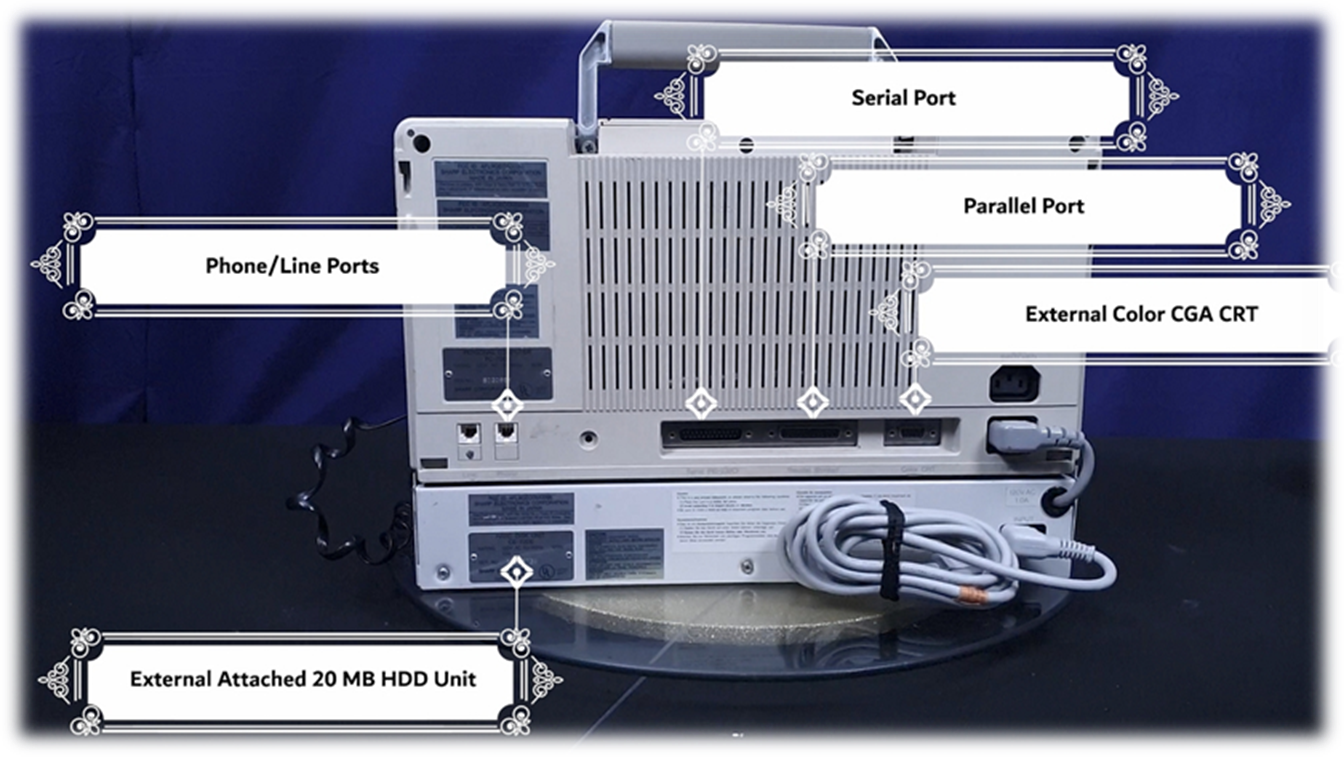

I/O PORTS

·       Serial Port (RS232C)

·       Parallel printer port

·       External CGA color CRT port

·       Phone line ports

EXPANSION PERIPHERALS

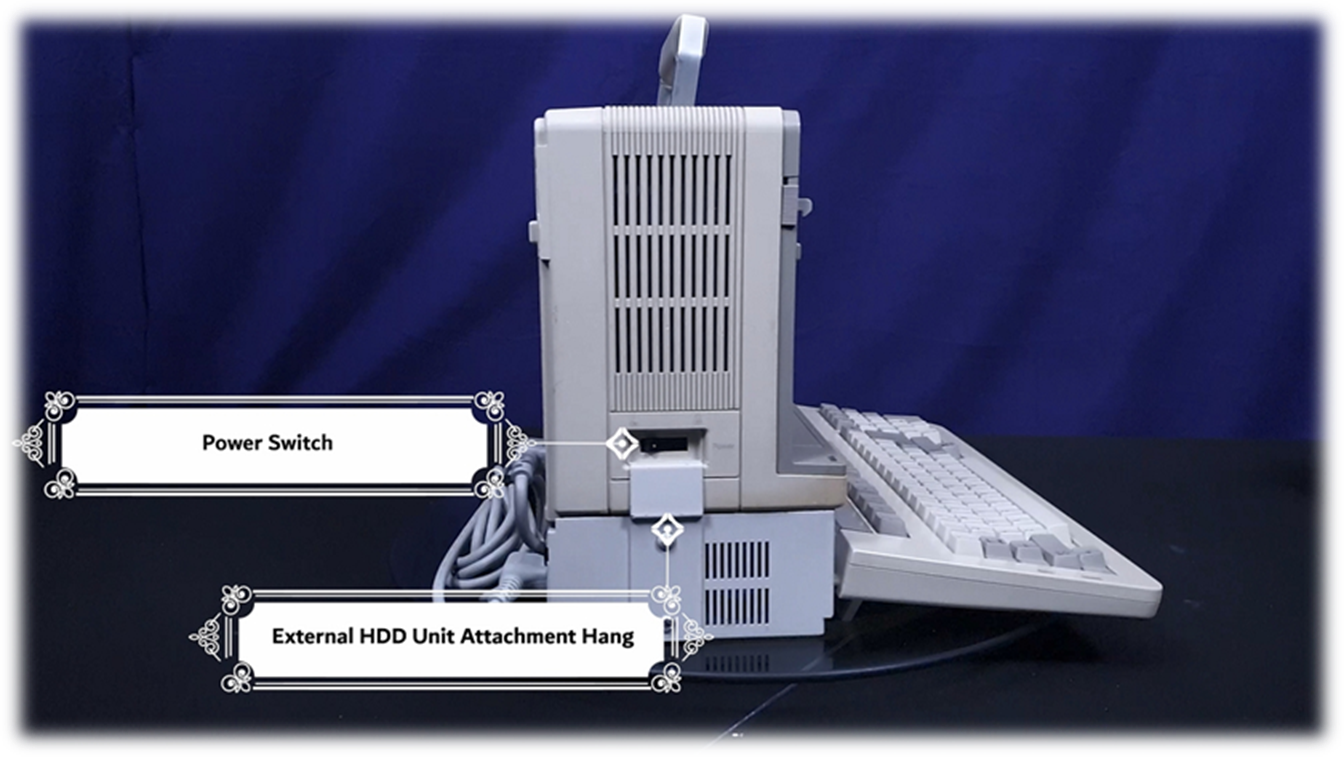

·       Attached 20 MB Sharp Hard Drive Unit (CE-720E)

ACCESSORIES & DOCUMENTS

POWER SUPPLY

·       Computer: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS

·       HDD boot (waiting 5-10 seconds for external drive detection and boot).

·       <CTRL>-<ALT>-<DELETE> key combination to reboot
