(036) Vintage Compaq Portable II Luggable PC
[ 1986 ]



Specification:

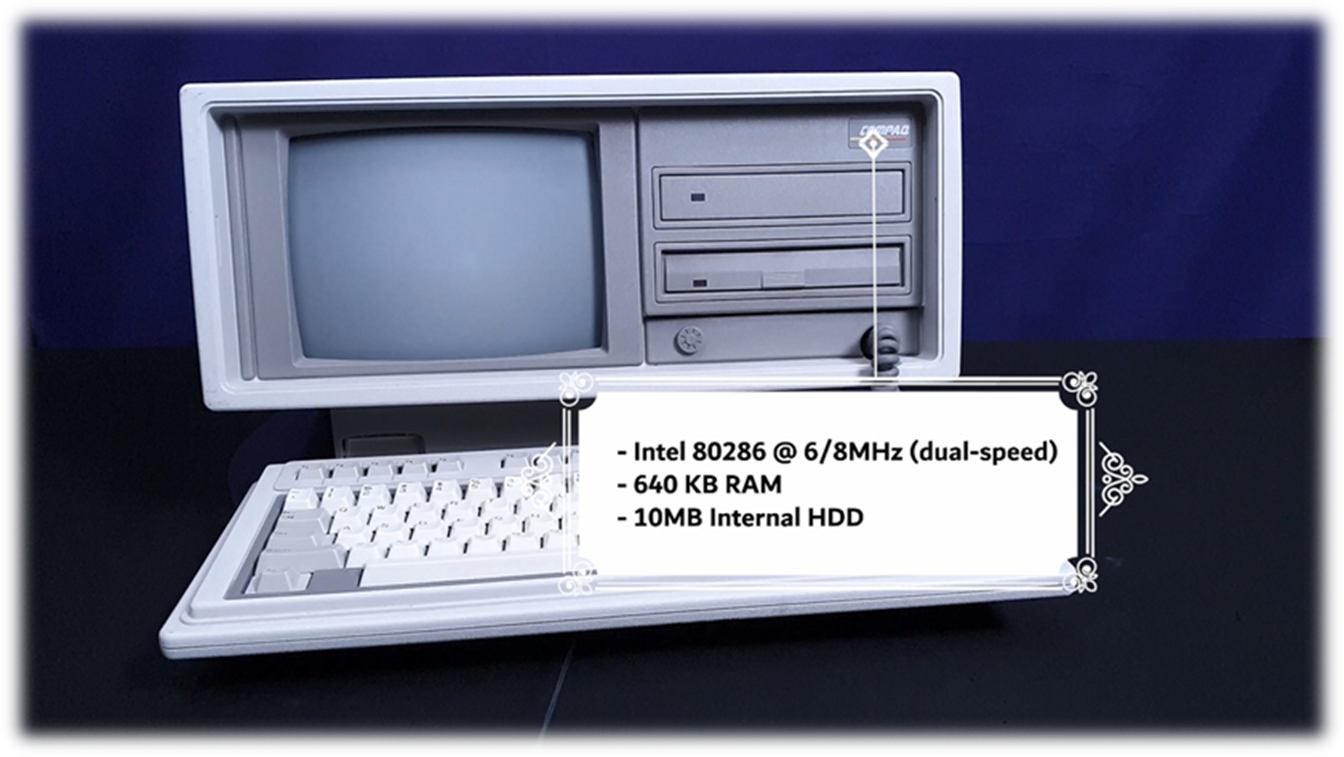

CPU

Intel 80286 @ 6/8MHz (dual-speed)

RAM

640 KB

STORAGE

Type: 1 MFM MiniScribe, 10 MB internal HDD

DRIVES

·       Internal 5.25'' floppy drive (360 KB SS/SD)

DISPLAY

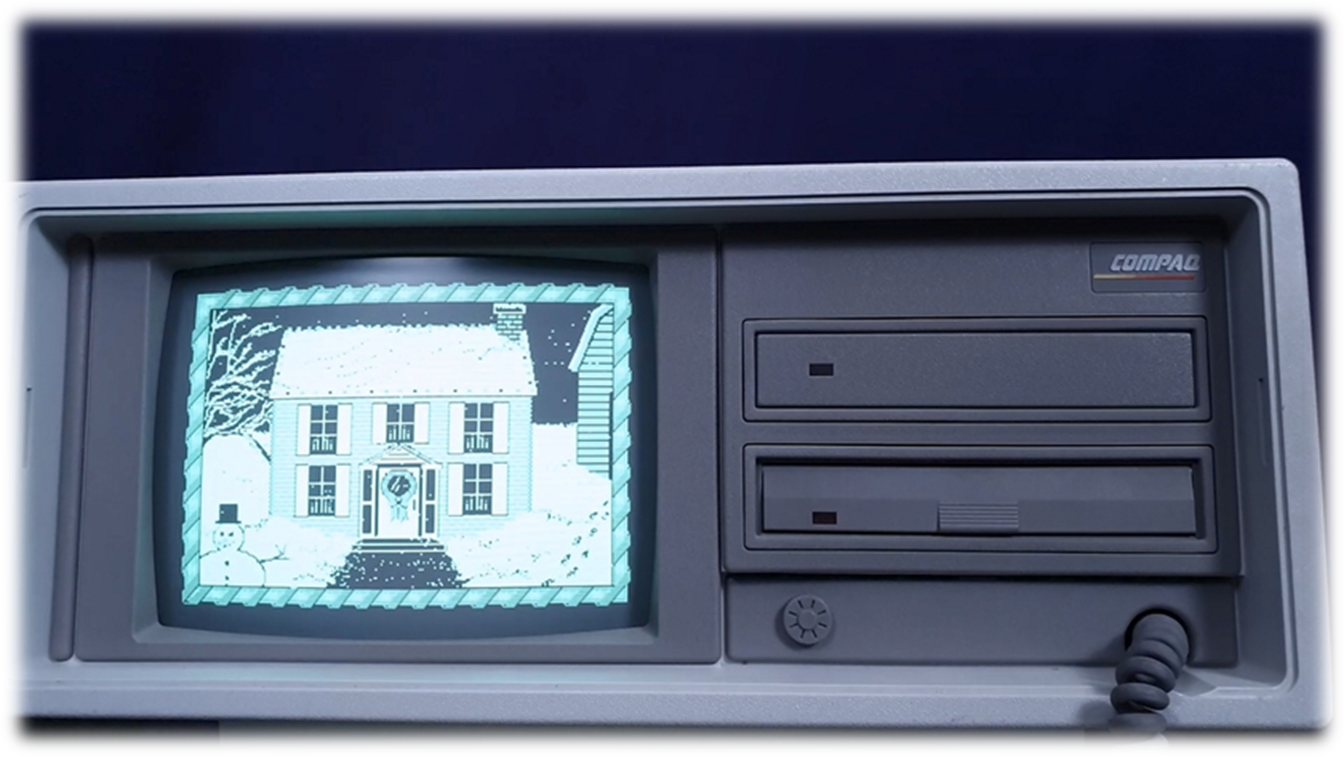

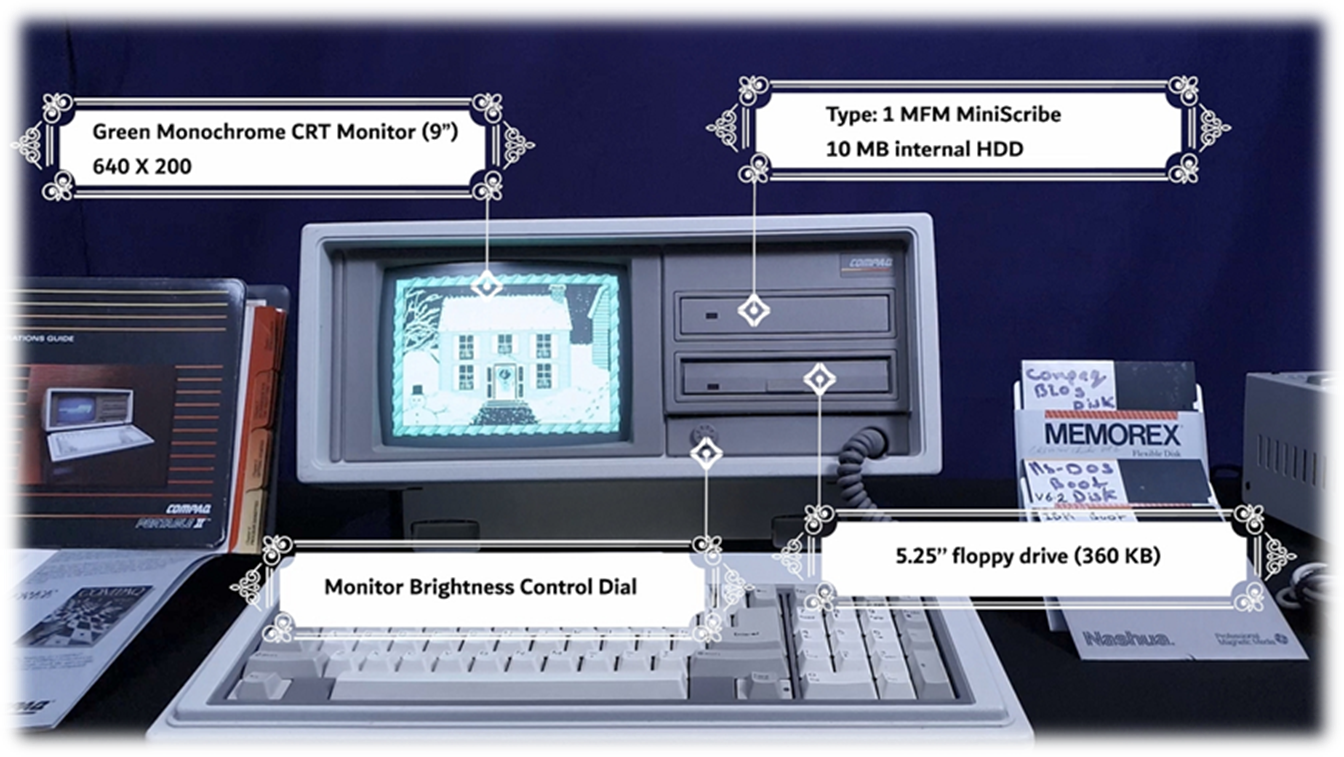

·       Built-in Green Monochrome CRT Monitor (9")

·       Text: 40/80 chars. x 25 lines

·       Graphics: 640 X 200

OS

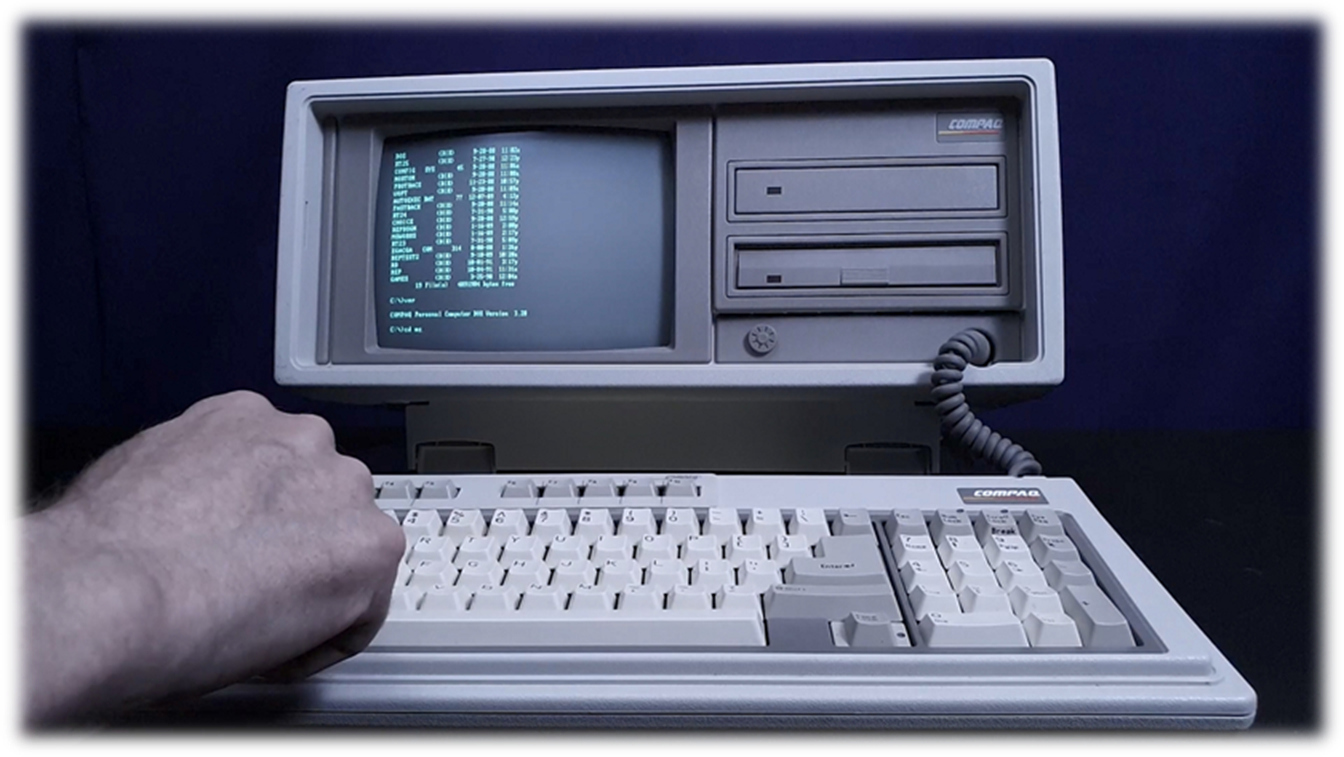

·       HDD: Compaq DOS 3.2

·       Floppy: IBM PC DOS 3.3 & MS-DOS 6.2

KEYBOARD

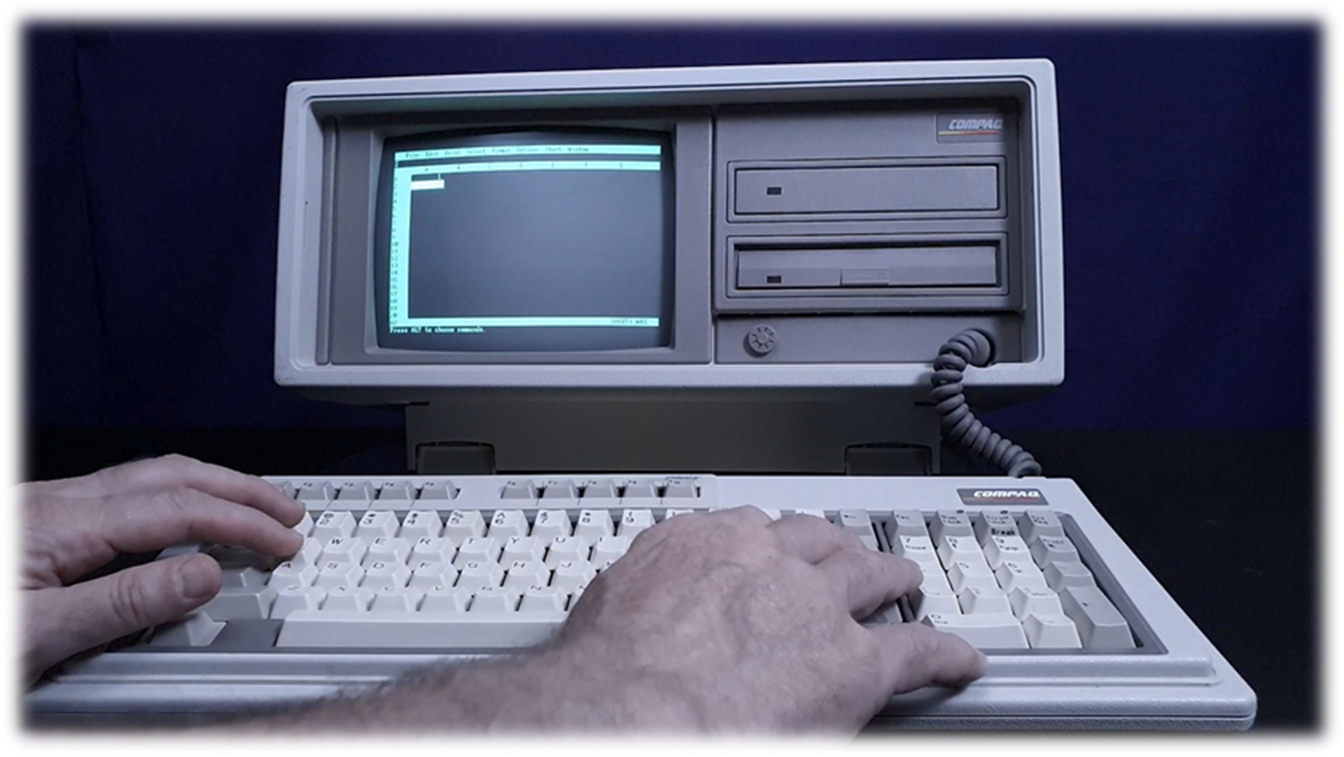

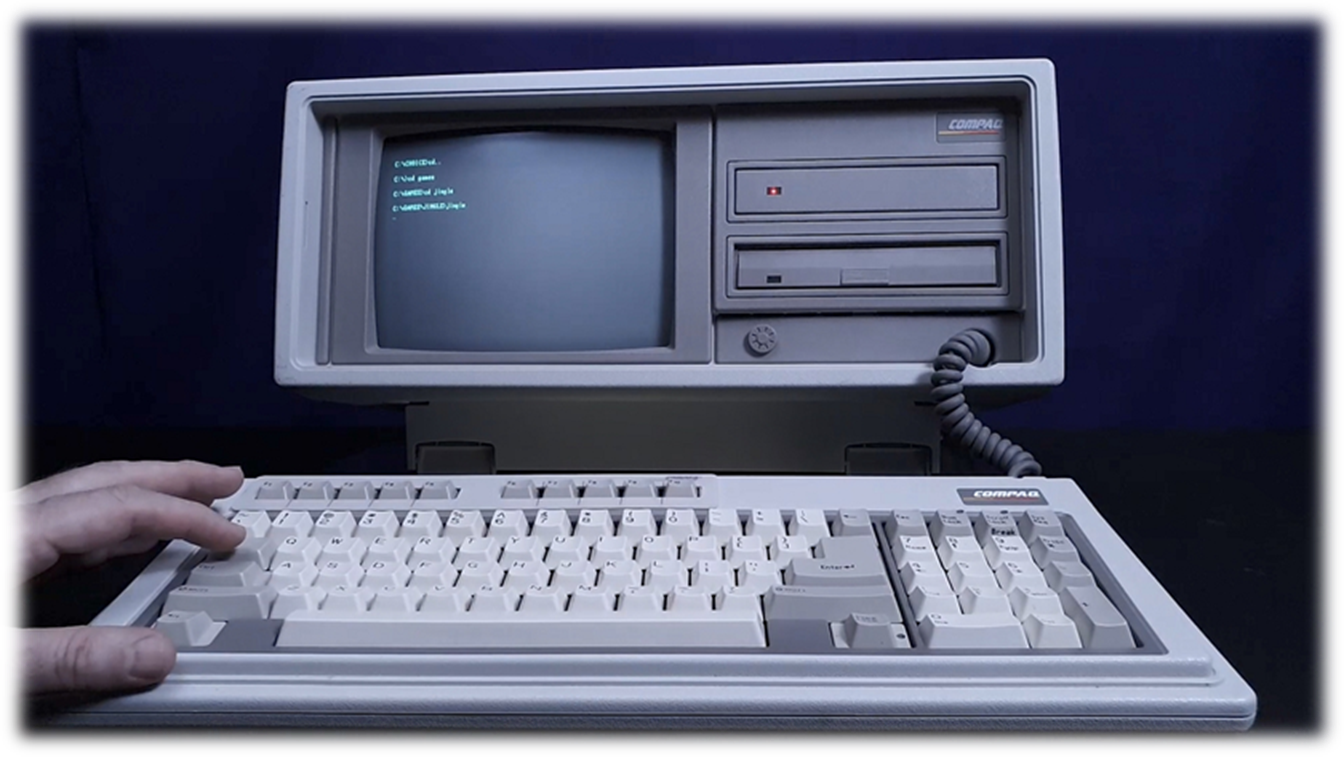

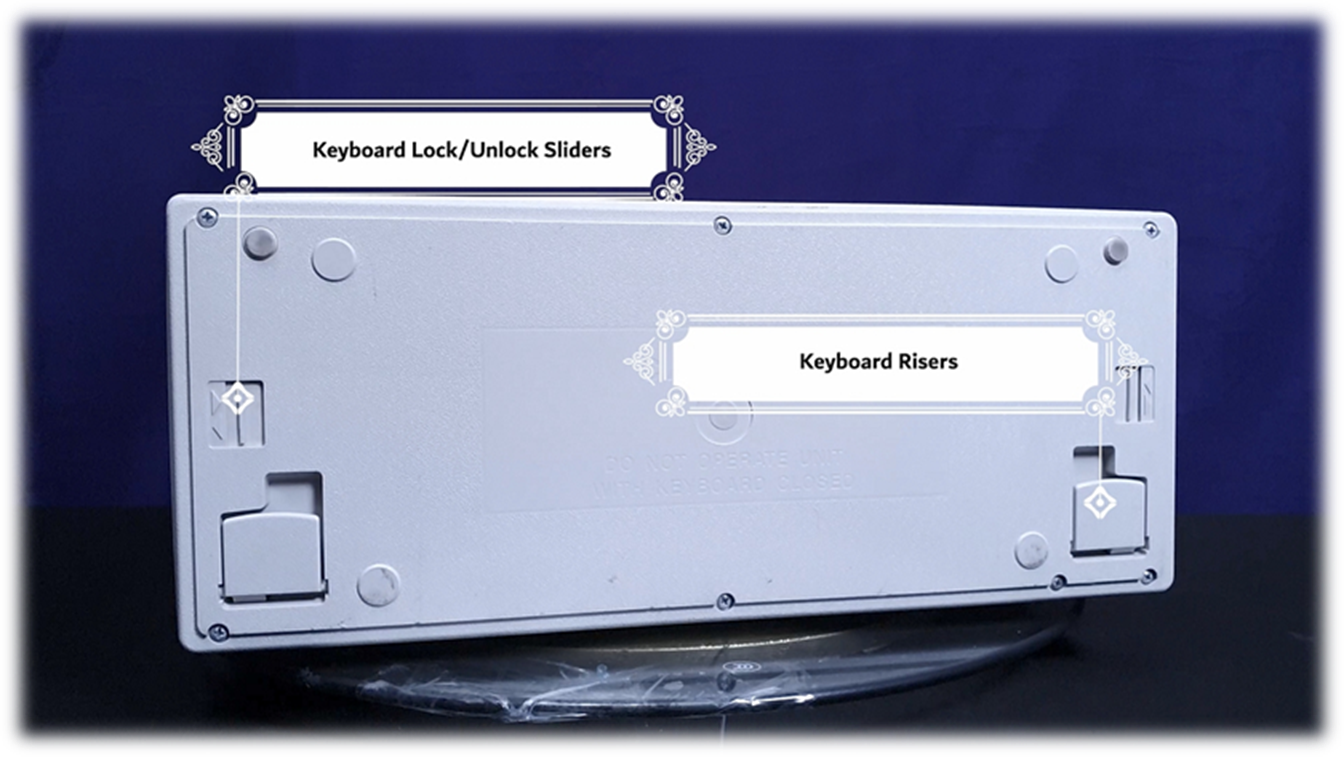

Full-stroke detachable keyboard with function keys and numeric keypad

Network

I/O PORTS

·       RS-232 Serial Port

·       Parallel printer port

·       CGA and composite video output

·       5 x 8-bit ISA expansion slots

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

·       Parallel and Serial Connection Cables

·       COMPAQ BASIC V2 Reference Guide

·       COMPAQ Portable II Operations Guide Folder

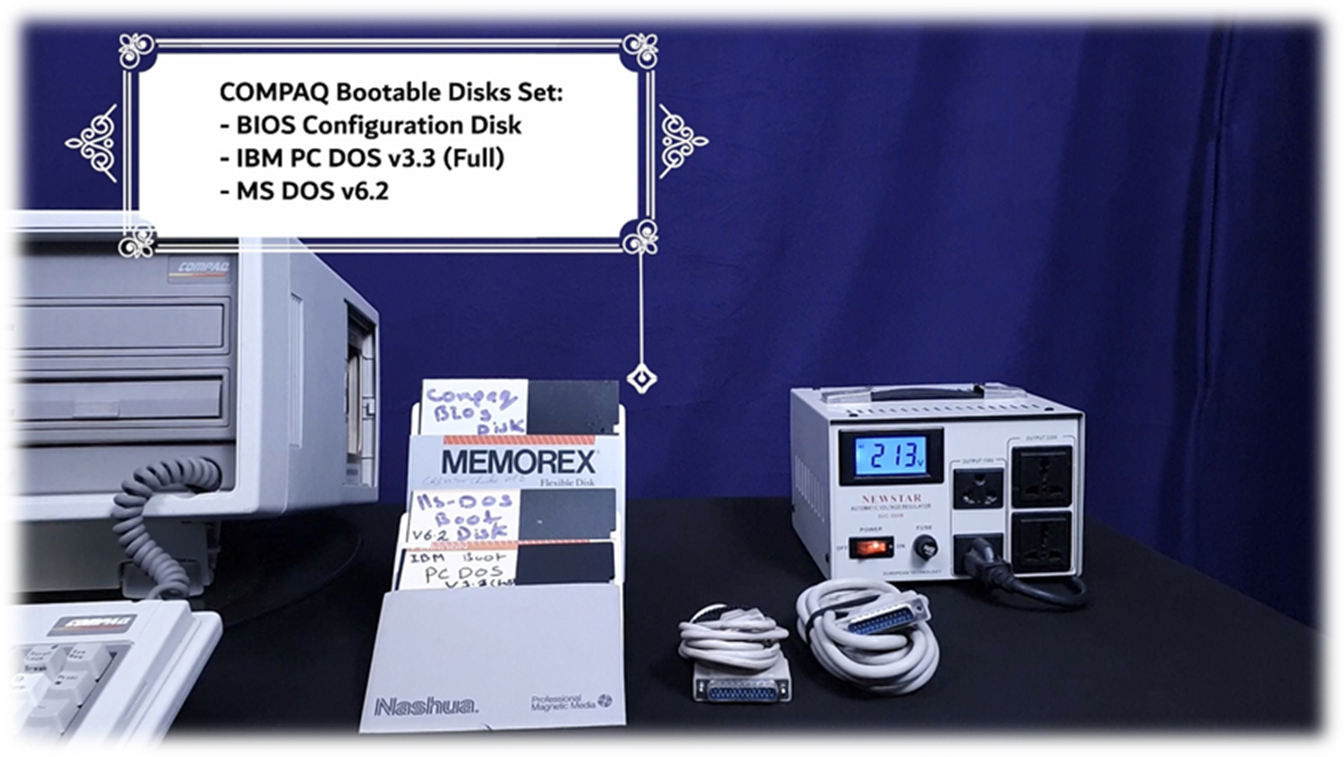

·       5.25 360K DOS Boot and BIOS Setup Disks

POWER SUPPLY

·       Computer: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       Monitor: Built-in (No Power Cable)

SPECIAL INSTRUCTIONS

·       HDD Boot: Since CMOS battery expired and HDD configuration not saved, please use the included COMPAQ BIOS Boot Disk to set the HDD Type to (1) then save and exit
You need to do the same after each full system power off
