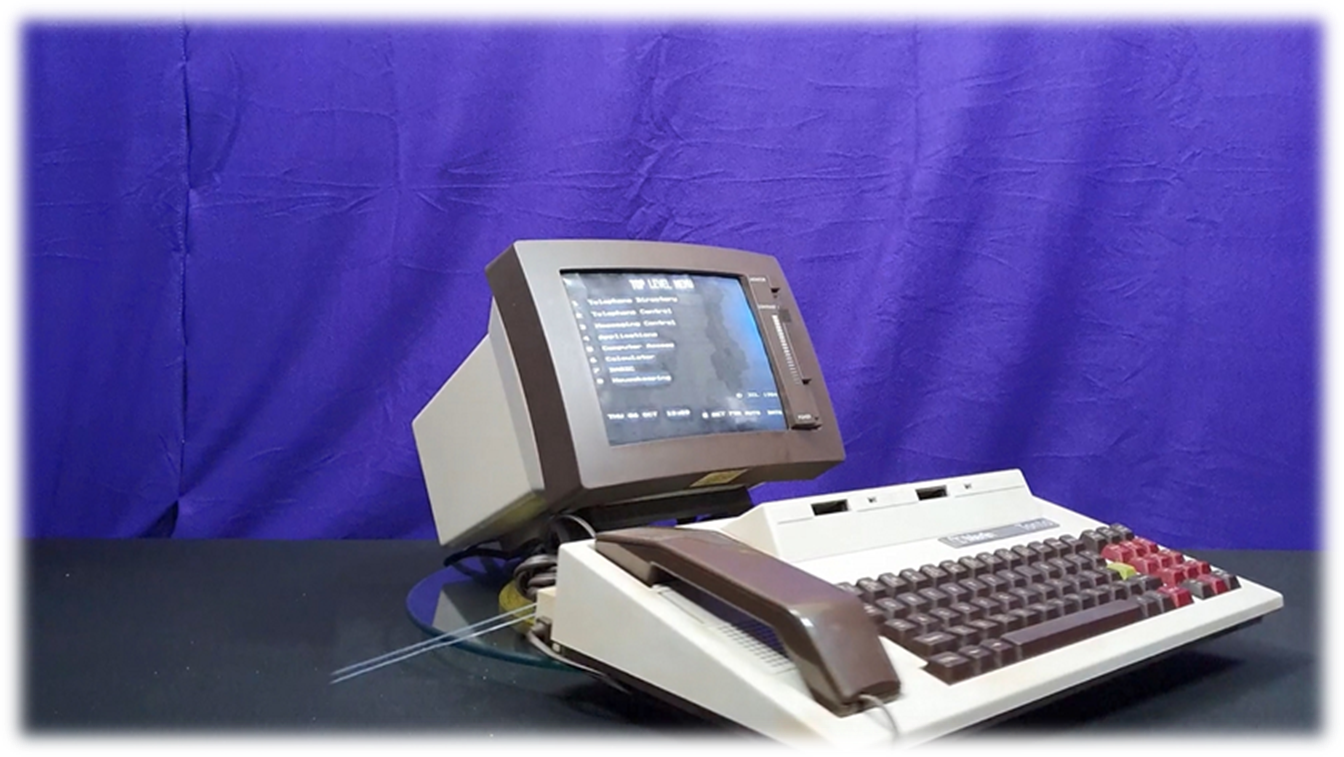

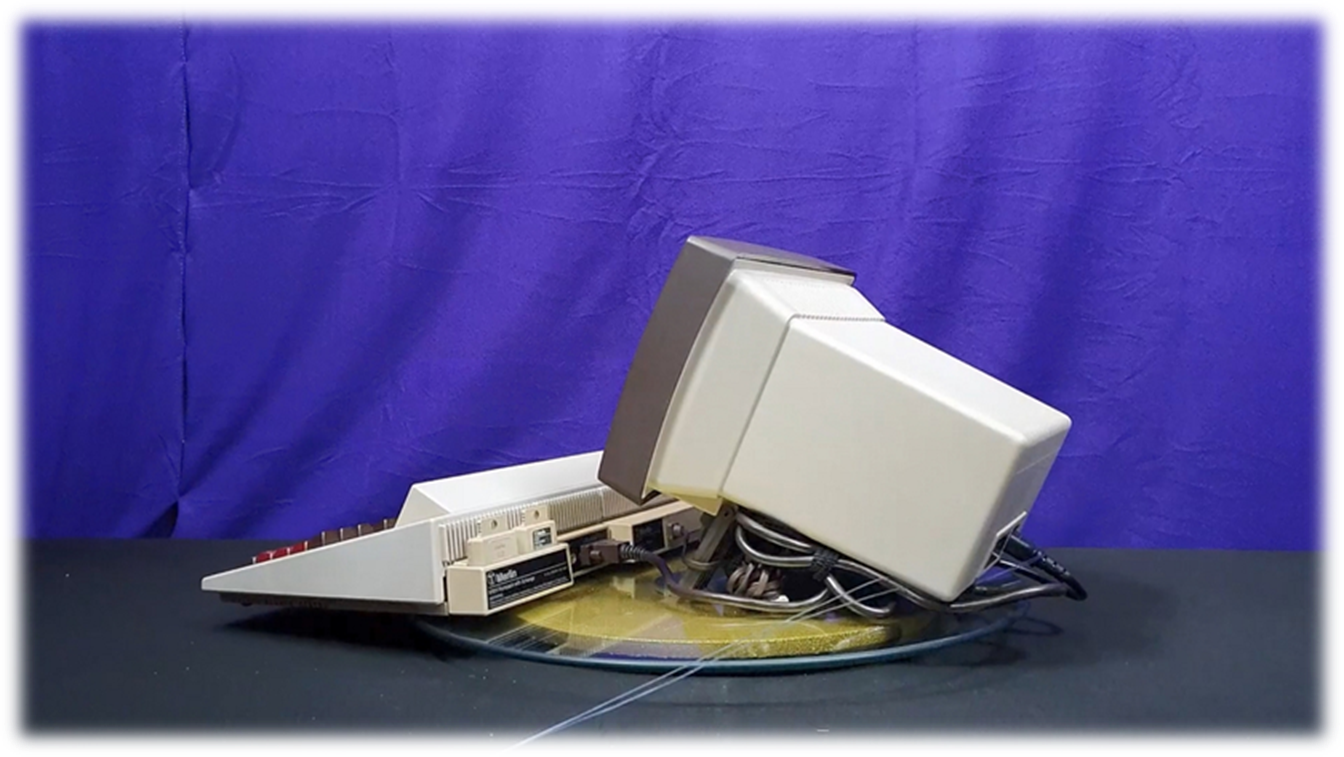

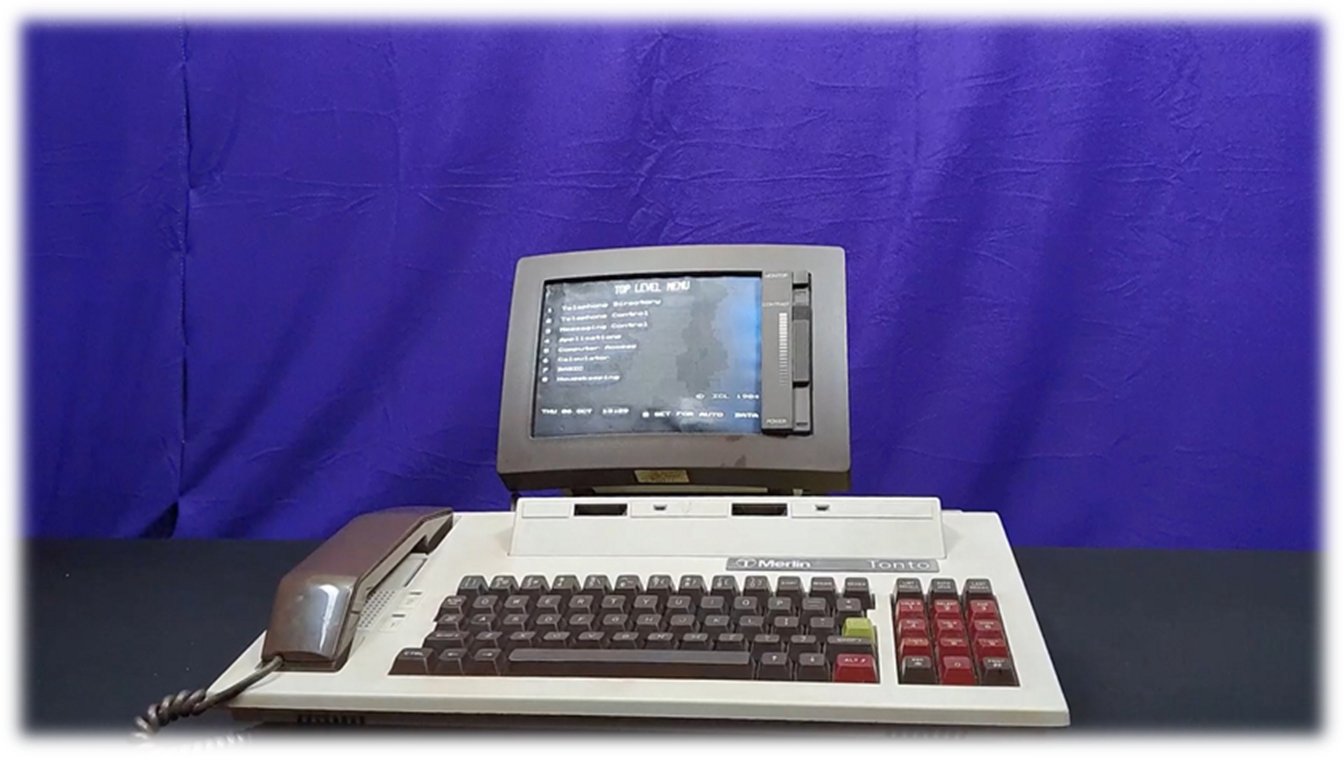

(034) Vintage Merlin Tonto MI800 One Per Desk OPD
[ 1984 ]



Specification:

CPU

Motorola MC 68008 @ 7.5 MHz
Sinclair ULA gate array chip  (CO-PROCESSOR)

RAM

128 KB , 23 KB VRAM, 128 KB ROM

STORAGE

DRIVES

·       Internal 2 x micro tape drive

DISPLAY

·       Original Merlin M1875 B&W monochrome monitor (9 ")

·       Text: 42 / 64 / 84 chars. x 24 lines

·       Graphics: 256 x 256 @ 8 colors (ZX8301)

OS

·       Q-DOS (built-in)

KEYBOARD

·       Built-in Full stroke 73-key with numeric keypad

Network

2 x QL Network

I/O PORTS

·       2 x Joysticks

·       2 x Serial port (RS232)

·       RAM/ROM extension ports

·       TI TMP5220C speech synthesizer / built-in loudspeaker

EXPANSION PERIPHERALS



ACCESSORIES & DOCUMENTS

·       Original Merlin M1876 2 lines Telephony Module

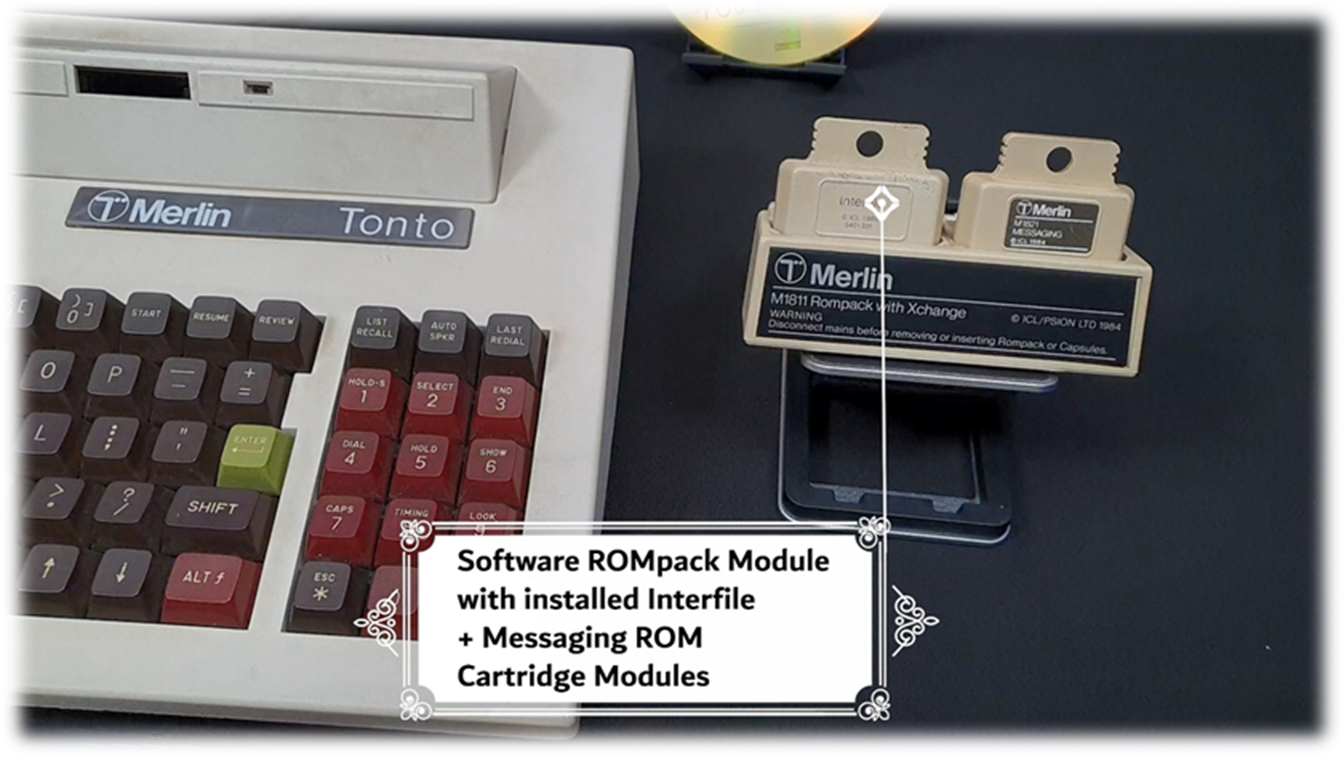

·       Original Merlin M1811 Rompack with exchange module

·       Interfile: ROM cartridge with manual

·       Messaging: ROM cartridge with manual (sealed)

POWER SUPPLY

·       Monitor: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       Computer: Power On from Monitor (No Power Cable)
