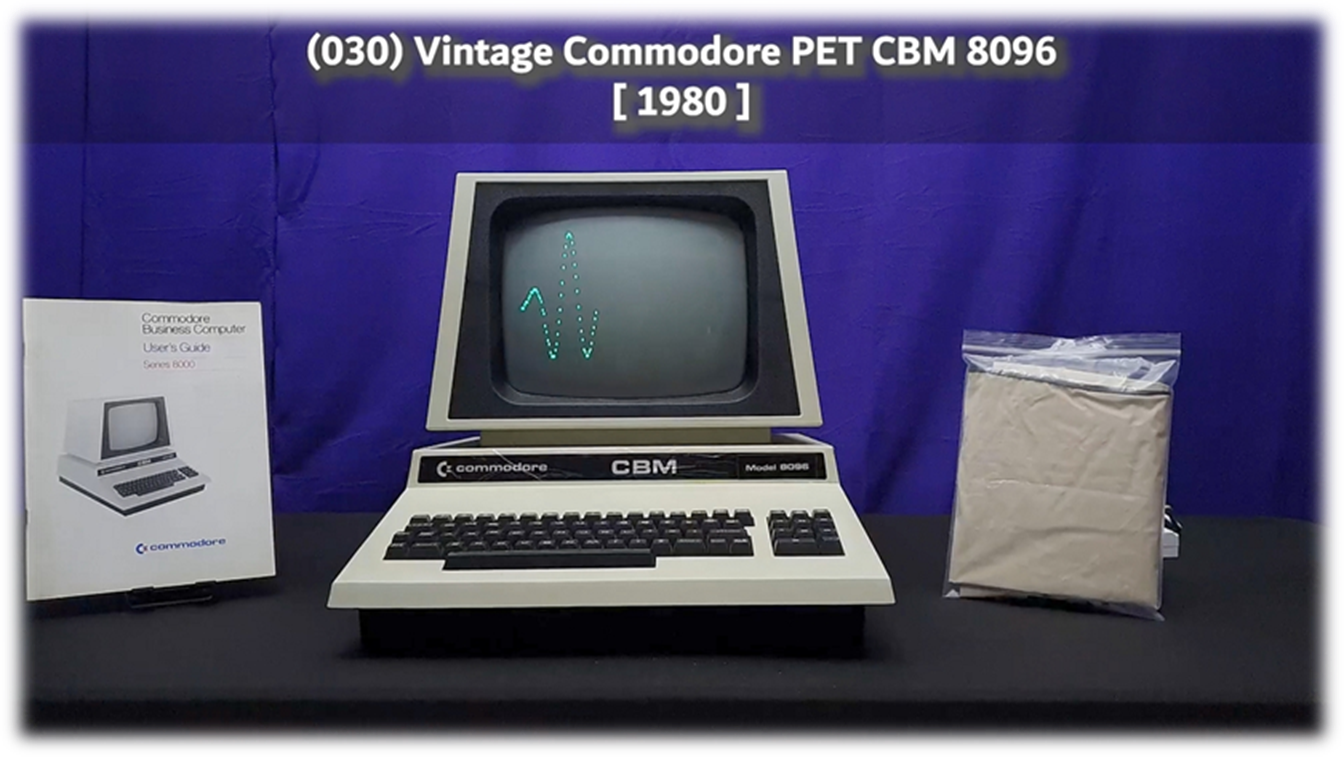

(030) Vintage Commodore PET CBM 8096
[ 1980 ]



Specification:

CPU

MOS Technology 6502 @ 1 MHz

RAM

·       32KB Main board (16 x HM4716AP 4N)

·       64KB RAM board   (32 x ITT4116 3N)

STORAGE

8 GB SD based preloaded HDD

DRIVES

DISPLAY

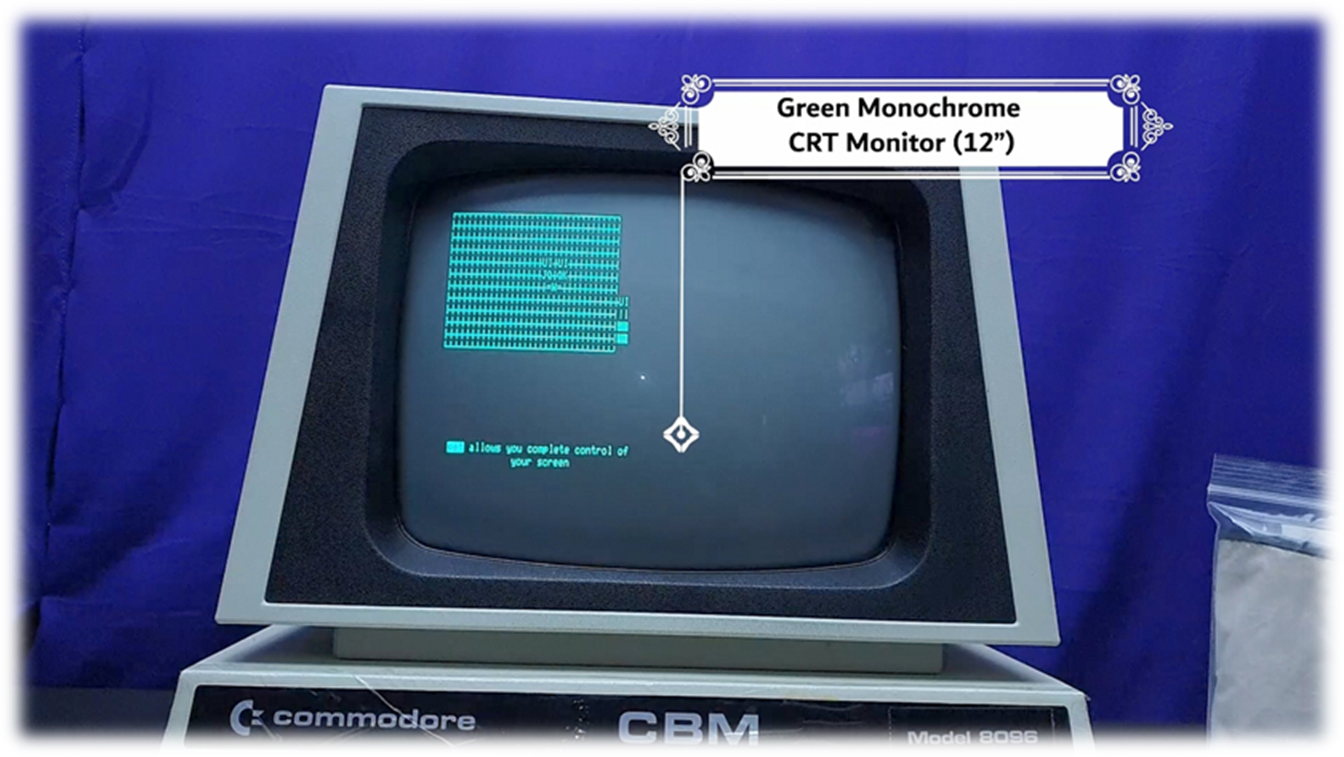

·       Built-in green monochrome CRT Monitor (12")

·       80 x 25 characters

·       Motorola/MOS 6845 CRTC

OS

·       CP/M

·       Built-in Commodore BASIC 4.0 (ROM)

KEYBOARD

·       Built-in full-size keyboard and numeric keypad

Network

I/O PORTS

·       1 Cassette tape recorder interface

·       1 Parallel port (for disk drives and printers)

·       1  IEEE-488 port (modems, disks)

EXPANSION PERIPHERALS

·       This system was originally an 8032 and upgraded to a 8096

ACCESSORIES & DOCUMENTS

·       Original Commodore Series 8000 User’s Guide

·       Commodore computer full dust cover

POWER SUPPLY

·       Computer: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

SPECIAL INSTRUCTIONS

·       Boot to default Commodore BAISC v4.0

·       Connect SD drive to the rear port near power cable and the power cable to the cassette port on far left

·       Connected SD card mapped to device #8

·       DIRECTORY or CATALOG :  command to list SD contents

·       DLOAD “filename.prg” : command to load program

·       RUN : command to execute current loaded program

·       LIST : command to show current loaded program contents

·       DSAVE "filename" : command to save file to SD

·       RENAME "oldfilename" TO "newfilename"

·       COPY "oldfile" TO "newfile"

·       SAVE "@D0:filename",8 : Saves over an existing filename
