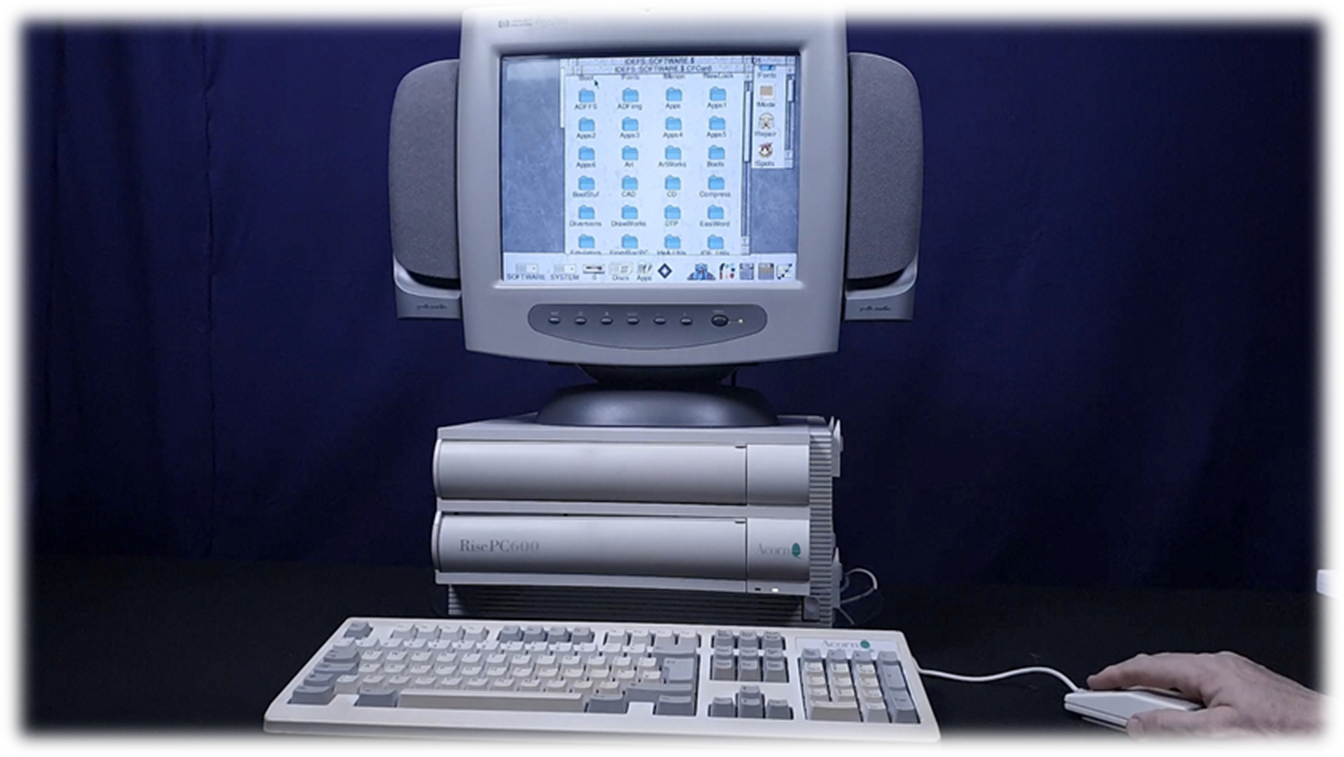

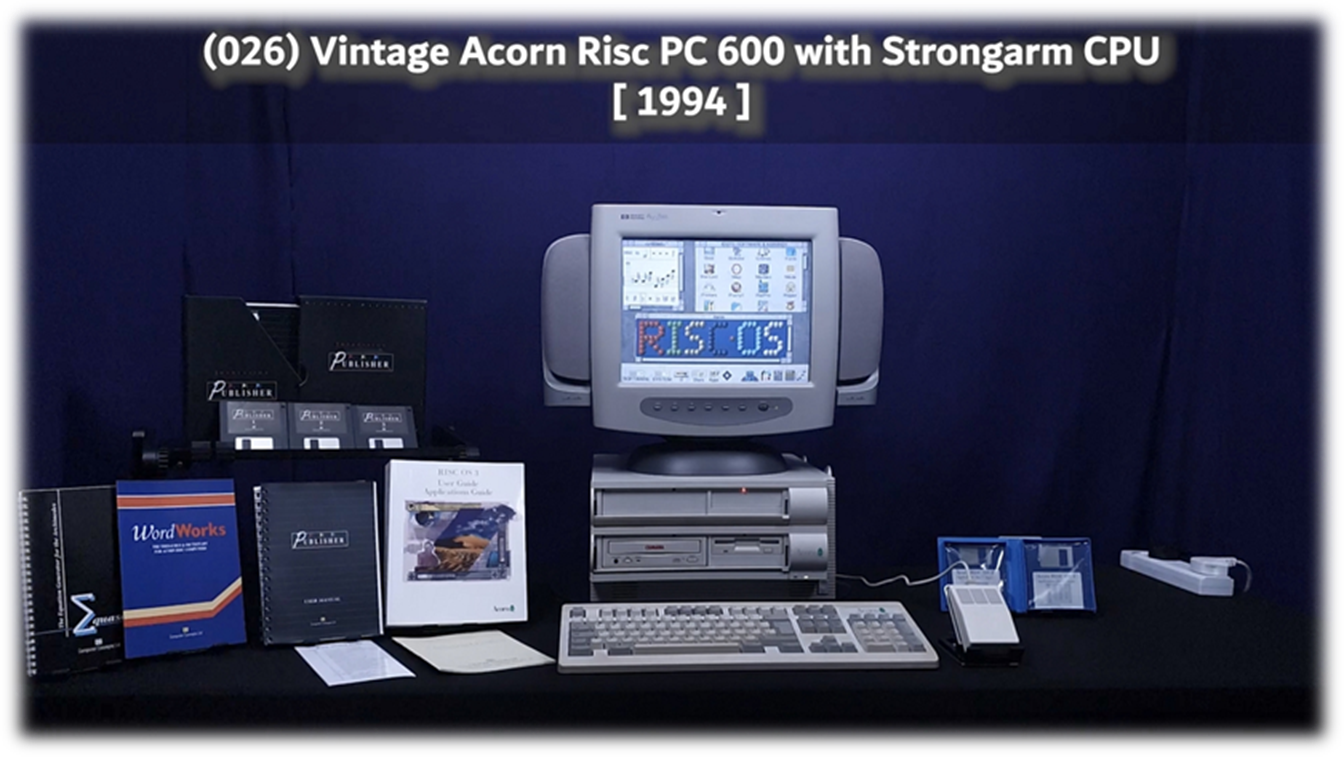

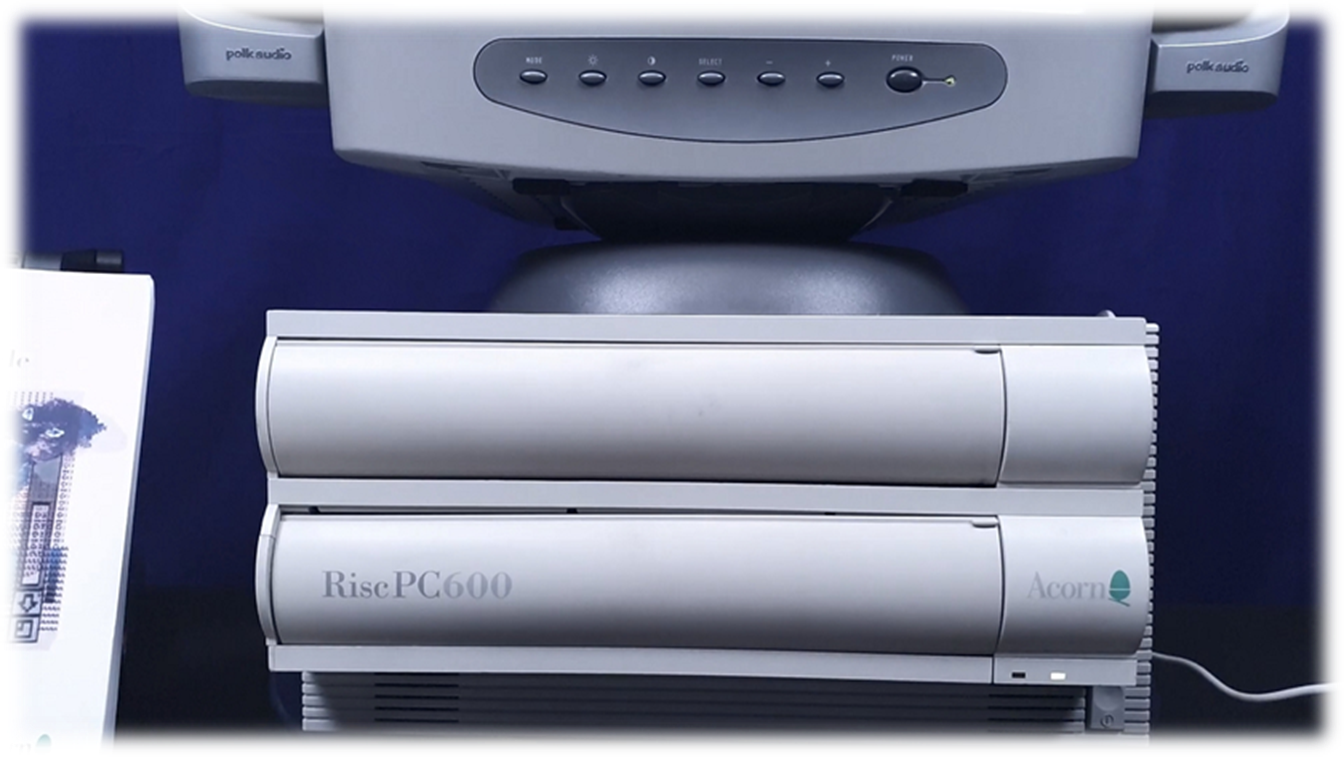

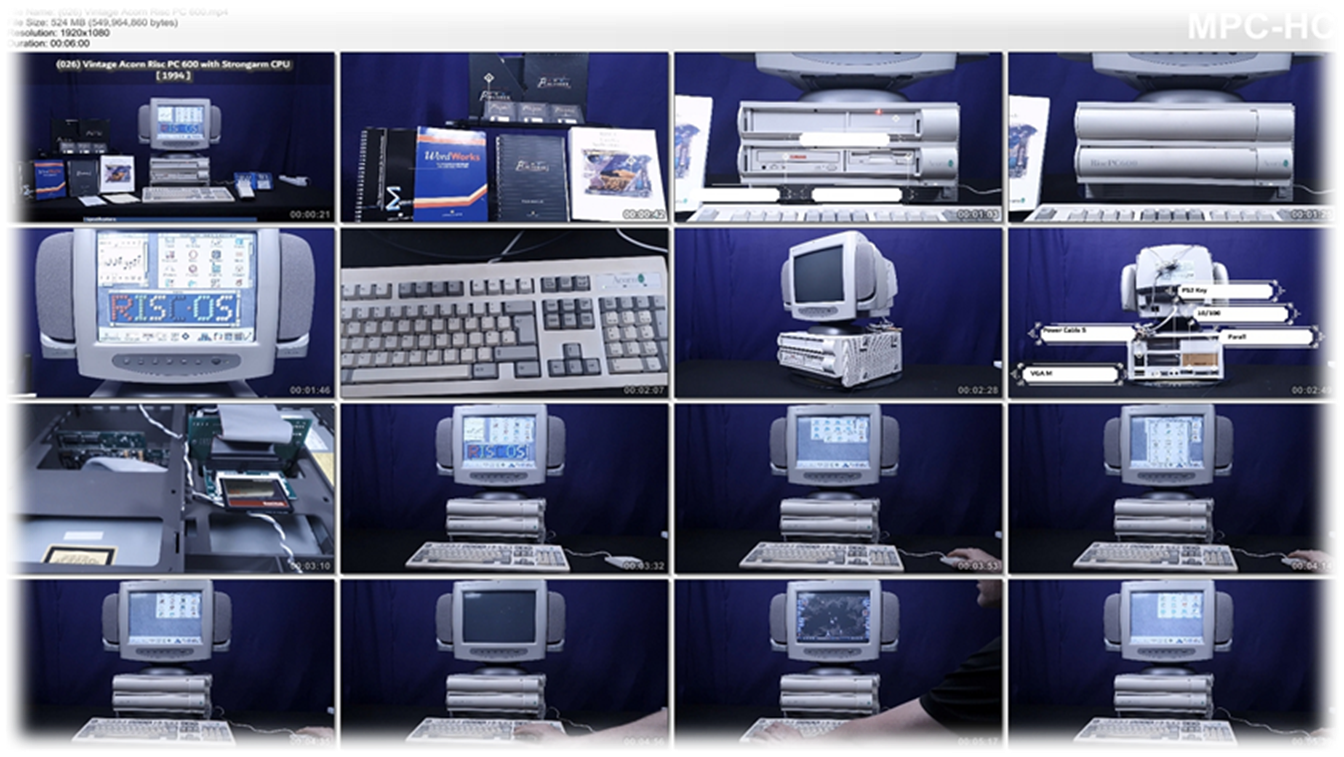

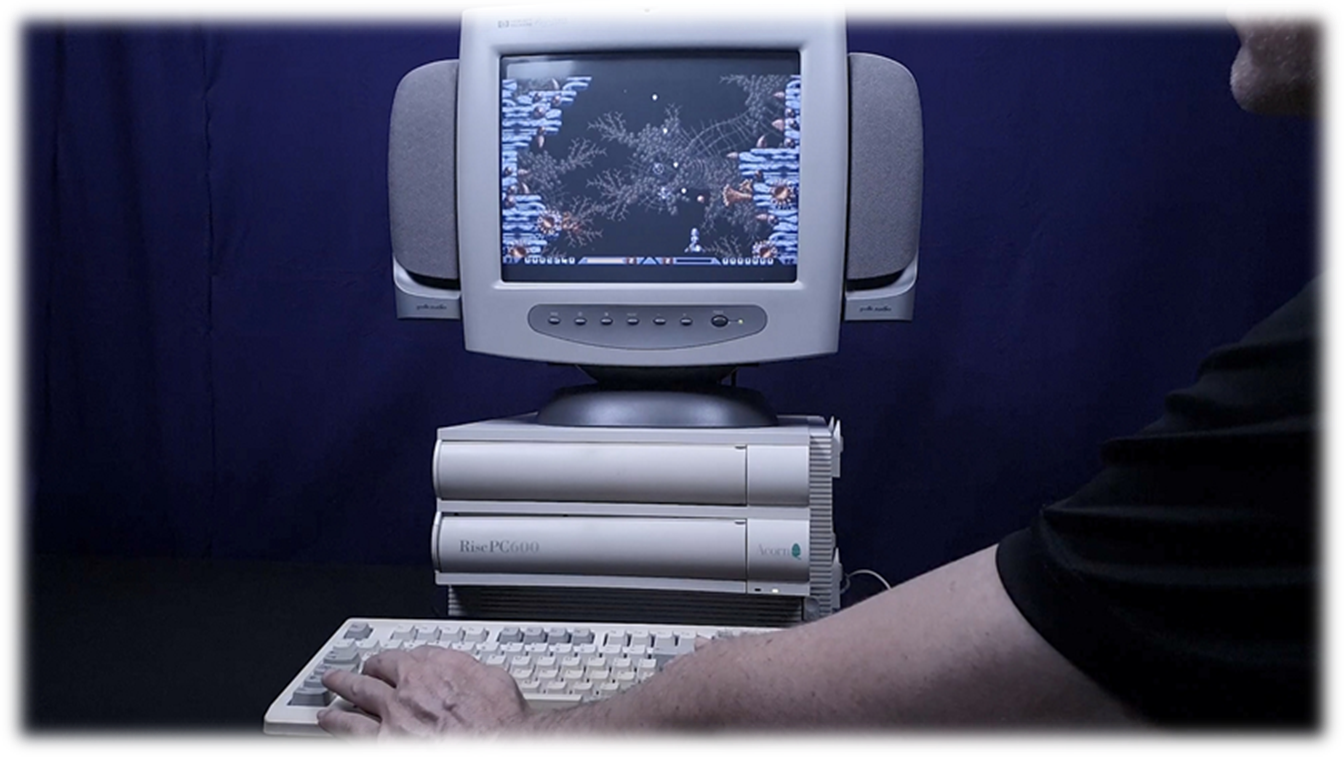

(026) Vintage Acorn Risc PC 600 with Strongarm CPU
[ 1994 ]



Specification:

CPU

·       Host: StrongARM @ 300 MHz
Guest: 486 DX-4 @ 100 MHz PC Card

RAM

164 MB

STORAGE

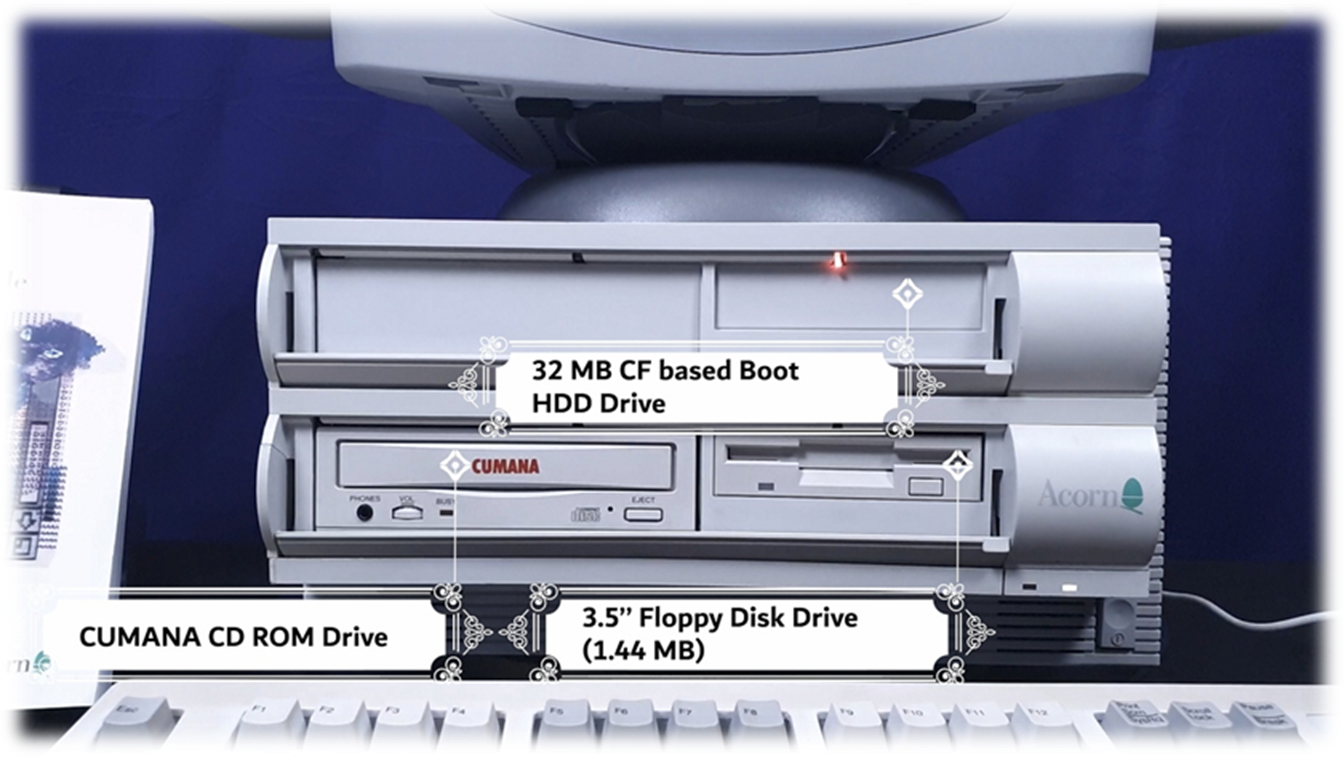

32 MB boot + 9 GB Applications, CF based HDDs

DRIVES

·       3.5'' Floppy Disk Drive (1.44 MB)

·       CD Drive

DISPLAY

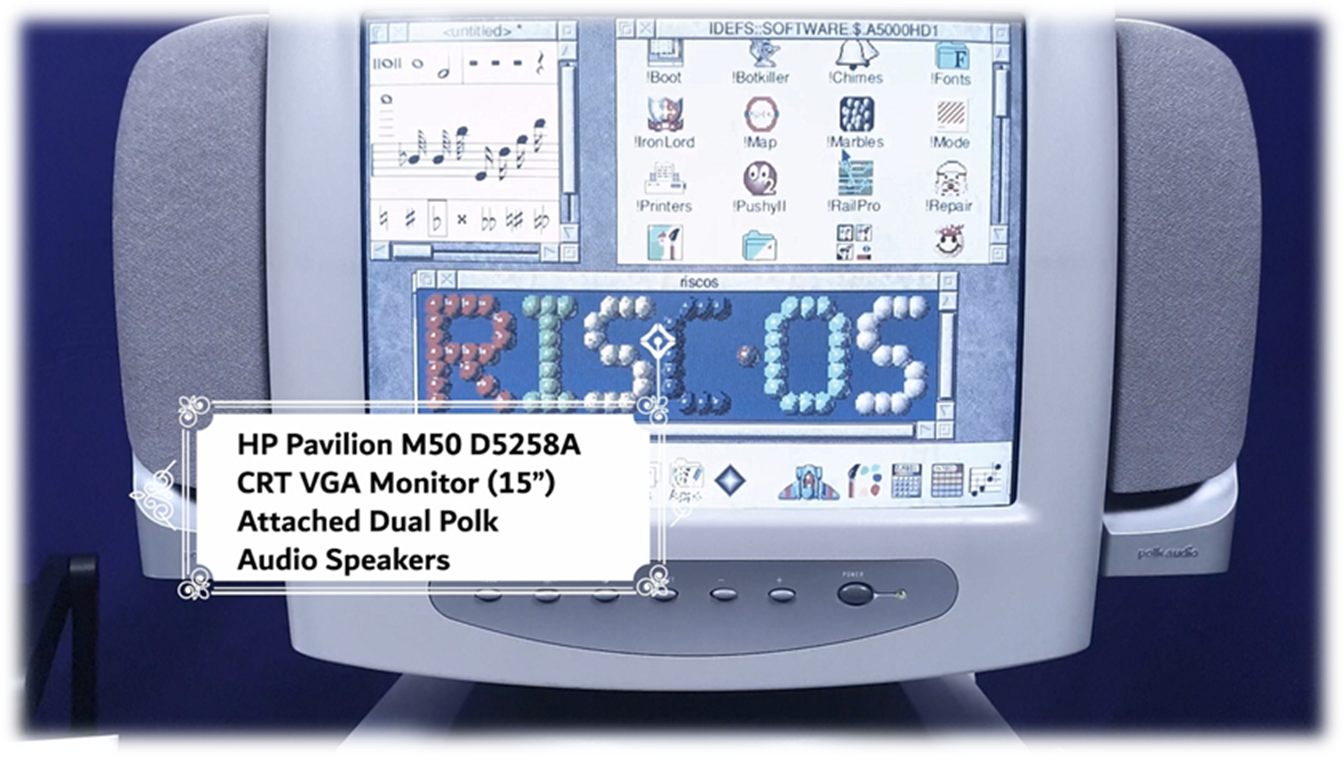

·       HP Pavilion M50 D5258A CRT VGA Monitor (15")

·       VGA 640 × 480

OS

·       Risc OS 3.7

KEYBOARD

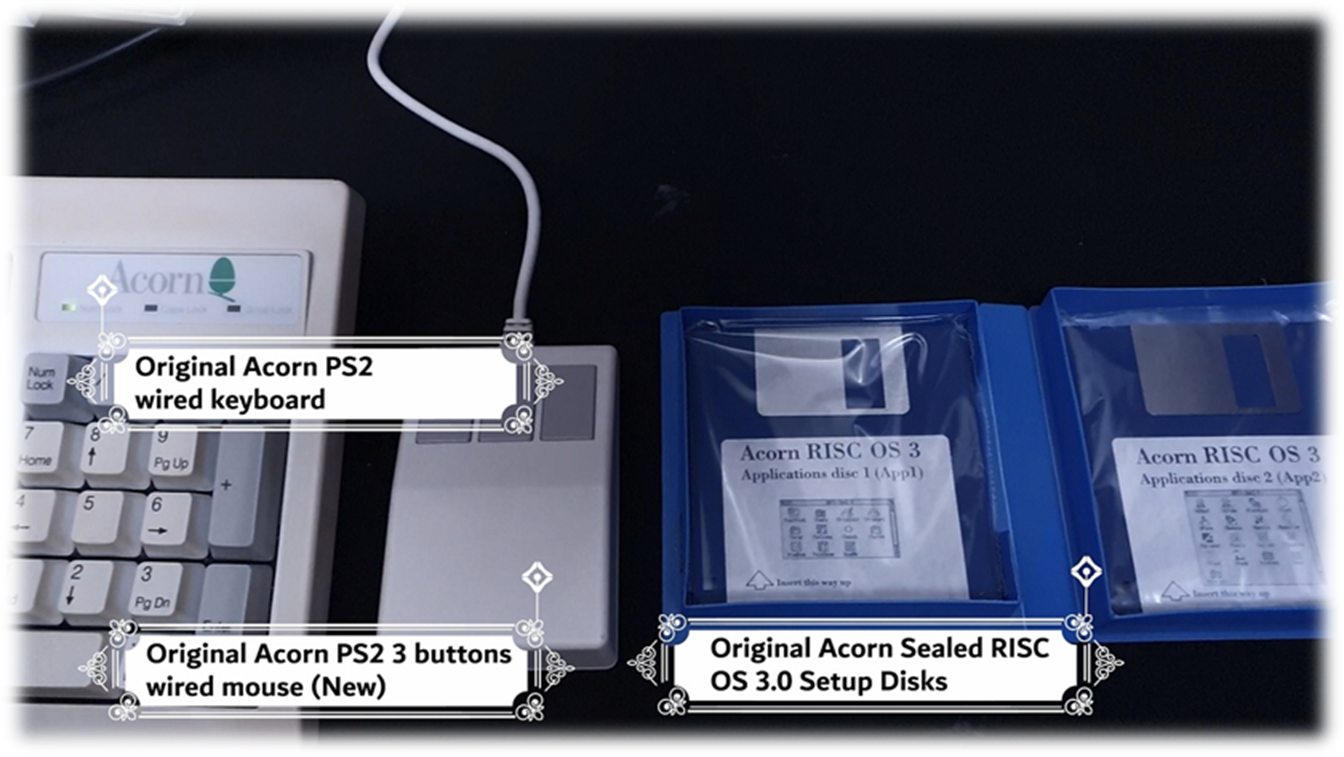

·       Original Acorn PS2 wired keyboard

·       Original Acorn PS2 3 buttons wired mouse (New Old Stock)

SOUND

Built-in PC speakers

Network

10/100 Base-T Ethernet expansion card

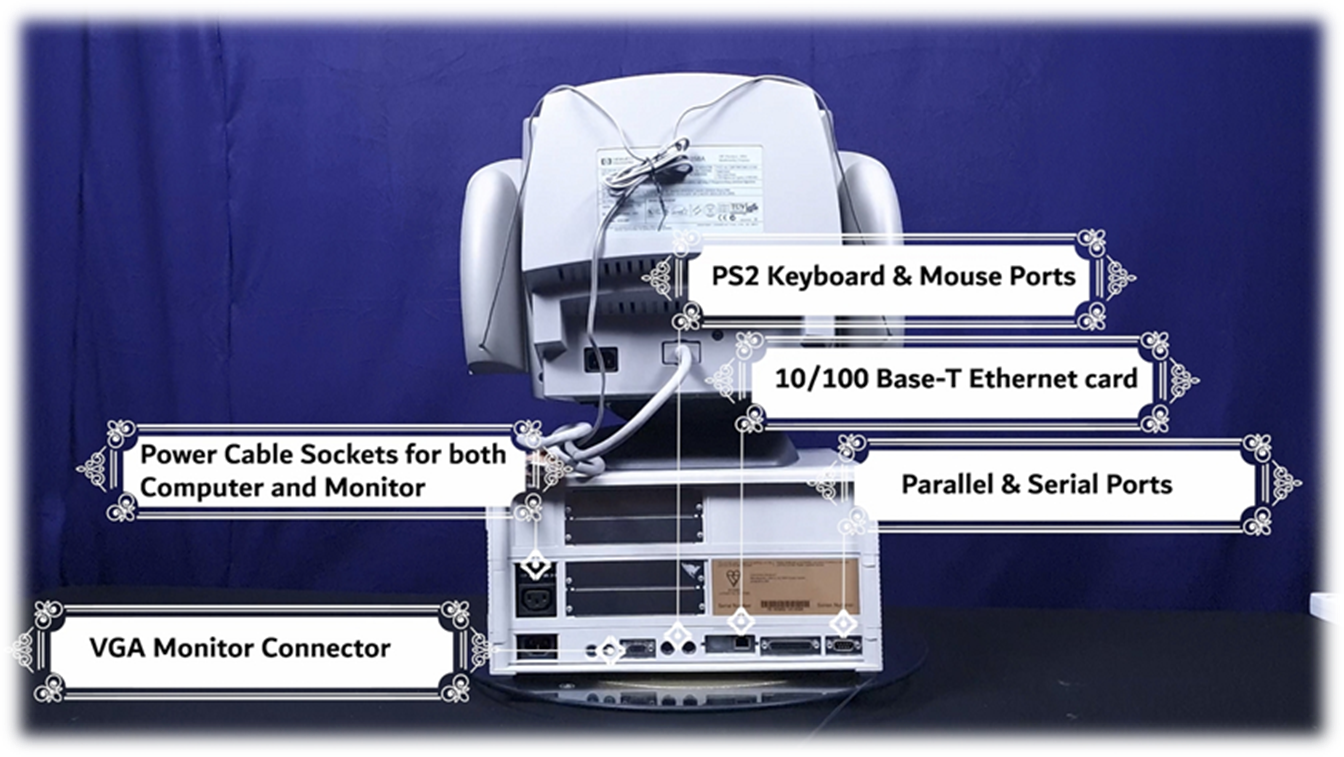

I/O PORTS

·       Parallel port

·       Serial Port (RS-232)

·       VGA port

·       Acorn Keyboard and Mouse ports

·       Stereo 3.5 mm minijack audio sockets

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

·       Original Acorn ALA40 RISC OS 3.1 Application Guides & Floppies

·       Original Acorn RISC OS Impression Publisher v4.11 Application Guides & Floppies

POWER SUPPLY

·       Computer: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       Monitor: 100-240V Auto-Switch (Internal PSU)
Plug Type: Powered from Computer (No Power Plug)

SPECIAL INSTRUCTIONS

·       Hold Delete at boot time: To CMOS reset to detect the monitor and select 31khz output, 640x480 default resolution
