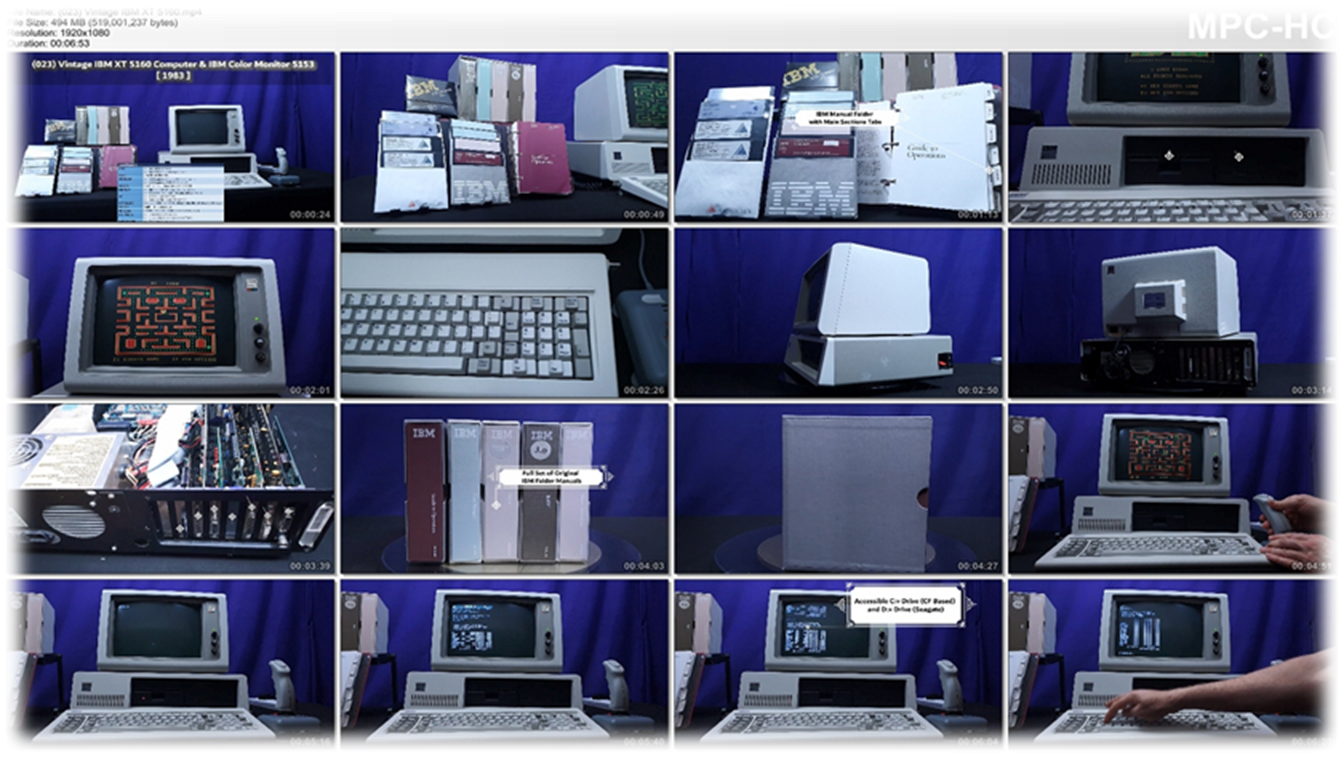

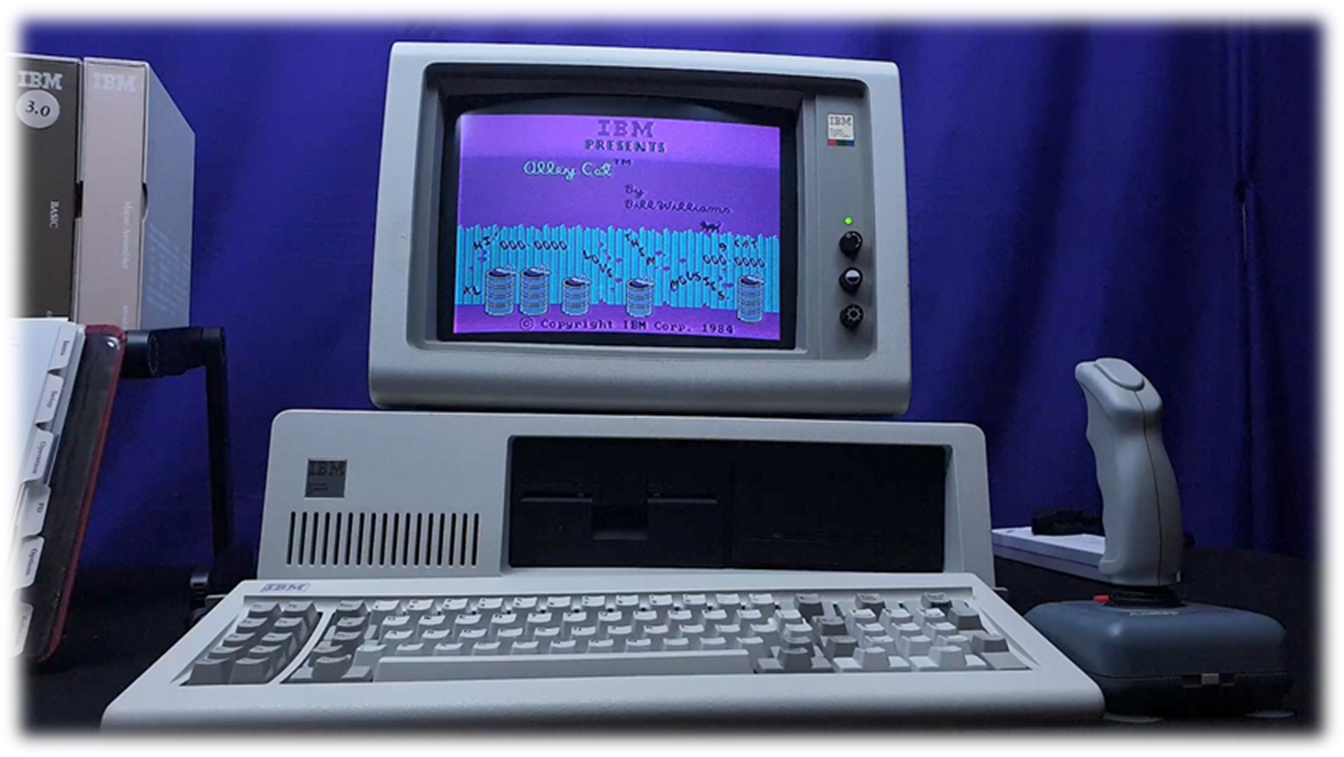

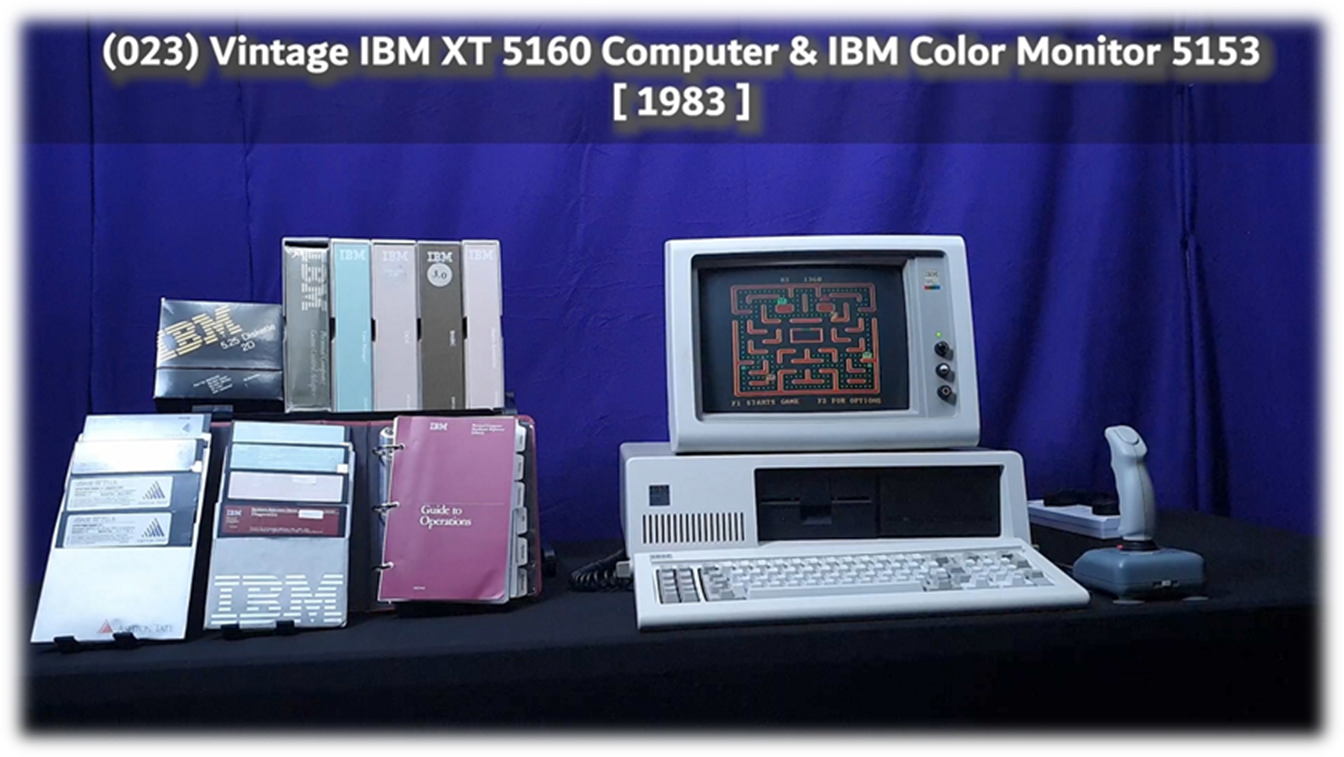

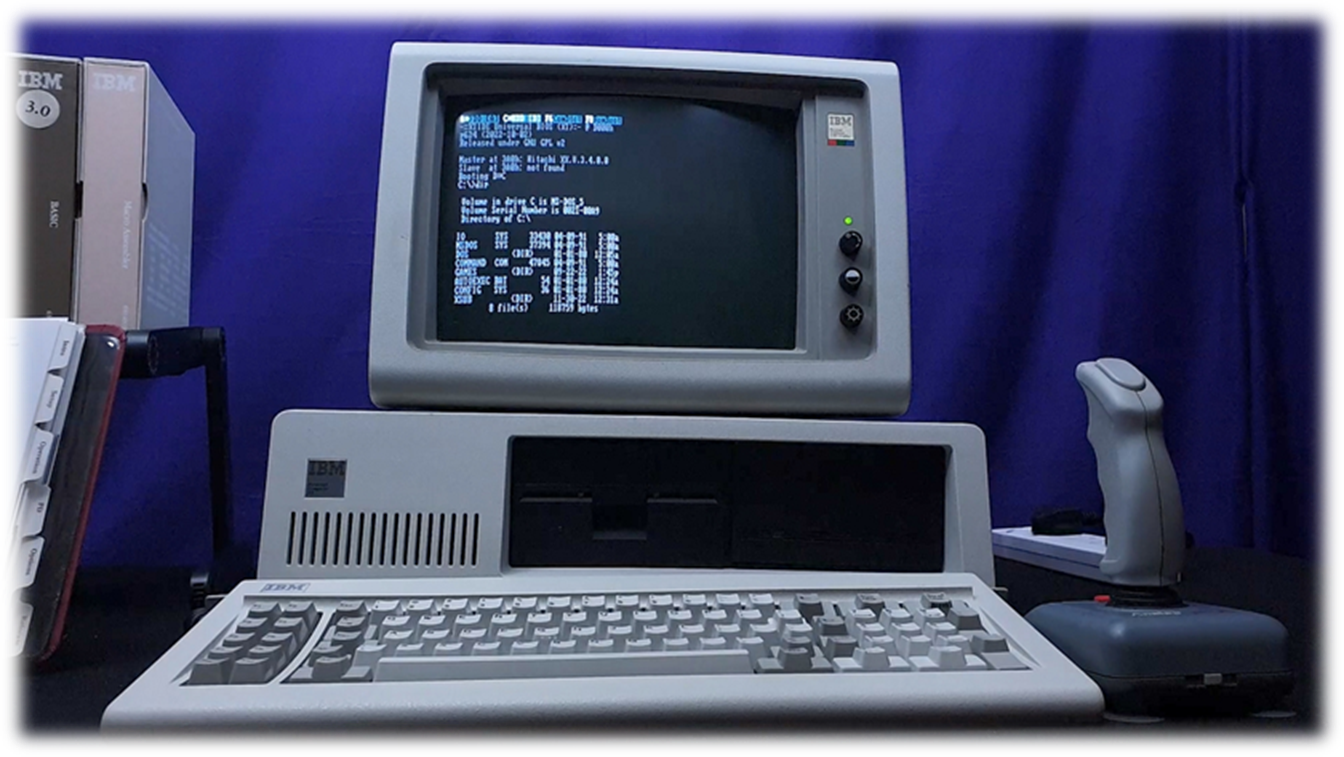

(023) Vintage IBM XT 5160 Computer & IBM Color Monitor 5153
[ 1983 ]



Specification:

CPU

·       Intel 8088 4.77 MH

·       Intel C8087-3 math co-processor

RAM

256 KB , 64 KB (ROM)

STORAGE

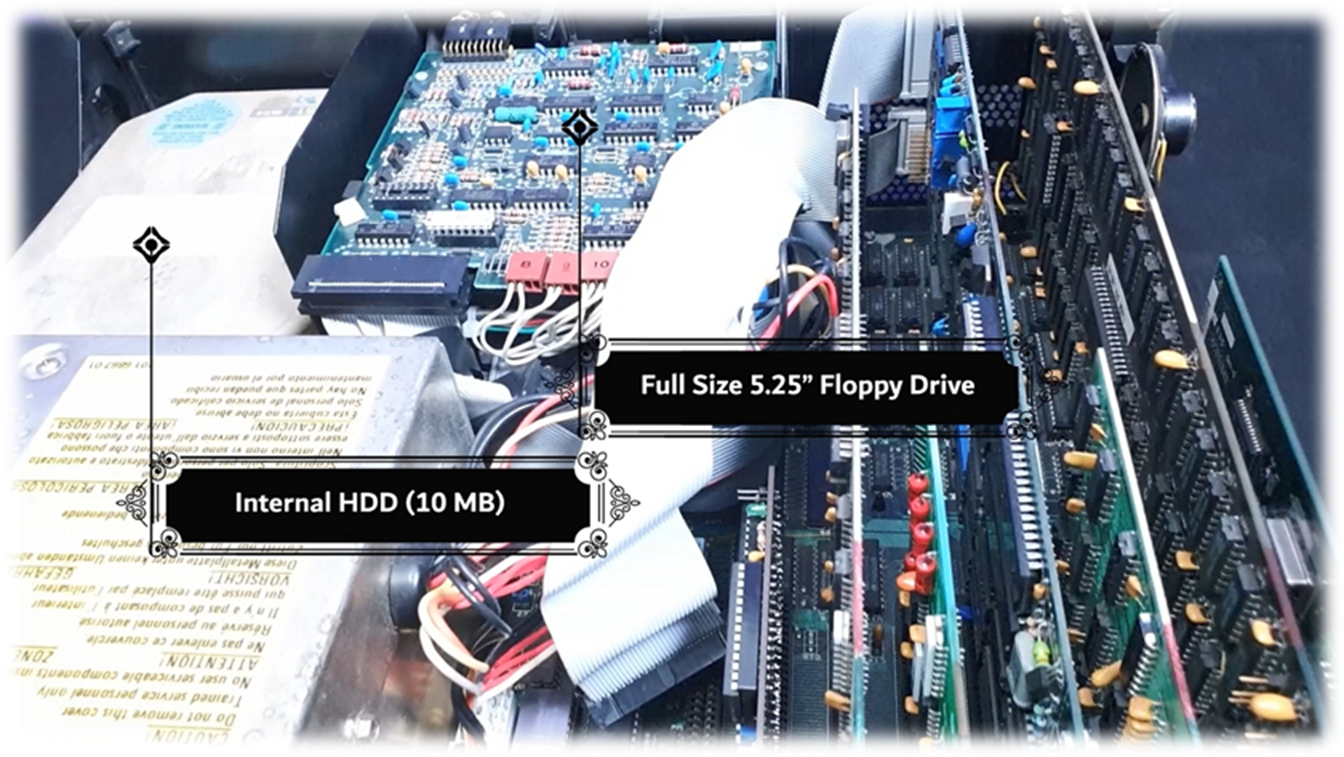

·       10 Megabytes Seagate ST225 + Controller

·       32 Megabytes XTIDE XT-CF-Lite V4

DRIVES

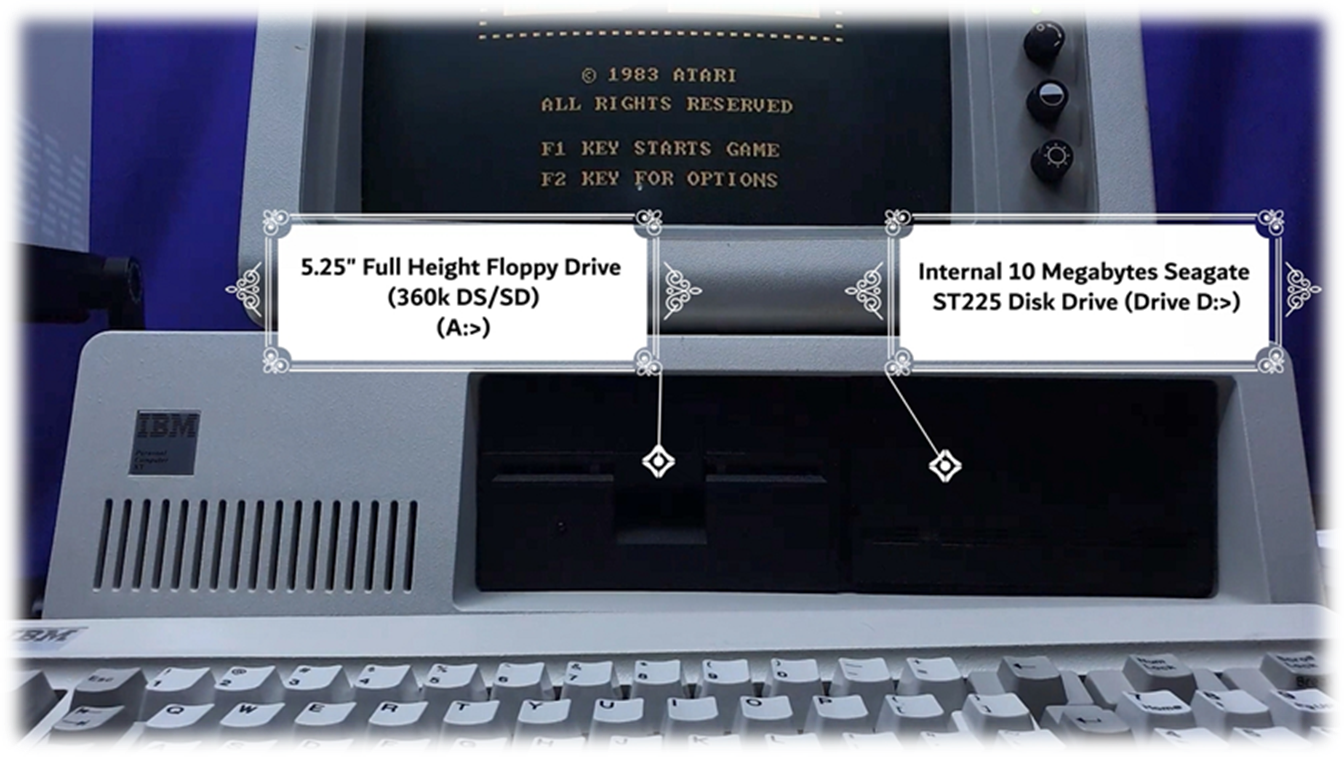

5.25" full height floppy drive (360k DS/SD)

DISPLAY

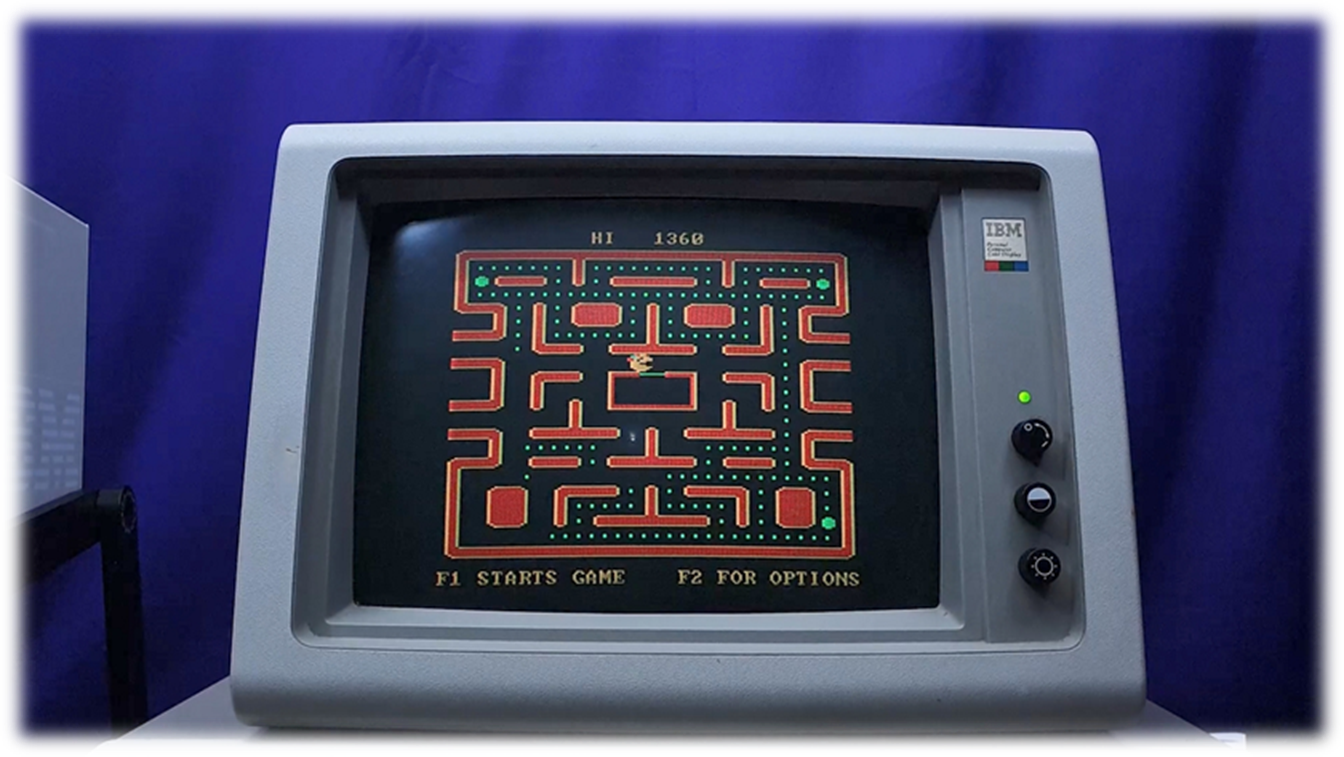

·       IBM Color CRT Monitor 5153 (12” 1983)

·       CGA 640 x 200 pixels x 16 colors (80 x 24 Text)

OS

·       HDD Boot: MS DOS 3.3

·       Compact Flash Boot: MS DOS 5.0

KEYBOARD

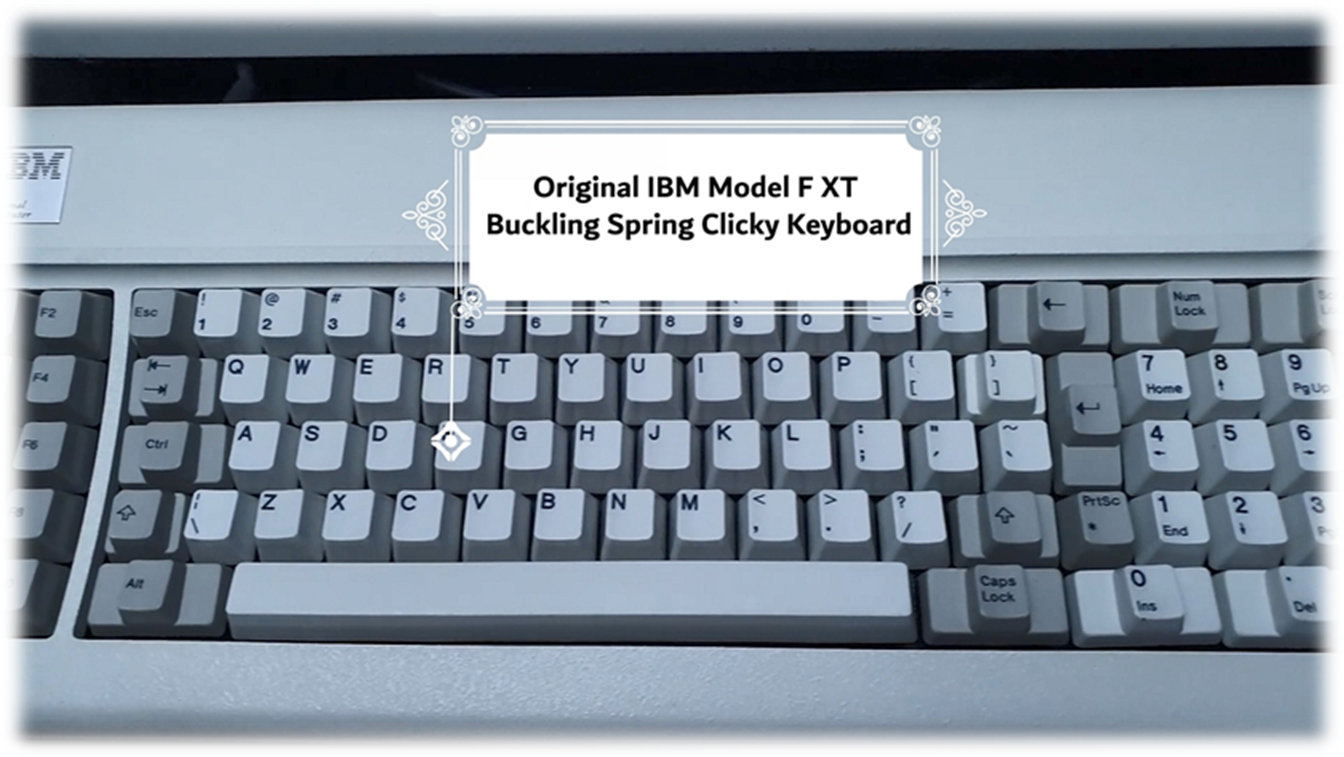

Original IBM Model F XT Buckling Spring Clicky Keyboard (101 keys)

SOUND

Built-in Tone Generator

Network

ISA BNC Network card (RJ45+BNC+twisted pair)

I/O PORTS

·       7 8bit Standard ISA slots

·       1 Special IBM Expansion card (8th slot)

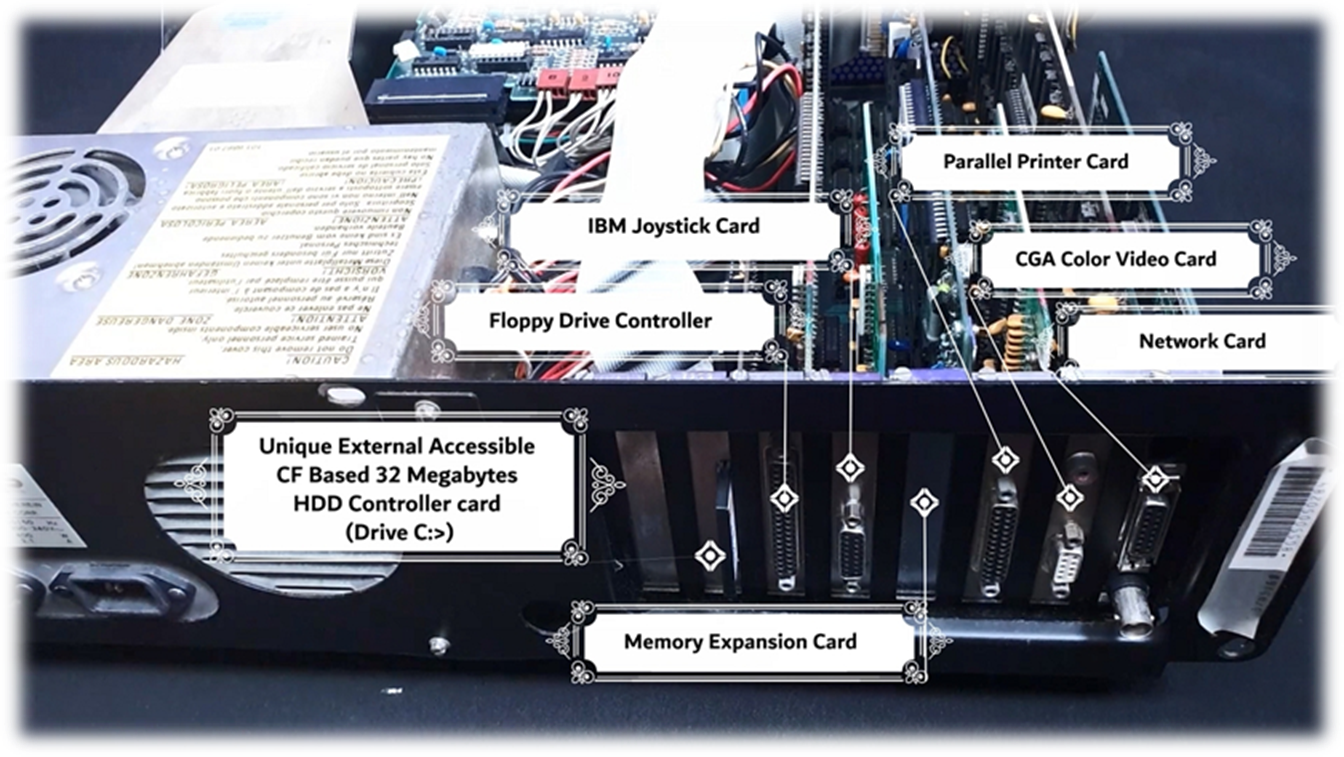

EXPANSION PERIPHERALS

·       CGA Color Video card

·       Network card

·       Serial I/O card

·       Parallel I/O card (printer)

·       CF based HDD drive controller

·       Original IBM Game Control Adapter 1501300 + PC Joystick

ACCESSORIES & DOCUMENTS

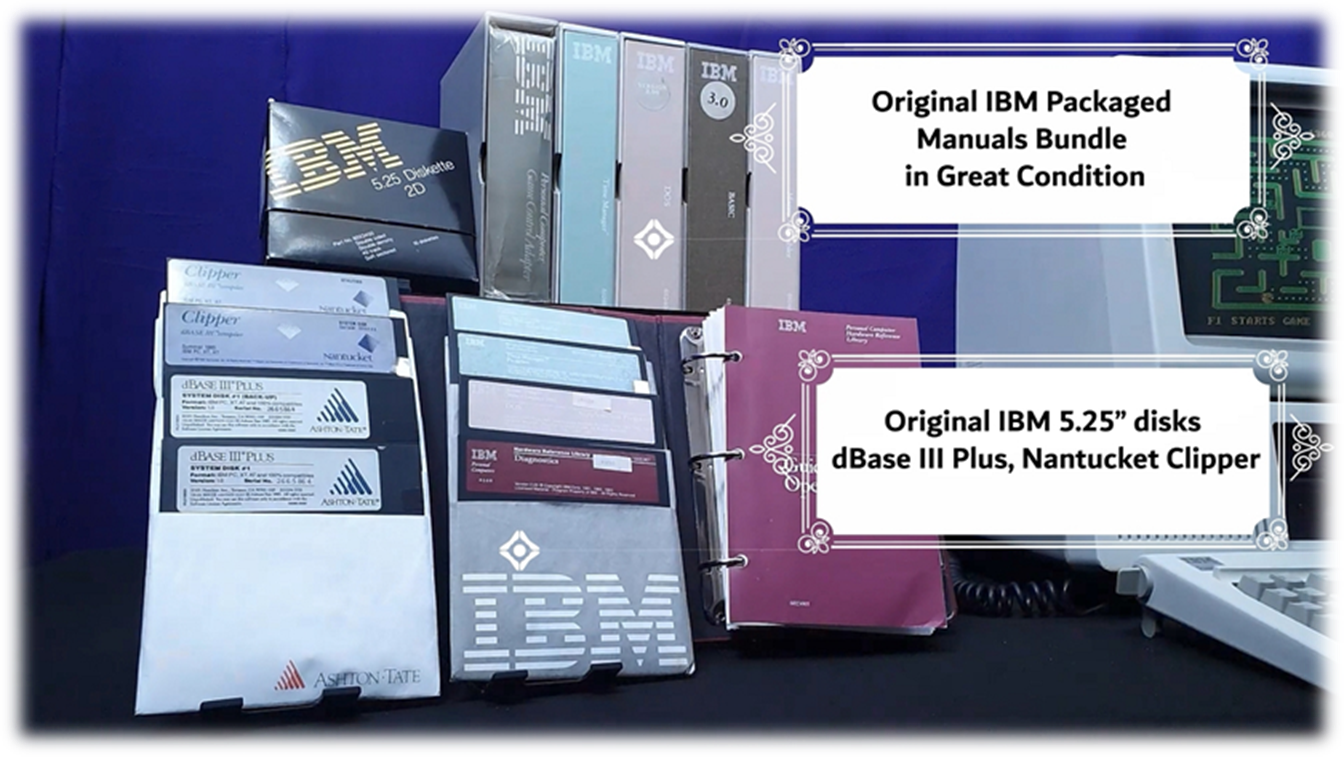

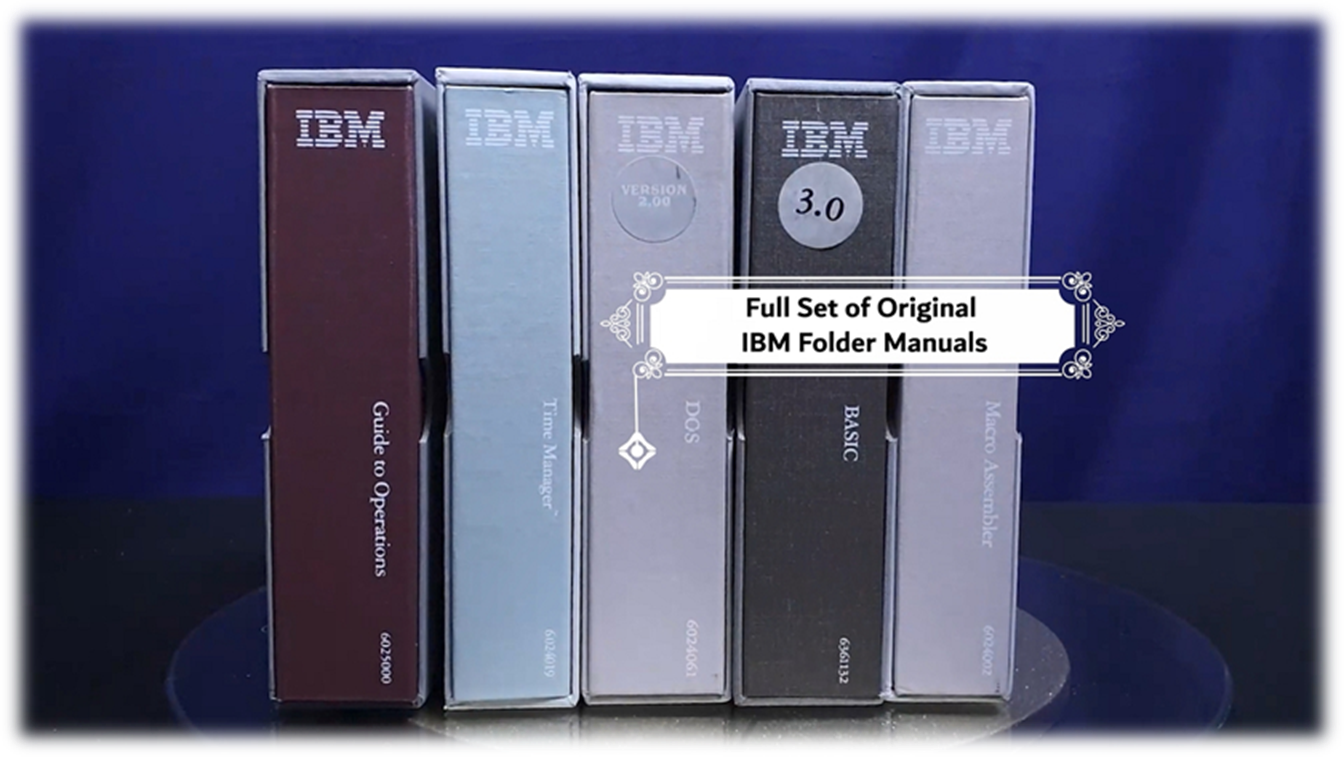

·       Original IBM Packaged Manuals Bundle:

·       BASIC v3.0 software and Manuals

·       DOS v2.0 software and Manuals

·       Micro Assembler software and Manuals

·       Guide to Operations Manuals

·       Time Management Software

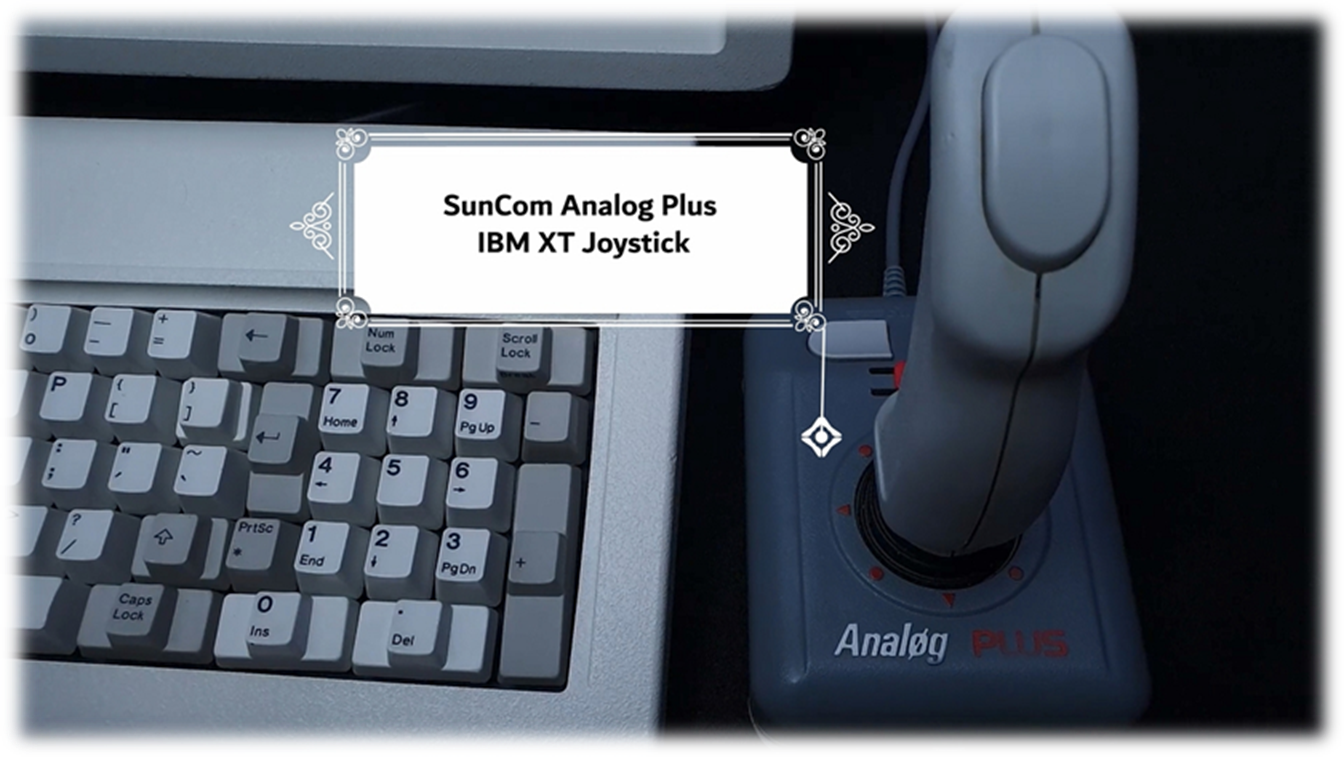

·       SunCom Analog Plus IBM XT Joystick

·       5.25” Floppy Disk Bundle:

·       Original dBase III Plus System (8 Disks)

·       Original Nantucket Clipper dBase III Compiler – Summer 1985 (6 Disks)

POWER SUPPLY

·       Computer: 240V Only (Internal PSU)
Plug Type: TYPE G, UK, 3 Thick Flat Pins

·       Monitor: 100-240V Auto-Switch (Internal PSU)
Plug Type: Same Cable from Computer

SPECIAL INSTRUCTIONS

·       On Startup: Select boot drive (XT-CF default, HDD, FDD)

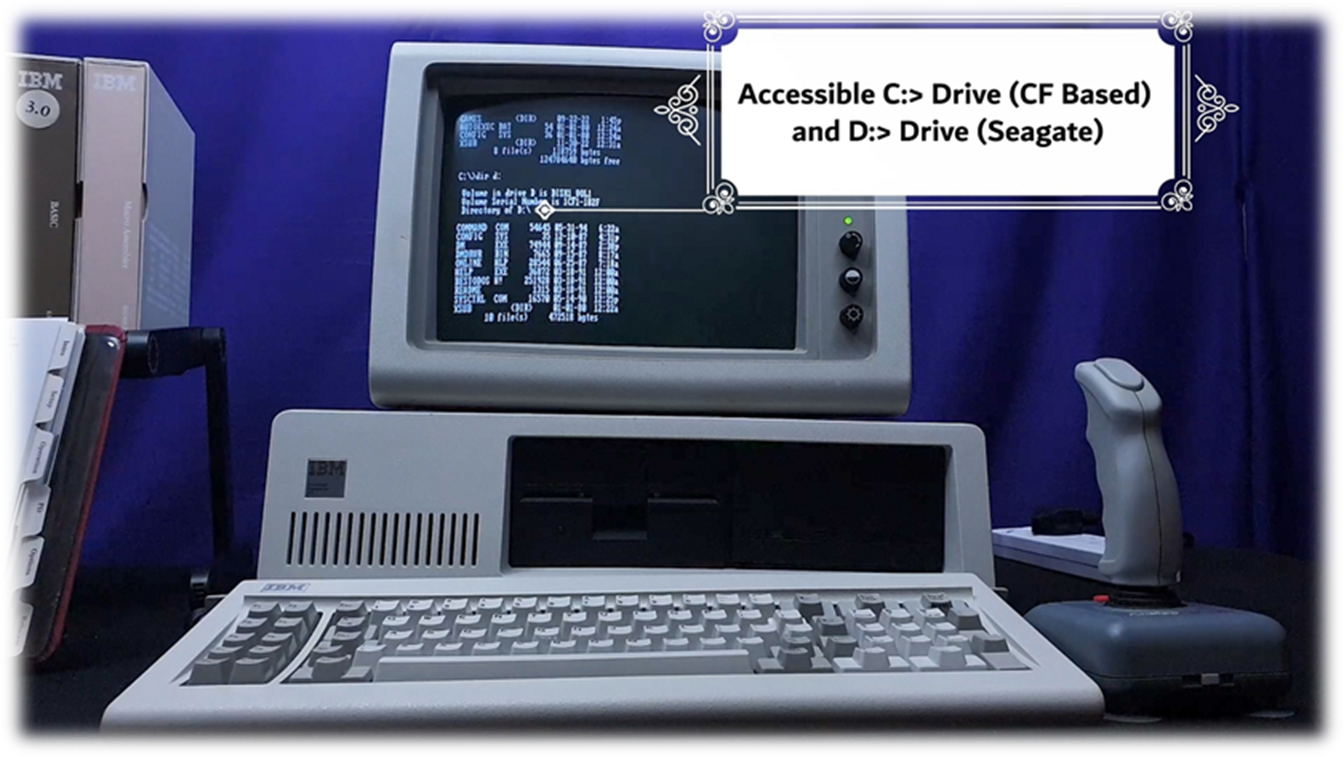

·       Both HDD and XT-CF drives are accessible (C: , D:)

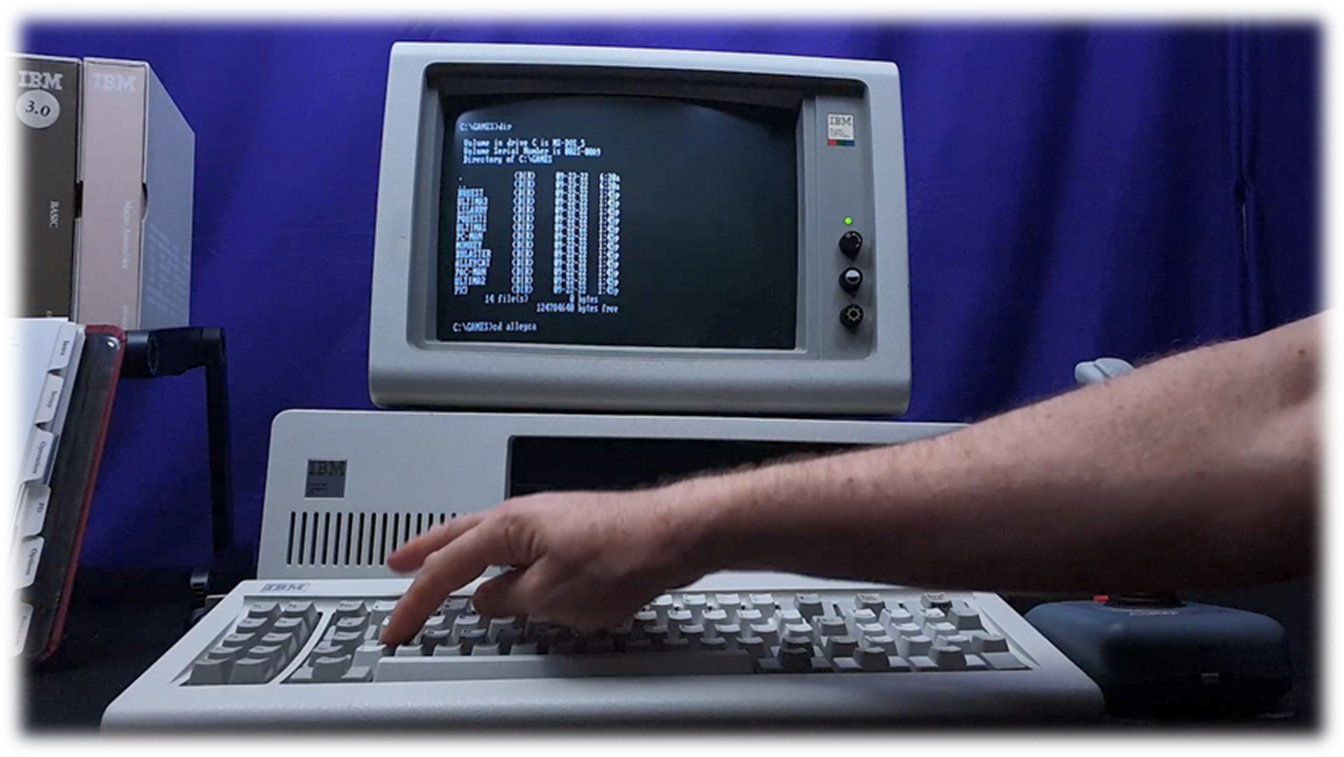

·       <DIR> : MS-DOS command to list current drive/directories files
