(014) Vintage Apple Power Macintosh G3 Tower
[ 1994 ]



Specification:

CPU

PowerPC 750 (G3)processor @ 266 MHz full 32-bit

RAM

32 MB PC66 SDRAM+ 8 MB VRAM ATI 3D Rage II+, 4 MB (ROM)

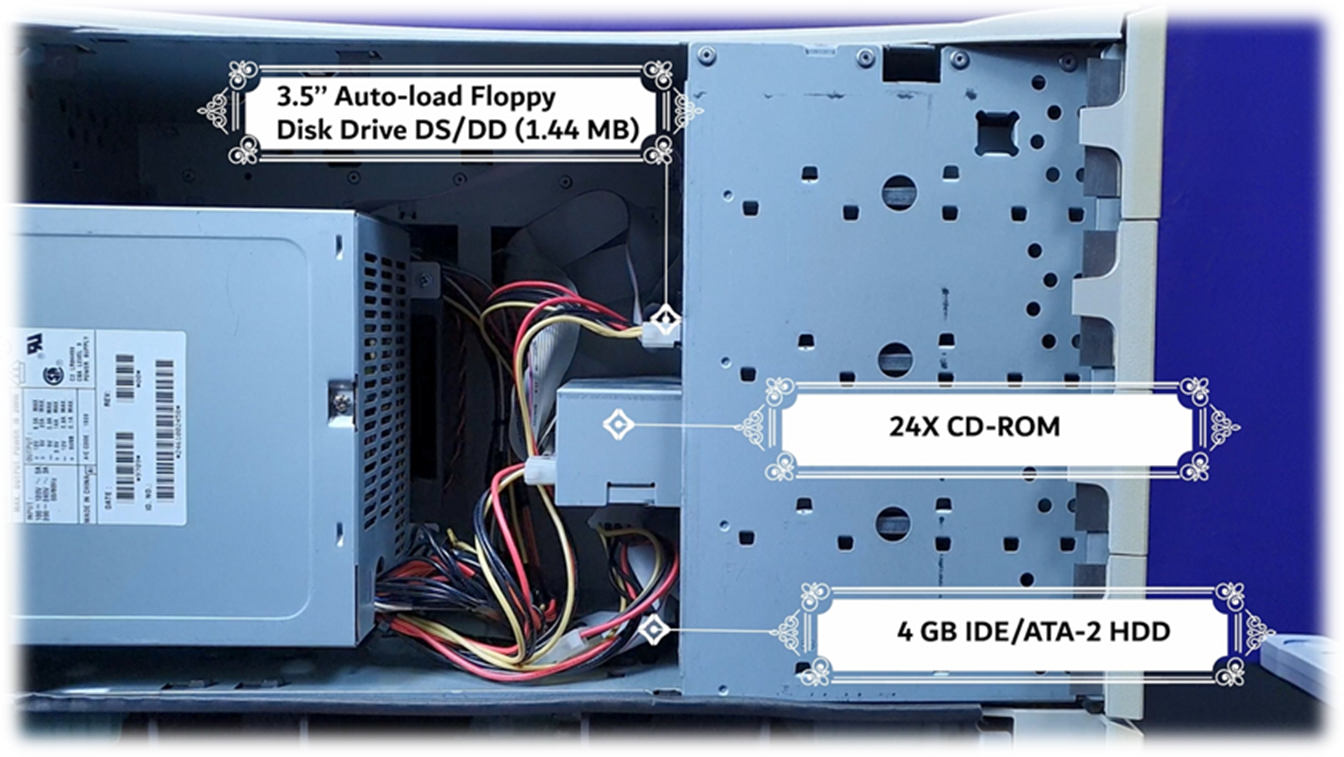

STORAGE

4 GB IDE/ATA-2 HDD

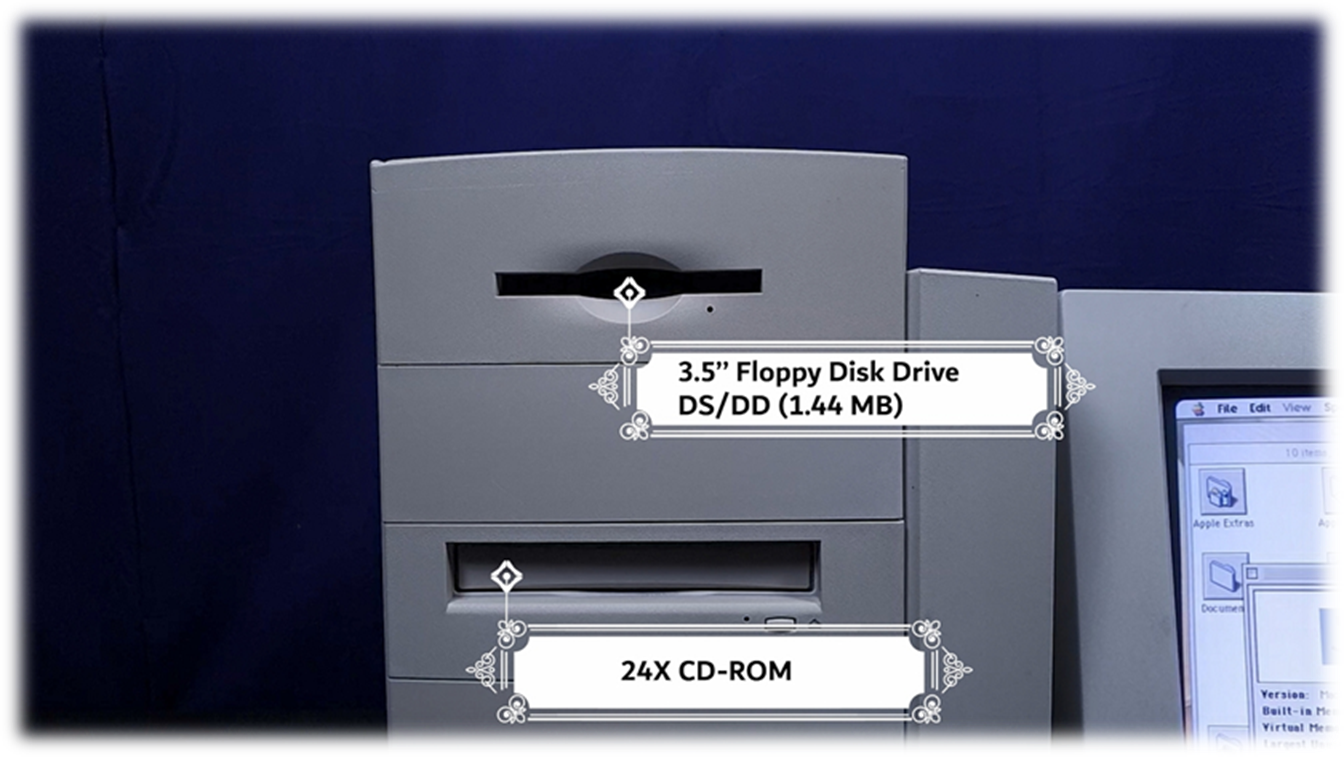

DRIVES

·       Built-in 3.5'' Floppy Disk Drive DS/DD (1.44 MB)
24X CD-ROM

DISPLAY

·       Apple RGB Color CRT Monitor (14")

·       GUI up to 1024 x 768-pixel resolution (24-bit)

OS

macOS 8

KEYBOARD

Detachable Original Apple Extended Keyboard II and Mouse (108 keys with numeric keypad and arrow keys)

SOUND

Built-in speaker

Network

10/100Base-T Ethernet

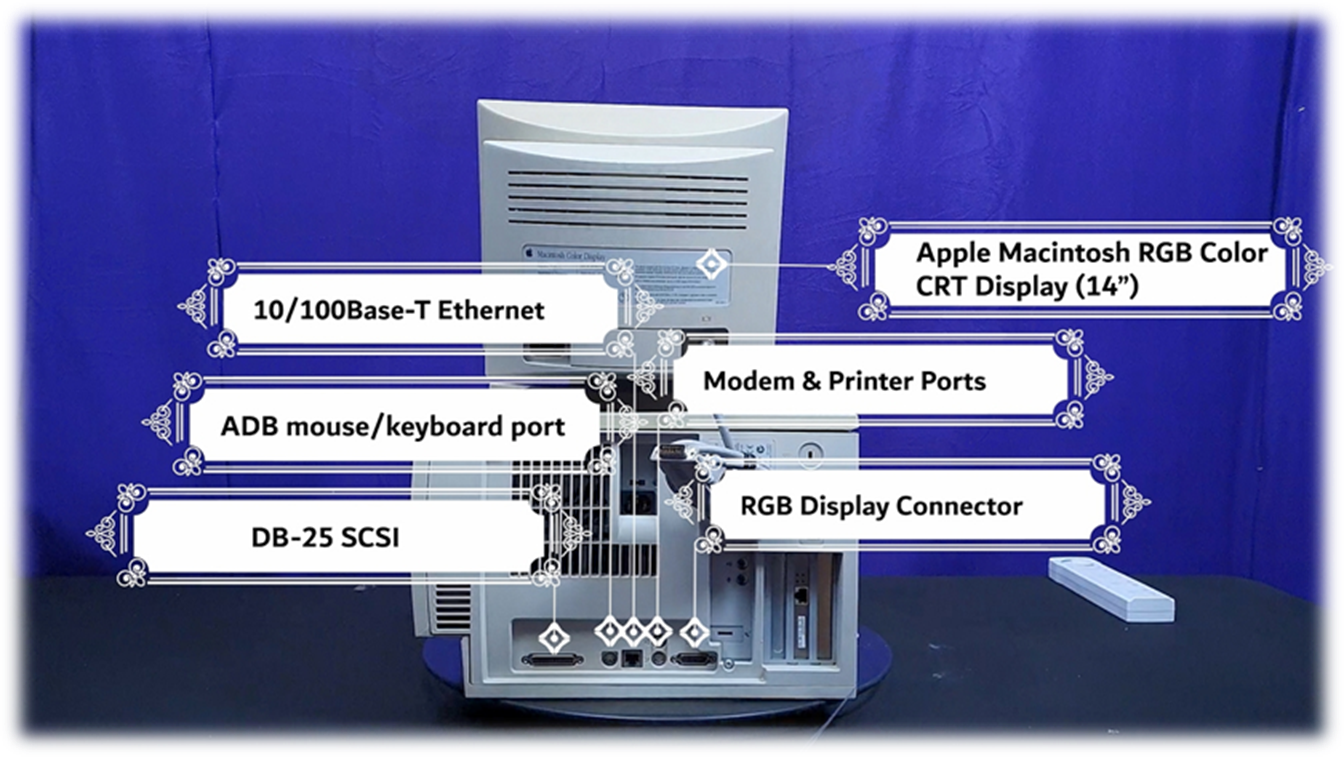

I/O PORTS

·       3 PCI (1 3.5", 3 5.25" bays)

·       1 ADB mouse/keyboard port

·       mini-DIN-8 RS-422 serial port

·       Stereo 3.5 mm minijack audio sockets

·       DB-25 SCSI

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

POWER SUPPLY

·       Computer : 100-240V Manual-Switch, Current Selection 240V, (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       Monitor : 100-240V Auto-Switch, (Internal PSU)
Plug Type: Same cable with Computer

SPECIAL INSTRUCTIONS
