(012) Vintage Apple Macintosh PERFORMA 5200CD
[ 1995 ]



Specification:

CPU

PowerPC 603 processor @ 75 MHz

RAM

8 MB 72-pin SIMM + 1 MB VRAM, 4 MB (ROM)

STORAGE

790 MB IDE HDD

DRIVES

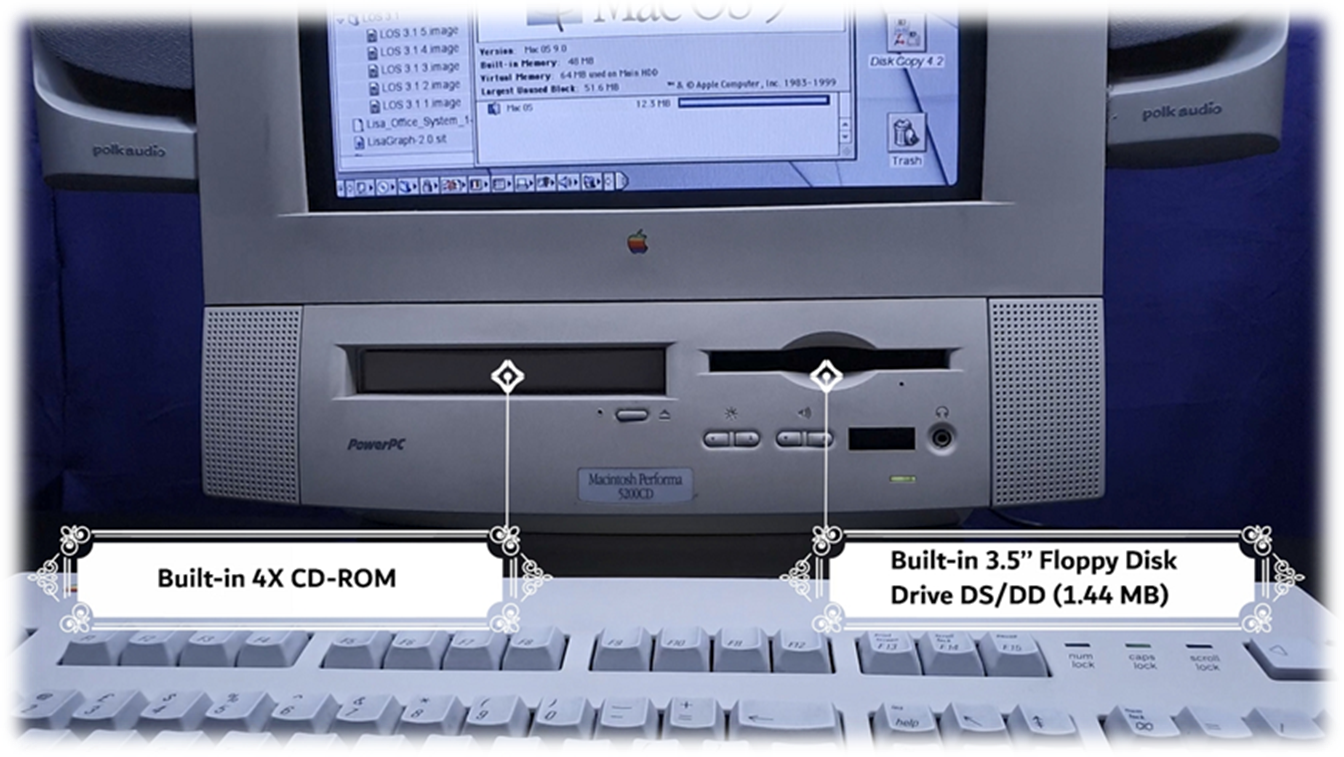

·       Built-in 3.5'' Floppy Disk Drive DS/DD (1.44 MB)

·       Built-in 4X CD-ROM

DISPLAY

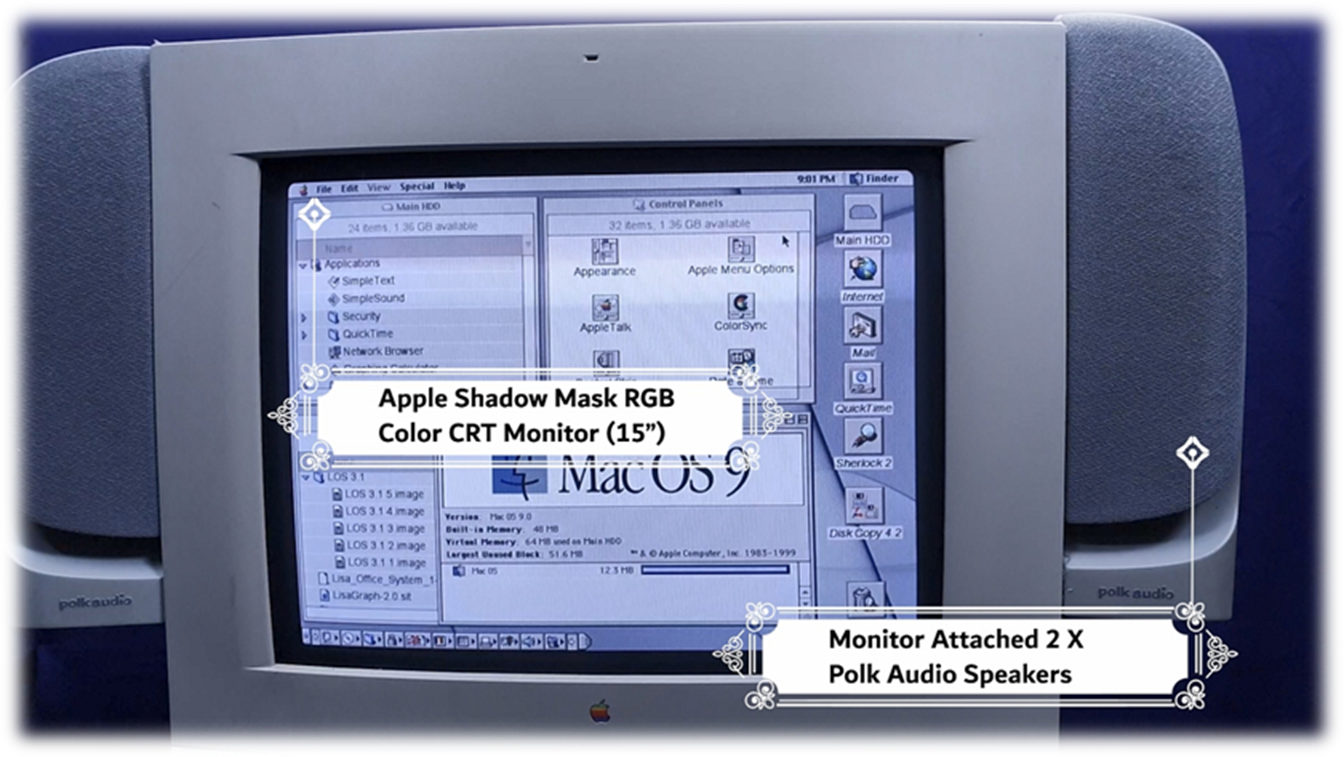

·       Apple Shadow Mask RGB Color CRT Monitor (15")

·       GUI 640x480 pixel x 16-bit color , 832x624 pixel x 8-bit color

OS

macOS 7.5.1

KEYBOARD

Detachable Original Apple Extended Keyboard II M3501 and Mouse (108 keys with numeric keypad and arrow keys)

SOUND

Built-in 4 Stereo Channels

Network

AppleTalk Serial Modem Port

I/O PORTS

·       1 ADB mouse/keyboard port

·       mini-DIN-8 Printer port

·       Stereo 3.5 mm minijack audio IN+OUT sockets

·       DB-25 SCSI

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

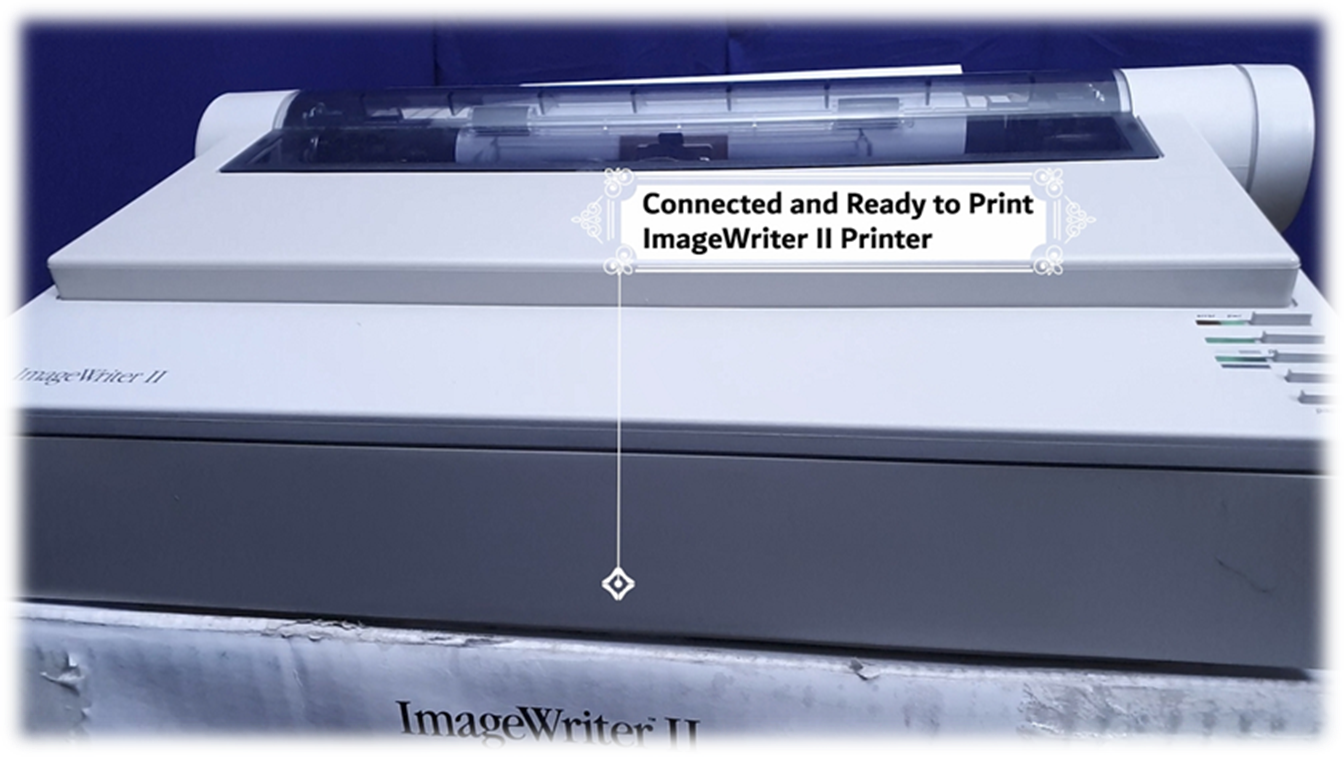

·       Original ImageWriter II Printer A9M0320 with Box

·       Vintage 2 Issues of BYTE Computer Magazine:

·       Volume 1 Issue # 2 October 1975

·       Volume 4 Issue # 9 September 1979

POWER SUPPLY

·       Computer: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       Printer: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS
