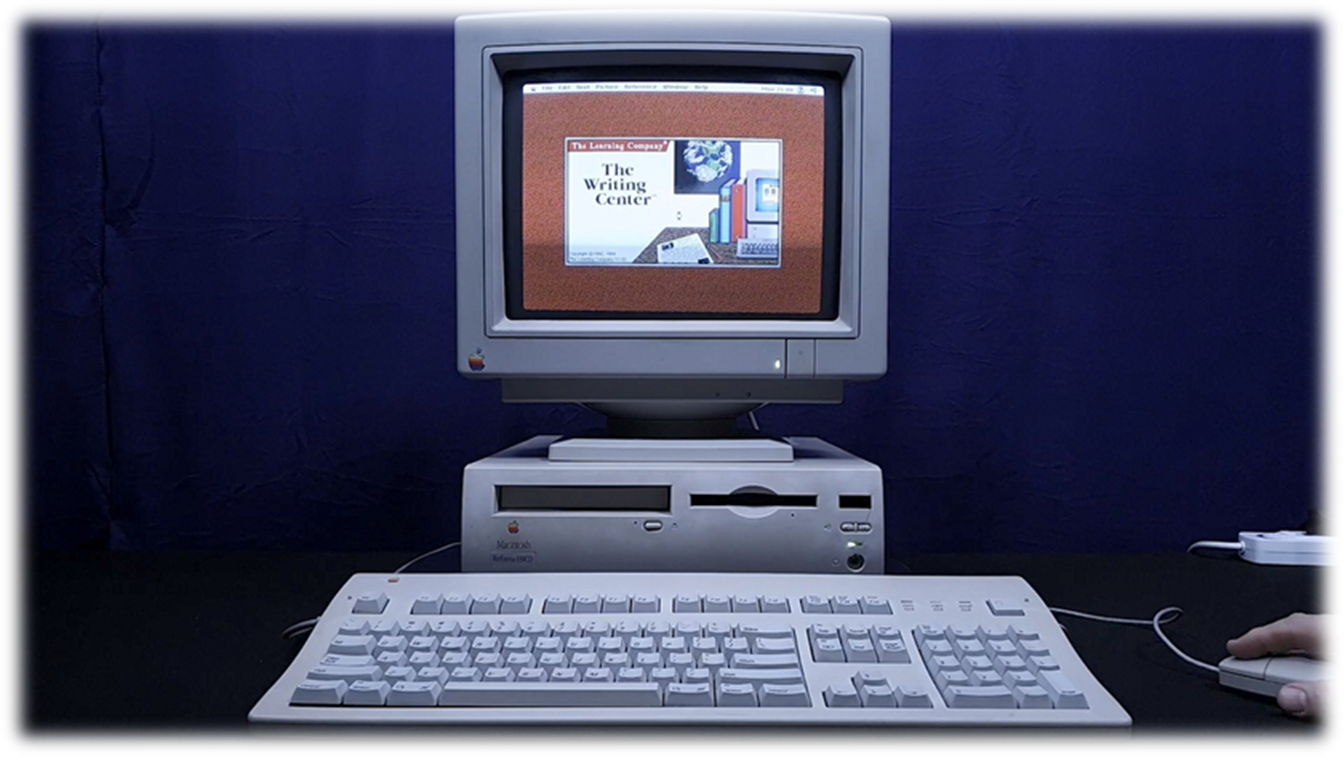

(011) Vintage Apple Macintosh Performa 630CD
[ 1994 ]



Specification:

CPU

Motorola LC 68040 @ 33 MHz

RAM

4 MB 72-pin SIMM + 1 MB VRAM, 1 MB (ROM)

STORAGE

250 MB IDE HDD

DRIVES

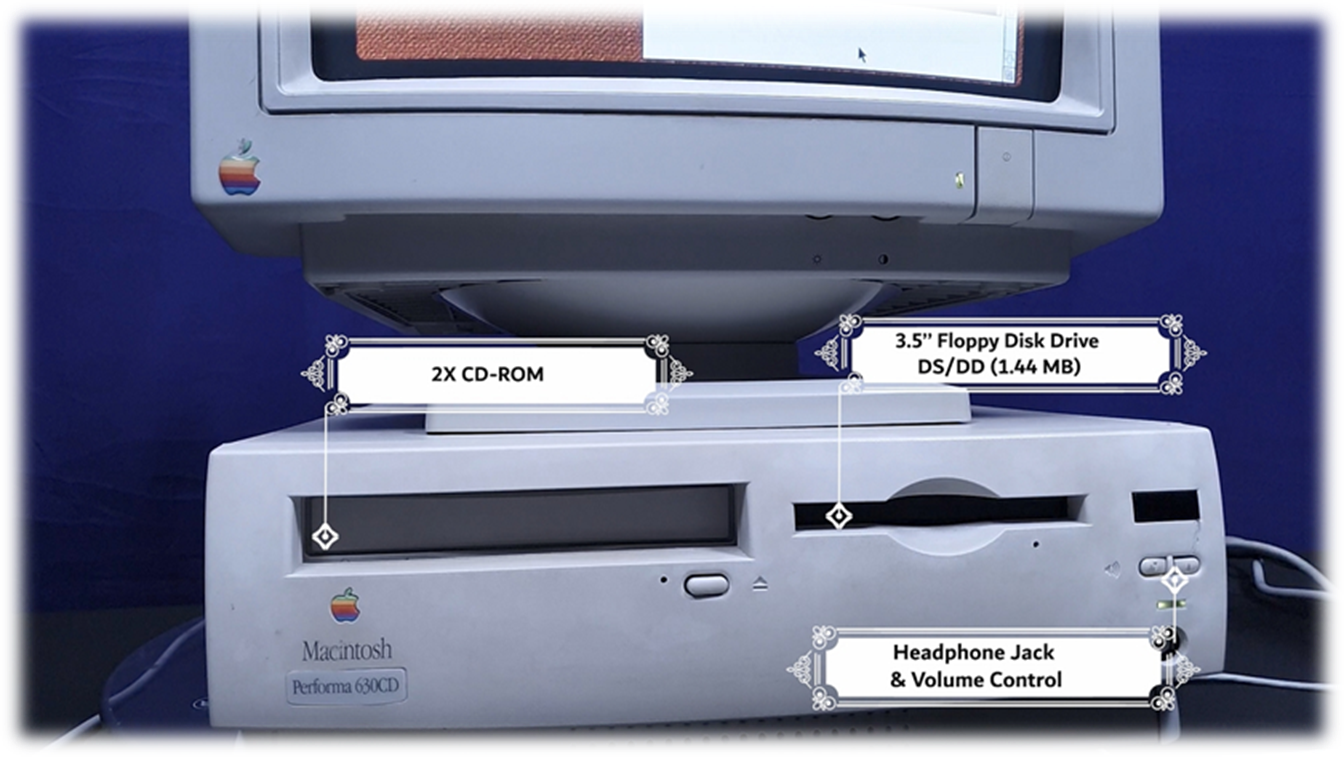

·       Built-in 3.5'' Floppy Disk Drive DS/DD (1.44 MB)

·       Built-in 2X CD-ROM

DISPLAY

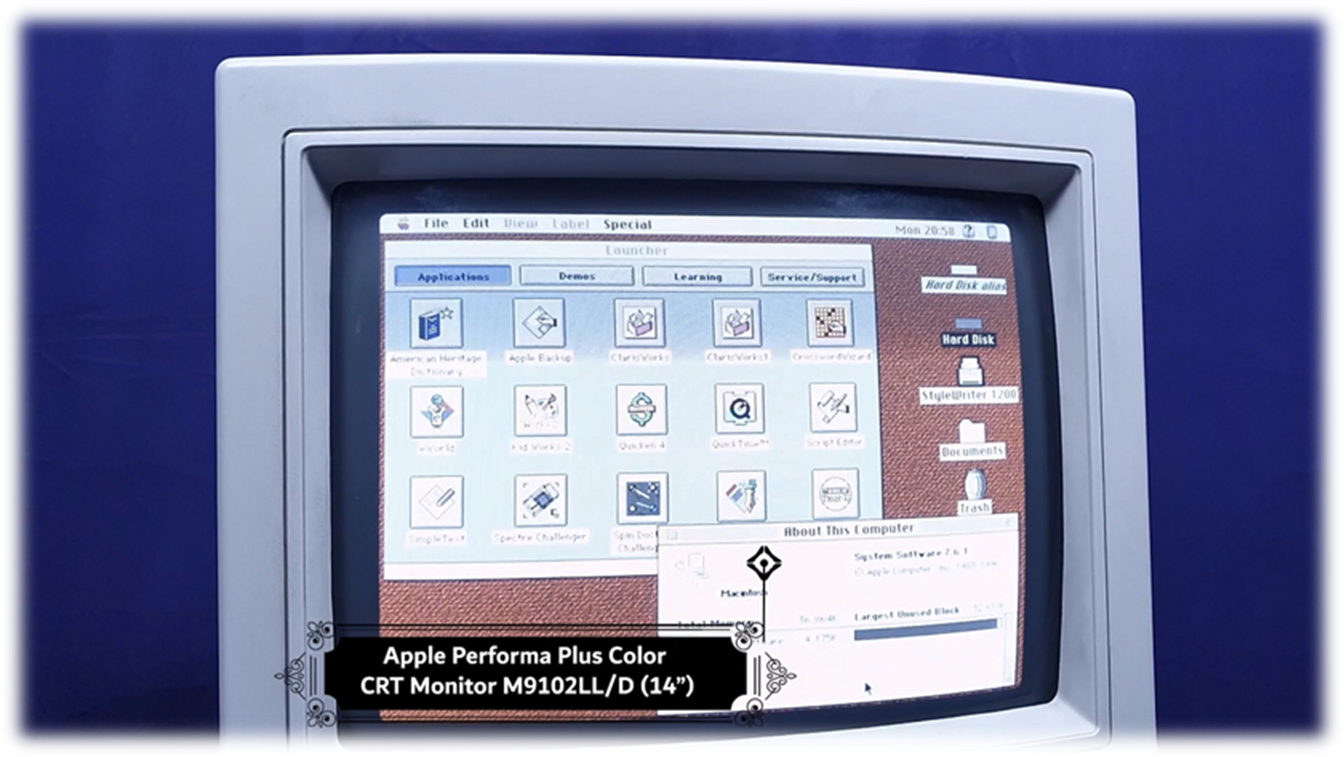

·       Apple Performa Plus Color CRT Monitor M9102LL/D (14")

·       GUI 640x480 pixel x 16-bit color , 800x600 pixel x 8-bit color

OS

macOS 7

KEYBOARD

Detachable Original Apple Extended Keyboard II M3501 and Mouse (108 keys with numeric keypad and arrow keys)

SOUND

Built-in 4 Stereo Channels

Network

AppleTalk Serial Modem Port

I/O PORTS

·       1 ADB mouse/keyboard port

·       mini-DIN-8 Printer port

·       Stereo 3.5 mm minijack audio IN+OUT sockets

·       DB-25 SCSI

·       DB-15 Video port

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

POWER SUPPLY

·       Computer: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

·       Monitor: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS
