(010) Vintage Apple Macintosh Classic Color
[ 1993 ]



Specification:

CPU

·       Motorola MC 68030 @ 16 MHz

·       Motorola FPU 68882 @ 16 MHz

RAM

10 MB + 512 KB VRAM, 1 MB (ROM)

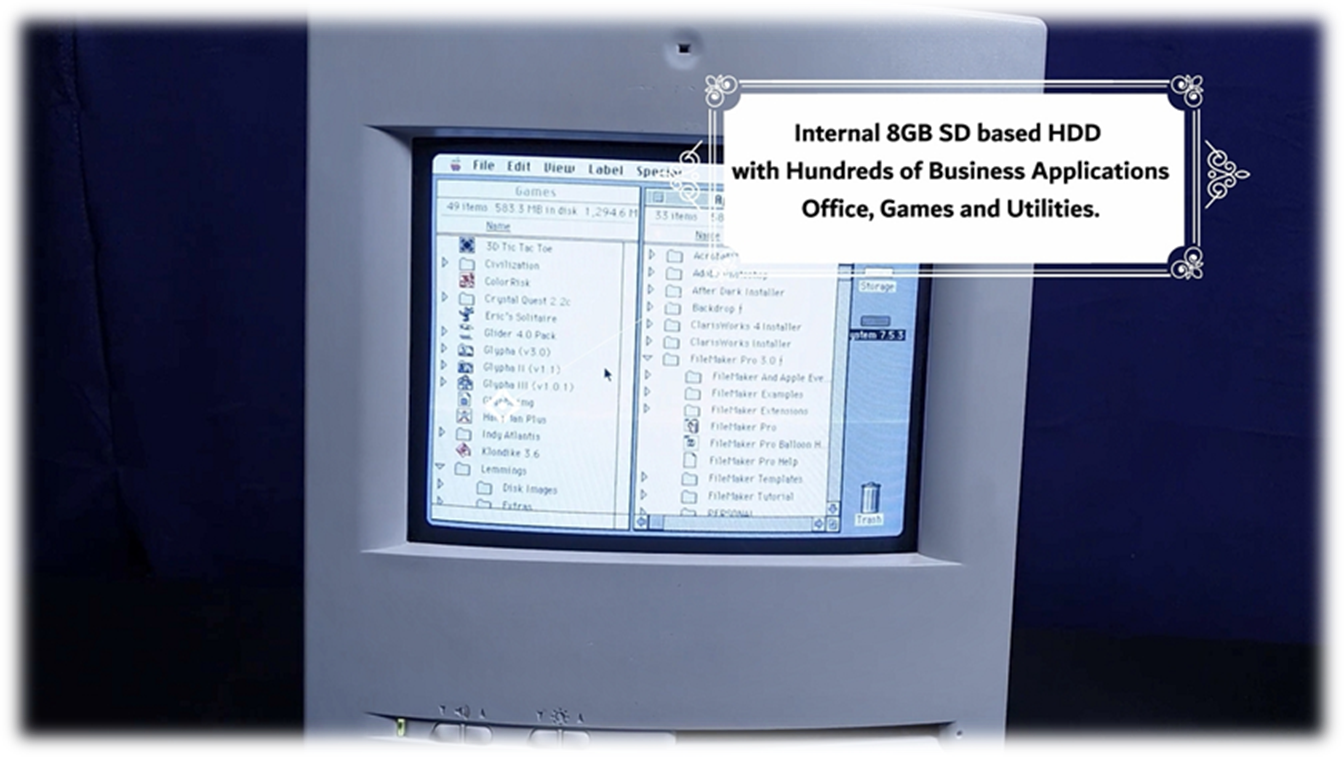

STORAGE

8 GB SD HDD

DRIVES

Built-in 3.5'' Floppy Disk Drive DS/DD (1.44 MB)

DISPLAY

·       10" Sony Trinitron RGB Display

·       GUI 512 x 342 pixels

OS

·       Partition (1): macOS 7.1

·       Partition (2): macOS 7.5.3

KEYBOARD

Detachable Original Apple Desktop Bus ADB Keyboard and Mouse (81 keys with numeric keypad and arrow keys)

SOUND

Built-in 4 Stereo Channels

Network

AppleTalk Serial Modem Port

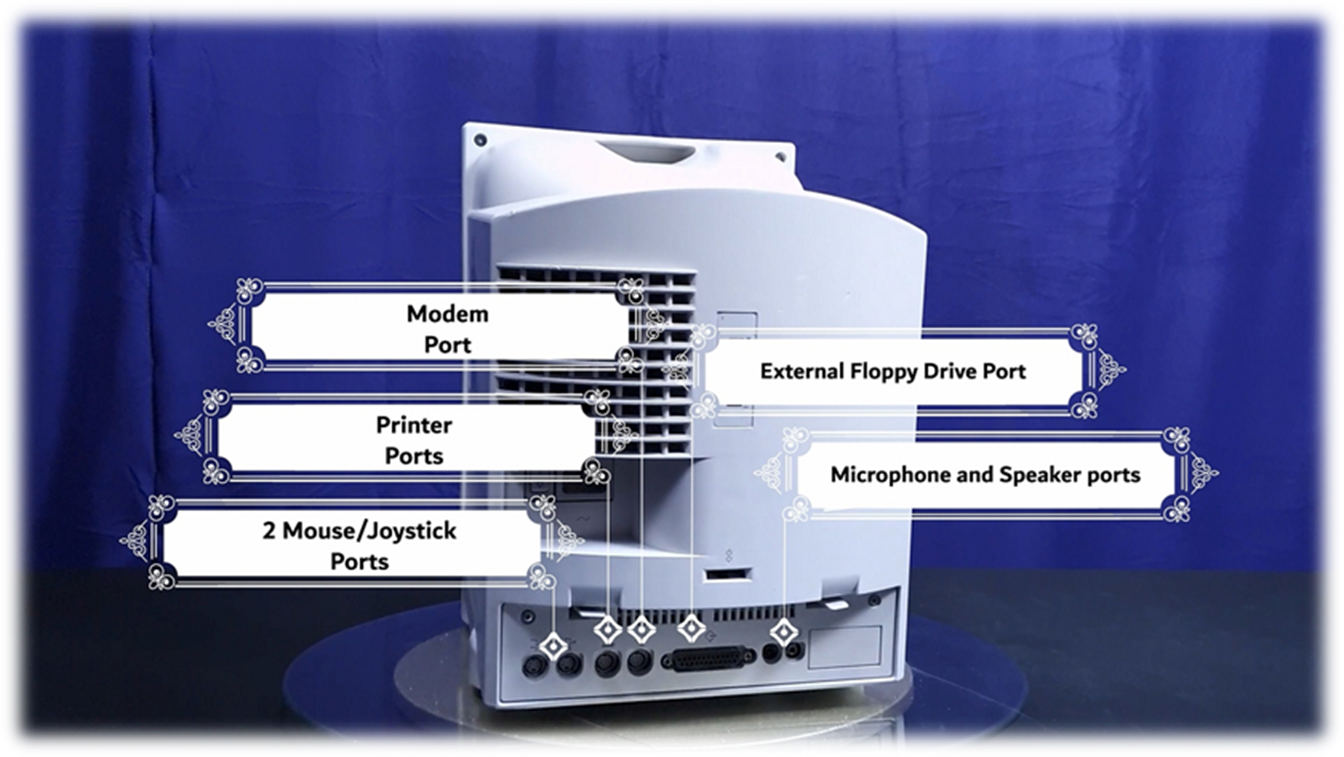

I/O PORTS

·       2 ADB mouse/keyboard port

·       mini-DIN-8 RS-422 serial port

·       Stereo 3.5 mm minijack audio sockets

·       DB-25 SCSI

·       DB-19 External floppy drive

EXPANSION PERIPHERALS

ACCESSORIES & DOCUMENTS

·       Macally ADB Compatible Mouse

POWER SUPPLY

·       Computer: 100-240V Auto-Switch (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS

·       Power ON: After turning ON the power button you need to press the keyboard play button (triangle) to start the system
