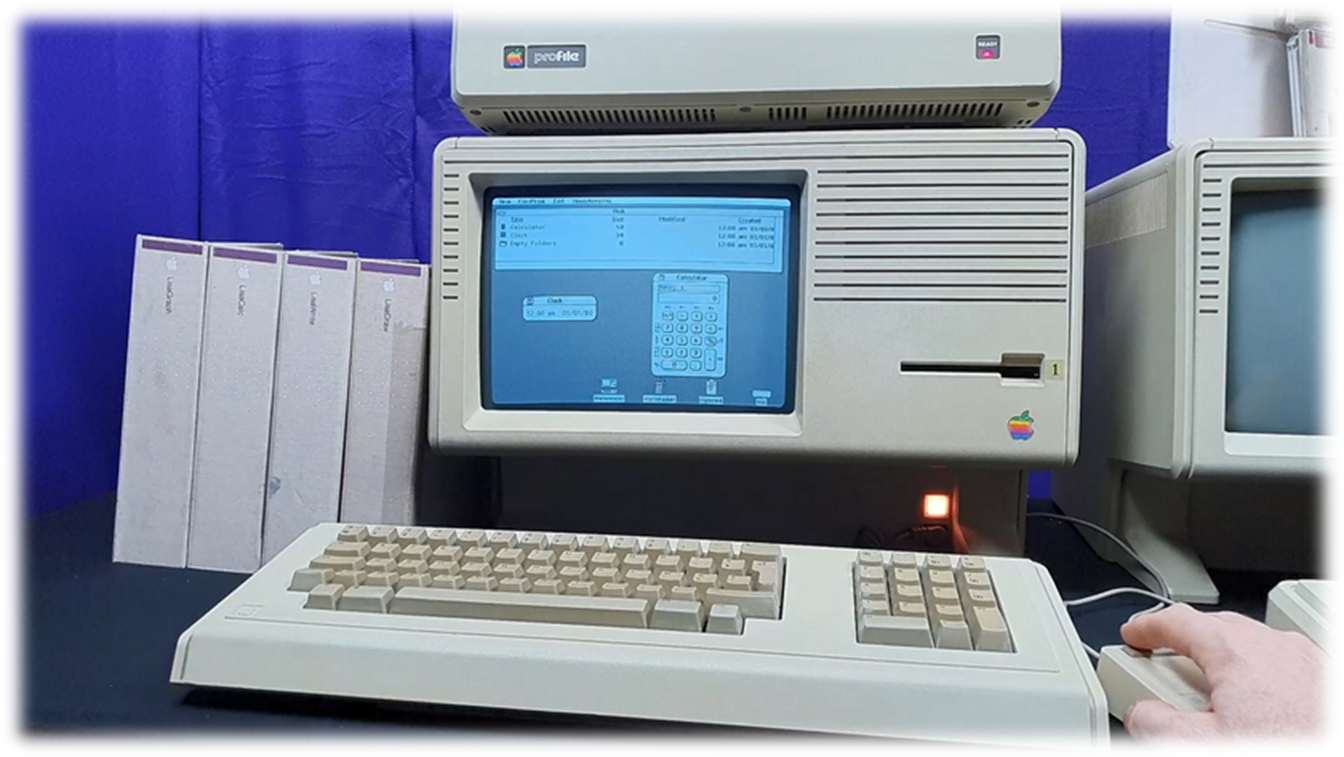

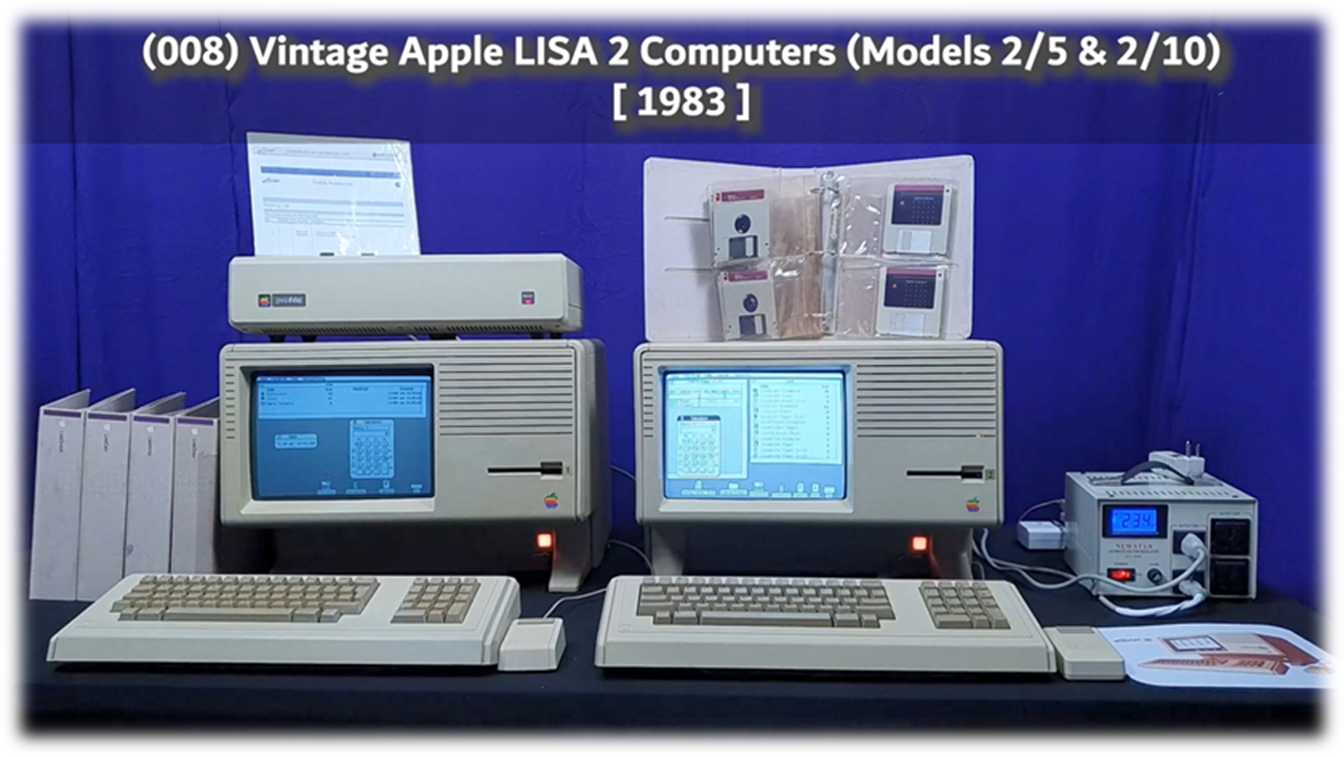

(008) Vintage Apple LISA 2 Computers (Models 2/5 & 2/10)
[ 1983 ]



Specification:

CPU

Motorola MC 68000 @ 5 MHz

RAM

1 MB, 16 KB (ROM)

STORAGE

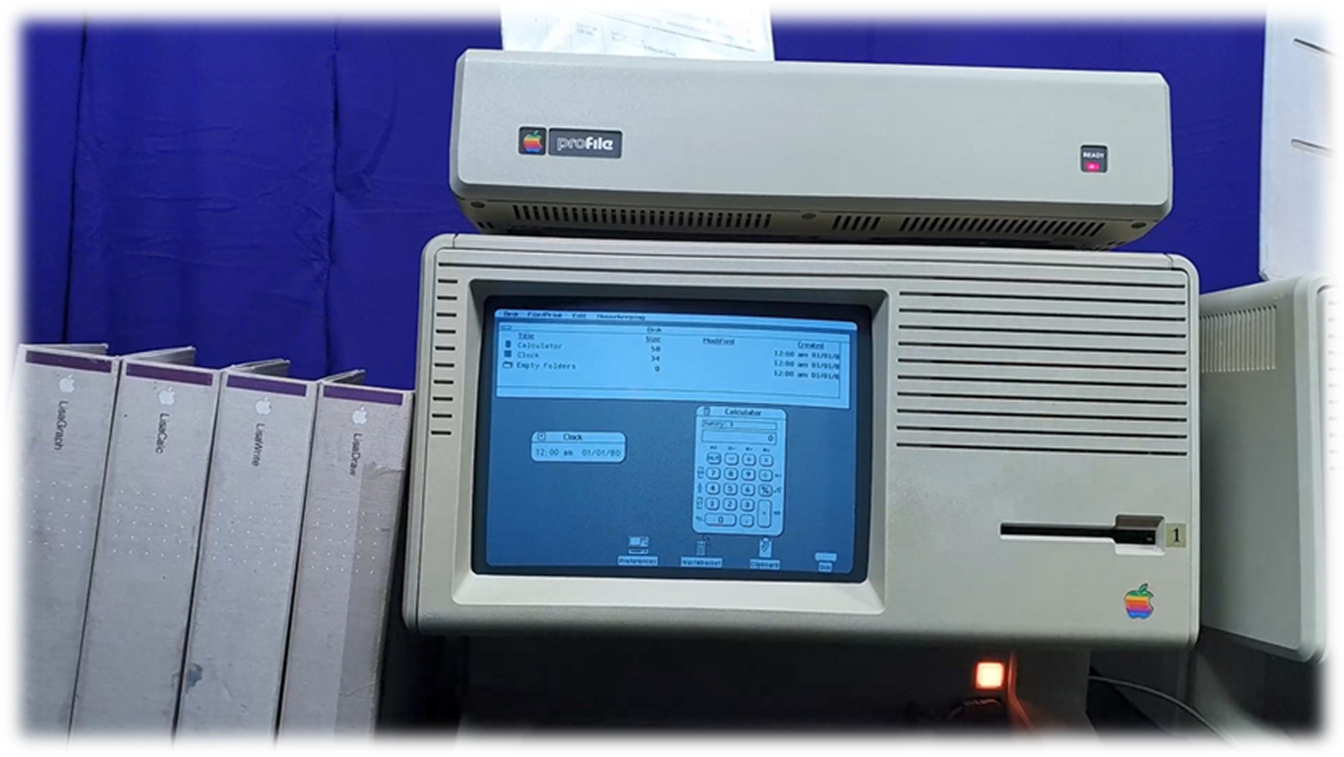

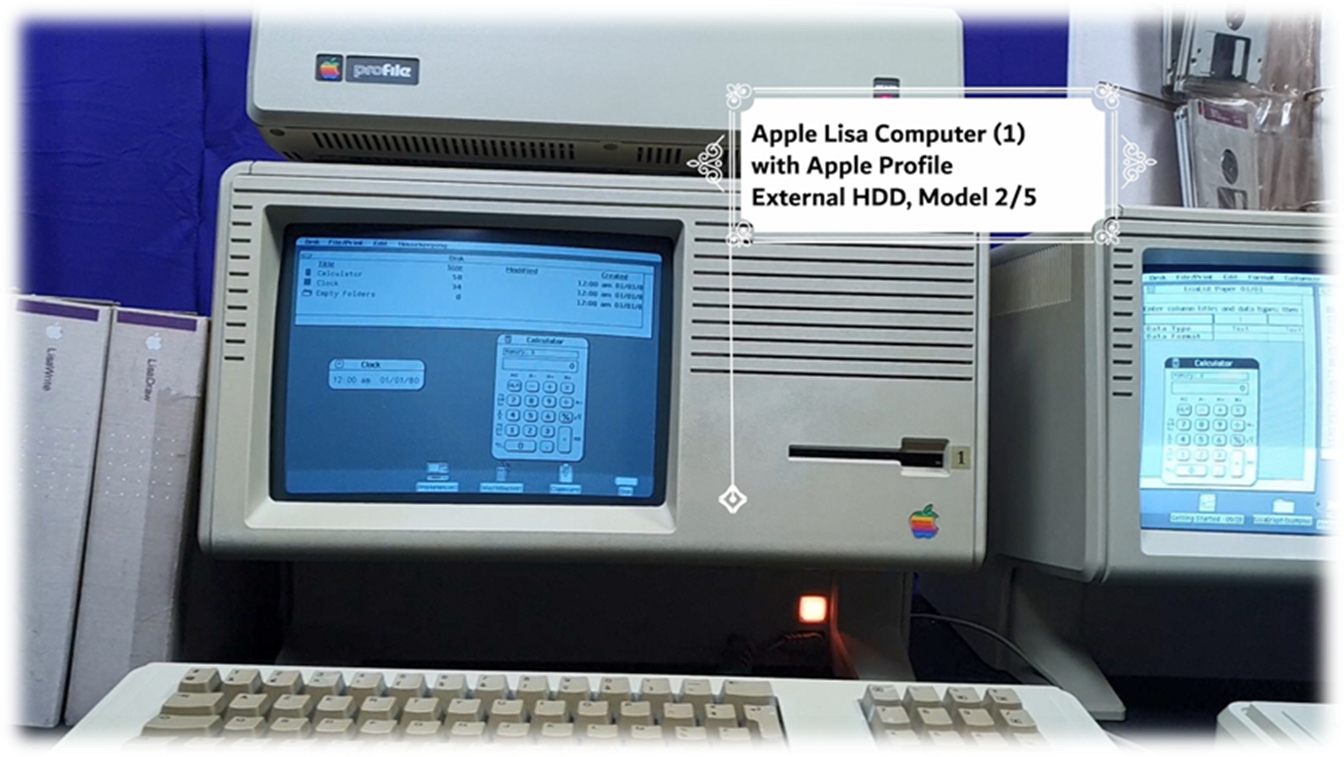

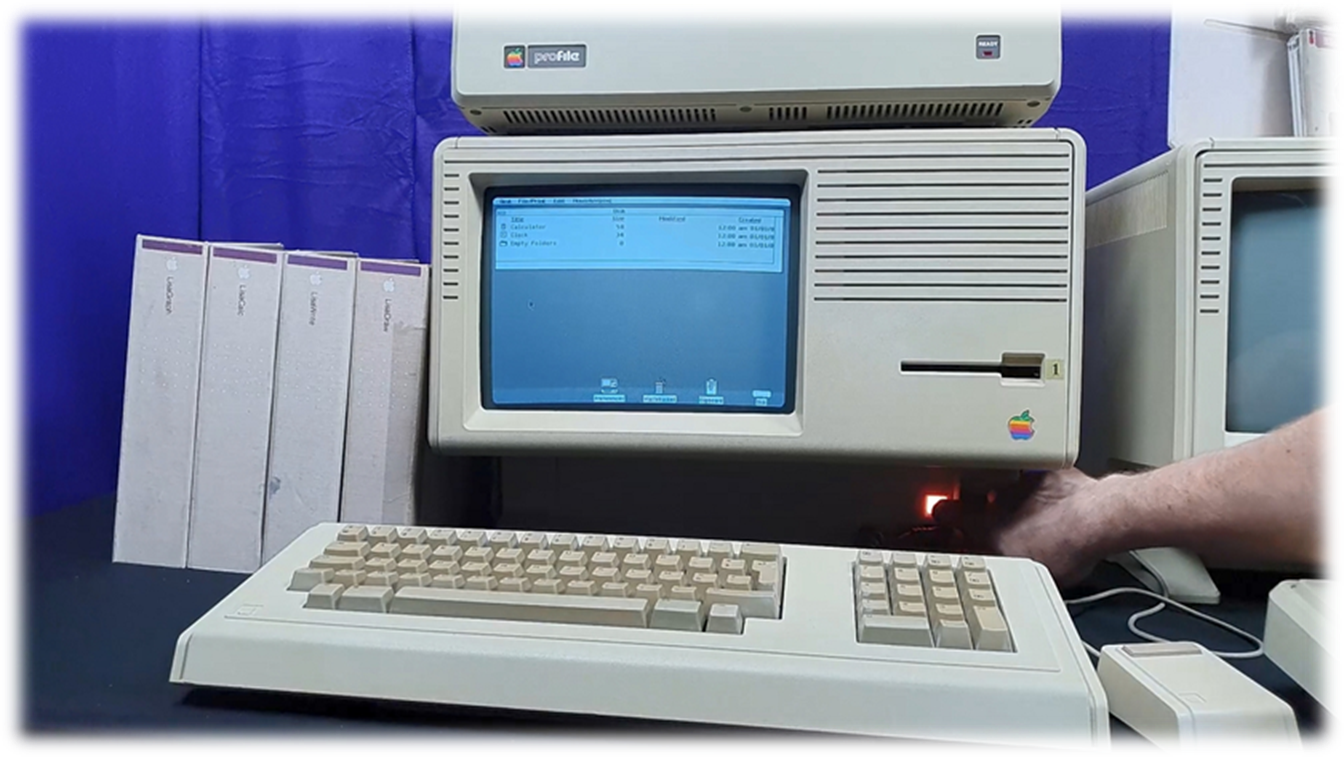

·       UNIT (1) Model 2/5: External Apple ProFile 10MB HDD A9M0005 (Seagate ST-506, 3600-rpm, 62 KB/S DTR)

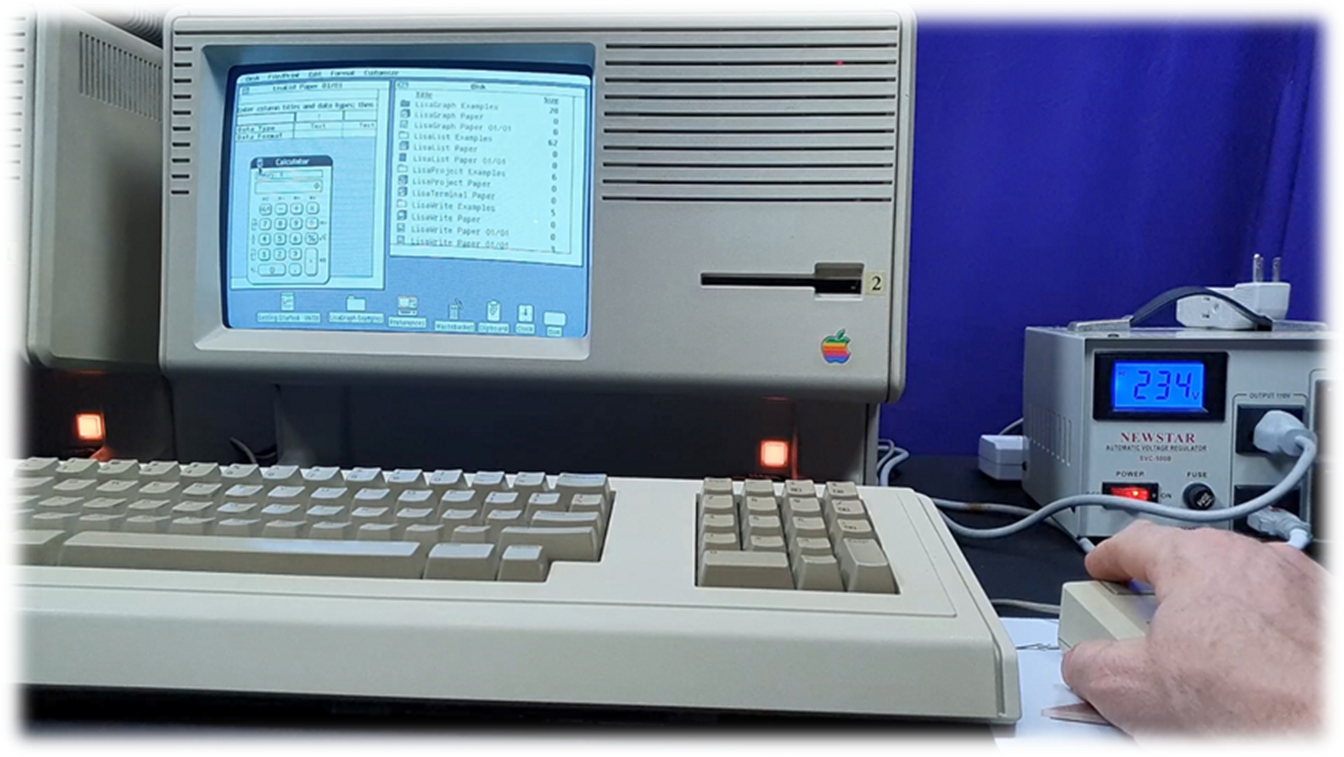

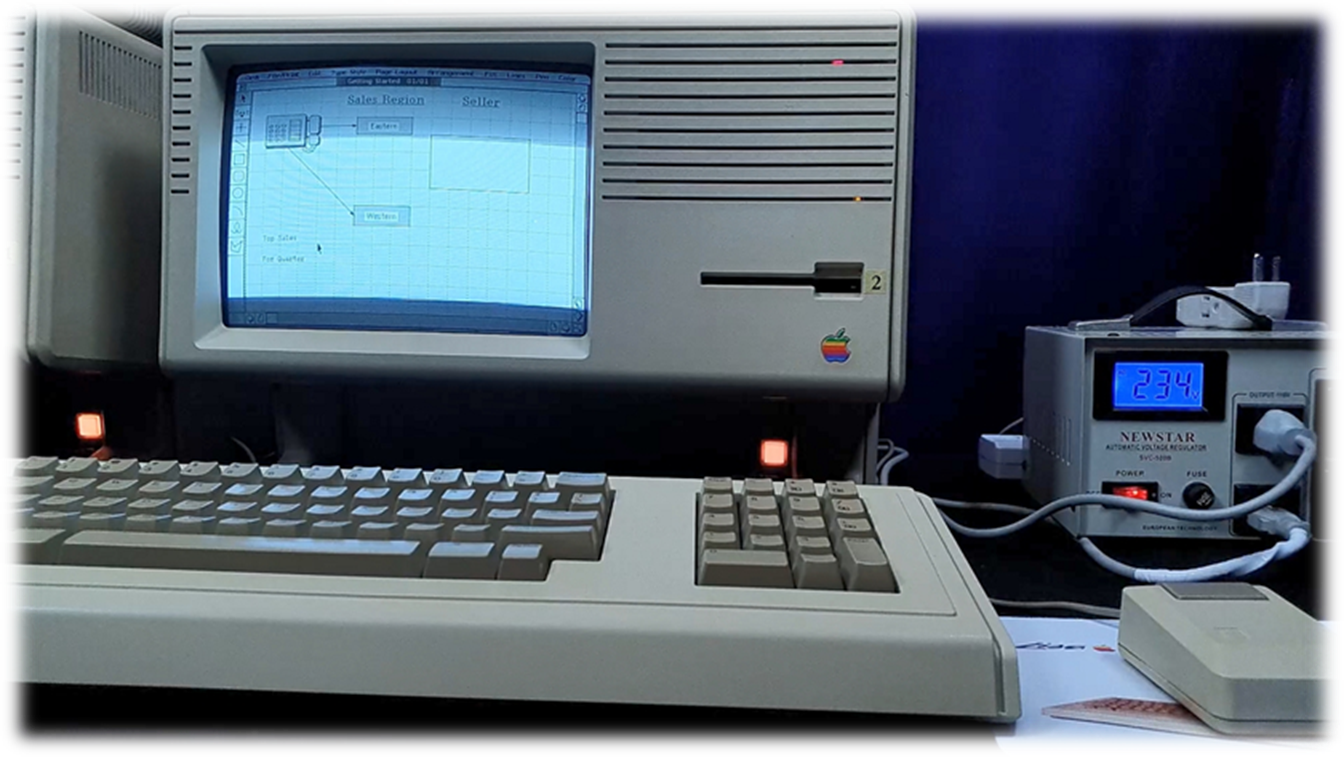

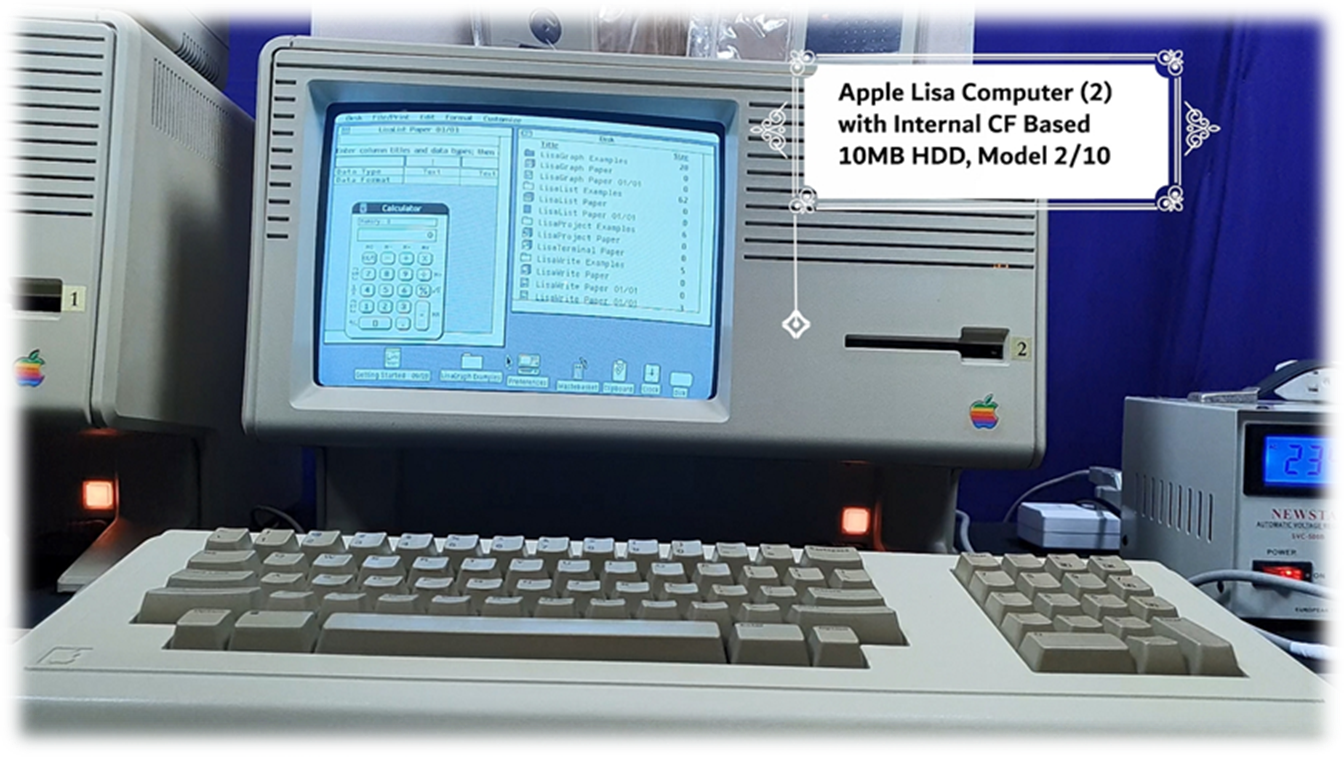

·       UNIT (2) Model 2/10: Internal 10 MB CF-based widget drive

DRIVES

Built-in 3.5'' Floppy Disk Drive SONY (400 KB)

DISPLAY

·       Built-in white phosphor CRT Monitor CLINTON ELCTRONICS CEULC99FAITE (12")

·       GUI 720 x 364 pixels

OS

·       UNIT (1): Floppy Boot: LISA OS (LOS) MAC Works XL

·       UNIT (2): Full LISA Office System (LOS 3.0)

KEYBOARD

Built-in full stroke 77-key with numeric keypad

SOUND

Built-in Continuously Variable Slope Demodulator (CVSD)

Network

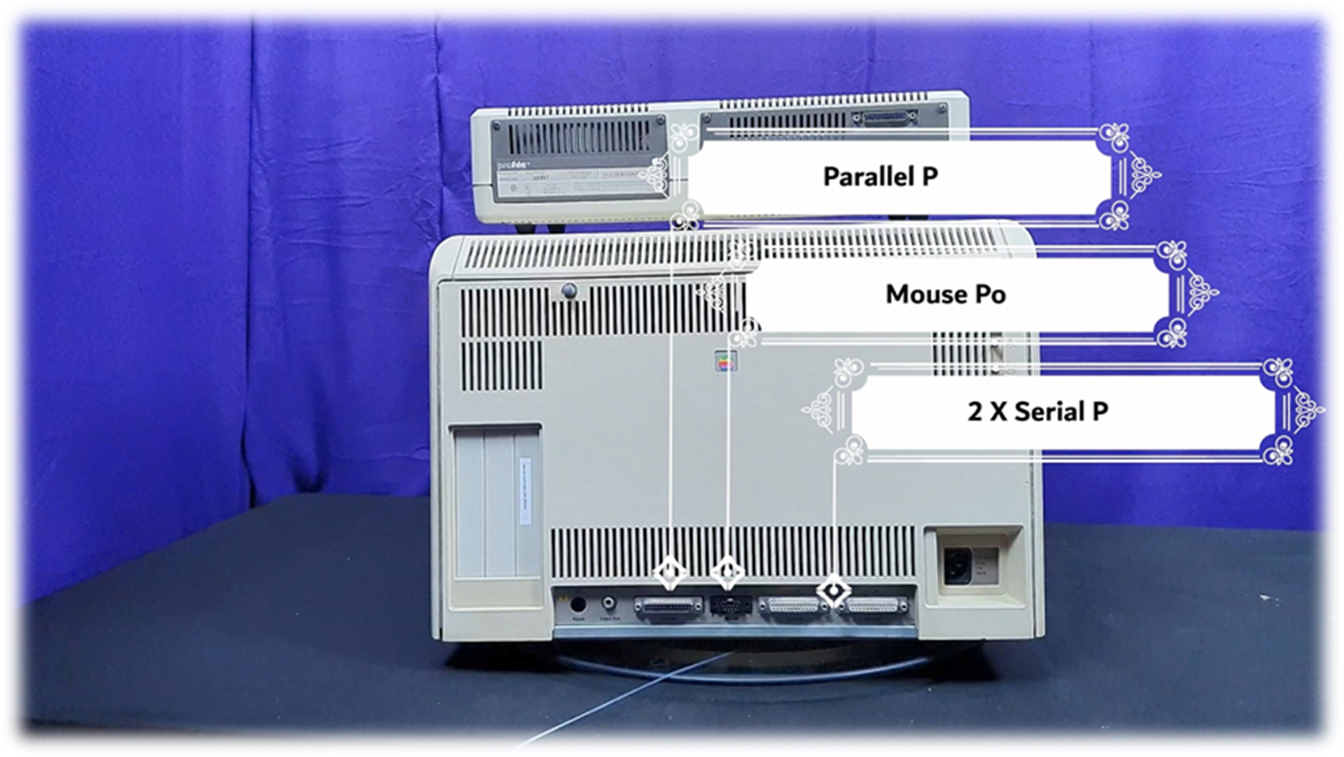

I/O PORTS

·       3 Proprietary Expansion Slots

·       Composite video

·       1 DB-9 mouse port

·       2 RS232 Serial Ports

·       DB-25 Parallel port (Printer, Apple Profile HDD)

EXPANSION PERIPHERALS

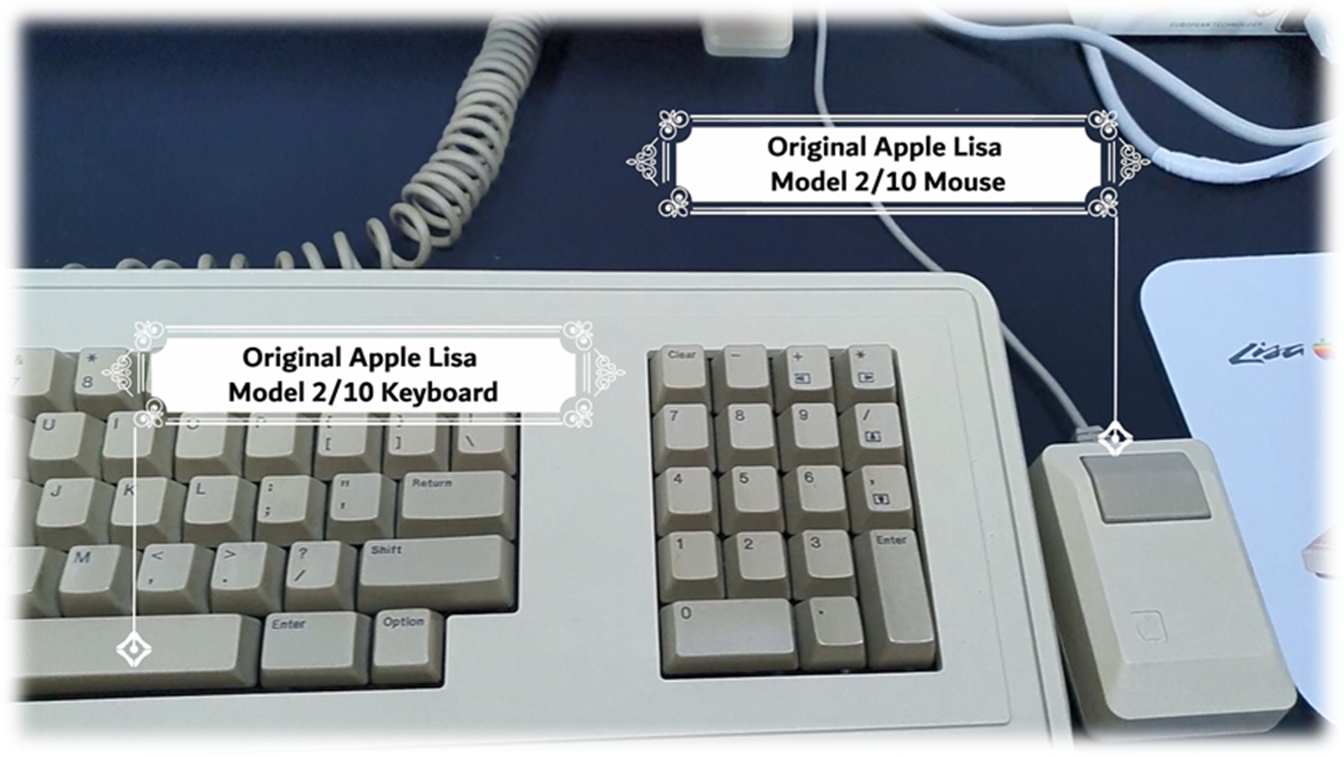

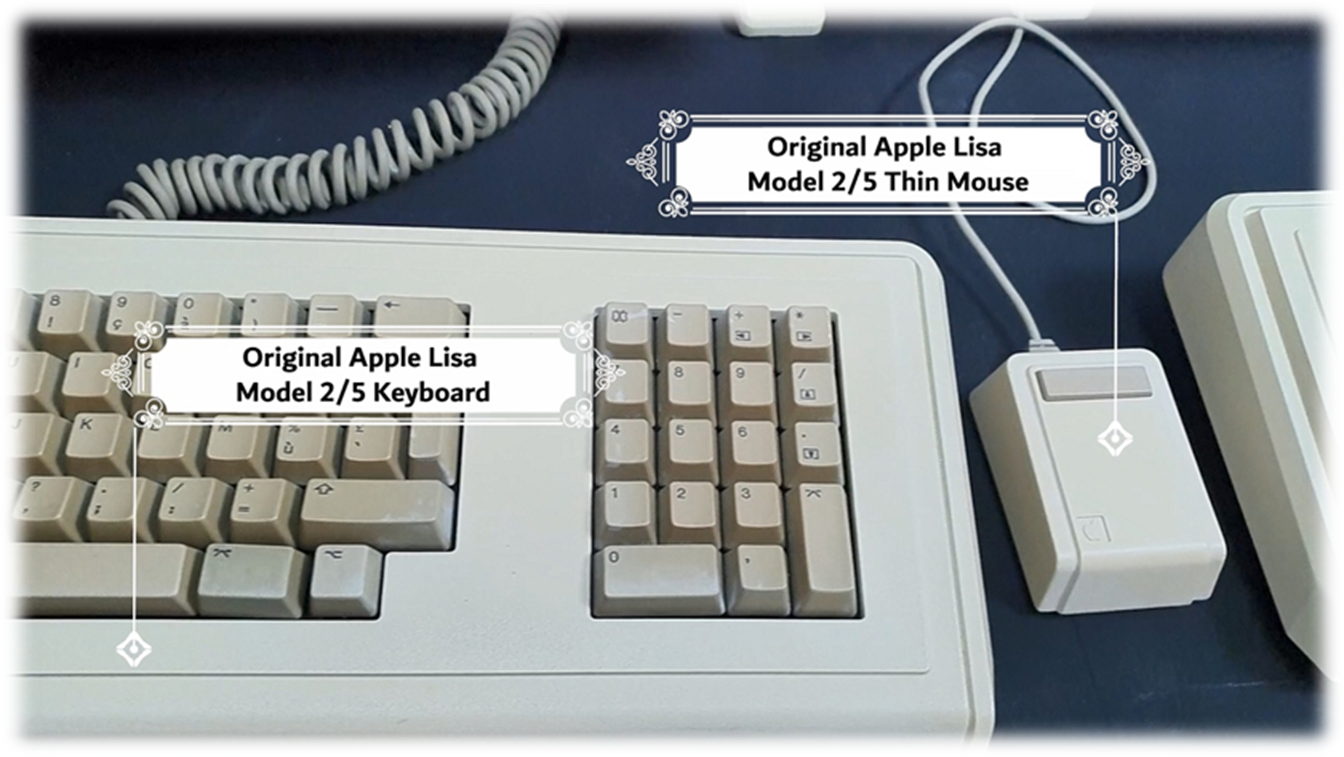

·       Original Apple LISA Mouse

ACCESSORIES & DOCUMENTS

·       Apple LOS Mac Works XL boot disks (2 disks)

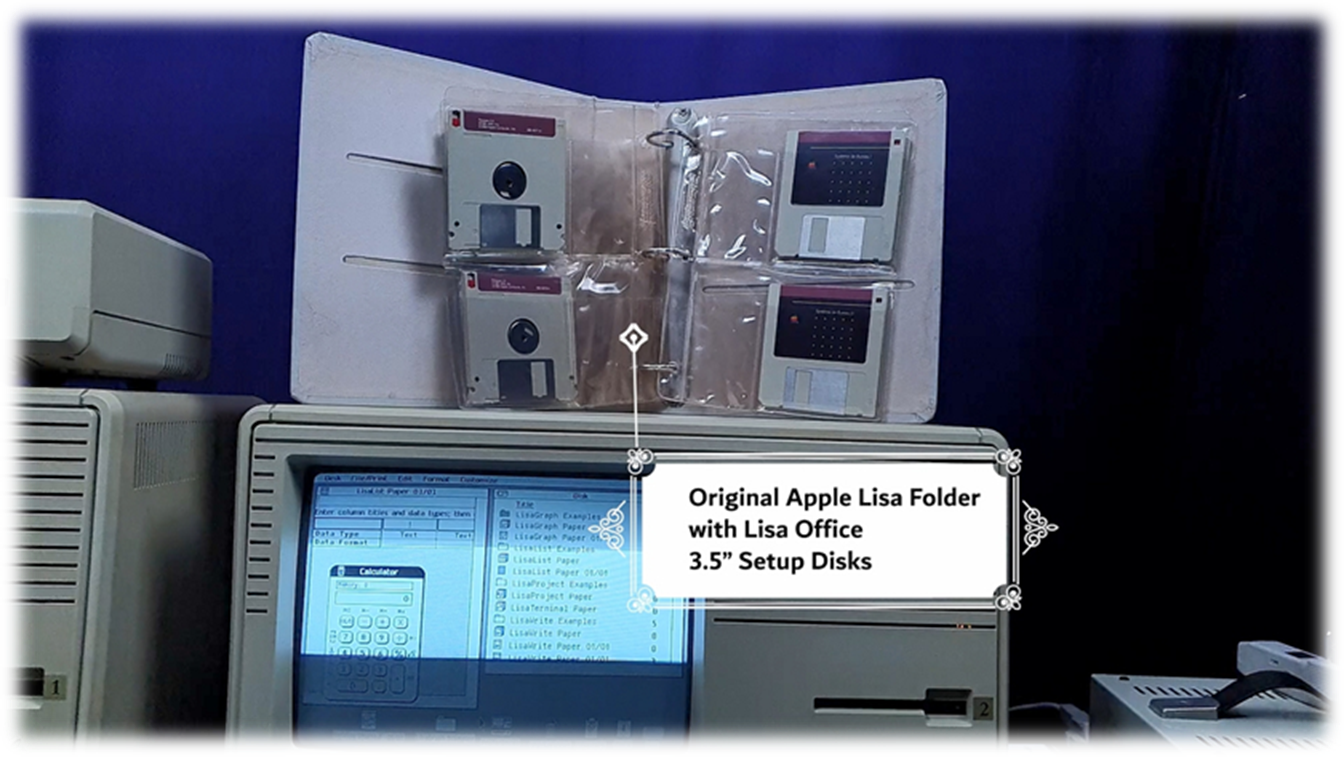

·       Original Apple LISA software 3.5’‘disks

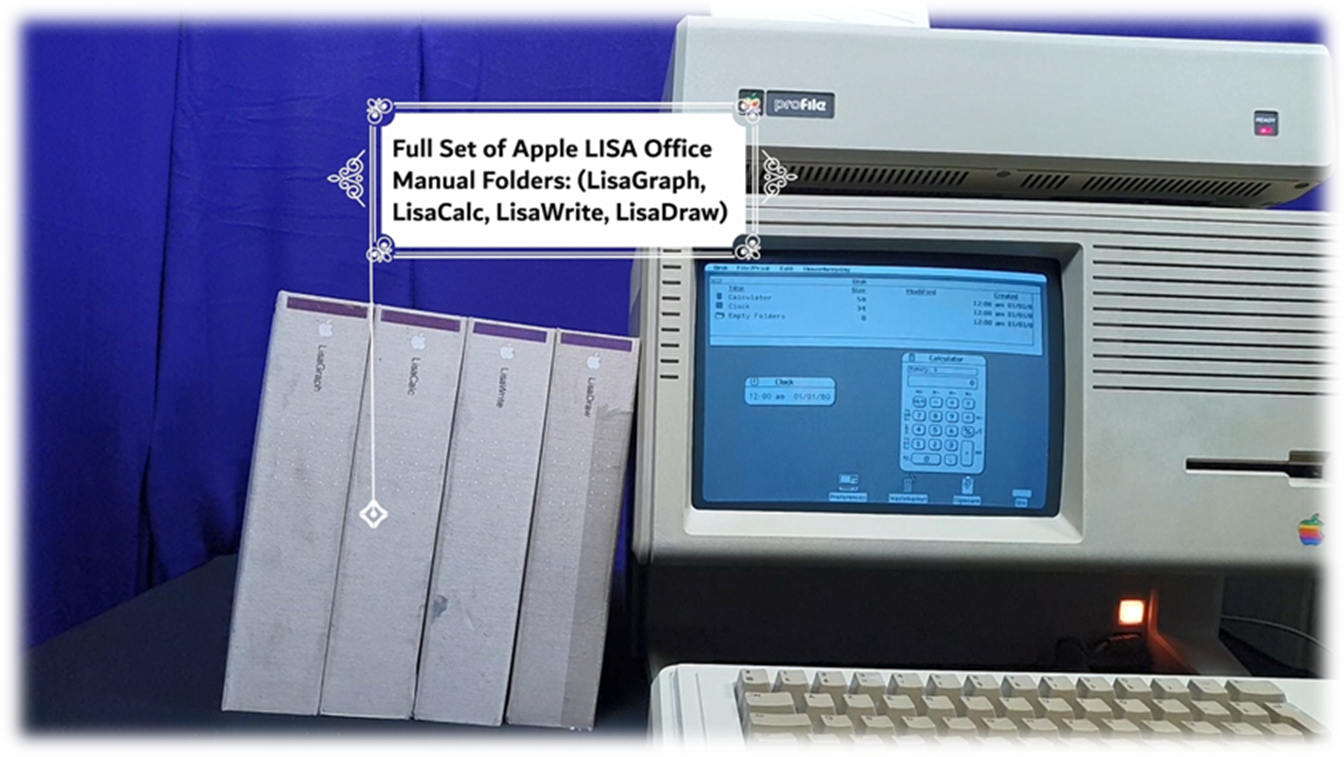

·       Full Set of Apple LISA Office Manual Folders: (LisaGraph, LisaCalc, LisaWrite, LisaDraw)

POWER SUPPLY

·       Computer (1) Model 2/5 with Profile: 240V Only (Internal PSU)
Plug Type: Type F, EUR, 2 Thick Round Pins
Computer Profile: 120V Only (Internal PSU)
Plug Type: TYPE A, USA, 2 Thin Flat Pins

·       Computer (2) Model 2/10 with Internal HDD: 120V Only (Internal PSU)
Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins

SPECIAL INSTRUCTIONS

·       MacWorks XL: Boot from system disk 1 then insert disk 2 once 1st ejected

·       LISA Office System (LOS 3.1) boot: Power on external Profile, wait for disk checkup and readiness (steady full red light) then power on computer
