(004)

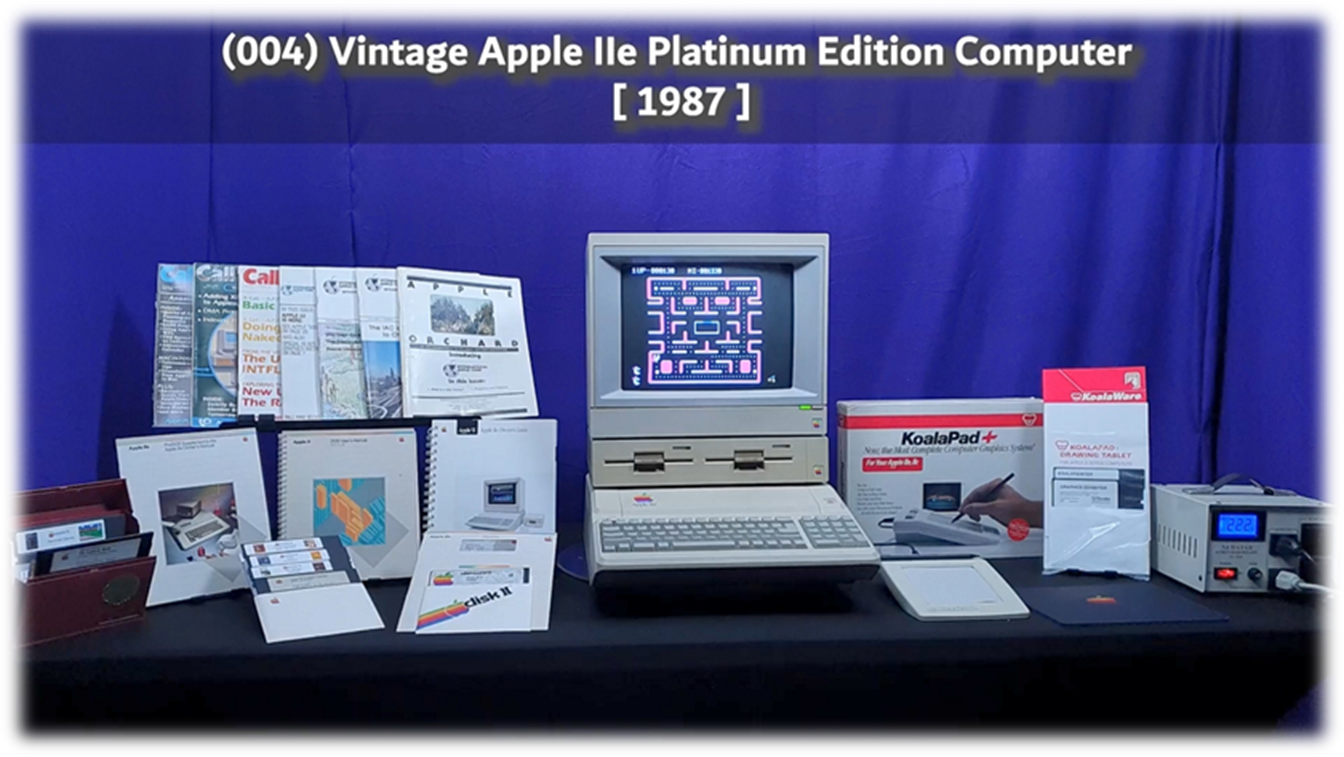

Vintage Apple IIe Platinum Edition Computer
[ 1987
]
|
Specification: |
|
|
CPU |
· MOS Technology 65C02 @ 1 MHz · MMU and IOU co-processor |
|
RAM |
128 KB , 32 KB (ROM) |
|
STORAGE |

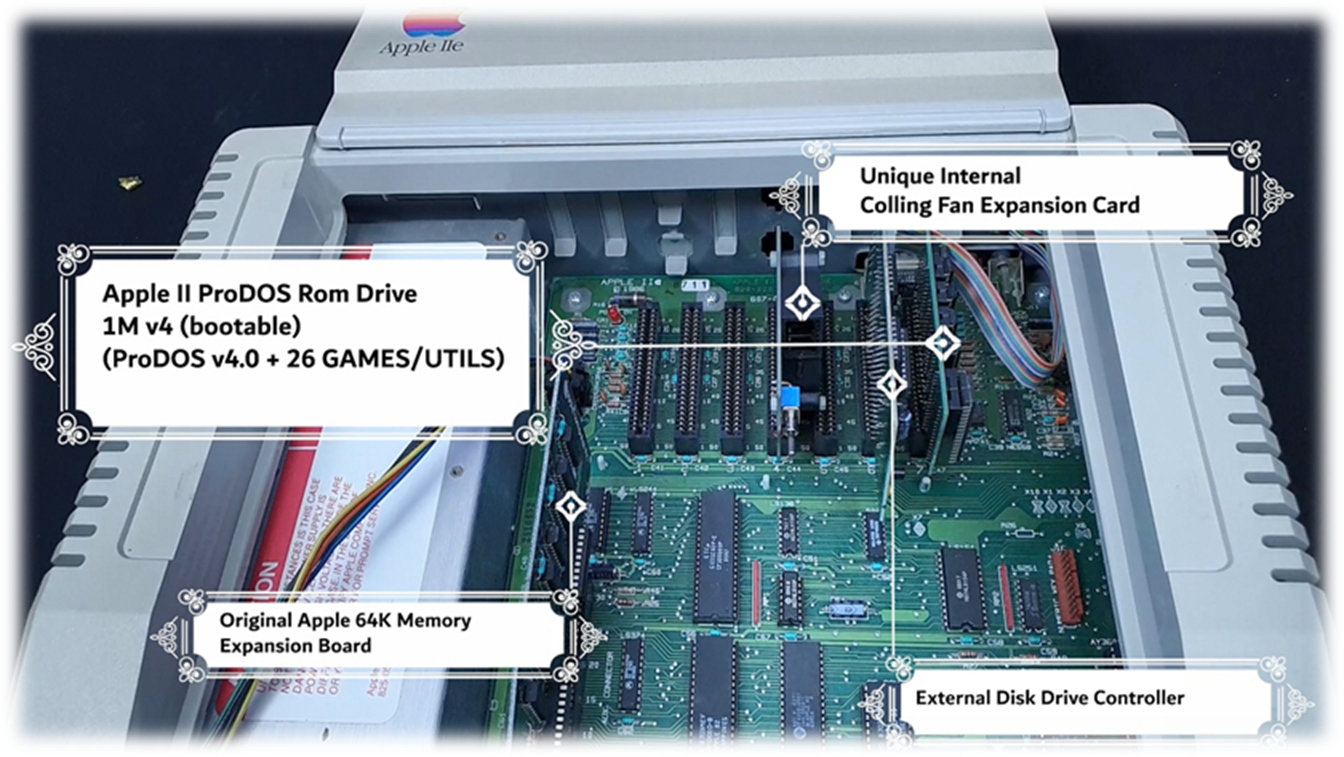

Apple II ProDOS Rom Drive 1M v4 (bootable) (ProDOS v4.0 + 26 GAMES/UTILS) |
|
DRIVES |
Original Apple DuoDisk 5.25" External Drive A&B (A9M0108) |
|
DISPLAY |
· Original AppleColor CRT Composite A2M6021 (13” 1988) · Graphics: 280 x 192 pixels x 16 color · Text: 40-80 x 24 characters |
|
OS |
· Built-in: Apple Integer BASIC · Apple II ROM card boot: ProDOS v4.0 · Floppy Boot: Apple ProDOS |
|
KEYBOARD |
Original Built-in Apple IIe keyboard (81 keys with extended numeric keypad and arrow keys) |
|
SOUND |
· Built-in Tone Generator Speaker 1 channel |
|
Network |
|
|
I/O PORTS |
· 6 50-pin expansion slots · Composite video, Tape in/out, Joystick/Pedals port · Apple II external floppy disk connecter |
|
EXPANSION PERIPHERALS |
· Apple II Fan card (ON/OFF switch) · Original Apple RAM Upgrade and 80 column expansion card |
|
ACCESSORIES & DOCUMENTS |
· Koala Plus Graphics Pad with Drawing Pen (New) · Original Apple II – Apple IIe Owner’s Guide · Original Apple II – Apple IIe DOS User’s Manual · Large Set of Original Apple II Bootable Disk and Games · Unique Vintage Apple Magazines: · APPLE ORCHARD: Volume One/Number One, Volume 2 Number 1, Volume 2 Number 2 · Call A.P.P.L.E: 3 Issues 1983, 1984, 1985 |
|
POWER SUPPLY |
·
Computer:
120V Only (Internal PSU same cable) ·
Monitor:
120V Only (Internal PSU same cable) · Power Transformer: 500VA Power Transformer included (120V <---> 240V) |
|
SPECIAL INSTRUCTIONS |
· CTRL+RESET keys: after ROM boot to floppy boot · CATALOG command: list content of disk1 (add , D2 for disk 2) · RUN filename command: execute filename from disk 1 |
