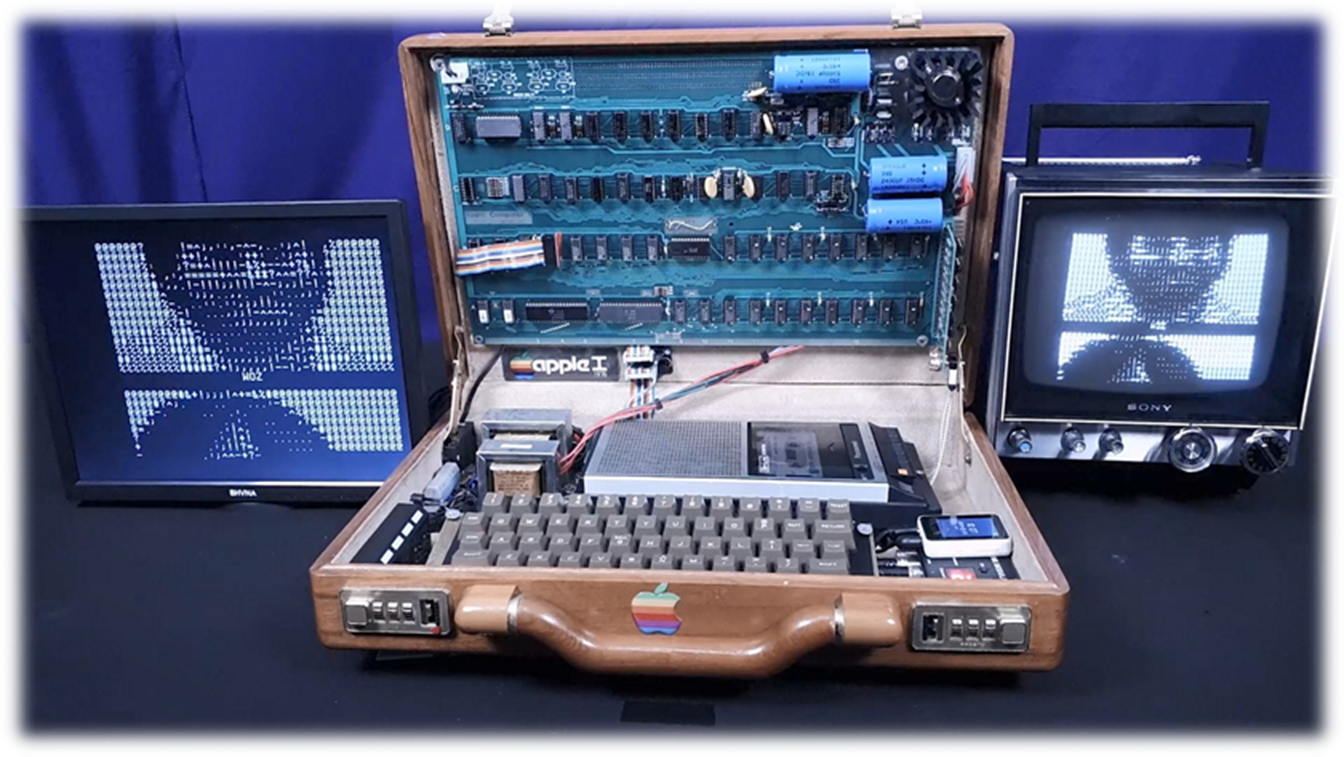

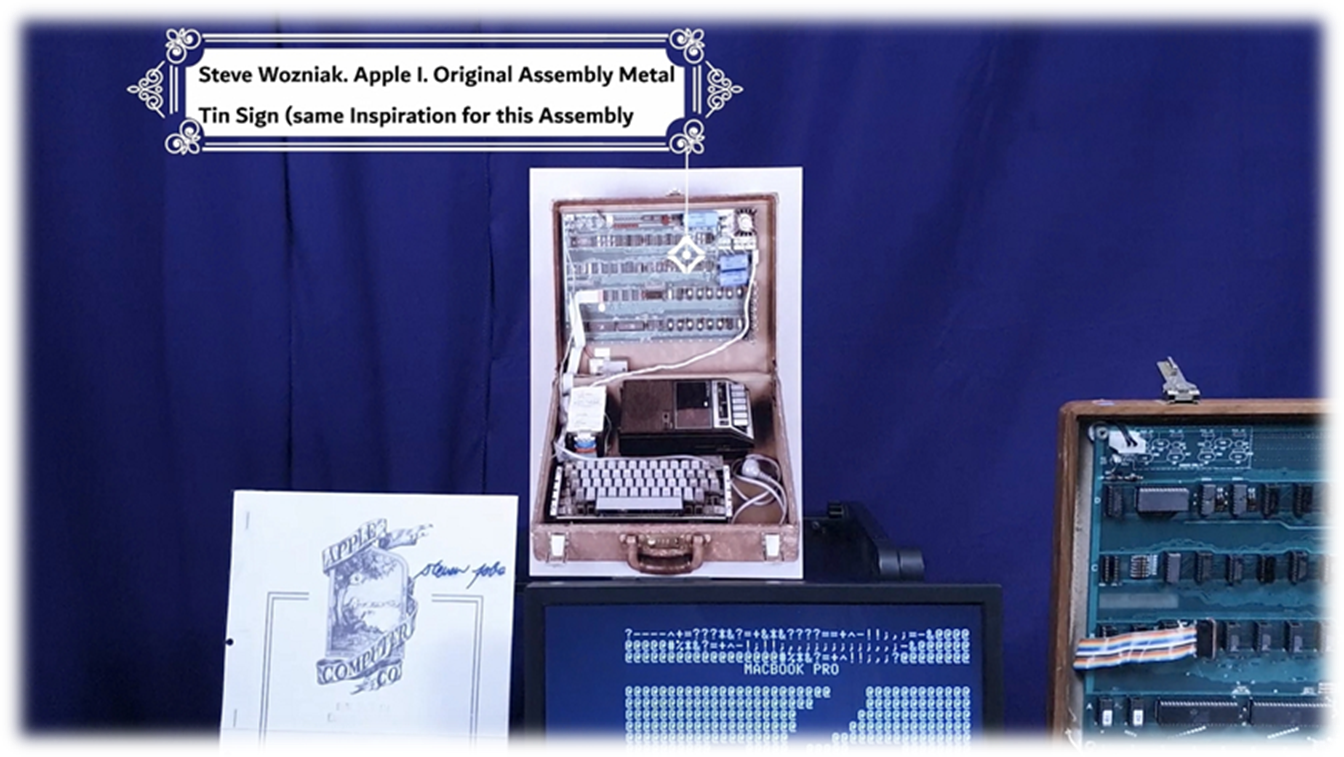

Vintage Apple I (Briefcase Assembly)
[ 1976
]
|
Specification: |
|
|

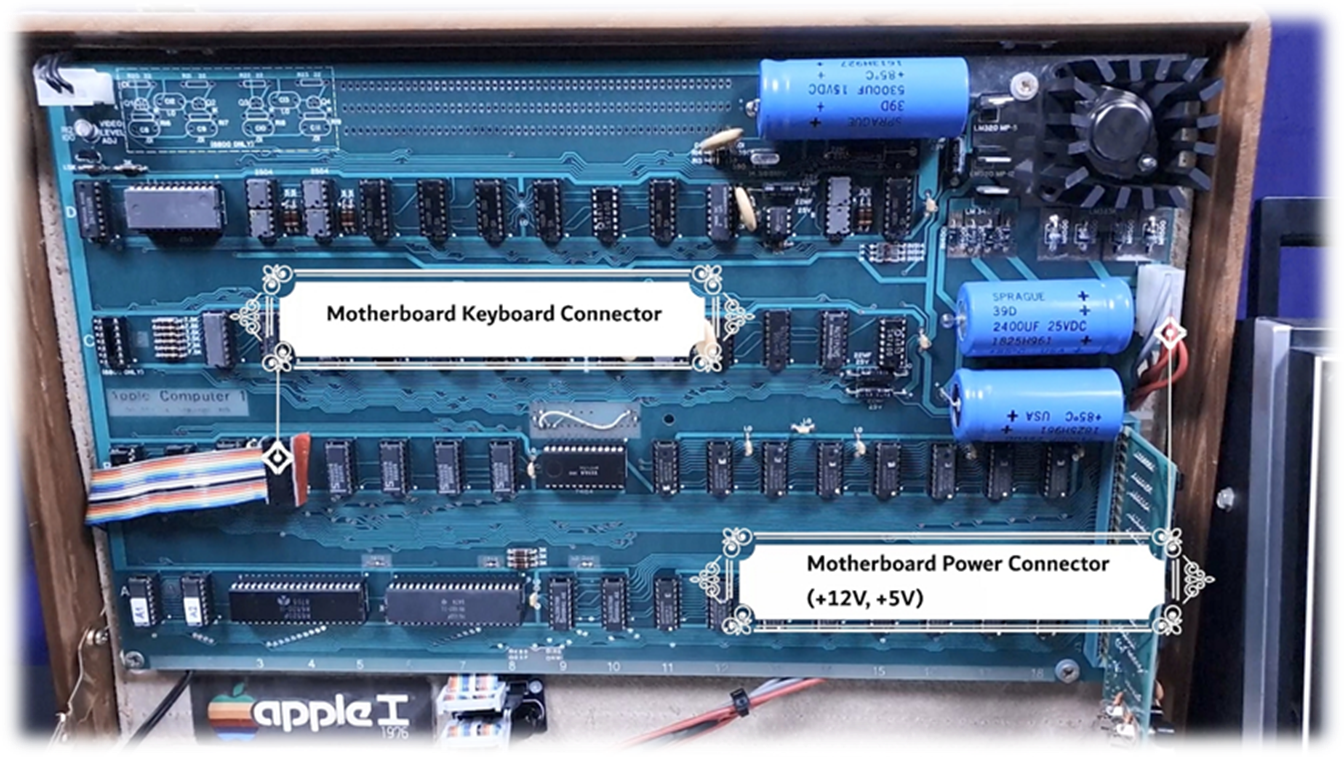

CPU |
MOS Technology 6502 @ 1 MHz |
|
RAM |
4 KB, 256 Bytes (ROM) |
|
STORAGE |
|
|
DRIVES |
456 KB (cassette tape) WAV format |
|
DISPLAY |

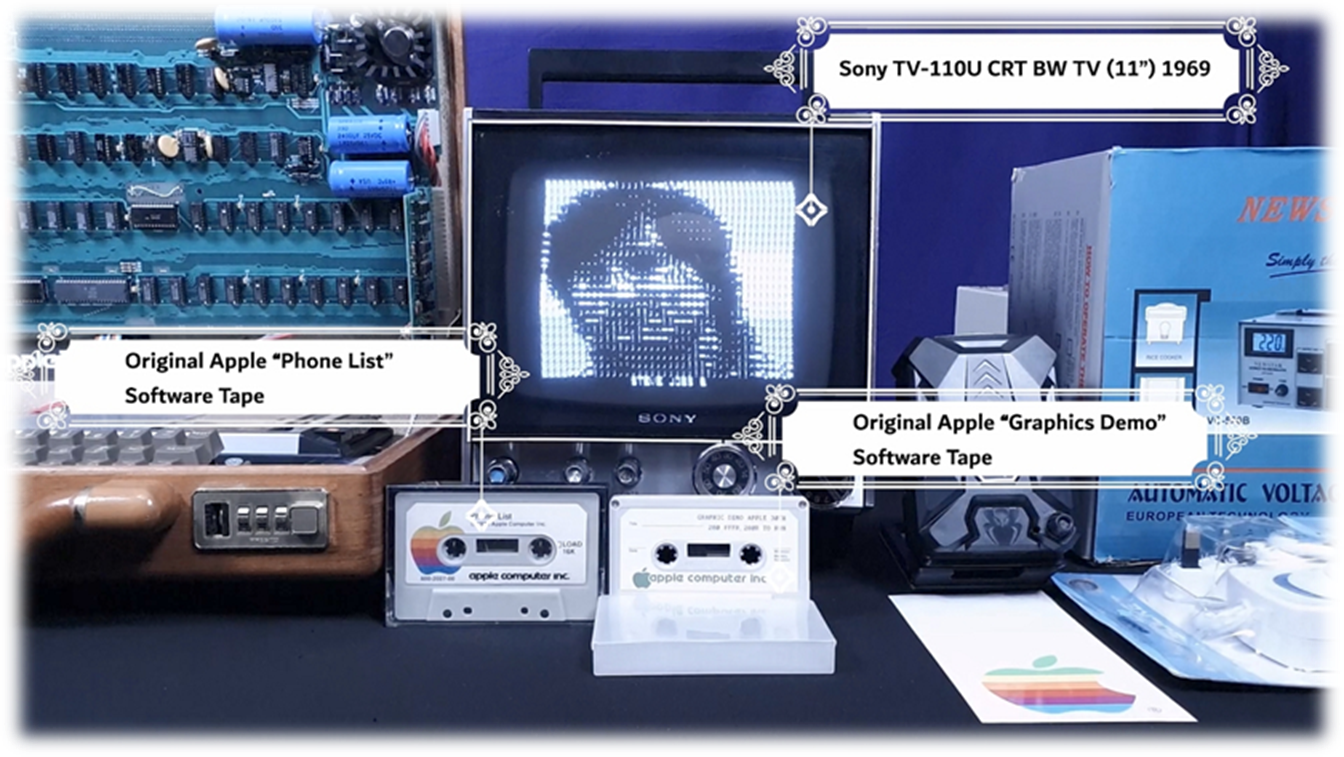

· Sony TV-110U Solid State Transistor CRT BW TV (11” 1969) · BHVNA LCD AV Color Monitor (14”) · Text: 40×24 characters |
|
OS |
Apple 1 Basic interpreter (No floating point) |
|
KEYBOARD |
Original Apple II+ keyboard (52 keys) |
|
I/O PORTS |
Cassette Interface Card (input/output) |
|
EXPANSION PERIPHERALS |

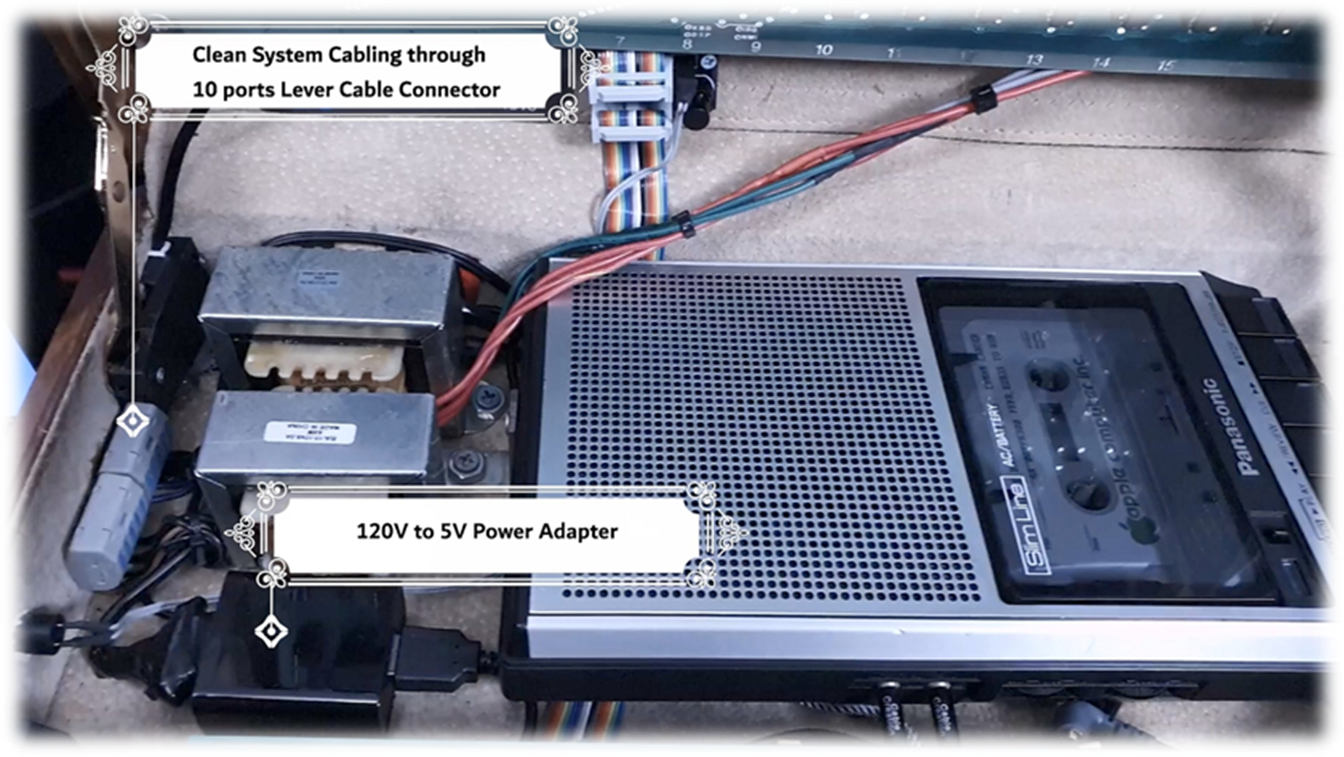

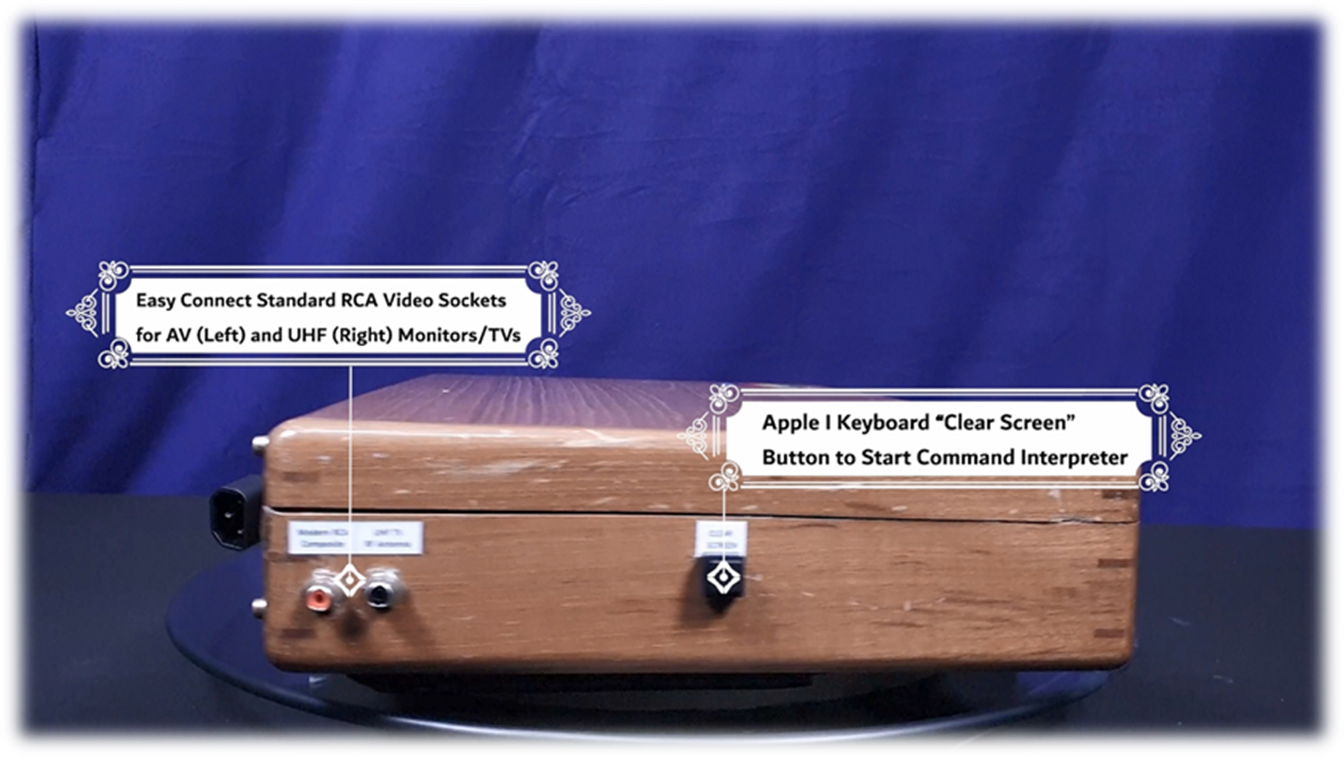

· Panasonic Cassette Tape Recorder Player RQ-2739 · AV to UHF Modulator TM70 · 2 display ports support (AV, RF Antenna TV) · 2 Sockets power strip · Integrated 4 ports 5V USB power source · External detachable motherboard fan |
|
ACCESSORIES & DOCUMENTS |
· Apple I Operations manual with schematic diagram · Original Apple I Programmer’s Aid manual · Apple Pierre Cardin Pen souvenir |
|
POWER SUPPLY |
· Computer: 1 detachable power cable 120V only, integrated 2 power sockets 120V, Plug Type: TYPE B, USA, 2 Thin Flat + 1 Thick Round Pins · Sony TV-110U Monitor 1: 120V only, Plug Type: TYPE A, USA, 2 Thin Flat Pins · BHVNA LCD Monitor 2: 100-240V auto-switch, Plug Type: TYPE F, UK, 2 Thick Round Pins · Power Transformer: 500VA Power Transformer included (120V-240V Manual Switch), Plug Type: TYPE G, UK, 3 Thick Flat Pins |
|
SPECIAL INSTRUCTIONS |

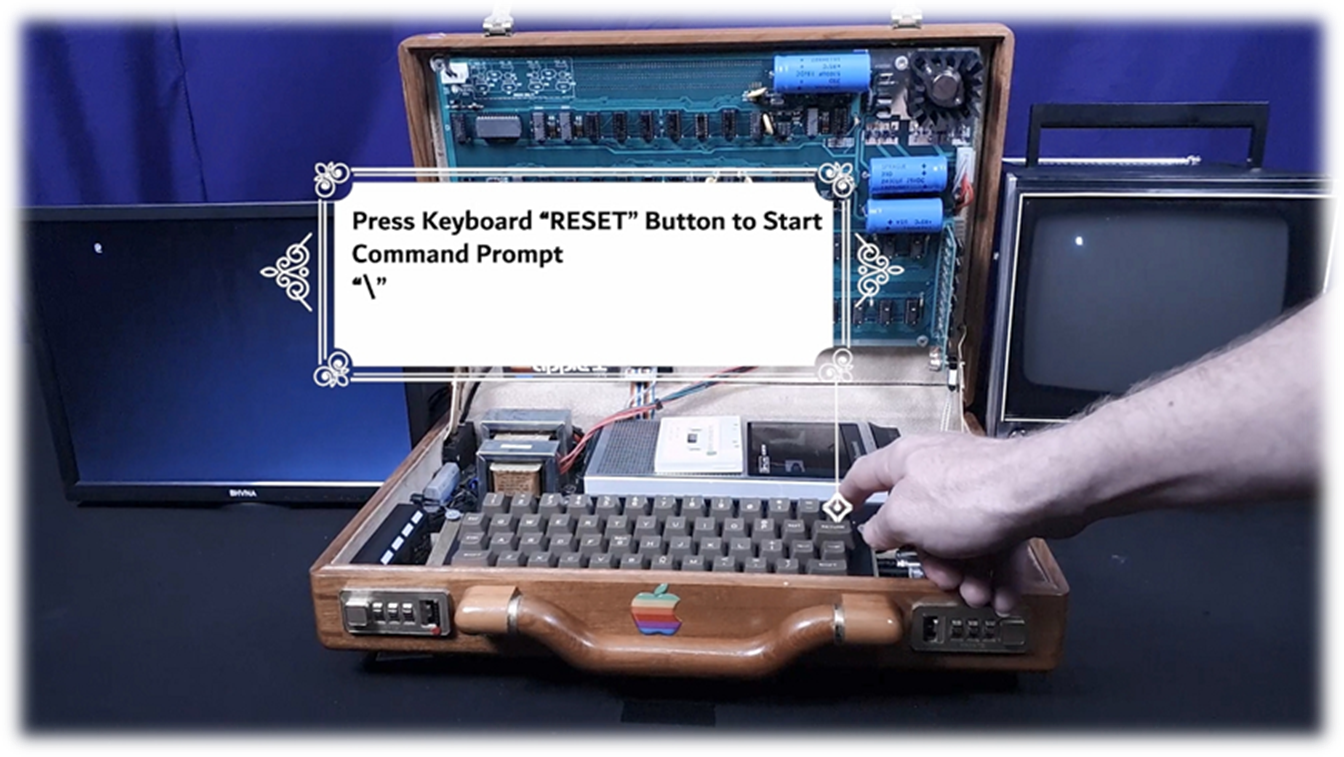

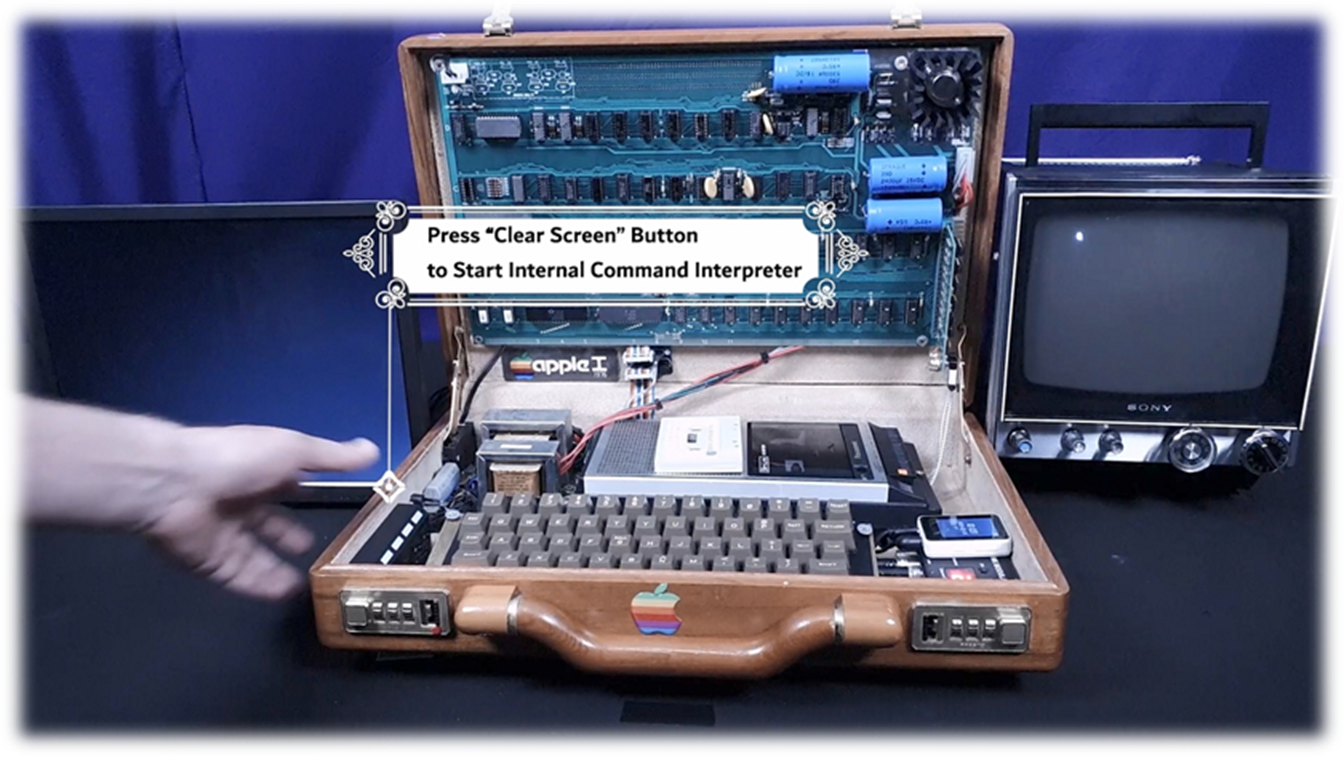

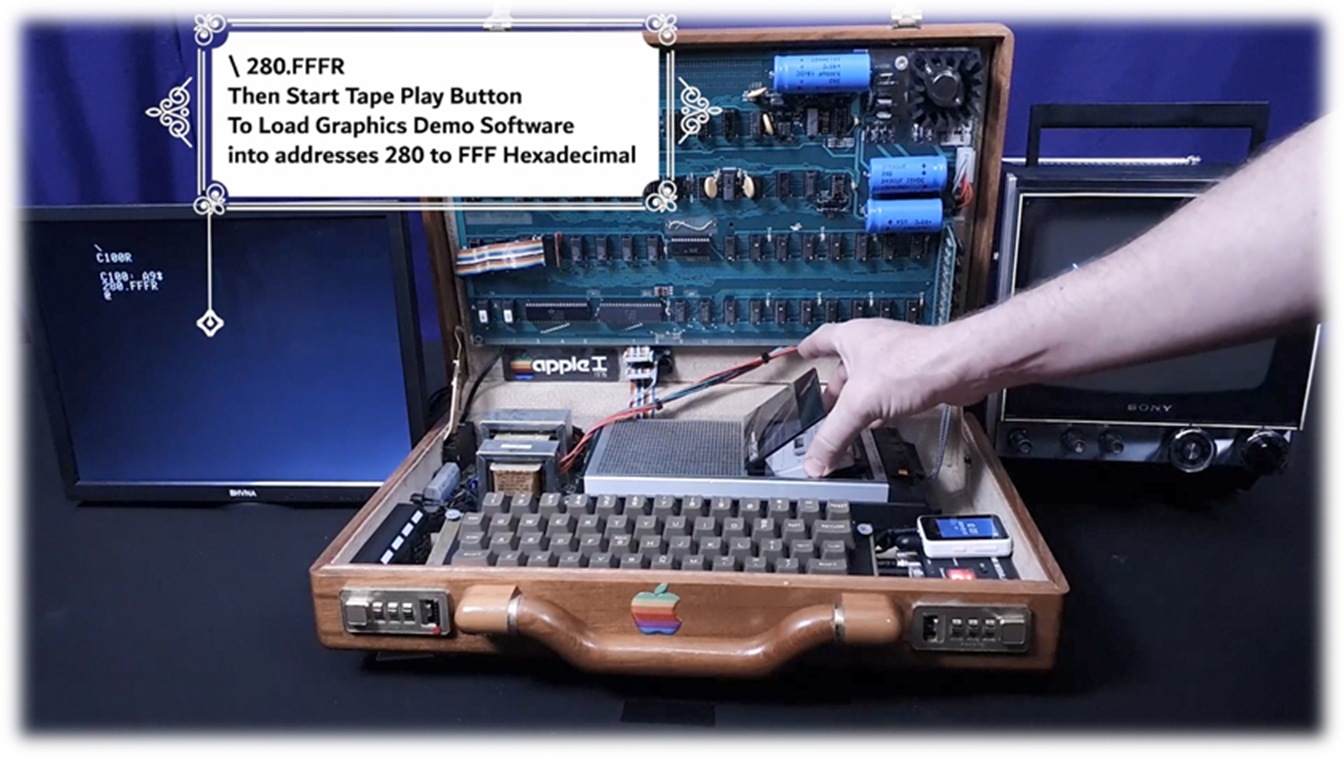

· On Startup: blinking @ signs filling screen · Press ClearScreen black button integrated left of the case · Press RESET key to start commands · C100R : to enter cassette load/save mode · 280.FFFR : then press cassette tape to load demo text photos program · RESET : any time to break run · Load software from default cassette tape player or switch cassette IN cable to integrated media player with 100s of Apple 1 applications and games · Keep cassette player volume level low (3-4) and Tone (7-8) for better program loading and recognition (analog to digital conversion) |
